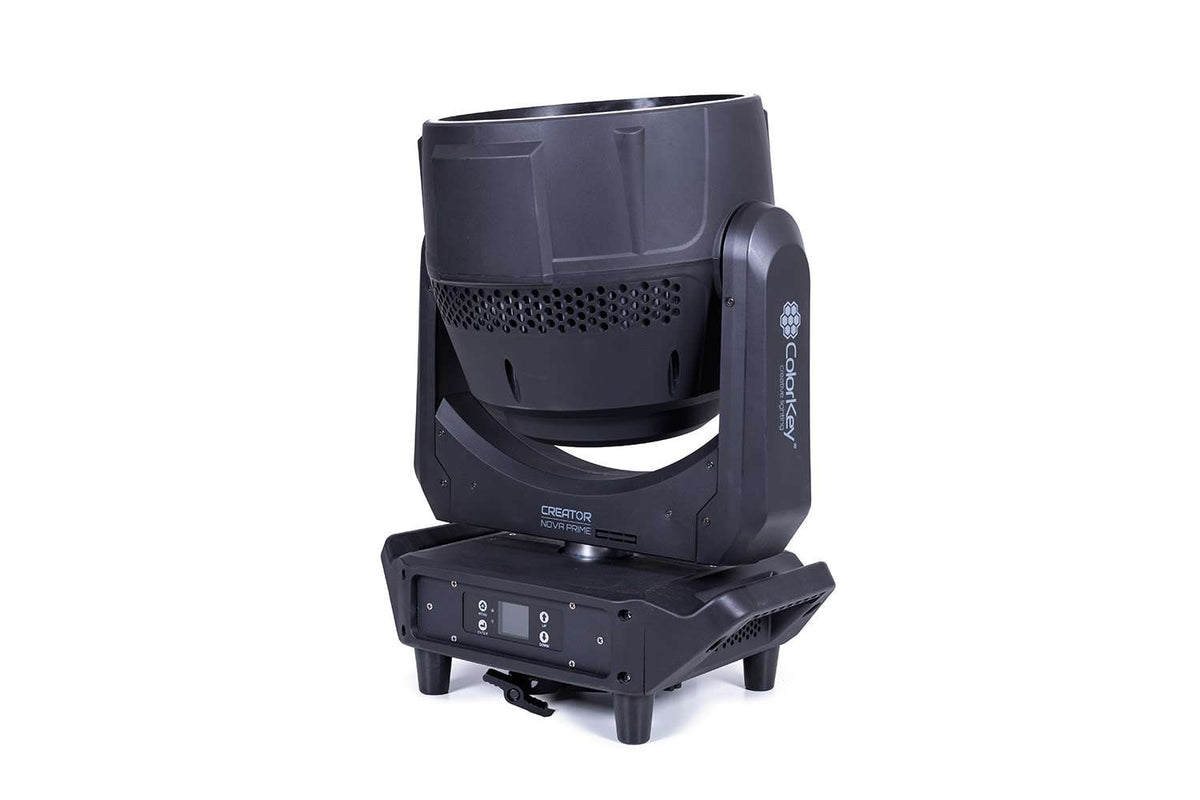

Colorkey Creator Nova Prime - 200W Beam and Pixel Wash Moving Head

Colorkey Creator Nova Prime - 200W Beam and Pixel Wash Moving Head

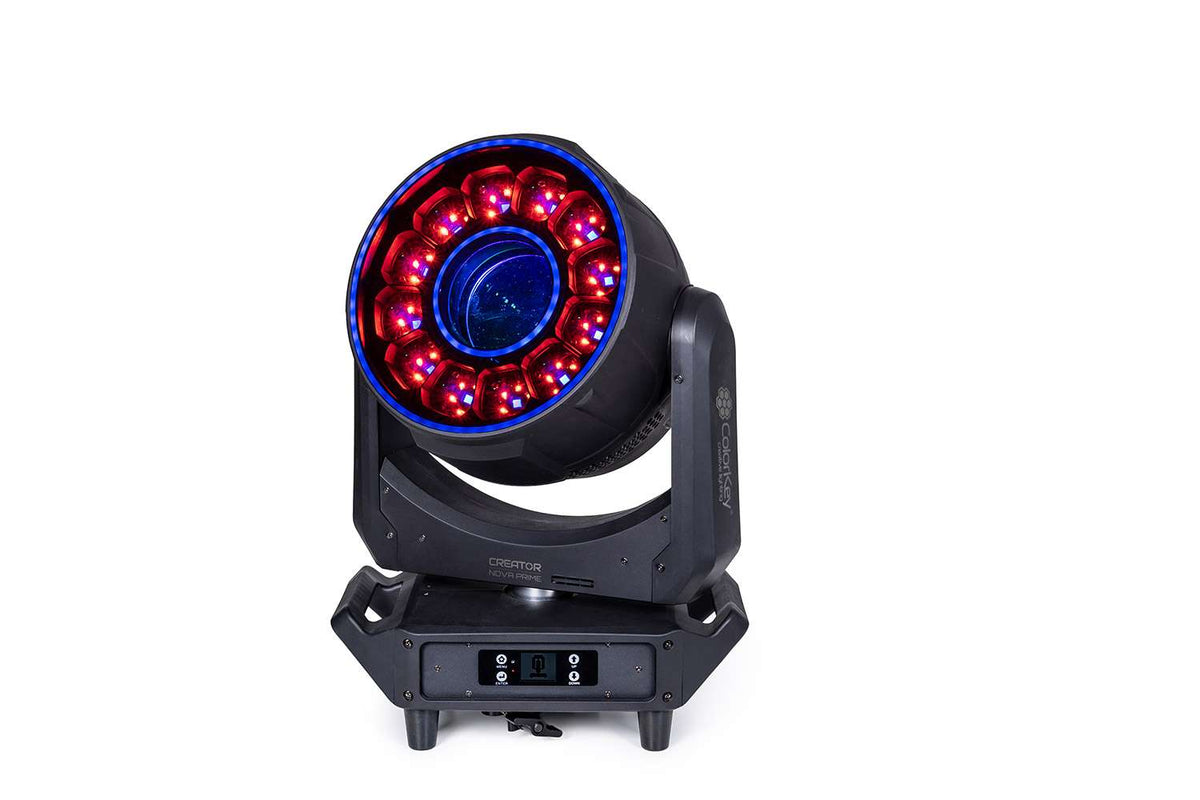

The Creator Nova Prime is Colorkey's flagship moving head, pairing a 200W beam with 12 NovaCell pixel lenses and two UHX halo rings. It is built for production companies, venues and installs that want wash, beam and pixel effects from a single fixture.

200W Beam Engine

The center 200W white beam runs a 2° beam angle with a 13-color wheel, a 10-gobo wheel, 16-facet and 8-facet prisms, motorized focus and a frost filter for softening the beam.

NovaCell Pixel Wash

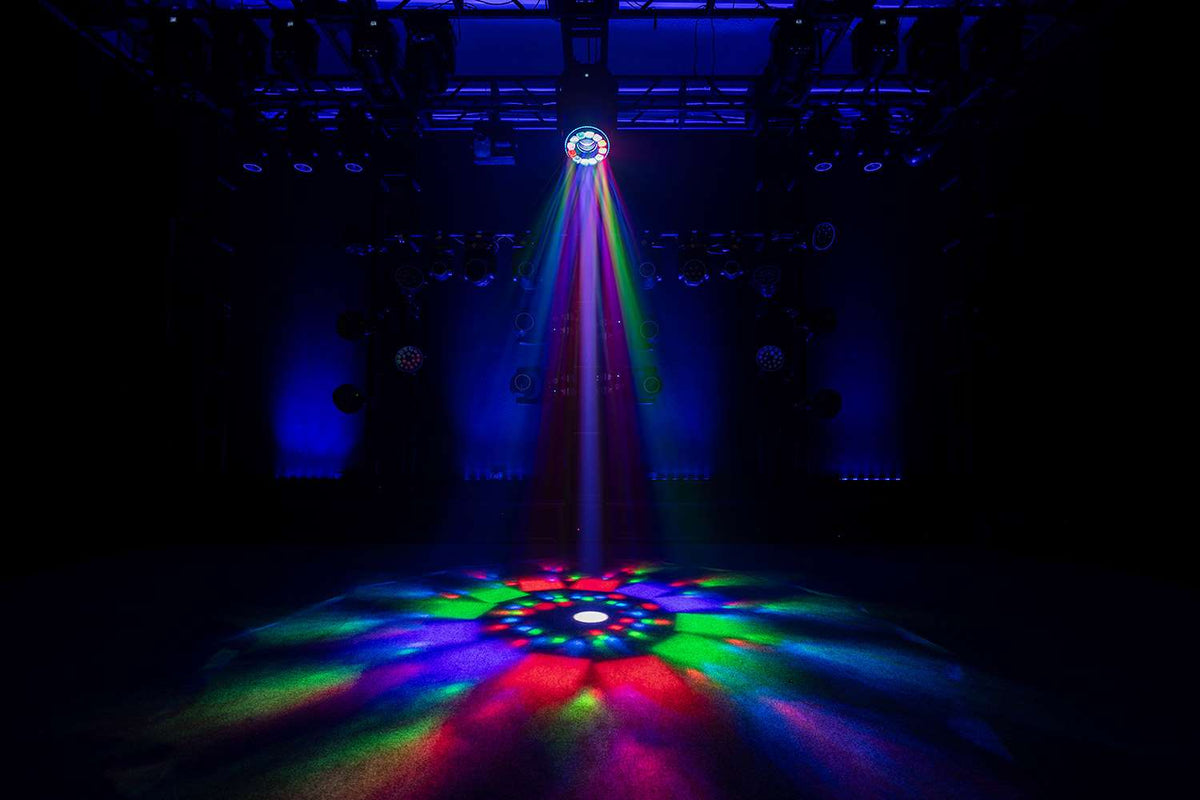

Twelve NovaCell lenses combine 12 x 40W RGBW COB LEDs with 72 x 5W RGBA SMD LEDs. The COBs zoom from 31° down to 8° and the lenses rotate. COB and SMD layers are controlled separately, so you can stack color, run pixel movement, or go from a wide wash to a tight beam, or run both at once.

Dual UHX Halos

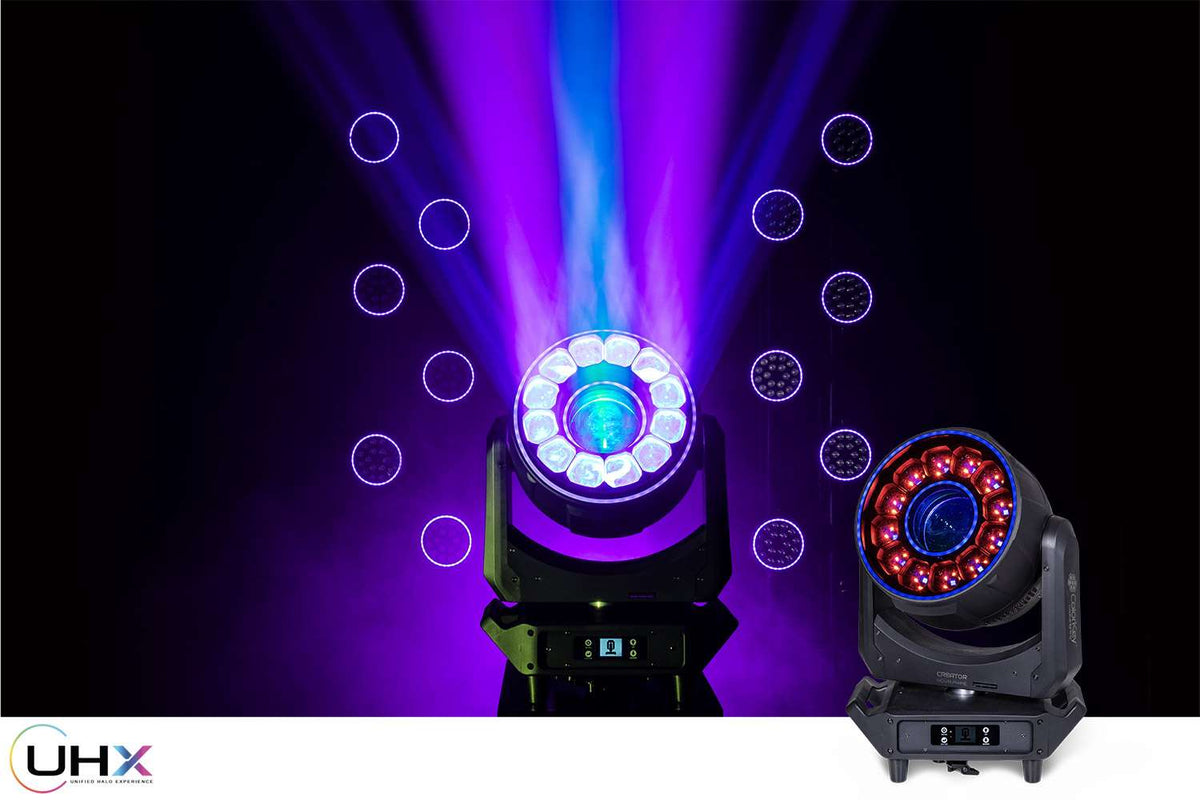

Two RGB halo rings are UHX-enabled and program together with other UHX fixtures for a matched look across the rig.

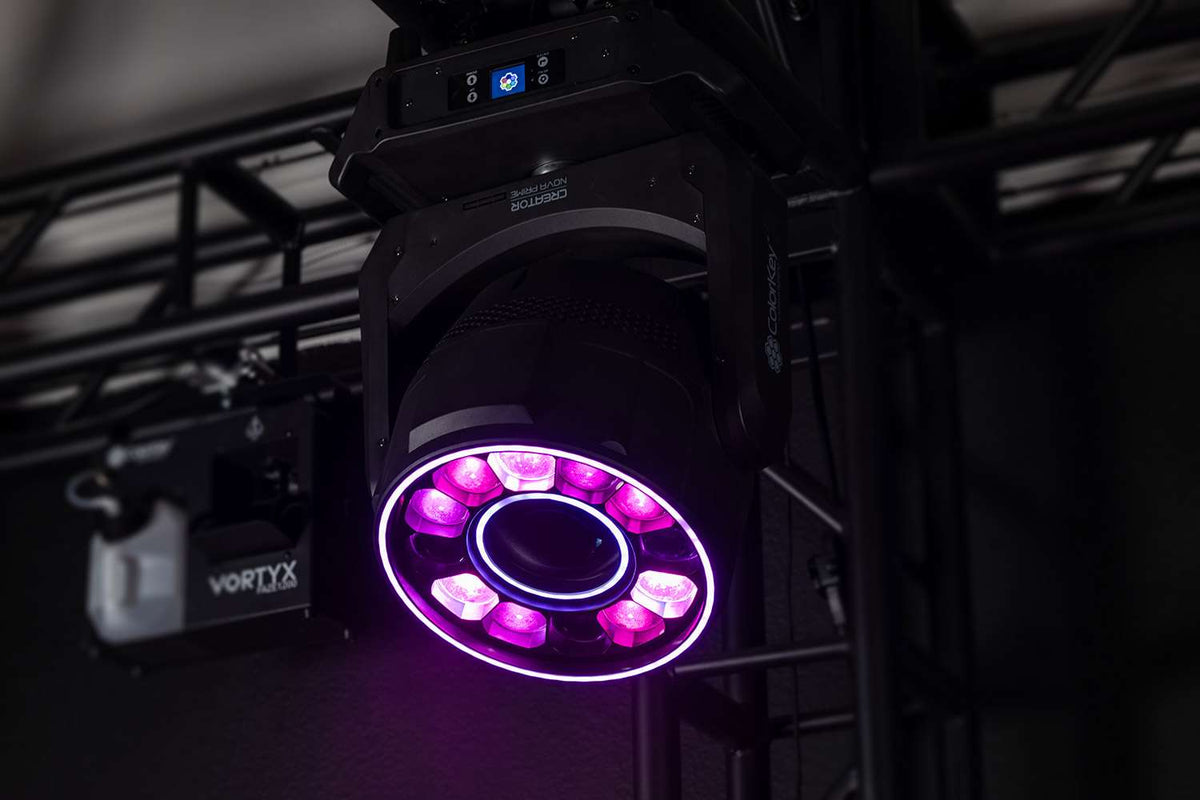

Rig-Ready

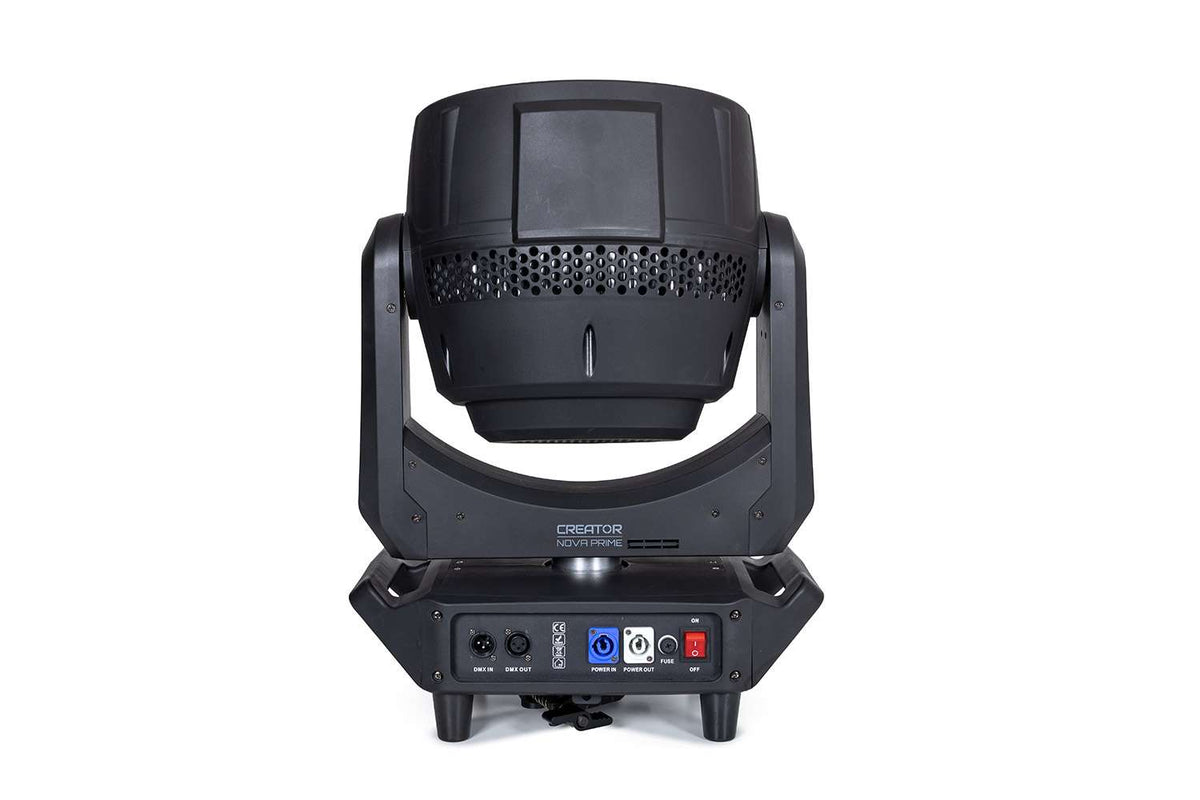

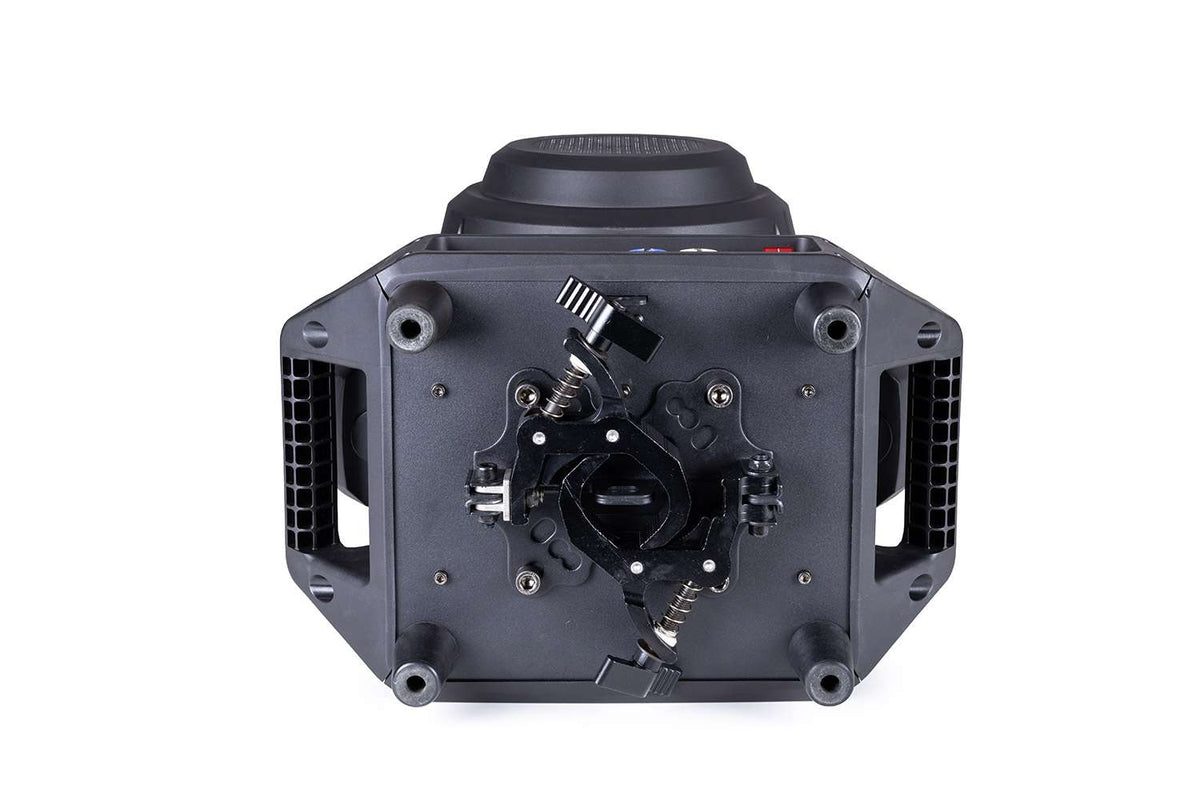

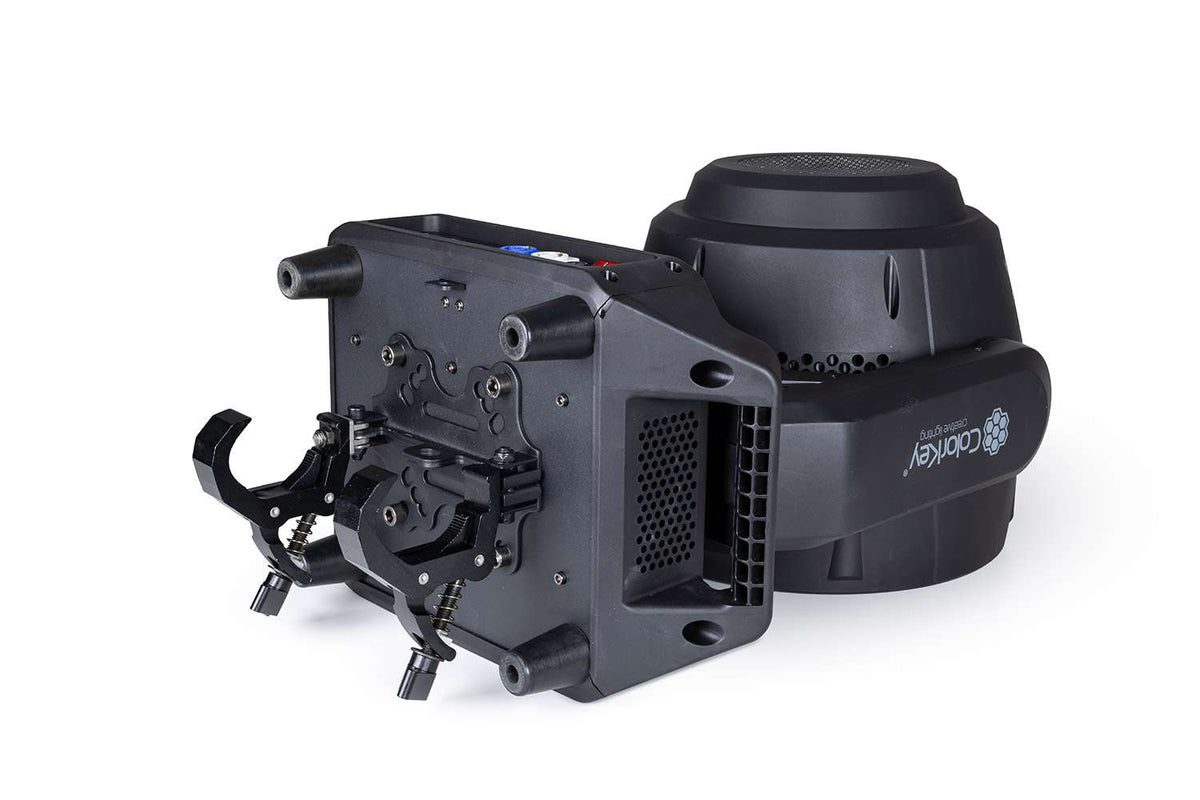

Dual folding clamps come pre-installed on the base for truss hanging, and a full-color LCD handles setup. Control is via DMX512 and RDM with 46 or 94 channels. A matching flight case is sold separately.

Key Features:

• 200W white beam with 2° beam angle
• 13 colors, 10 gobos, dual prisms, frost and motorized focus
• 12 NovaCell lenses: 12 x 40W RGBW COB plus 72 x 5W RGBA SMD
• Independent COB and SMD pixel control with zoom and rotation
• Dual UHX halo rings
• Pre-installed dual folding clamps
• DMX512 and RDM, 46 / 94 channels

What's Included:

• 1x Colorkey Creator Nova Prime (dual folding clamps pre-installed)

Specifications:

• Beam Source: 200W white
• Wash/Pixel Sources: 12 x 40W RGBW COB, 72 x 5W RGBA SMD
• Halos: 2 x RGB
• Beam Angle: 2°
• Color Wheel: 13 colors + white
• Gobo Wheel: 10 gobos + open
• Prisms: 16-facet and 8-facet
• Focus: Motorized
• COB Beam Angle: 31° to 8°, 46° field angle
• COB Output: 7,840 lux @ 2 m (31°); 107,000 lux @ 2 m (8°)
• COB CCT: 2800K-8000K
• SMD Beam Angle: 52°, 520 lux @ 2 m
• Control: DMX512, RDM, Auto, Sound Active
• DMX Channels: 46 / 94
• Max Power: 900W
• Max Power Linking: 10A
• Voltage: AC100-240V, 50/60 Hz
• Size: 10.6 x 17.3 x 21.7 in (27 x 44 x 55 cm)
• Weight: 67 lb (30.4 kg)

Beam Source: 200W white
Wash/Pixel Sources: 12 x 40W RGBW COB, 72 x 5W RGBA SMD
Halos: 2 x RGB
Beam Angle: 2°
Color Wheel: 13 colors + white
Gobo Wheel: 10 gobos + open
Prisms: 16-facet and 8-facet
Focus: Motorized
COB Beam Angle: 31° to 8°, 46° field angle
COB Output: 7,840 lux @ 2 m (31°); 107,000 lux @ 2 m (8°)
COB CCT: 2800K-8000K
SMD Beam Angle: 52°, 520 lux @ 2 m
Control: DMX512, RDM, Auto, Sound Active
DMX Channels: 46 / 94
Max Power: 900W
Max Power Linking: 10A
Voltage: AC100-240V, 50/60 Hz
Size: 10.6 x 17.3 x 21.7 in (27 x 44 x 55 cm)
Weight: 67 lb (30.4 kg)

1x Colorkey Creator Nova Prime (dual folding clamps pre-installed)
