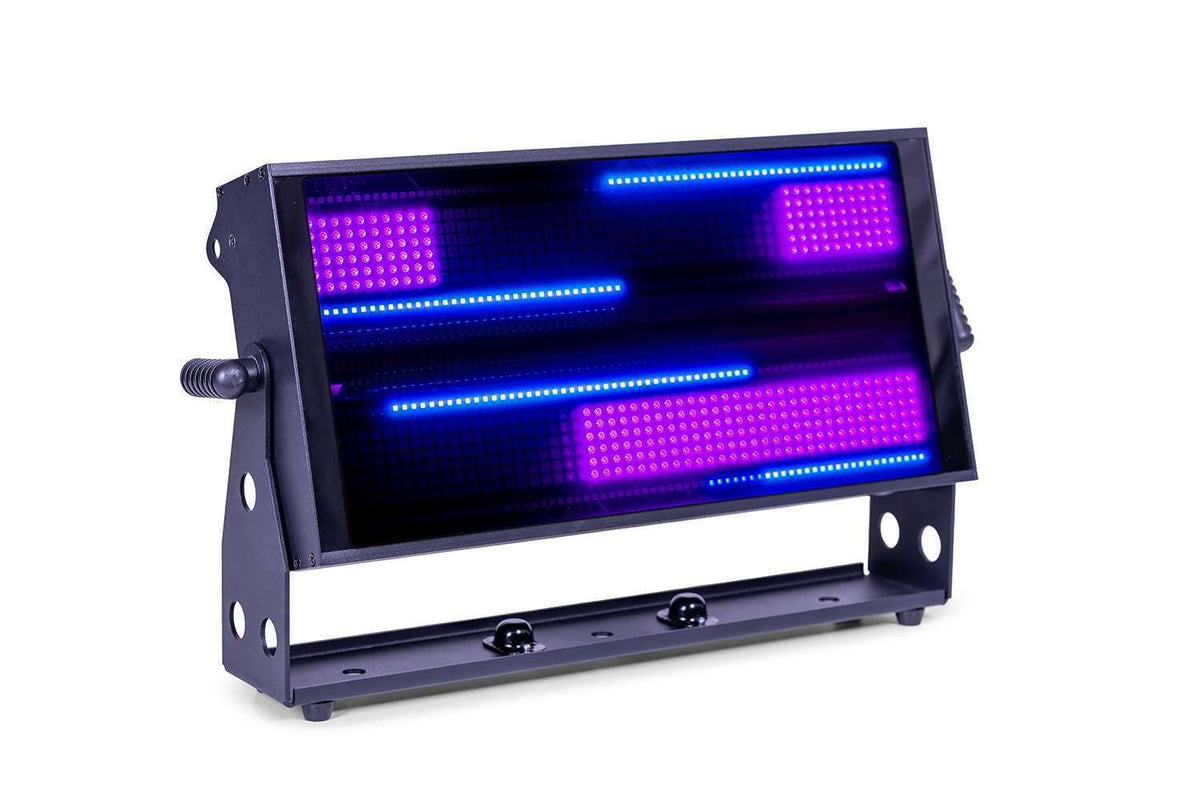

Colorkey Inceptor Panel FX - Pixel-Mapped LED Wash and Effects Panel

Colorkey Inceptor Panel FX - Pixel-Mapped LED Wash and Effects Panel

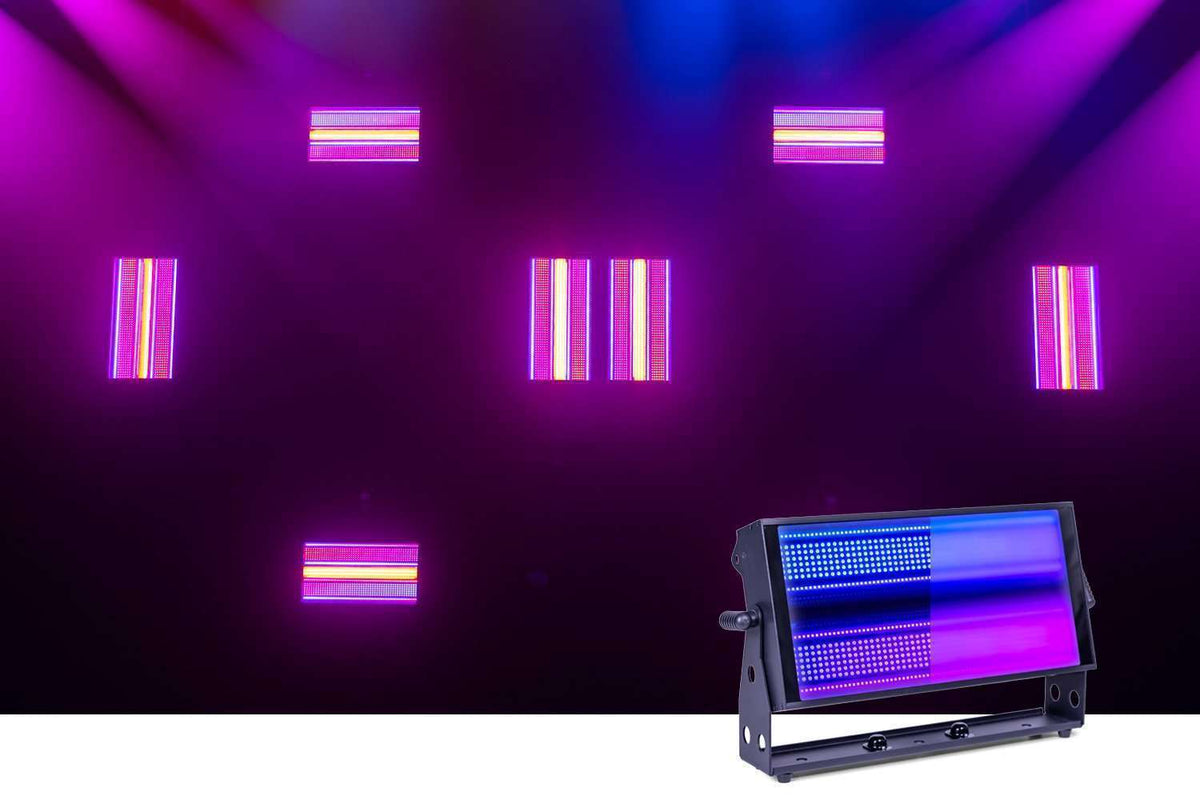

The Inceptor Panel FX is a high-output LED panel that works as a wash, a pixel effect and a blinder in one fixture. It's built for stage productions, venue installs, and retail or hospitality accent lighting.

ActiveFrost Electronic Diffusion

The front glass switches electronically between clear and frosted. Clear shows off the individual pixels for sharp effects, and frosted blends everything into a smooth, even wash. You get both looks without swapping filters or fixtures.

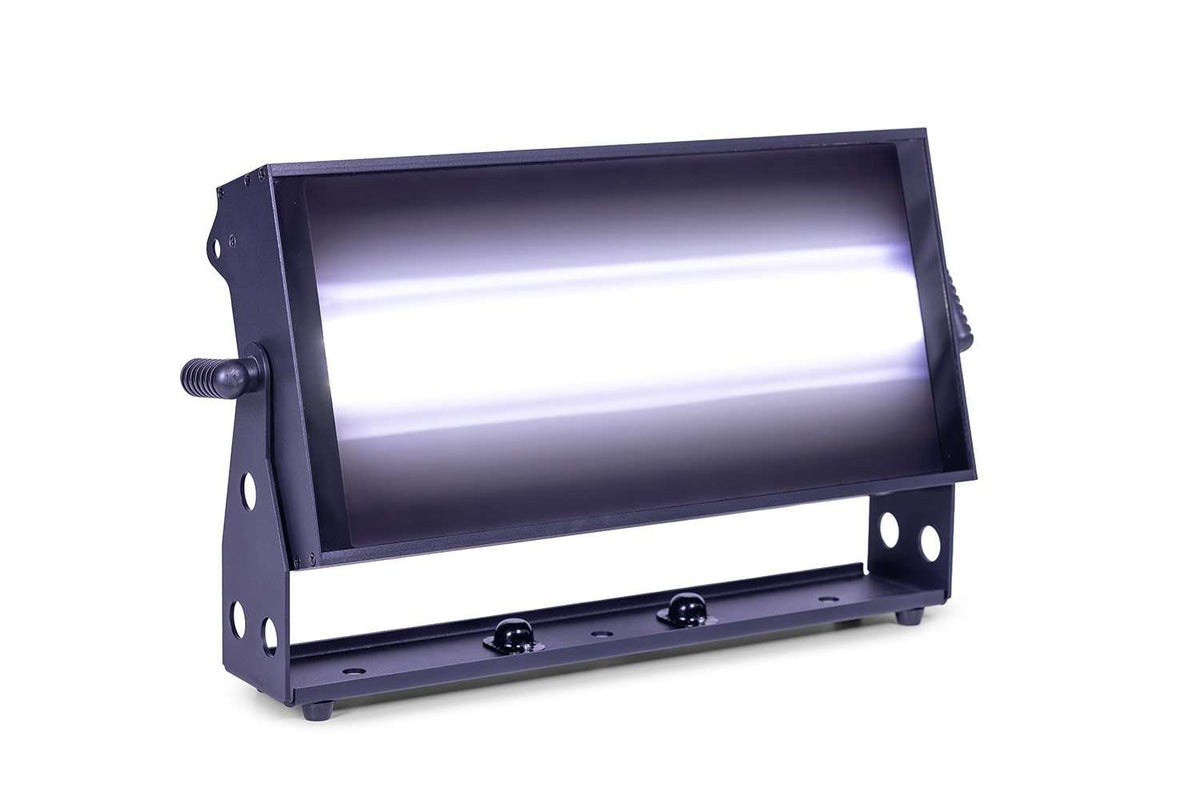

RGB Plus Warm and Cool White

Alongside the RGB pixels sits a 240x 1W warm and cool white engine with color temperature control from 1800K to 6500K. The dedicated warm white handles amber and tungsten-style looks that RGB alone struggles with, and the momentary strobe reaches 2680 lux at 2m for blinder hits.

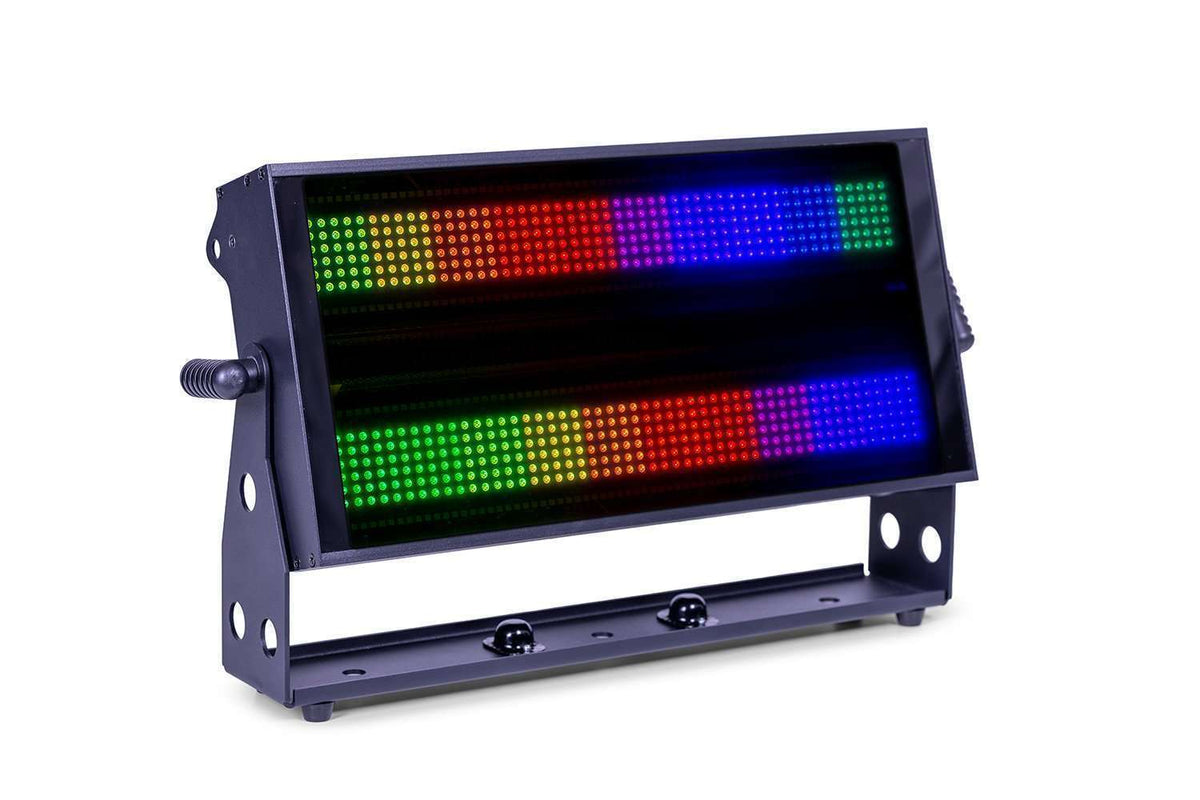

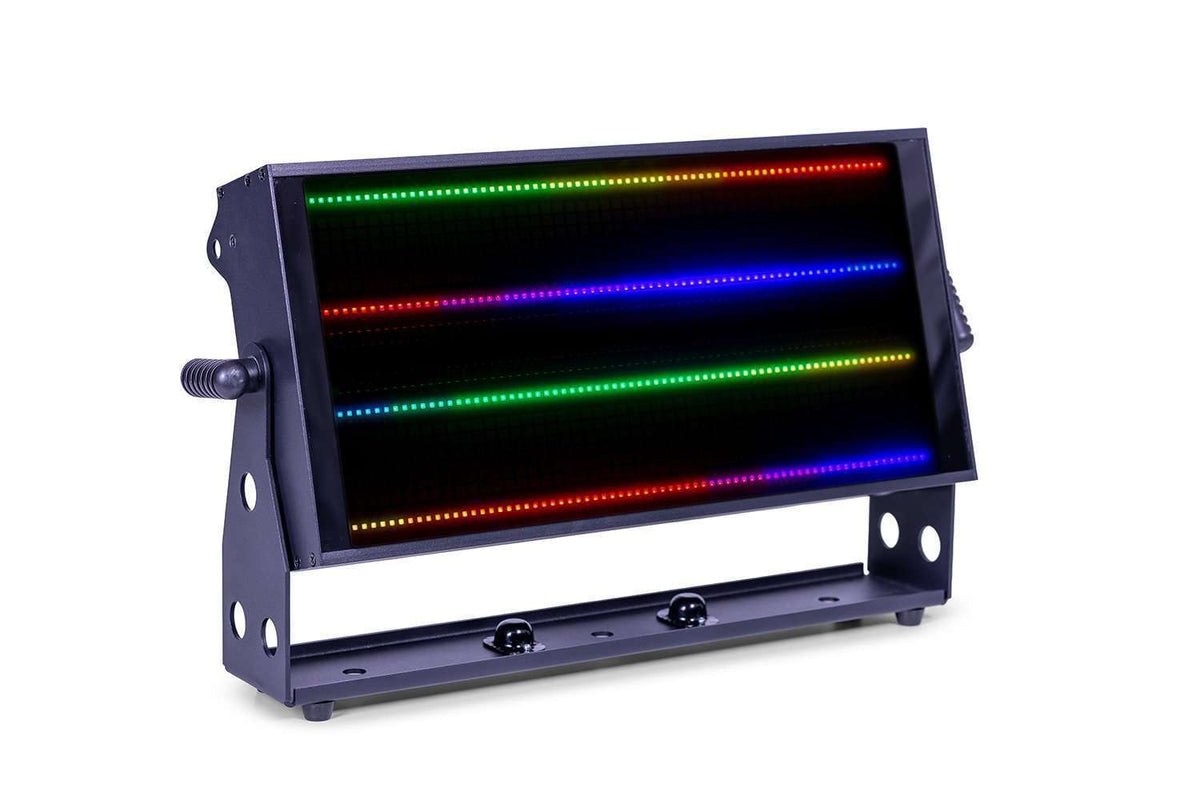

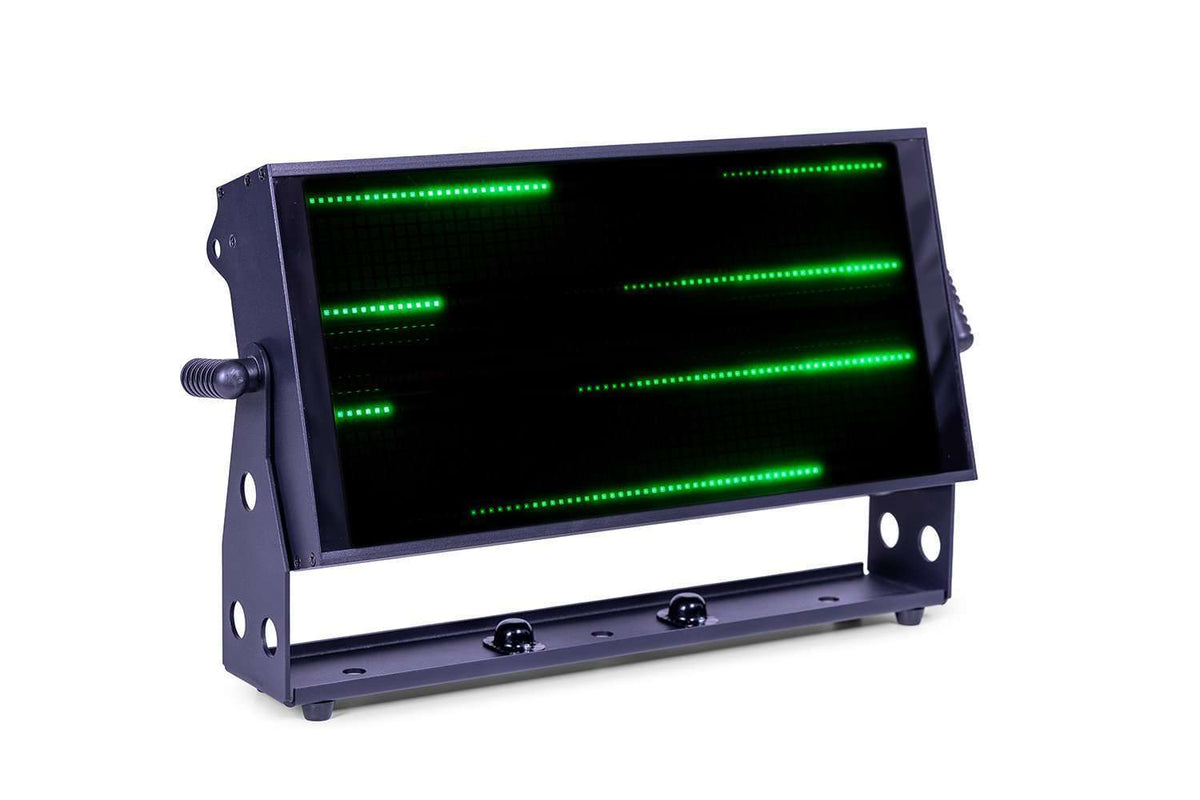

Pixel Control and Pro Connections

Multi-segment pixel zones let you program chases, gradients and animated effects, with DMX modes running from 10 channels up to 201 channels for full pixel control. It also supports RDM, auto and sound-active modes. PowerCON in/out and both 3-pin and 5-pin DMX in/out make it easy to link a row of panels, and dual Omega bracket positions plus a removable yoke let you hang it from truss or set it on the floor.

Key Features:

• ActiveFrost electronic diffusion switches between clear and frosted
• RGB pixels plus warm and cool white LEDs
• CTC from 1800K to 6500K
• Up to 158° RGB field angle for wide coverage
• Multi-segment pixel control with up to 201 DMX channels
• PowerCON and 3-pin/5-pin DMX in/out
• Removable yoke and dual Omega bracket mounting positions

What's Included:

• 1x Colorkey Inceptor Panel FX
• 1x Removable mounting yoke
• 1x Omega bracket

Specifications:

• RGB LEDs: 600x 0.5W RGB (20-segment), 545 lux @ 2m
• RGB LEDs: 280x 0.5W RGB (40-segment), 340 lux @ 2m
• Combined RGB Illuminance: 885 lux @ 2m
• White LEDs: 240x 1W Warm White / Cool White (10-segment)
• Color Temperature: Warm White 1800K, Cool White 6500K, CTC 1800K-6500K
• White Illuminance: Warm White 1181 lux @ 2m, Cool White 1415 lux @ 2m
• Momentary Strobe Illuminance: 2680 lux @ 2m
• LED Lifetime: 50,000 hours
• Optics: ActiveFrost electronic diffusion glass
• Beam Angle: RGB 120°, White 90°
• RGB Field Angle: 158°
• Control Protocols: DMX512, RDM, Auto, Sound Active
• DMX Channels: 10A / 10B / 16 / 26 / 201
• Dimmer: 0-100%
• Strobe: 1-20Hz
• Display: LED menu display
• Voltage: AC 100-240V, 50/60Hz
• Power Consumption: 390W @ 100V / 366W @ 220V
• Connections: PowerCON in/out, 3-pin and 5-pin XLR DMX in/out
• IP Rating: IP20
• Dimensions: 16.1" x 7.9" x 7.9" (41 x 20 x 20 cm)
• Weight: 15.4 lb (7 kg)

RGB LEDs: 600x 0.5W RGB (20-segment), 545 lux @ 2m
RGB LEDs: 280x 0.5W RGB (40-segment), 340 lux @ 2m
Combined RGB Illuminance: 885 lux @ 2m
White LEDs: 240x 1W Warm White / Cool White (10-segment)
Color Temperature: Warm White 1800K, Cool White 6500K, CTC 1800K-6500K
White Illuminance: Warm White 1181 lux @ 2m, Cool White 1415 lux @ 2m
Momentary Strobe Illuminance: 2680 lux @ 2m
LED Lifetime: 50,000 hours
Optics: ActiveFrost electronic diffusion glass
Beam Angle: RGB 120°, White 90°
RGB Field Angle: 158°
Control Protocols: DMX512, RDM, Auto, Sound Active
DMX Channels: 10A / 10B / 16 / 26 / 201
Dimmer: 0-100%
Strobe: 1-20Hz
Display: LED menu display
Voltage: AC 100-240V, 50/60Hz
Power Consumption: 390W @ 100V / 366W @ 220V
Connections: PowerCON in/out, 3-pin and 5-pin XLR DMX in/out
IP Rating: IP20
Dimensions: 16.1" x 7.9" x 7.9" (41 x 20 x 20 cm)
Weight: 15.4 lb (7 kg)

1x Colorkey Inceptor Panel FX 1x Removable mounting yoke 1x Omega bracket
