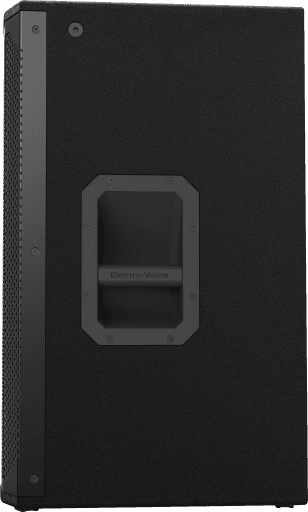

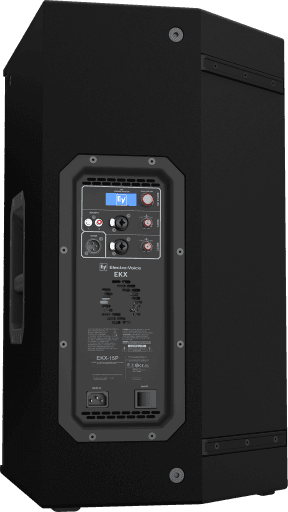

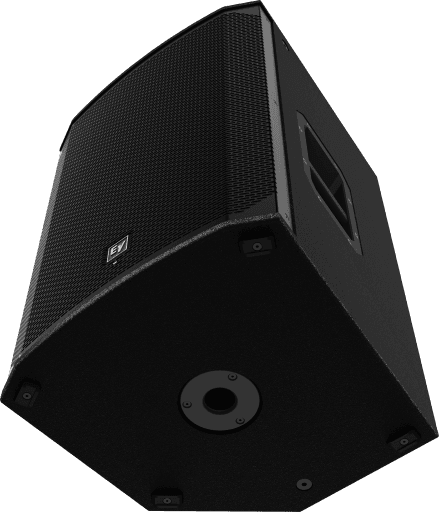

Electro-Voice EKX-15P - 15" Powered Loudspeaker
-15" powered loudspeaker
- Features high-efficiency Class-D power amplifiers (up to 1500 W)
- Ideal for portable and installed applications
- QuickSmart Mobile wireless control and monitoring application integrated
Product Details
Product Features
15" Powered Loudspeaker
QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD. High-efficiency 1500 W Class D power amplifier delivers up to 134 dB peak SPL on the EKX-15P via high-sensitivity transducers designed and engineered by EV. Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions. EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage. Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
Product Specifications
|
Frequency Response (-3 dB) |
55 Hz - 18 kHz¹ |
|
Frequency Range (-10 dB) |
48 Hz - 20 kHz¹ |
|
Maximum SPL |
134 dB² |
|
Coverage (H x V) |
90" x 60" |
|
Power Rating |
1500 W |
|
LF Transducer |
EVS-15M 381 mm (15 in) |
|
HF Transducer |
DH-1M 1-inch titanium compression driver |
|
Crossover Frequency |
1.7 kHz |
|
Connectors |
(1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output |
|
Enclosure |
15 mm plywood with EVCoat |
|
Grille |
18 AWG steel with powdercoat |
|
Suspension |
(8) M10 threaded mounting points |
|
Dimensions (H x W x D) |
685 mm x 432 mm x 429 mm (27 in x 17 in x 17 in) |
|
Net Weight |
24.4 kg (53.9 lb) |
|
Shipping Weight |
29.5 kg (65.0 lb) |
|
Power Consumption |
1.8 A³ |
|
¹ Full space measurement using the music DSP preset. |
|
|
² Maximum SPL is measured at 1 m using broadband pink noise at maximum output. |
|
|
³ Current rating is 1/8 power |
|
