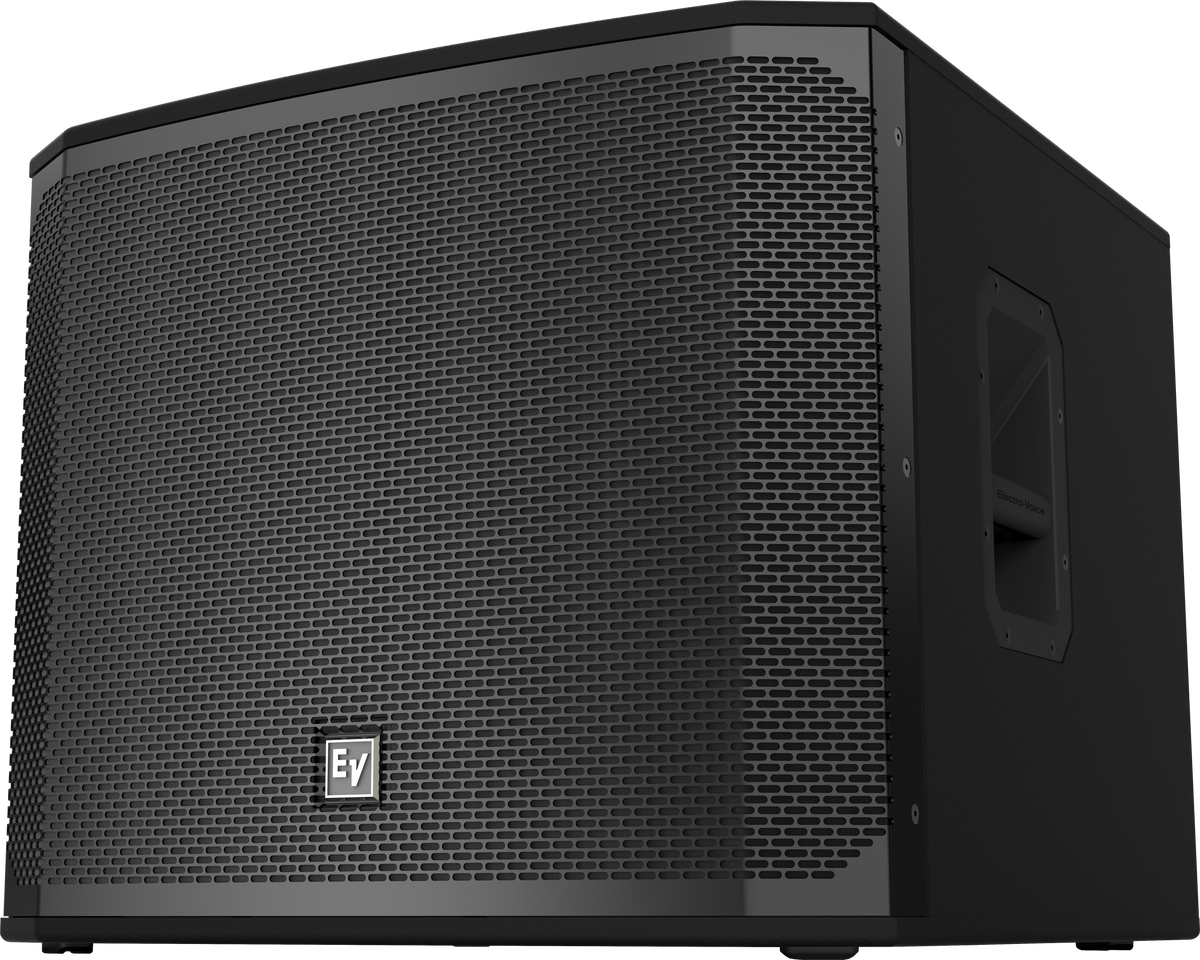

Electro-Voice EKX-18S - 18" Passive Subwoofer

The EKX series combines legendary EV sound quality and reliability with the latest technology in a compact package suitable for a wide range of sound reinforcement scenarios. EKX-18S delivers up to 134 dB SPL utilizing a high-sensitivity 18-inch EVS-18C subwoofer designed and engineered by EV. EKX passive models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures with internal bracing, durable EVCoat finish, aluminum pole mounts, and all-metal handles.

• 1600 W (peak), 134 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV
• Lightweight, compact 15-mm wood enclosure with internal bracing and durable EVCoat finish
• Large slot ports for low distortion and excellent bass extension
• Metal grille reinforcement bars
• M20 threaded pole mount plate

Frequency response (-3 dB): 50 Hz - 100 Hz Frequency range (-10 dB): 35 Hz - 300 Hz Axial sensitivity: 96 dB Maximum SPL: 134 dB peak Recommended high-pass frequency: 30 Hz Power handling: 400 W continuous, 1600 W peak LF transducer: EVS-18C, 457 mm (18 in) Nominal impedance: 8 Ohm Minimum impedance: 7.0 Ohm Connectors: Dual NL4 Enclosure: 15 mm plywood with EVCoat Grille: 18 AWG steel with powdercoat Dimensions (H x W x D): 520 mm x 606 mm x 612 mm (20.47 x 23.86 x 24.09 in) Net weight: 31.8 kg (70.0 lb) Shipping weight: 40.1 kg (88.4 lb)

EKX-18S subwoofer
