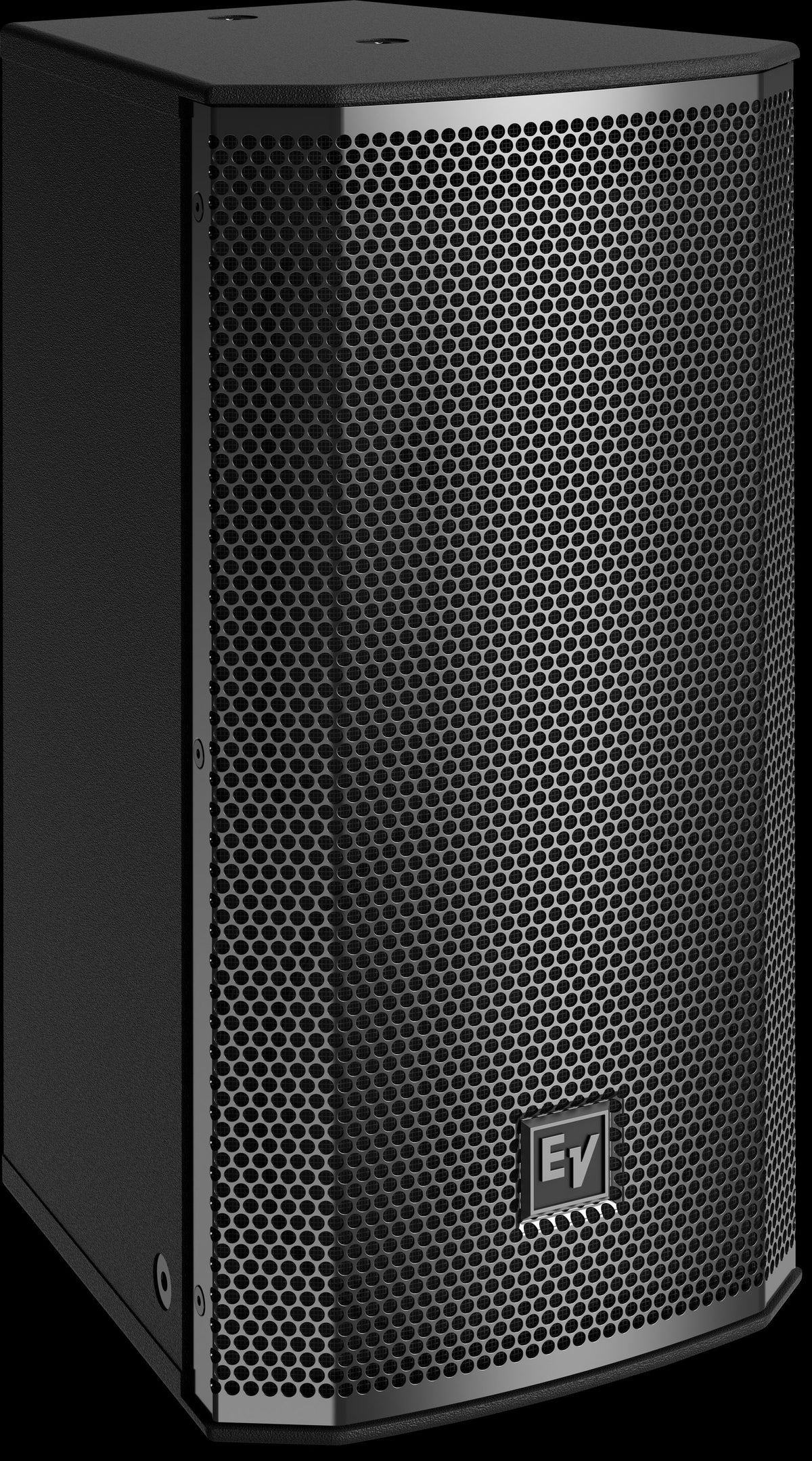

Electro-Voice EVC-1082-96PIB - 8" Speaker, 90x60 Weatherized, Black

The EVC-1082 is an 8-inch, two-way loudspeaker with a 90° x 60° constant-directivity, rotatable waveguide. Power rating is 200 W continuous (800 W peak), with a passive sensitivity of 91 dB and 120 dB maximum SPL. Gland-nut input cover and stainless-steel grille are included on PI versions.

EVC loudspeakers from Electro-Voice are two-way systems for a broad range of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package. EVC loudspeakers are voiced to complement other EV-Innovation models (EVF, EVH, EVA, and EVU).

The high-frequency section comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant-directivity waveguide that delivers uniform pattern control and smooth, linear response. The low-frequency section employs a high-output woofer developed using computer-aided optimization for low distortion, high efficiency, and maximum intelligibility at high sound pressure levels. The passive crossover implements a modified fourth-order design with slopes of 24 dB per octave for smooth off-axis response and improved definition through the critical vocal range.

The enclosure is constructed of 15-mm plywood finished with EVCoat for enhanced durability. The loudspeaker has multiple M10 suspension points as well as attachment points for an optional U-bracket or multi-mount style pan/tilt wall mount. For 70V/100V operation, the input panel has an internal landing pad for mounting EV's TK-150 audio transformer, which engages EV's patented Automatic Saturation Compensation (ASC) to preserve low-frequency performance.

Max Calculated SPL: 120 dB Rotatable Coverage: 90° x 60° Frequency Range (-10 dB): 55 Hz - 25,000 Hz Frequency Response (-3 dB): 75 Hz - 21,000 Hz LF Transducer: EVS-2008 HF Transducer: DH-2005 Axial Sensitivity (1 W/1 m): 91 dB Power Handling (Continuous/Program/Peak): 200 W / 400 W / 800 W Nominal Impedance: 8 ohms Minimum Impedance: 6 ohms Passive Crossover Frequency: 1.8 kHz Recommended High-Pass Frequency, 4th Order: 50 Hz for 8 ohms (50 Hz with TK-150 transformer) Connectors: Dual four-pin 10 AWG (6 mm) Phoenix/Euro Block screw-terminals Enclosure: 15 mm weather-resistant plywood with EVCoat Grille: 18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models) Color: Black Dimensions (H x W x D): 19.37 in x 9.76 in x 10.91 in (492 x 248 x 277 mm) Weight Net: 24.7 lb (11.2 kg) Shipping Weight: 28.0 lb (12.7 kg) Environmental Specs: IEC 60529, IP44 (IP55 for PI versions) Suspension: Eight M10 suspension points, optional U-Bracket or pan/tilt wall mount

Electro-Voice EVC-1082-96PIB 8" Two-Way Loudspeaker (Black)
Gland-Nut Input Panel Cover
