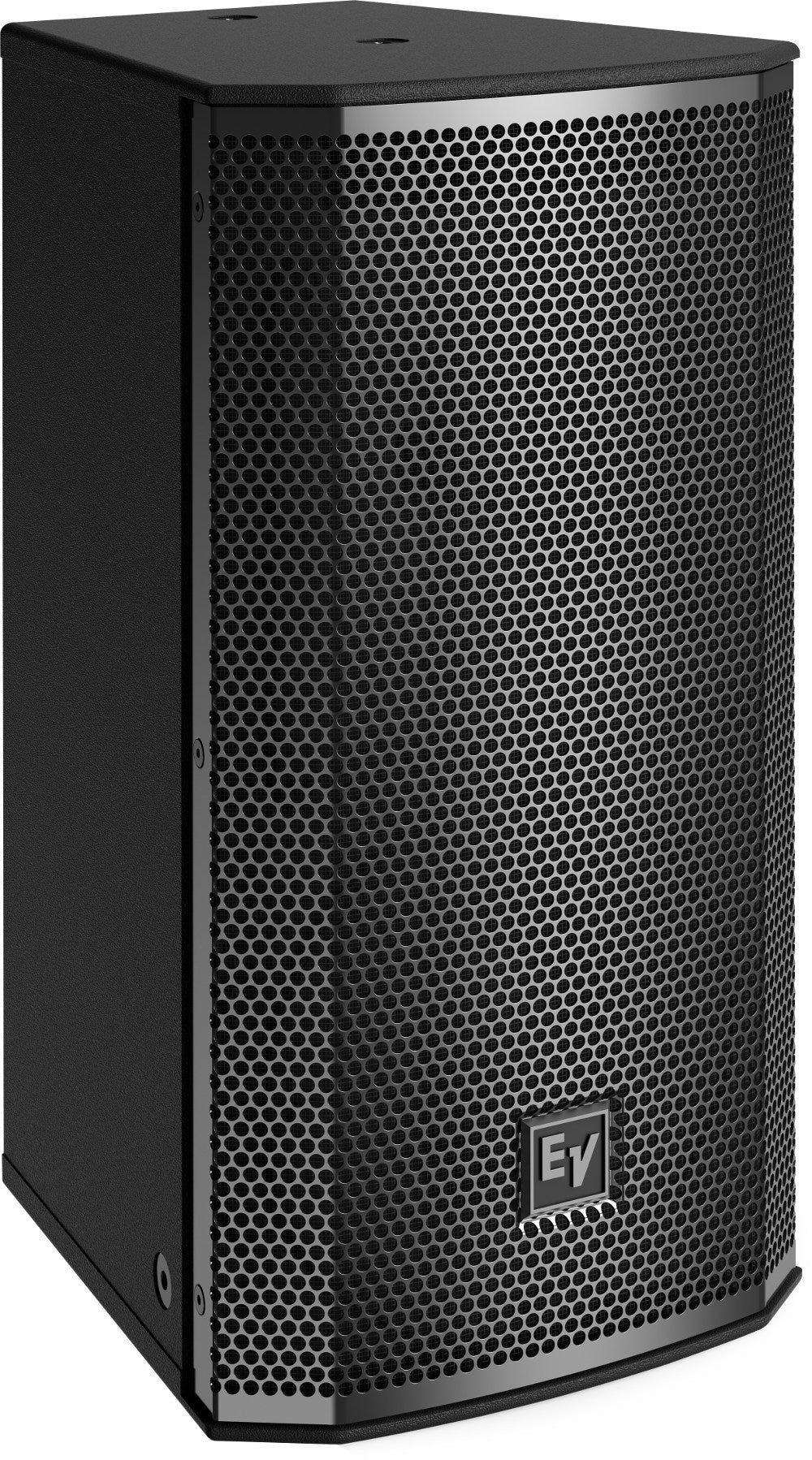

Electro-Voice EVC-1122-95B - 12" Indoor Speaker

EVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package. EVC loudspeakers are voiced to complement other EV-Innovation models (EVF, EVH, EVA, and EVU). The high frequency section of EVC loudspeakers comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant directivity waveguide that delivers uniform pattern control and smooth, linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art, computer aided optimization to provide low distortion, high efficiency, and maximum intelligibility at high sound pressure levels.

• 12-inch, two-way loudspeaker, with 90˚ x 55˚ constant directivity, rotatable waveguide
• Power rating: 300 W Continuous, (1200 Peak)
• Passive system: 95 dB, 126 dB maximum
• Black finish
• Optional high quality transformer and patented Automatic Saturation Control (ASC) preserve low end over 70V/100V lines

Frequency response (-3 dB): 70 Hz - 22 kHz Frequency range (-10 dB): 50 Hz - 25 kHz Rotatable coverage: 90° x 55° Rec. high-pass frequency: 45 Hz Passive crossover frequency: 1.6 kHz Axial sensitivity: 95 dB (1 W/1 m) Max. calculated SPL: 126 dB Power handling: 300 W (Continuous), 1200 W (Peak) Nominal impedance: 8 Ohm Minimum impedance: 7 Ohm LF transducer: EVS-12M HF transducer: DH-3 Connectors: Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals Enclosure: 15-mm plywood with EVCoat Grille: 18 GA powdercoated steel with rotatable logo Environmental: IEC 60529, IP44 Suspension: (8) M10 suspension points Color: Black Dimensions (H x W x D): 616 mm x 395 mm x 401 mm (24.26" x 15.56" x 15.77") Net weight: 20.3 kg (44.7 lb) Shipping weight: 22.7 kg (50.0 lb)

Electro-Voice EVC-1122-95B 12" Indoor Two-Way Loudspeaker (Black)
