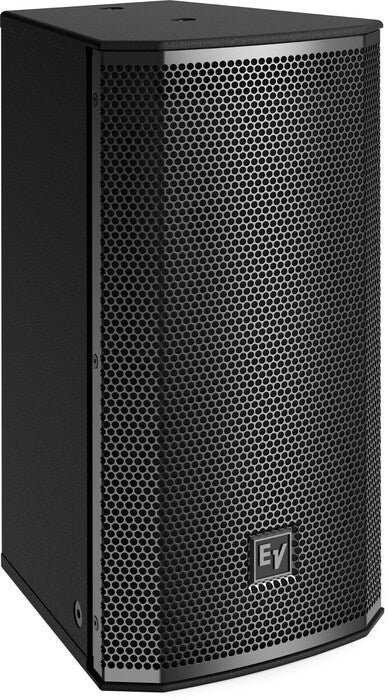

Electro-Voice EVC-1122-9d - 12" Indoor Speaker

Vendor:Electro-Voice

Electro-Voice EVC-1122-9d - 12" Indoor Speaker

$1,073.14
12" two-way indoor loudspeaker with a 90°x55° rotatable constant-directivity waveguide and a 1.25" titanium compression driver. Exact finish/suffix of this SKU could not be confirmed against Electro-Voice's published EVC-1122 lineup — see product notes.
In-Stock!

Ships in 1-2 Business Days.

Product Details

Product Features

EVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package. EVC loudspeakers are voiced to complement other EV-Innovation models (EVF, EVH, EVA, and EVU). The high frequency section of EVC loudspeakers comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant directivity waveguide that delivers uniform pattern control and smooth, linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art, computer aided optimization to provide low distortion, high efficiency, and maximum intelligibility at high sound pressure levels.

  • 12-inch, two-way loudspeaker, with 90˚ x 55˚ constant directivity, rotatable waveguide
  • Power rating: 300 W Continuous, (1200 Peak)
  • Passive system: 95 dB, 126 dB maximum
  • Optional high quality transformer and patented Automatic Saturation Control (ASC) preserve low end over 70V/100V lines
Product Specifications

Max Calculated SPL: 126 dB Rotatable coverage: 90° x 55° Frequency Range (-10 dB): 50Hz-25kHz Suspension: Eight M10 Suspension Points, optional U Bracket or pan/tilt wall mount Minimum Impedance: 7 Ω HF Transducer: DH-3 Frequency Response (-3 dB): 70Hz-22kHz LF Transducer: EVS-12M Grille: 18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models) Weight Net: 20.3 kg Shipping Weight: 22.7 kg Environmental Specs: IEC 60529, IP44 (IP55 for PI versions) Nominal Impedance: 8 Ω Axial Sensitivity (SPL, 1 W @ 1 m): 95 dB Power Handling (Continuous / Peak): 300/600/1200 W Connectors: Dual four-pin 10 AWG (6 mm) Phoenix/Euro Block screw-terminals Enclosure: 15mm weather-resistant plywood with EV Coat Color: Black or white Dimensions (H x W x D): 616 x 395 x 401 mm Passive crossover frequency: 1.6 kHz Rec. high-pass frequency, 4th Order: 45 Hz for 8Ω (50 Hz with TK-150 transformer)

What's included

Electro-Voice EVC-1122 12" Indoor Two-Way Loudspeaker
