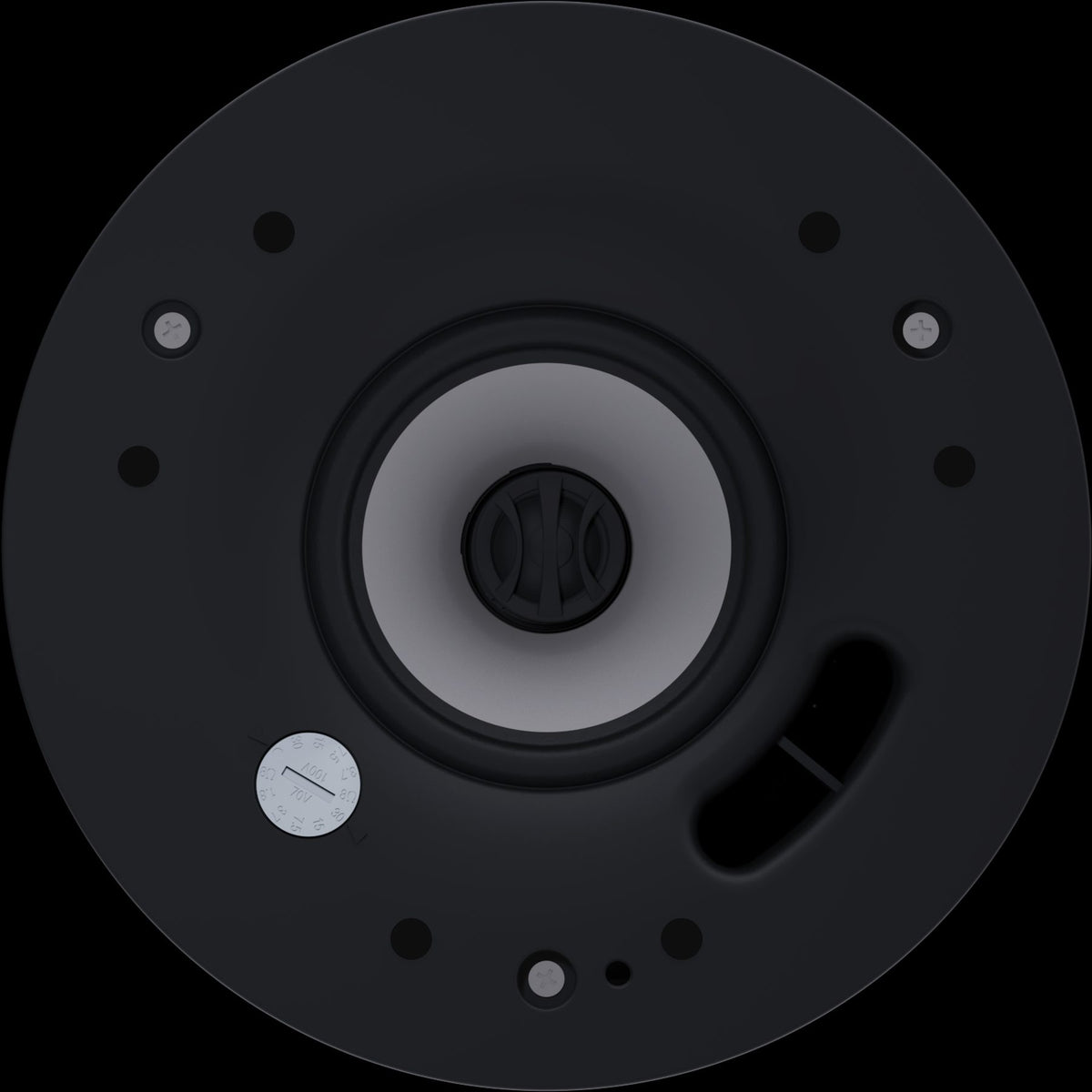

Electro-Voice EVID-C4.2-G2 - 4" 2-Way Coaxial Ceiling Speaker w/ Multi-Tap 70/100V Transformer

• SwiftLock mounting system for quick, safe, and reliable installation.
• Bezel-less design with easy-attach grille.
• Front baffle wattage tap adjustment.
• Includes tile bridge and mounting ring for easy installation.
• UL 1480A, UL 2043 and CSA 22.2 205 certified.

The Electro-Voice EVID-C4.2-G2 is a complete 4-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with first-class aesthetics. It includes the SwiftLock mounting system for quick and easy installations that are fast and reliable without compromising on safety.

The loudspeaker features a point-source design to improve off-axis response and overall uniform coverage. The EVID-C4.2-G2 utilizes a transformer that offers a selection of 1.9 (70-V only), 3.8, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminal-cover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers.

A mounting ring and a tile bridge are included for safe suspension of the EVID-C4.2-G2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.

The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers

Frequency range (-10 dB): 70 Hz - 20,000 Hz Maximum SPL (continuous): 106 dB Maximum SPL (peak): 112 dB Sensitivity (1 W, 1 m): 88 dB SPL 1 W, 1 m Coverage angle conical: 130 degrees Power handling (continuous): 70 W Power handling (peak): 280 W Long term power handling (continuous): 50 W Long term power handling (peak): 200 W Nominal impedance (Low Z): 8 ohms Recommended high pass: 70 Hz Transformer taps 70 V line: 30 W; 15 W; 7.5 W; 3.75 W; 1.88 W Transformer taps 100 V line: 30 W; 15 W; 7.5 W; 3.75 W LF transducer size: 4 in HF transducer size: 0.75 in Material: Steel Grille material: Powder coated steel Connector type: 4-pin Euroblock, Input + Pass through Wire size: 12 AWG (maximum) Color: White; Customized colors Color (RAL): RAL 9003 Signal white Mounting cutout: 7.2 in / 183 mm Dimensions (diameter x depth): 8.4 in x 6.40 in / 212 mm x 163.6 mm Mounting depth: 6.2 in / 158 mm Ceiling thickness: 0.5 in - 1.5 in Weight: 5.9 lb (2.7 kg) Shipping weight: 14 lb (6.4 kg) IP rating: IP34 Weatherization: Indoor Operating temperature: 32F - 122F (0C - 50C) Safety agency ratings: UL 1480A, safe for use in airhandling spaces per UL 2043, CSA 22.2 205 certified, IEC 62638

Tile bridge and mounting ring included (per manufacturer bullet list) for safe suspension in drop ceilings.
