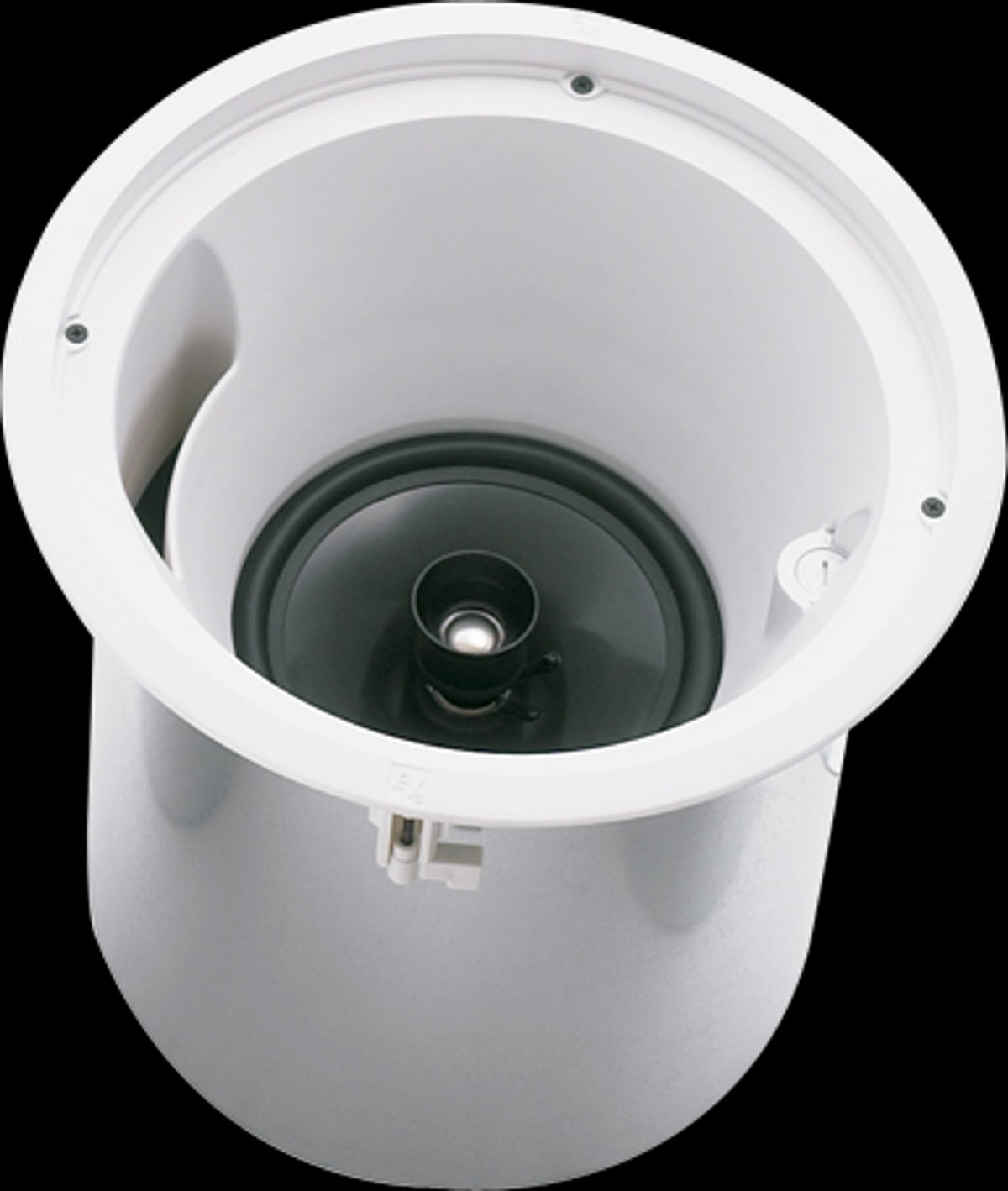

Electro-Voice EVID C8.2HC - 8" Waveguide Coupled Coaxial Speaker, Pair

• Maximum fidelity and intelligibility for high ceilings
• Ported enclosure for extended bass response
• Waveguide-coupled 1-inch titanium-coated tweeter
• Full-bandwidth overload protection
• Integrated transformer for 70 V, 100 V, or 8 Ω use
• Front-panel mode/wattage selector
• Safe, easy installation with included tile bridge and mounting ring
• White semi-gloss perforated grille
• Complete package, requires no additional accessories

Frequency Range (-10 dB): 50 Hz - 20000 Hz Weatherized: No HF Transducer: 1-inch (25 mm) Ti Mylar Laminate Dome Speaker Type: Ported cabinet, internally damped, two-way (passive crossover included) LF Transducer: 8-inch polypropylene cone plus waveguide System Power Handling (Continuous/Program/Peak): 100 Power Rating: 300 Enclosure Material: Steel enclosure and UL94V-0 rated baffle and bezel Grille: Powder-coated steel Sensitivity 1 W/1 m: 93 dB Available Color: White (paintable surface) Height: 303 mm Weight Net: 6 kg Chassis Size: 203.2 mm Diameter (Max): 320 mm Transformer Taps (Transformer Version Only): (7.5 - 70 V only), 15, 30, 60 Transformer: Yes Input Formats: 8 ohm, 70 V, 100 V Coverage (Nominal -6 dB): 75 degrees Mounting Systems: Integrated 3-point toggle anchors Regulatory Approvals: UL1480; UL2043

Complete package requiring no additional accessories; tile bridge and mounting ring included (per manufacturer bullet list).
