Product Details

Product Features

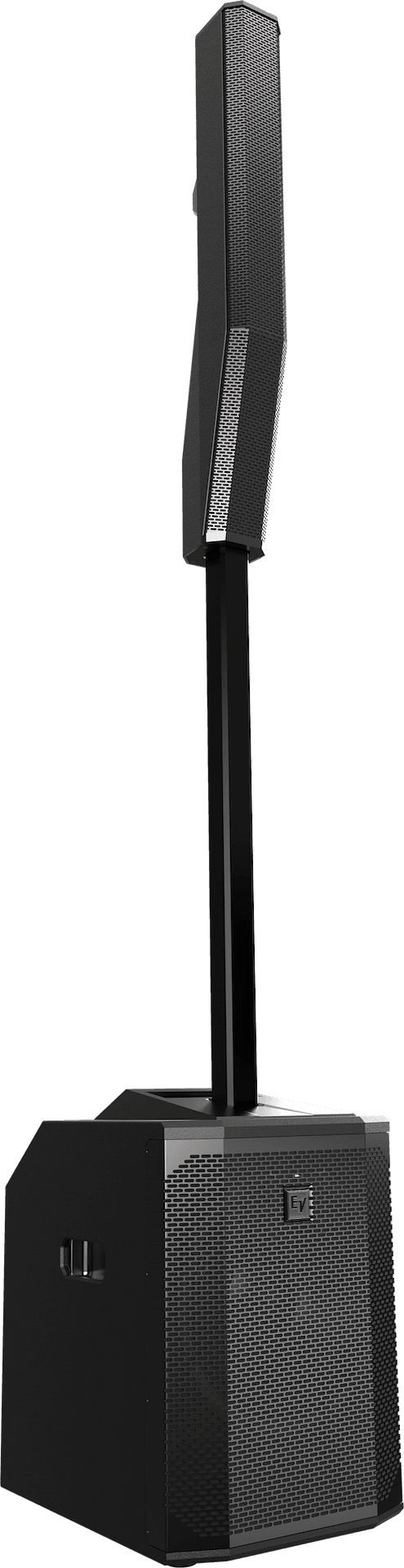

Designed to deliver an uncompromising combination of light weight, low‑profile looks, and superior Electro‑Voice audio quality, the EVOLVE 50 sets a new performance standard for powered column systems

Features:

CLEAN, COMPACT DESIGN — BUILT TO BLEND IN

Pure, accurate Electro‑Voice audio performance in a sleek new form factor. The perfect choice for DJs, mobile entertainers, bands, singer/songwriters and any venue where high‑output portable sound is needed — no other column system currently available sounds as good, looks as good, or is as easy to use. Acoustically powerful, aesthetically discreet: column sound evolves to the next level.

EASY TRANSPORT & SETUP

Ergonomically designed handles on both the array and the sub enhance portability. Integrated speaker wires allow quick, clean connection. Angled interface gives user easy access to make adjustments and connections on input panel.

PROFESSIONAL PA PERFORMANCE

Legendary EV audio quality via eight 3.5‑inch full‑range neodymium drivers and a 12‑inch subwoofer, powered by a three‑channel amp for high output. Cutting‑edge components and tuning provide full‑sized sound in a super‑streamlined, plug‑and‑play format.

WIDE, EVEN COVERAGE

Fill the room. Proprietary waveguides provide ultra‑wide 120° horizontal coverage and array‑formed 40° asymmetrical vertical pattern control. No energy is wasted — exceptional audience coverage and clarity from front to back.

QUICKSMART DSP

Best‑in‑class processing via EV’s signature single‑knob user interface with LCD. Easy operation via four presets (Music, Live, Speech, Club), threeband EQ, five user‑programmable presets, output delay, phantom power, input level control and metering, and master volume control to optimize gain structure.

WIRELESS CONTROL & MONITORING

New Bluetooth QuickSmart Mobile makes it easy to dial‑in settings in real‑time from in front of the system. Quickly configure, control and monitor of up to six EVOLVE 50 systems simultaneously, and receive immediate notification during critical performance conditions.

HIGH‑QUALITY BLUETOOTH AUDIO

For convenient streaming of background music or musical accompaniment direct from any mobile device.

The perfect choice for DJs, mobile entertainers, bands, singer/songwriters, and any venue where high‑output portable sound is needed — no other column system currently available sounds as good, looks as good, or is as easy to use. The smooth clarity of the EV sound in a sleek new form factor.

Product Specifications

Speaker Type

Full-Range

Powered or Passive

Powered

Frequency Response (-3 dB)¹

43 Hz – 20 kHz

Frequency Range (-10 dB)¹

37 Hz – 20 kHz

Max. SPL/1m (calc)²

127dB

Coverage (Nominal -6 dB) H

120°

Coverage (Nominal -6 dB) V

40°

Power Rating

1000W

LF Power Handling

500Watts

HF Power Handling

500Watts

Crossover Frequency

200Hz

Connector Type

2x XLR/TRS combo jack input 1x 3.5 mm Input 1x Stereo RCA input 1x Wireless Bluetooth® audio input 1x XLR THRU output 1x XLR MIX OUT output

Enclosure Material

sub – 15mm plywood, column – poly composite, pole – aluminum

Grille

Steel with powder coat

Available Color

Black or White

Height

80.51" (2045mm)

Width

13.58" (345mm)

Depth

18.54" (471mm)

Weight Net

57.87lbs (26.25kg)

Shipping Weight

69lbs (31.3kg)

Power Consumption³

100 - 240 V AC, 50 - 60 Hz, 1.5 - 0.6A

Family

EVOLVE

Transducer size

Column array: 8 x 3.5" Neodymium drivers

Subwoofer: 1 x 12” Neodymium drivers

Notes

¹Half-space measurement using live DSP preset.

²Maximum SPL is measured at 1 m using broadband pink noise at maximum output.

³Current rating is ⅛ power.

What's included

<ul> <li>Electro-Voice EVOLVE50-TB</li> <ul> <li>Column array box</li> <li>Sub pole</li> <li>Carry bag</li> </ul> </ul> <ul> <li>Electro-Voice EVOLVE50-SB-US</li> <ul> <li>Subwoofer box</li> <li>Power cords</li> <li>Installation manual</li> <li>Warranty c
