Vendor:Electro-Voice

Electro-Voice EVOLVE50M - Portable Column System (Black)

$2,199.00

- Portable column system
- Wide, even coverage
- Mix it up! Integrated mixer
- QuickSmart Link
- Easily expand your PA
- Wireless control & monitoring

Product Details

Product Features

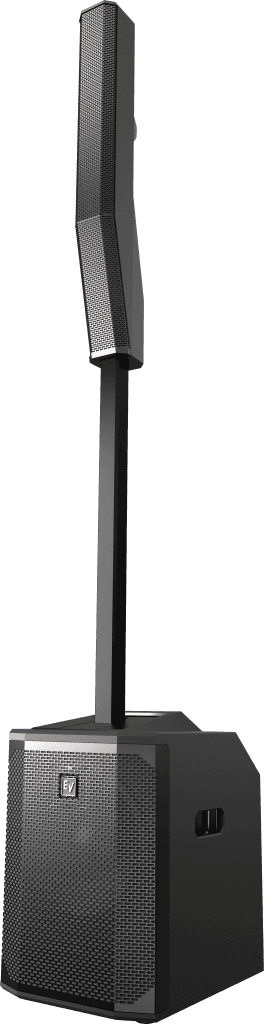

Electro-Voice EVOLVE 50M Portable column system

Electro-Voice is expanding its industry-leading EVOLVE series with the launch of the EVOLVE 50M column loudspeaker system. The EVOLVE 50M features ElectroVoice’s new QuickSmart Link digital audio and control technology, an onboard mixer, DSP and effects - all combined within the sleek EVOLVE 50 format. The EVOLVE 50M is the perfect choice for bands/musicians, AV rental companies, DJs and any application where true professional audio performance is required in a super-compact and portable package.

Product Specifications

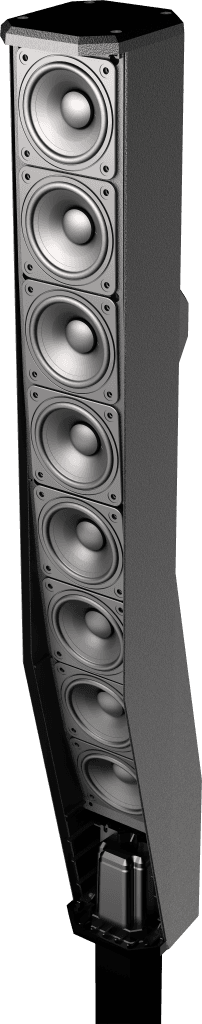

Column array

8x 3.5” neodymium drivers

Subwoofer

1x 12”

Frequency response (-3 dB)

43 Hz - 20 KHz

Frequency range (-10 dB)

37 Hz - 20 KHz

Maximum SPL

127 dB

Coverage (H x V)

120° x 40°

Amplifier rating

1000 W

LF channel rating

500 W

HF channel rating

500 W

Crossover frequency

200 Hz

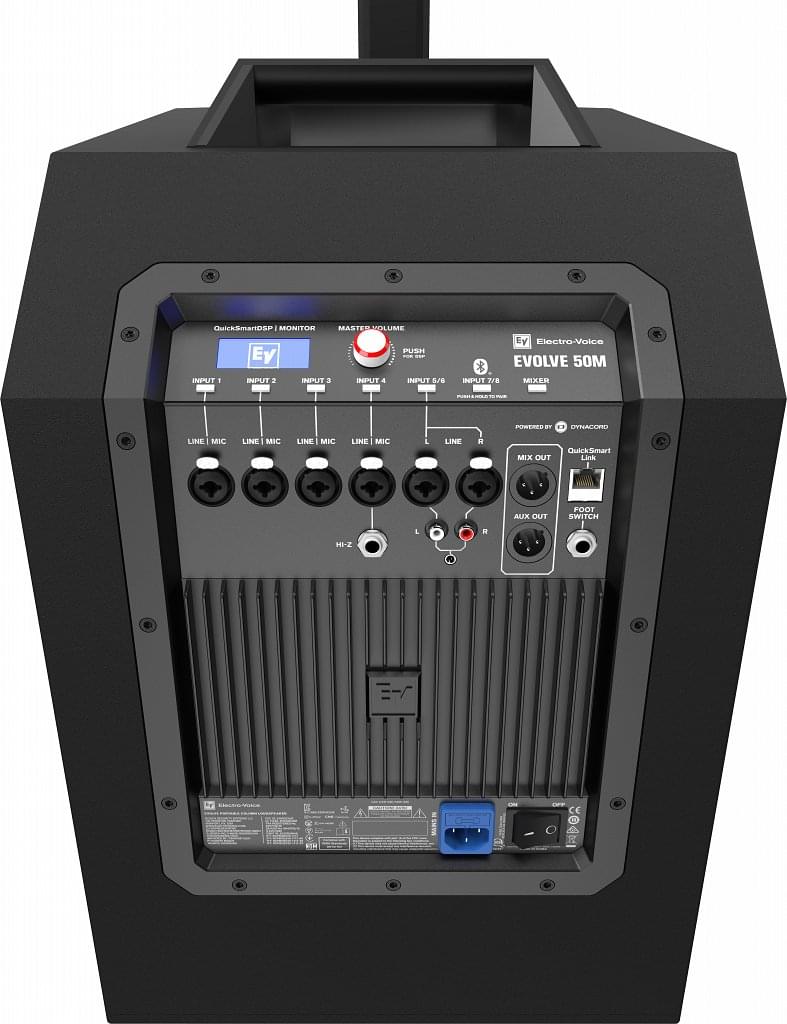

Connectors

4x XLR/TRS combo jack line/mic input

2x XLR/TRS combo jack for stereo line input

1x 1/4” TRS Hi-Z input

1x stereo RCA input

1x 3.5 mm stereo input

1x wireless stereo Bluetooth® audio input

1x 1/4” foot switch input

1x XLR mix out output

1x XLR aux out output

1x RJ45 QuickSmart Link connector

Enclosure

Column: composite

Pole: aluminum

Sub: 15 mm plywood

Grille

Steel with black or white powder coat

Colors

Black or white

Dimensions (HxWxD): in (mm)

Column: 32.5 x 4.0 x 6.9 (825 x 102 x 172)

Pole: 36.6 x 1.9 x 2.2 (929 x 48.5 x 55)

Sub: 20.9 x 13.6 x 18.5 (530 x 345 x 471)

Assembled: 80.5 x 13.6 x 18.5 (2045 x 345 x 471)

Net weight: lbs (kg)

Column: 10.34 (4.7)

Pole: 2.75 (1.25)

Sub: 44.66 (20.3)

Total: 57.75 (26.25)

Power consumption

100-240 V AC, 50-60 Hz, 1.5-0.6 A

What's included

<ul> <li>Electro-Voice EVOLVE50-TB</li> <ul> <li>Sub pole</li> <li>Carry bag</li> </ul> </ul> <ul> <li>Electro-Voice EVOLVE50M-SB-US</li> <ul> <li>Column speaker array</li> <li>Subwoofer</li> <li>Sub pole (2 sections)</li> <li>Power cord</li> <li>Carrying
