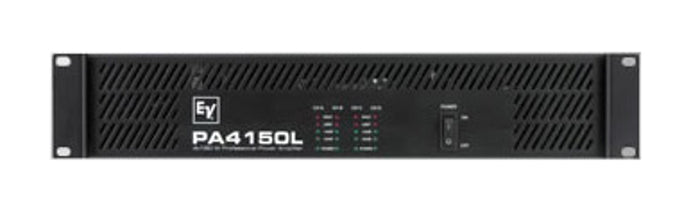

Electro-Voice PA4150L - 4-Channel Class AB Power Amplifier, 4x160W at 4 Ohms
Electro-Voice PA4150L - 4-Channel Class AB Power Amplifier, 4x160W at 4 Ohms
Product Details
Product Features
- Flexible multi-channel power for installation
- Ideal for sound reinforcement, paging, and life safety
- 150 W per channel into 4 Ω
- Bridged mode for dual 315 W outputs into 8 Ω
- Compact 2 RU design
- Stepped rear-panel level attenuation
- Selectable 50 Hz or 300 Hz high-pass filter
- Thermal protection, peak limiting, turn-on delay
- Phoenix-type inputs and outputs
- Three-stage front-to-rear fans
- Integrated rack ears for direct mounting
Product Specifications
Height: 88 mm Width: 483 mm Depth: 406 mm Frequency Response (-3 dB): < 10Hz - 40kHz Weight Net: 18 kg Input Sensitivity: 0 dBu (775mV) Number of Channels: 4 Network Control (IRIS-Net): No Amplifier Gain: 30 Impedance: 4/8 Crosstalk: < -75 Rated output power (*rated load) THD < 1%, 1kHz: 160/100 Rated output power (*rated load) THD < 0.2%, 20Hz-20kHz: 150/75 Continuous Rated Power (1 kHz, THD 1%) 4Ω: 160 W Continuous Rated Power (20-20 kHz, THD<0.2%) 4Ω: 150 W Continuous Rated Power (1 kHz, THD 1%) 2Ω: 160 W Continuous Rated Power (1 kHz, THD 1%) 8Ω: 100 W Continuous Rated Power (20-20 kHz, THD<0.2%) 8Ω: 75 W Total Harmonic Distortion: < 0.1 Slew Rate: 16 Intermodulation Distortion (SMPTE): < 0.1 DIM 30: < 0.1 Signal-to-Noise Ratio (A-weighted): 101 Input Impedance (Balanced): > 20
