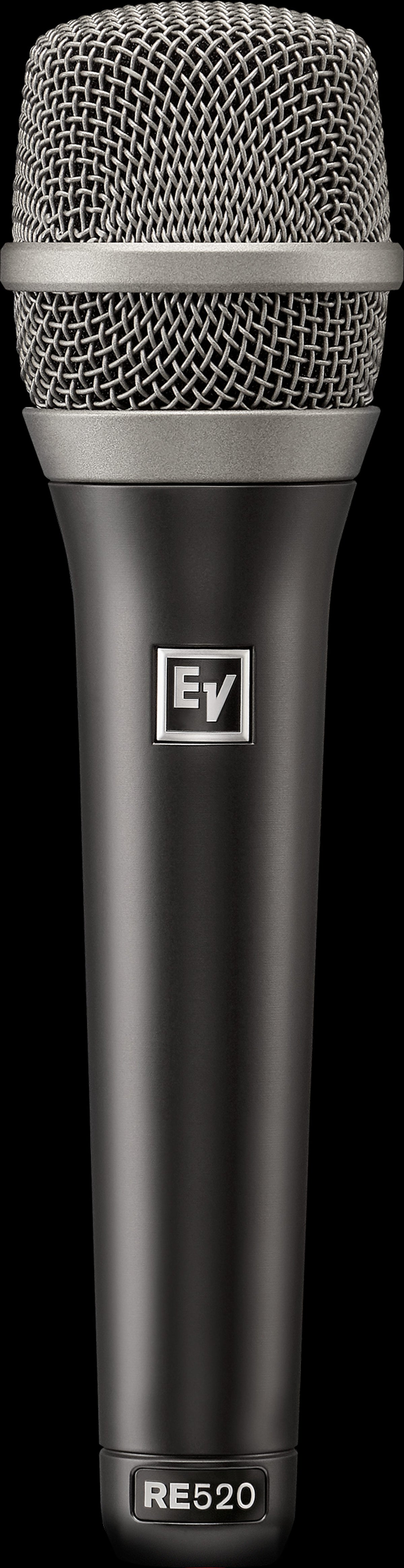

Electro-Voice RE520 - Condenser supercardioid vocal microphone

The RE520 is a premium-grade, high-performance, condenser supercardioid vocal microphone. Designed to reveal the exceptional detail and vivid clarity synonymous with condenser elements, it elegantly delivers the lyrical finesse required for expressive vocal performances, while controlling off-axis sound from near-by sources.

The sonic signature is detailed, full and vivid, with a warm and clear low end, natural and present midrange, and an open, crisp and detailed high end. The supercardioid pattern provides excellent acoustic isolation. Maximum feedback rejection occurs when a stage monitor position is at either 225° or 125° off-axis to the element. This pattern also allows for a cleaner mix due to its rejection of off-axis sound.

The multi-stage pop filter consists of two layers of dense foam separated by air, which attenuates wind velocity caused by breath and windblasts. The high-pass filter has two positions: the flat position delivers the full frequency band pass of the capsule, while the high-pass position attenuates frequencies below 150 Hz. The internal shock mount isolates the microphone element from vibration and guards against handling noise.

• Premium condenser element delivers a highly-detailed, full, and vivid sound
• Supercardioid polar pattern provides excellent acoustic isolation and feedback control
• Multi-stage pop filter minimizes breath blasts and plosives
• Selectable high-pass filter reduces undesirable low frequency content when engaged
• Vibration-absorbing internal shock mount minimizes handling noise

Element Type: Self-biased condenser Frequency Response: 40 Hz-20 kHz Polar Pattern: Supercardioid Sensitivity, open circuit voltage @ 1 kHz: 5.6 mV/Pascal (-45 dBV/Pa) Clipping (max SPL): 150 dB SPL (1% THD) Self Noise: 17 dB SPL A-weighted Dynamic Range: 133 dB Signal-to-Noise Ratio: 77 dB Output Impedance: 200 ohms Power Requirements: 48 VDC phantom power Electrical Contact: 3-pin XLR-type Finish: Black polyurethane paint Materials: Zinc die cast, steel wire cloth grille Dimensions: Length 7.6 in, Diameter 1.95 in, Shank 0.96 in Net Weight: 11.7 oz (332 g) Shipping Weight: 1 lb 5.1 oz (598 g)

Electro-Voice RE520 Microphone
Microphone Clip
Carrying Pouch
