Electro-Voice ZX1I-100TW - 8" 2-Way 200W Weatherized Loudspeaker Plus Transformer, White

The ZX1i is an 8" two-way passive full-range indoor/outdoor loudspeaker featuring patented ASC (Automatic Saturation Compensation), and is available in a 70/100 volt transformer version for distributed audio systems. It includes an integrated QuickSAM heavy-duty Strong-Arm Mounting bracket and is EN54-24 type B certified (with TC-ZX1i cover, sold separately, installed) in select regions.

• Patented ASC (Automatic Saturation Compensation)
• Available in 70/100 volt transformer version
• Integrated QuickSAM heavy-duty Strong-Arm Mounting bracket

Frequency response (-3 dB): 60 Hz - 20 kHz Frequency range (-10 dB): 48 Hz - 20 kHz Recommended high-pass frequency: 40 Hz Axial sensitivity: 94 dB (1W/1m) Max. calculated SPL: 123 dB Coverage (H x V): 90 x 50 degrees Rated system power: 200 W continuous, 400 W program, 800 W peak LF transducer: EV8L, 203 mm (8 in) driver HF transducer: DH2005, 25 mm (1 in) exit compression driver Crossover frequency: 1.7 kHz Nominal impedance: 8 Ohm Minimum impedance: 6 Ohm 70V transformer taps: 6, 12.5, 25, 50, 100 W, 8 Ohm bypass 100V transformer taps: 12.5, 25, 50, 100 W, 8 Ohm bypass Connectors: 4-pin Phoenix connector Enclosure material: ABS resin Suspension: Integrated QuickSAM heavy-duty Strong-Arm mounting bracket Grille: Polyester powder-coated 18GA galvanized steel Dimensions (H x W x D): 451 mm x 282 mm x 263 mm (17.76 x 11.10 x 10.35 in) Net weight (with transformer): 10.4 kg (23.0 lb) Shipping weight (with transformer): 12.3 kg (27.0 lb) Color: White Note: EV's Engineering Data Sheet PDF for ZX1i-100 could not be text-extracted this session (returned binary data); specifications above are sourced from the electrovoice.com product page and A&E spec text where available.

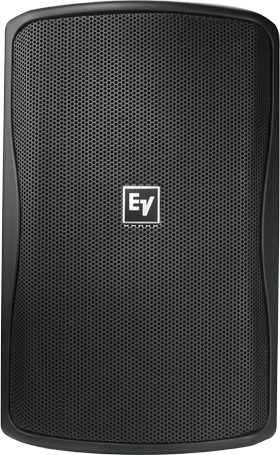

ZX1i-100TW loudspeaker with integrated 70/100V transformer
QuickSAM mounting bracket
