Product Details

Product Features

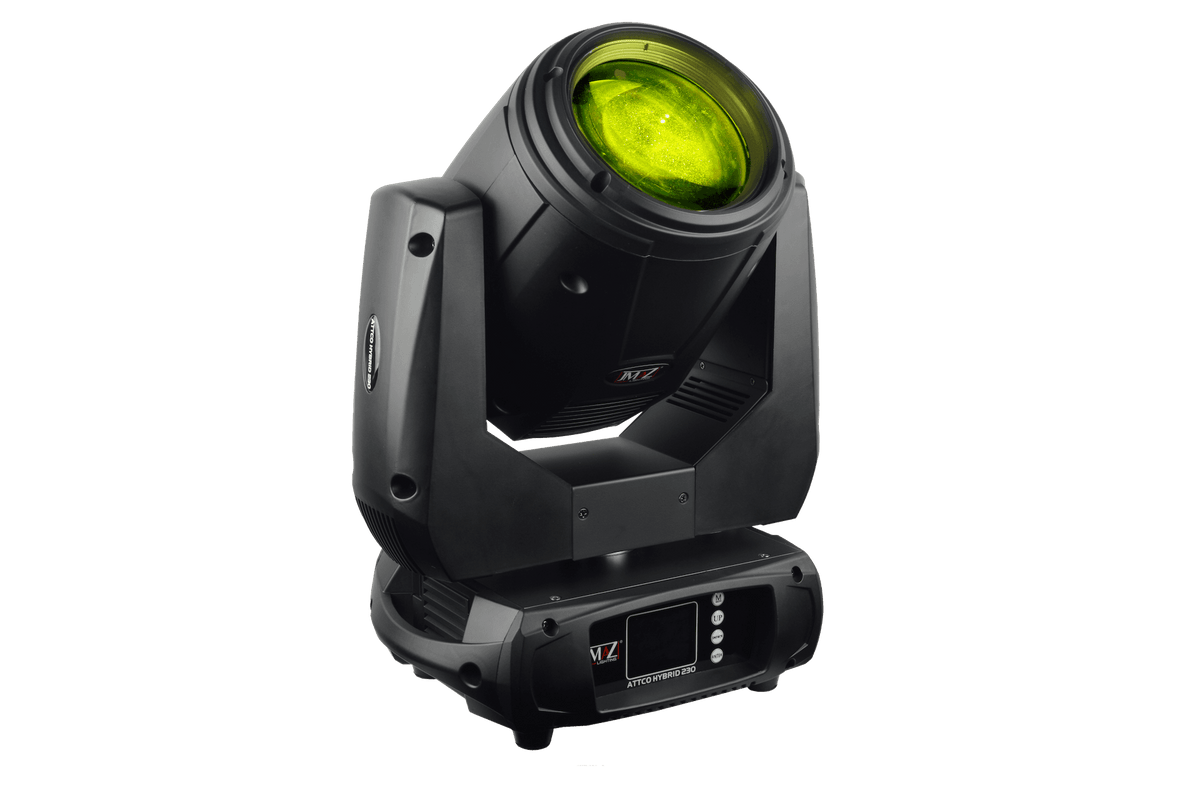

The ATTCO BEAM 100 was designed for mobile entertainers, production companies, venues, DJs, and event professionals who need a compact moving head capable of producing razor-sharp aerial beams and high-energy lighting effects. Combining a powerful white LED engine with vibrant colors, dynamic gobos, and precision optics, the ATTCO BEAM 100 delivers striking visual impact for clubs, concerts, stages, and special events.

Powered by a 75W 7500K white LED engine, the ATTCO BEAM 100 produces an intense 2° beam angle for crisp aerial effects and long-throw performance. Its 12-color wheel plus open, 17 static gobos, 8-facet prism, and integrated frost filter provide exceptional versatility, allowing users to transition from sharp beam effects to softer, wider looks. Featuring variable electronic dimming and strobing, nine built-in auto and sound-active programs, smooth 8/16-bit pan and tilt movement, multiple DMX personalities, RF remote control, and a 2.4-inch TFT LCD display, the ATTCO BEAM 100 offers intuitive operation and dependable performance for both programmed shows and standalone applications.

Whether creating sweeping aerial beam effects, energizing dance floors, enhancing concerts, or adding movement to weddings, houses of worship, and live productions, the ATTCO BEAM 100 delivers brilliant output, dynamic effects, and reliable moving head performance in a compact, production-ready fixture.

  • Powerful 75W 7500K white LED engine produces razor-sharp 2° beam effects with exceptional brightness, delivering high-impact aerial looks for stages, concerts, and event productions.
  • Feature-rich optics include a 12-color wheel, 17 static gobos, an 8-facet rotating prism, and a frost filter, providing a wide range of beam, aerial, and wash effects.
  • Fast 630° pan and 270° tilt movement with smooth 8-bit and 16-bit positioning ensures precise, responsive motion for professional lighting programming.
  • Built-in auto and sound-active programs, together with variable strobe and smooth 0–100% linear dimming, create dynamic lighting effects without requiring complex programming.
  • DMX512 and RF remote control, dual DMX personalities, and an intuitive 2.4-inch TFT display provide flexible operation for both standalone and console-controlled applications.
  • Compact, lightweight design with rugged cast aluminum construction, quick-lock omega brackets, and powerCON connectivity makes the ATTCO BEAM 100 ideal for mobile entertainment, clubs, stages, and touring productions.
Product Specifications

Light Source

75W 7500K White LED

Color System

Color Wheel: 12 Colors + Open

Optics

Beam Angle: 2°

Dynamic Effect

9 Built-In Auto/Sound Programs



Static Gobo Wheel: 17 Gobos + Open



Prism: 8 Facet



Frost Filter



Variable Strobe and Dimming

Control

Protocols: 3-Pin In/Out DMX512, RF Remote



Personalities: 2 Modes 10/12



Display: 2.4″ TFT LCD Display

Electronics

Dimmer: 0-100% Linear



Operating Temperature: -20° C to 45° C

Body

Quick-Lock Omega Bracket



Pan Angle: 630°



Title Angle: 270°



High Temperature Engineered Plastic and Cast Aluminum Casing

Physical

Cooling: Fan



Pan/Tilt: 8/16 bit smooth



powerCON In

Electrical

Max Power Consumption: 120W



Input Voltage: 110-240V, 50/60Hz

Box Content

2 x Omega Brackets



1 x DMX Cable



1 x powerCON Cable



1 x RF Remote



1 x Safety Cable



1 x User Manual

Item Dimensions & Weight

Dimensions: 11.4″ x 8.3″ x 8.7″



Weight: 7.7 lbs

Warranty

2 Years

What's included

- JMAZ ATTCO BEAM 100
- 2x Omega Brackets
- DMX Cable
- powerCON Cable
- RF Remote
- Safety Cable
- User Manual
