Product Details

Product Features

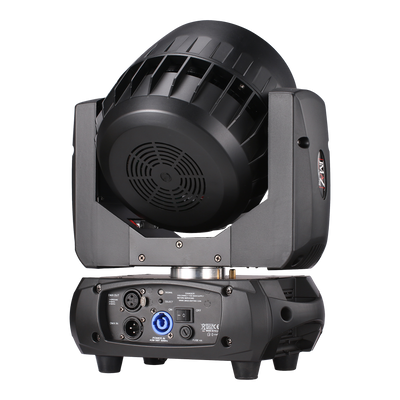

The ATTCO WASH 150Z was designed for production companies, venues, mobile entertainers, DJs, and lighting professionals who need a versatile moving wash fixture capable of producing everything from narrow aerial beams to wide, even stage washes. Combining a high-output RGBW LED engine with an extensive motorized zoom range and integrated wireless control, the ATTCO WASH 150Z delivers the flexibility required for concerts, theatres, houses of worship, clubs, and live event productions.

Powered by a 210W RGBW LED engine (7 × 30W LEDs), the ATTCO WASH 150Z produces rich color mixing, adjustable white light from 2800K to 8000K, and smooth, even output across its motorized 6° to 60° electronic zoom. The wide zoom range allows the fixture to transition seamlessly from tight beam effects to broad stage and venue washes, while built-in color effects expand its creative capabilities. Featuring Wireless DMX, DMX512 control, RF remote operation, smooth 8/16-bit pan and tilt movement, multiple DMX personalities, nine built-in auto and sound-active programs, and a 2.4-inch TFT LCD display, the ATTCO WASH 150Z delivers intuitive operation and dependable performance for both programmed productions and standalone applications.

Whether washing stages with vibrant color, highlighting performers, creating dynamic aerial looks, illuminating houses of worship, or enhancing concerts and special events, the ATTCO WASH 150Z delivers powerful output, exceptional zoom versatility, and reliable moving head performance for today’s professional lighting applications.

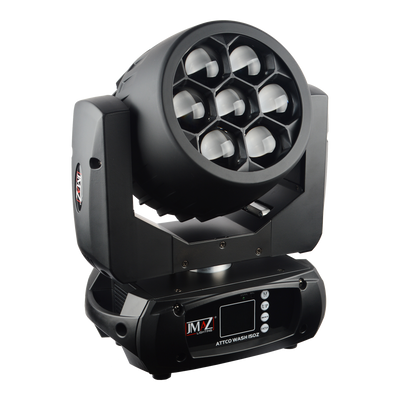

  • Powerful 210W RGBW LED engine featuring seven 30W LEDs delivers vibrant color mixing, rich saturated washes, and an adjustable color temperature range from 2800K–8000K.
  • Motorized electronic zoom adjusts seamlessly from a narrow 6° beam to a wide 60° wash, providing exceptional versatility for beam, wash, and stage lighting applications.
  • Precision 630° pan and 270° tilt movement with smooth 8-bit and 16-bit positioning delivers fast, accurate movement for concerts, theaters, houses of worship, and live productions.
  • Built-in color effects, smooth 0–100% linear dimming, and nine auto and sound-active programs provide dynamic standalone operation or creative enhancements for programmed shows.
  • Wireless DMX, RF remote control, and 3-pin DMX connectivity offer flexible control options, while the intuitive 2.4-inch TFT display simplifies fixture setup and operation.
  • Professional touring design features rugged cast aluminum construction, powerCON IN/OUT connectivity, quick-lock omega brackets, and a compact chassis built for mobile entertainment, production, and permanent installations.
Product Specifications

Light Source

7 x 30W RGBW LEDs

Color System

Color LEDs: RGBW



CCT: 2800K – 8000K

Optics

Electronic Zoom: 6° to 60°

Dynamic Effect

Electronic Zoom



Built-in Color Effect



9 Built-In Auto/Sound Programs

Control

Protocols: 3-Pin In/Out DMX512, Wireless DMX



Personalities: 2 Modes 13/15



Wireless Control: RF Remote



Display: 2.4″” TFT LCD Display

Electronics

Dimmer: 0-100% Linear Dimmer



Operating Temperature: -20° C to 45° C

Body

Quick-Lock Omega Bracket



Pan Angle: 630°



Title Angle: 270°



High Temperature Engineered Plastic and Cast Aluminum Casing

Physical

Cooling: Fan



Pan/Tilt: 8/16 bit smooth

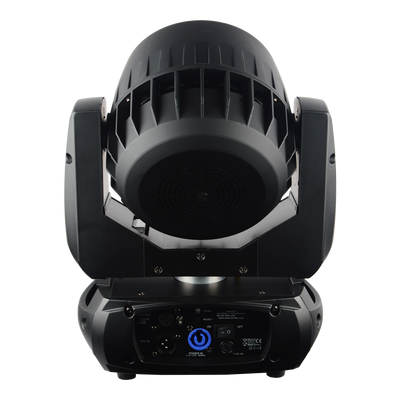

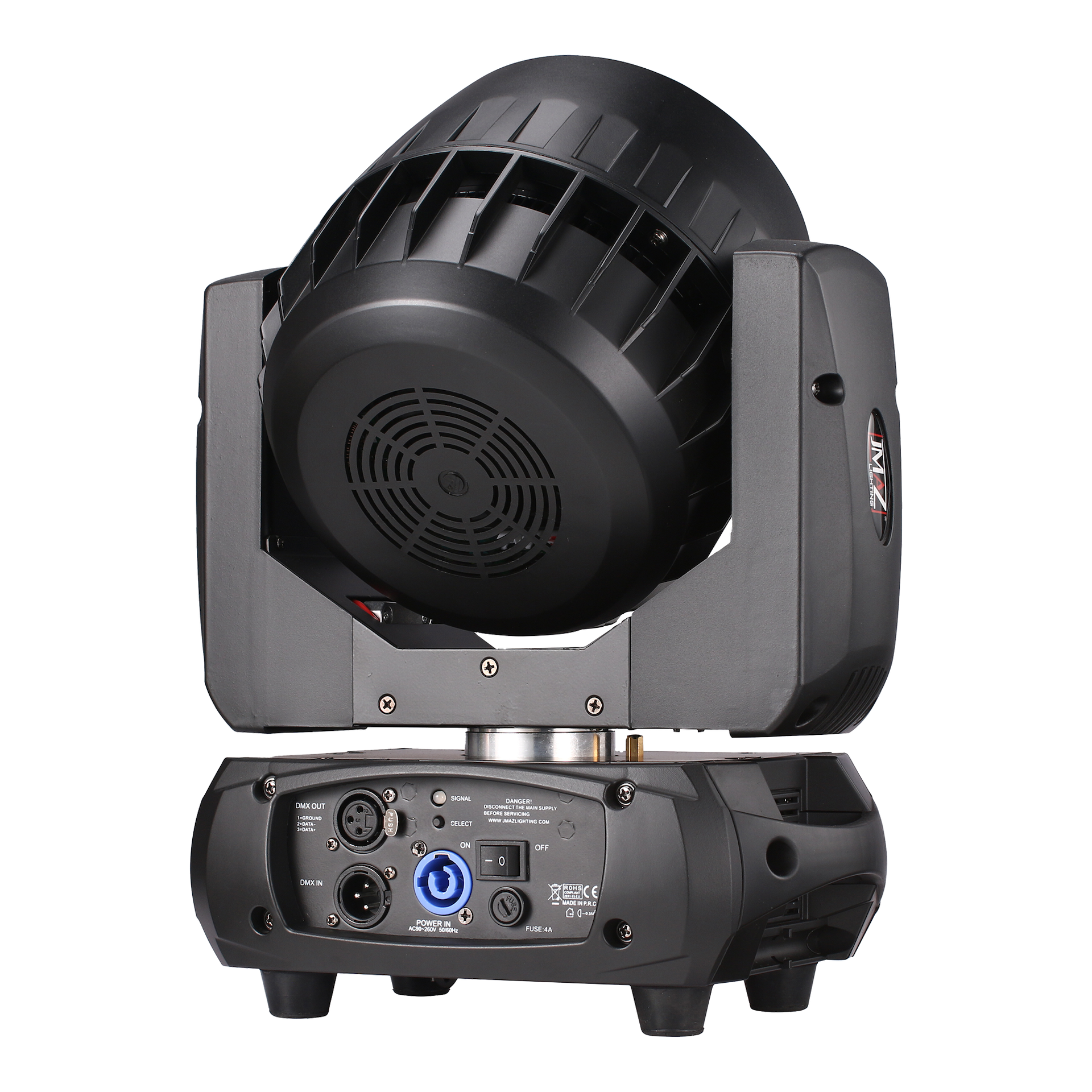

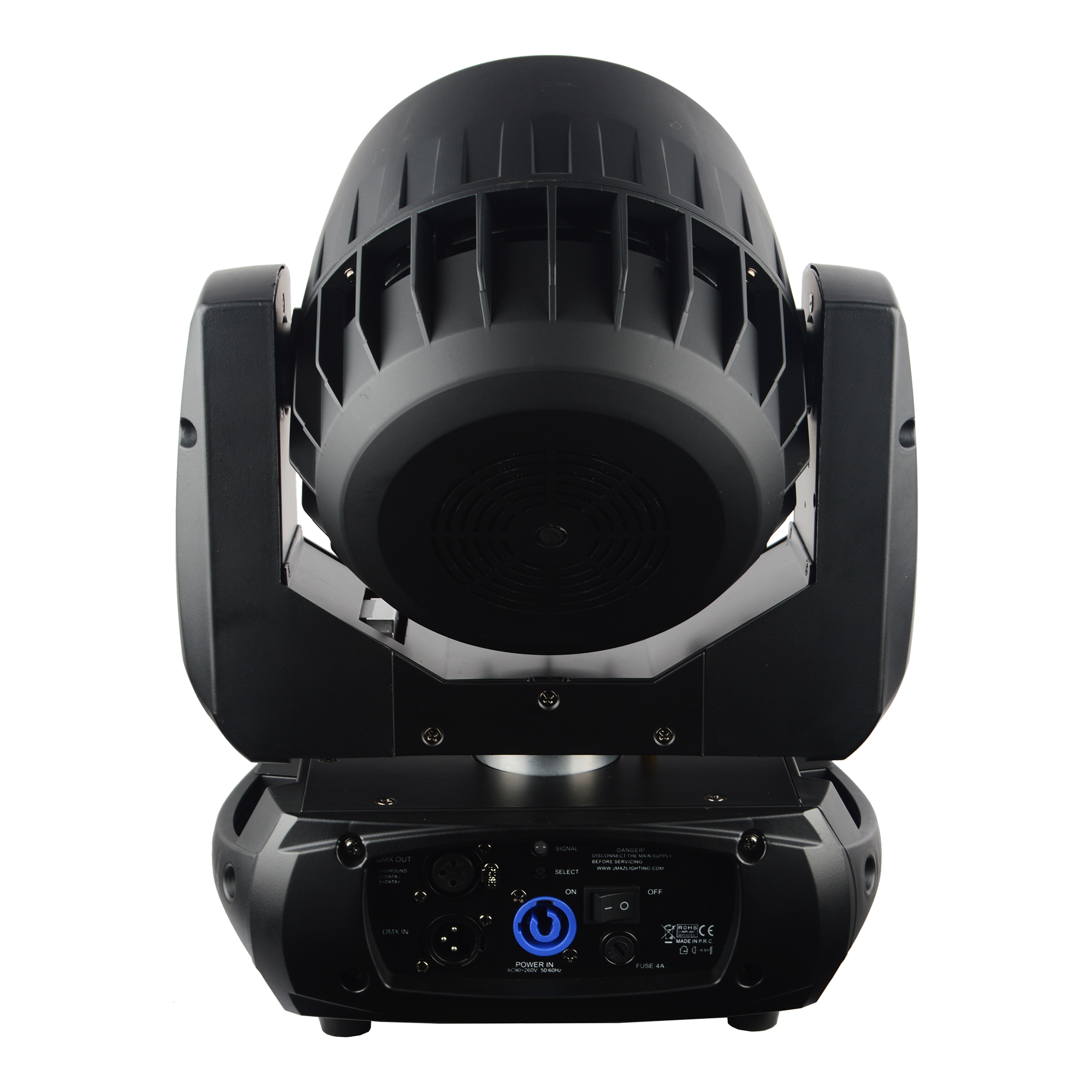

powerCON In/Out

Electrical

Max Power Consumption: 240W



Input Voltage: AC90-260V 50/60Hz

Box Content

2 x Omega Brackets



1 x DMX Cable



1 x powerCON Cable



1 x RF Remote



1 x Safety Cable



1 x User Manual

Item Dimensions & Weight

Dimensions: 11.1″ x 6.7″ x 13.2″



Weight: 14.6 lbs

Warranty

2 Years

What's included

- JMAZ WASH 150Z
- 2x Omega Brackets
- DMX Cable
- powerCON Cable
- RF Remote
- Safety Cable
- User Manual
