Product Details

Product Features

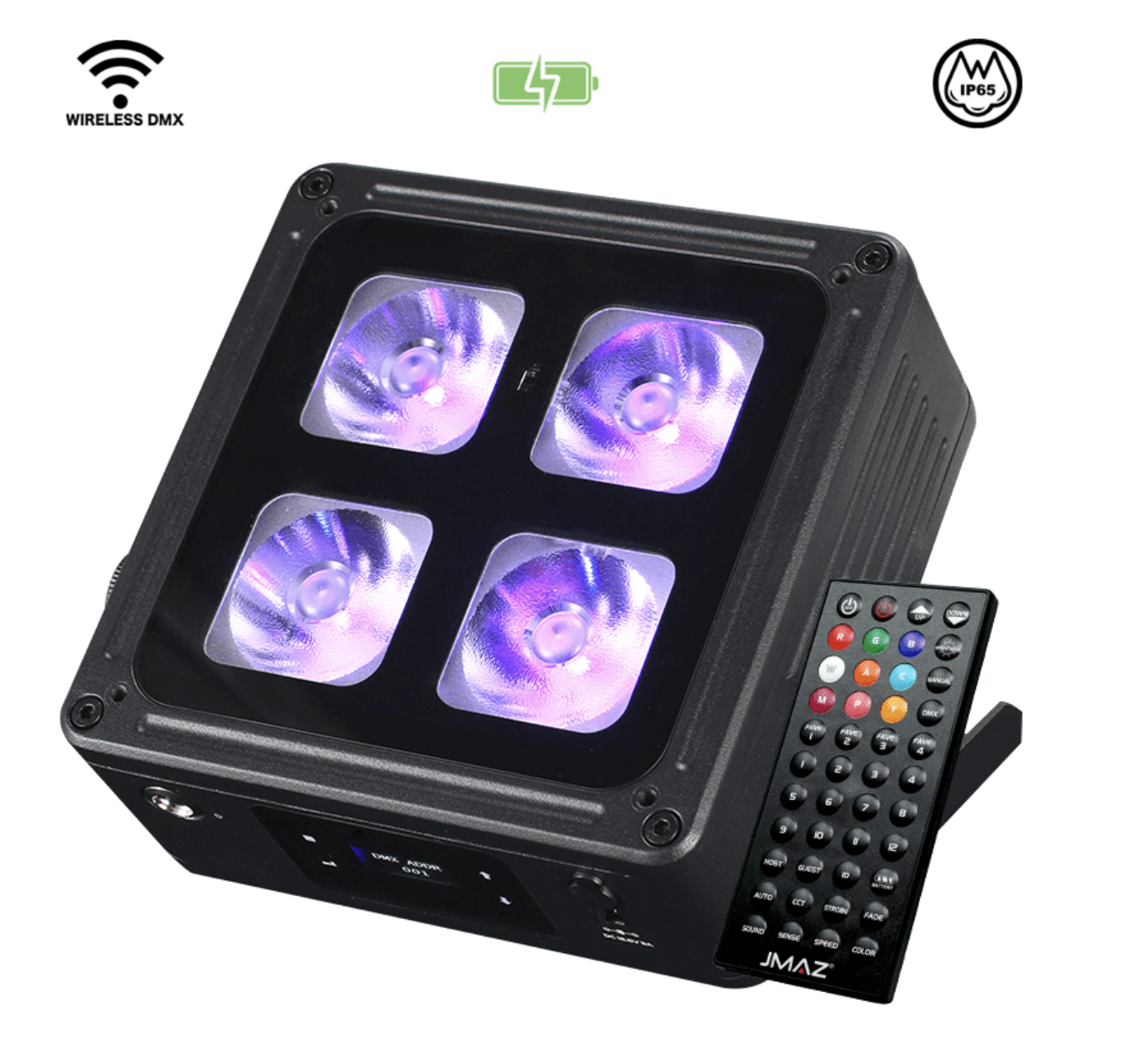

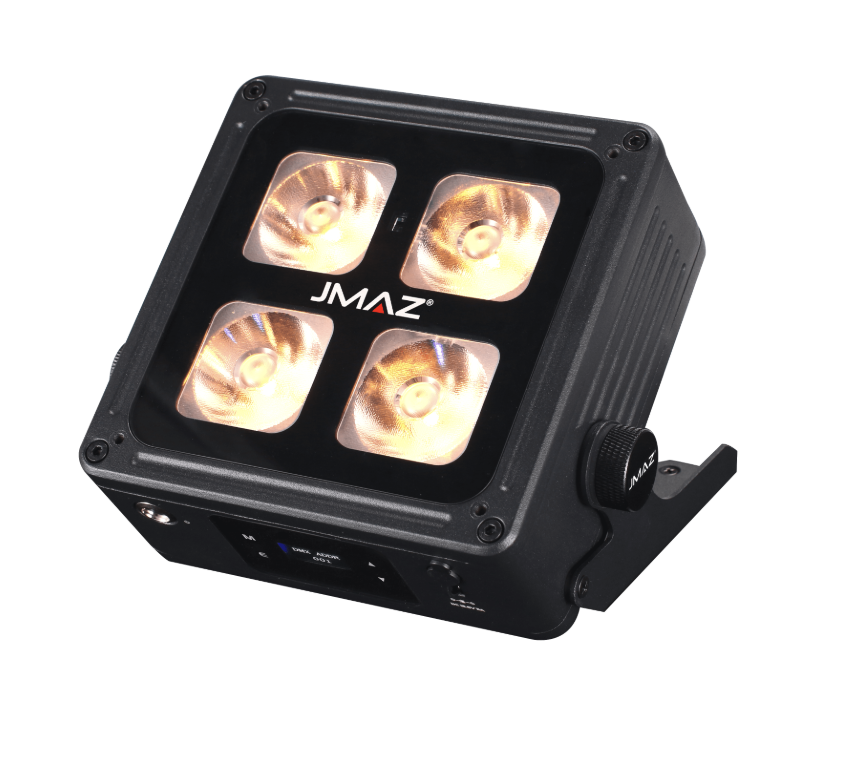

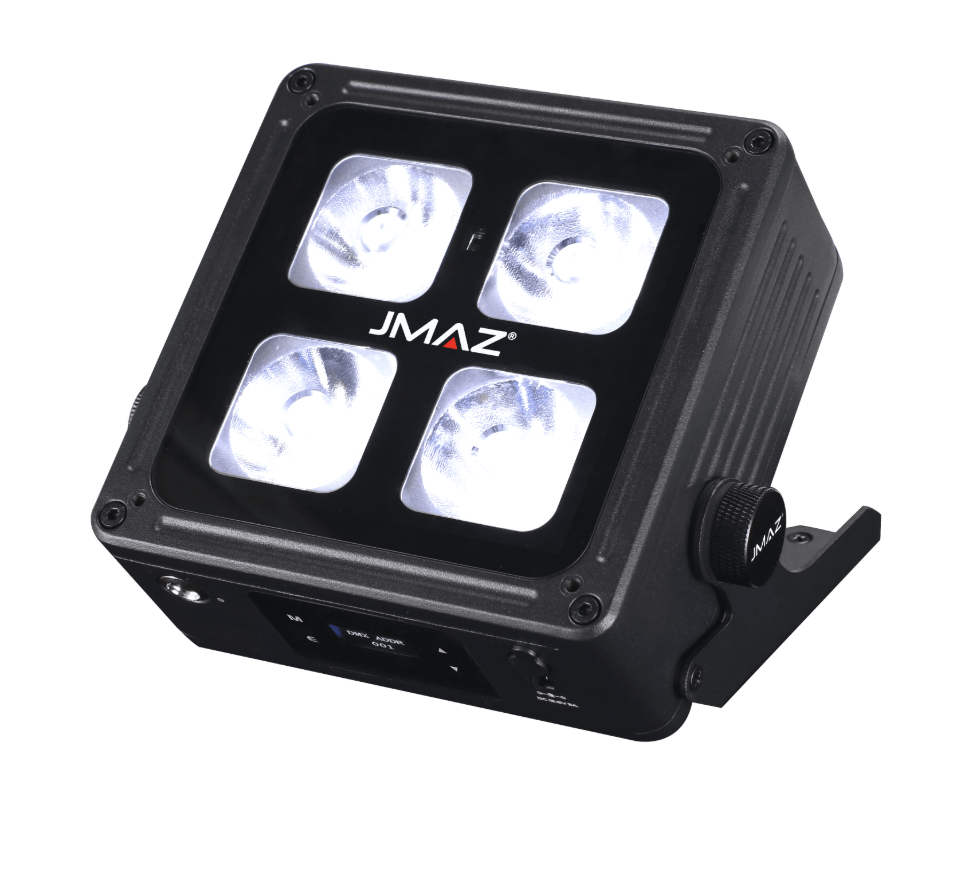

The MAD PAR 4IP was designed for event professionals, production companies, rental houses, DJs, and installers who need a powerful, battery-powered uplight that delivers professional color performance in both indoor and outdoor environments. Unlike traditional uplights that require constant power or sacrifice performance for portability, the MAD PAR 4IP combines a full 60W RGBWA+UV LED engine, wireless control, and an IP65-rated housing with long-lasting battery operation, giving lighting professionals the freedom to create vibrant wireless lighting designs wherever the event takes them.

Powered by a 60W RGBWA+UV LED system (4 × 15W LEDs), the MAD PAR 4IP delivers rich, saturated colors, smooth pastel tones, and adjustable white light from 2300K to 8500K. Its advanced quadrilateral optic produces a precise 10° beam angle that expands to 20° with the included diffuser for wider coverage when needed. Featuring 73 preset color programs, 72 built-in auto programs, 50 advanced sound-active modes, Wireless DMX, IR remote control, multiple DMX personalities, and up to 14 hours of battery operation (up to 48 hours in battery-saving mode), the MAD PAR 4IP offers exceptional versatility for both temporary productions and permanent installations. Its fanless design also ensures completely silent operation for noise-sensitive environments.

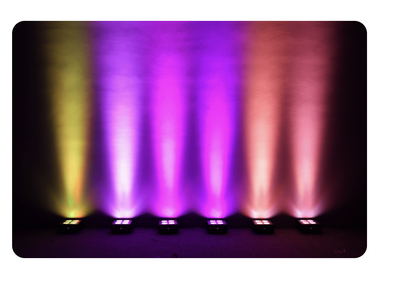

Whether accenting architectural features, illuminating stages, enhancing wedding venues, uplighting ballrooms, or creating immersive outdoor event experiences, the MAD PAR 4IP delivers dependable wireless performance, powerful 60W output, vibrant color reproduction, and the flexibility lighting professionals demand for today’s productions.

  • Powerful 60W RGBWA+UV LED engine featuring four 15W LEDs delivers vibrant saturated colors, rich pastels, true white light, ultraviolet effects, and an adjustable color temperature range from 2300K–8500K.
  • Advanced quadrilateral optics provide a focused 10° beam angle for powerful uplighting, while the included 20° diffuser creates wider, more even wash coverage for versatile applications.
  • Integrated lithium-ion battery delivers up to 14 hours of runtime on a single charge, or up to 40 hours in battery saver mode, providing completely cable-free operation for indoor and outdoor events.
  • IP65-rated construction, fanless cooling, and an adjustable 0–40° tilt base ensure reliable, silent performance in any weather while allowing precise fixture positioning.
  • Wireless DMX and IR remote control, combined with 73 preset color programs, 72 built-in auto effects, 50 sound-active modes, and four customizable favorite colors, provide exceptional programming flexibility with or without a lighting console.
  • Compact die-cast aluminum housing, fast 4-hour recharge time, and professional-grade portability make the MAD PAR 4IP ideal for uplighting, event production, architectural lighting, weddings, and mobile entertainment.
Product Specifications

Light Source

60W (4 x 15W) RGBWA+UV LEDs

LED Life Expectancy: 50,000 hrs

Color System

RGBWA+UV Color Mixing 8/16 bit

CCT: 2300K to 8500K

Optics

Advanced Quadrilateral Lens Optic: 10° Beam Angle

Diffuser Angle (Included): 20° Beam Angle

Dynamic Effect

Max 14 Hour Battery Life / 40 Hour In Battery Saving Mode

Charging Time: 4 Hours

Selectable Battery Saving Mode: 25%, 50%, 75%, 100%

73 Preset Color Programs

50 Advanced Sound Active Mode

72 Auto / Fade Built-In Programs

Stand Alone Color Mixing

Electronic Dimmer

Fading/Jumping Macros Light Change And Jump

Shutter/Strobe: Electronic

Strobe Rate: 0-25 Hz

Preset Color Temperature

4 Favorite Color Customization Triggered via DMX / IR Remote

Control

Control Protocol: Wireless DMX, IR Remote

Personalities: 5/6/8/16 CH DMX Modes

OLED Graphical Display

Electronics

Strobe Shutter: 1-25Hz

Dimming Modes: 4

Body

Die-Cast Aluminum and Steel Structure

Physical

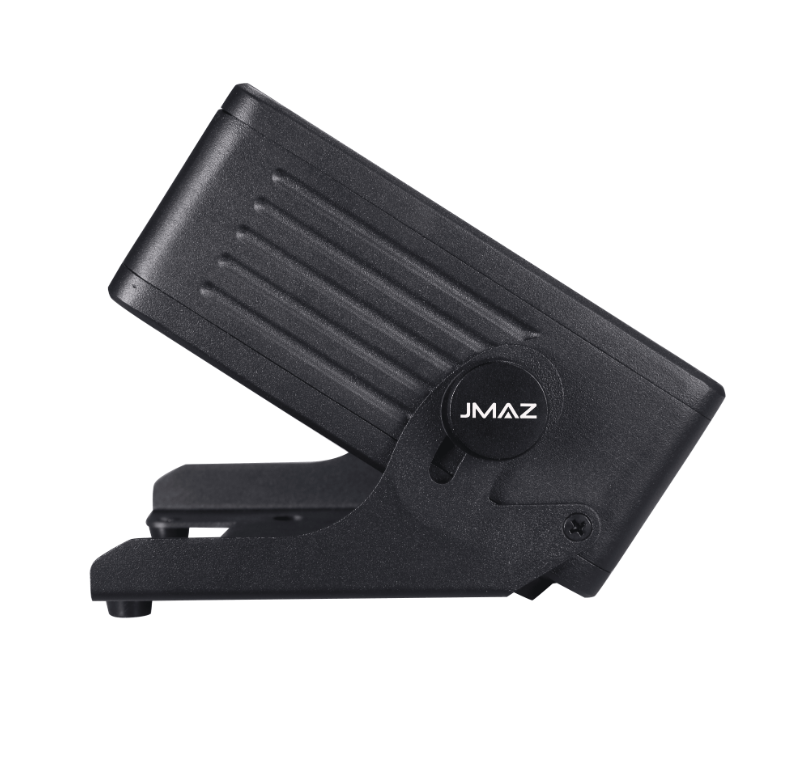

Adjustable Tilt Base: 0-40 Degree

Cooling: Fanless

Certification / Qualifications

RoHS, CE, FCC

IP Rating: IP 65

Operating Temperature: –10 ° C ( 14 ° F) To 60 ° C ( 140 ° F)

Electrical

Input Voltage: 100 V – 240 V AC, 50/60 Hz

Power Consumption: 60W

PWM: 1.5KHz

Battery Voltage: 11.1V

Battery Capacity: 10,400 mAH, 115.5 Wh/hour

Charger: 12.6V, 3A

Rechargeable Battery Type: Lithium Ion  ***UL Listed***

Box Content

1 x 20 Degree Diffuser

1 x External Charger

1 x User Manual

1 x IR Remote

Item Dimensions & Weight

Dimensions: 7.2″ x 5.9″ x 3″

Weight: 4.4 lbs

UPC

6,2E+11

What's included

- MAD PAR 4IP 60W RGBWA
- 20 Degree Diffuser
- External Charger
- User Manual 1
- IR Remote
