Product Details

Product Features

The MAD PAR 4IP 6 Pack was designed for production companies, event professionals, rental houses, DJs, and installers who need a complete battery-powered uplighting system that is easy to transport, organize, and deploy. Combining six high-output IP65 uplights with a durable injection-molded case, the MAD PAR 4IP 6 Pack provides a professional all-in-one solution for weddings, architectural lighting, concerts, corporate events, and outdoor productions.

Each fixture is powered by a 60W RGBWA+UV LED engine (4 × 15W LEDs), delivering vibrant color mixing, adjustable white light from 2300K to 8500K, and a precision 10° beam angle that expands to 20° with the included diffuser. Featuring up to 14 hours of battery operation (40 hours in battery-saving mode), Wireless DMX, IR remote control, 73 preset color programs, 72 built-in auto programs, 50 advanced sound-active modes, four dimming modes, and smooth fanless operation, each MAD PAR 4IP offers exceptional versatility for virtually any application. The included IP65 waterproof injection-molded case securely holds all six fixtures and accessories for organized transport and protection between events.

Whether uplighting venues, illuminating architectural features, enhancing wedding receptions, washing stages, or creating colorful outdoor displays, the JMAZ MAD PAR 4IP 6 Pack delivers professional-grade performance, reliable battery operation, and the convenience of a complete production-ready lighting system.

  • Complete six-fixture lighting system includes six 60W RGBWA+UV battery-powered uplights housed in a rugged IP65 injection-molded case, providing a professional all-in-one solution for mobile productions and outdoor events.
  • Each fixture features a powerful 60W RGBWA+UV LED engine with an adjustable 2300K–8500K color temperature range, delivering vibrant saturated colors, rich pastels, true white light, and ultraviolet effects.
  • Advanced quadrilateral optics produce a focused 10° beam for powerful uplighting, while the included 20° diffusers provide wider, more uniform wash coverage for versatile lighting applications.
  • Integrated lithium-ion batteries deliver up to 14 hours of runtime on a single charge, or up to 40 hours in battery saver mode, with fast 4-hour charging for dependable cable-free operation.
  • Wireless DMX and IR remote control, combined with 73 preset color programs, 72 built-in auto/fade programs, 50 sound-active modes, and four dimming curves, provide exceptional programming flexibility for any event.
  • IP65-rated construction, fanless operation, and the included waterproof injection-molded charging case with six chargers and a 6-in-1 charging solution make the MAD PAR 4IP 6PK ideal for weddings, touring productions, architectural lighting, rental inventories, and outdoor installations.
Product Specifications

Light Source

60W (4 x 15W) RGBWA+UV LEDs

LED Life Expectancy: 50,000 hrs

Color System

RGBWA+UV Color Mixing 8/16 bit

CCT: 2300K to 8500K

Optics

Advanced Quadrilateral Lens Optic: 10° Beam Angle

Diffuser Angle (Included): 20° Beam Angle

Dynamic Effect

Max 14 Hour Battery Life / 40 Hour In Battery Saving Mode

Charging Time: 4 Hours

Selectable Battery Saving Mode: 25%, 50%, 75%, 100%

73 Preset Color Programs

50 Advanced Sound Active Mode

72 Auto / Fade Built-In Programs

Stand Alone Color Mixing

Electronic Dimmer

Fading/Jumping Macros Light Change And Jump

Shutter/Strobe: Electronic

Strobe Rate: 0-25 Hz

Preset Color Temperature

4 Favorite Color Customization Triggered via DMX / IR Remote

Control

Control Protocol: Wireless DMX, IR Remote

Personalities: 5/6/8/16 CH DMX Modes

OLED Graphical Display

Electronics

Strobe Shutter: 1-25Hz

Dimming Modes: 4

Body

Die-Cast Aluminum and Steel Structure

Physical

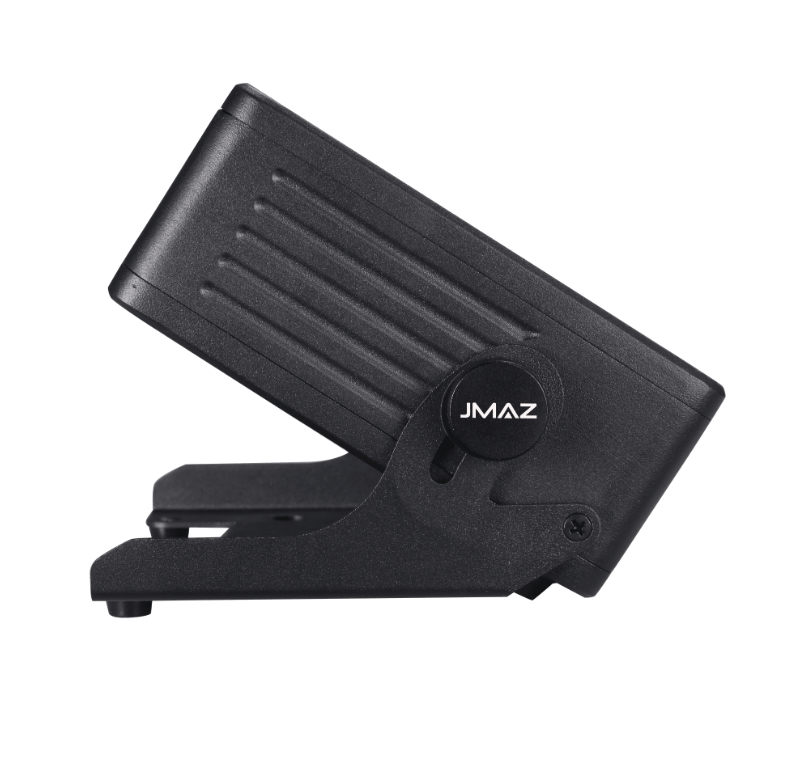

Adjustable Tilt Base: 0-40 Degree

Cooling: Fanless

Certification / Qualifications

RoHS, CE, FCC

IP Rating: IP 65

Operating Temperature: –10 ° C ( 14 ° F) To 60 ° C ( 140 ° F)

Electrical

Input Voltage: 100 V – 240 V AC, 50/60 Hz

Power Consumption: 60W

PWM: 1.5KHz

Battery Voltage: 11.1V

Battery Capacity: 10,400 mAH, 115.5 Wh/hour

Charger: 12.6V, 3A

Rechargeable Battery Type: Lithium Ion  ***UL Listed***

Box Content

1 x 20 Degree Diffuser

1 x External Charger

1 x User Manual

1 x IR Remote

Item Dimensions & Weight

Dimensions: 7.2″ x 5.9″ x 3″

Weight: 4.4 lbs

UPC

6,2E+11

What's included

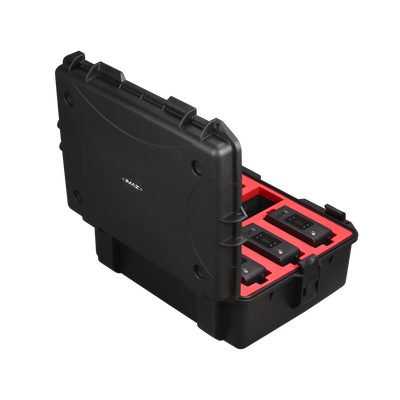

- 6x MAD PAR 4IP 60W RGBWA Injection Molded Case
- 3x Remotes
- 6x Diffuser Filters
- 6x A/C Charger
- 6x Way Charger
- 2 x Manual
