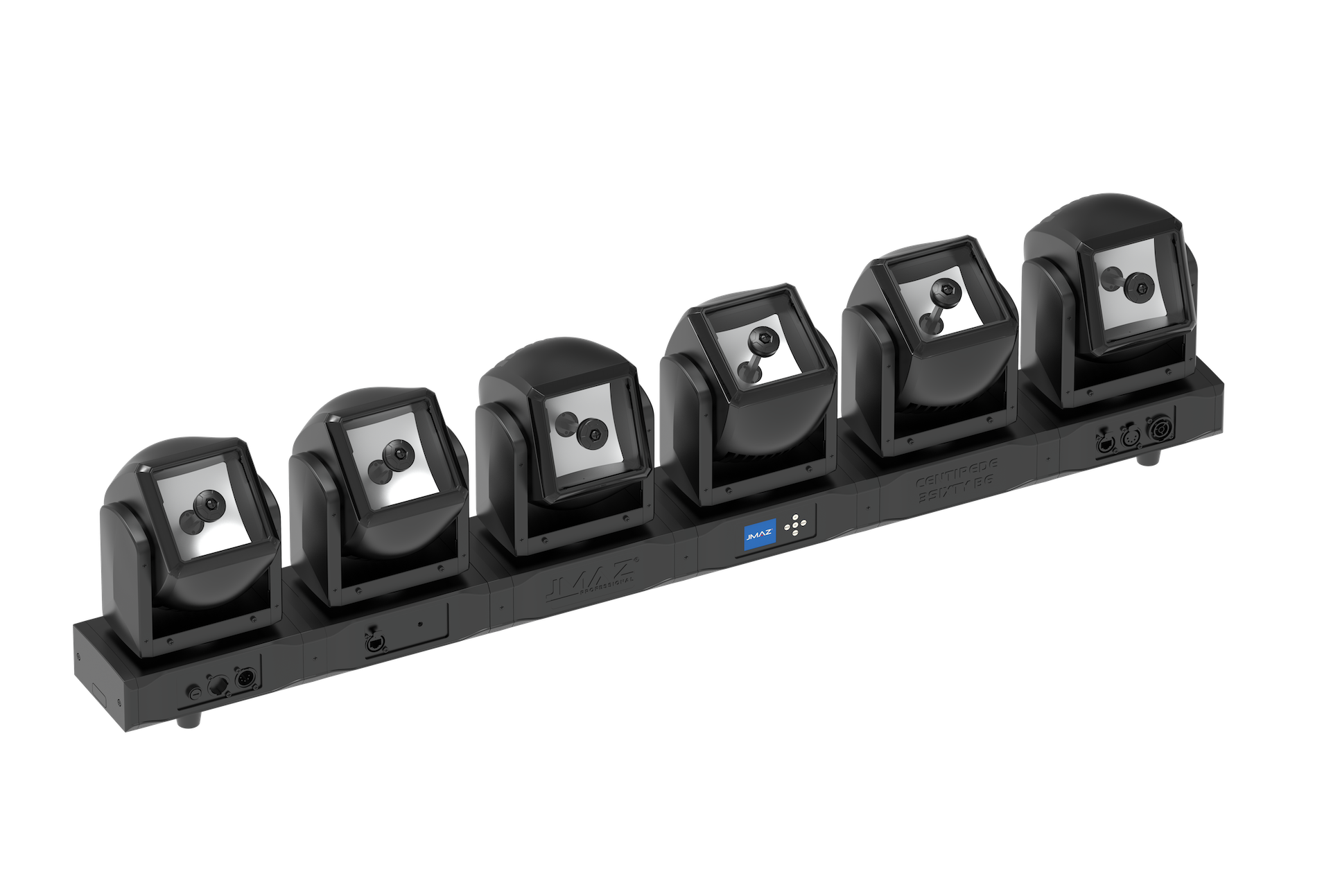

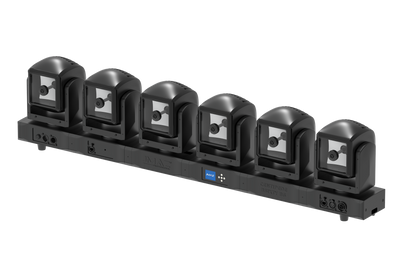

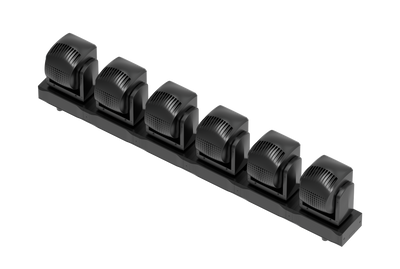

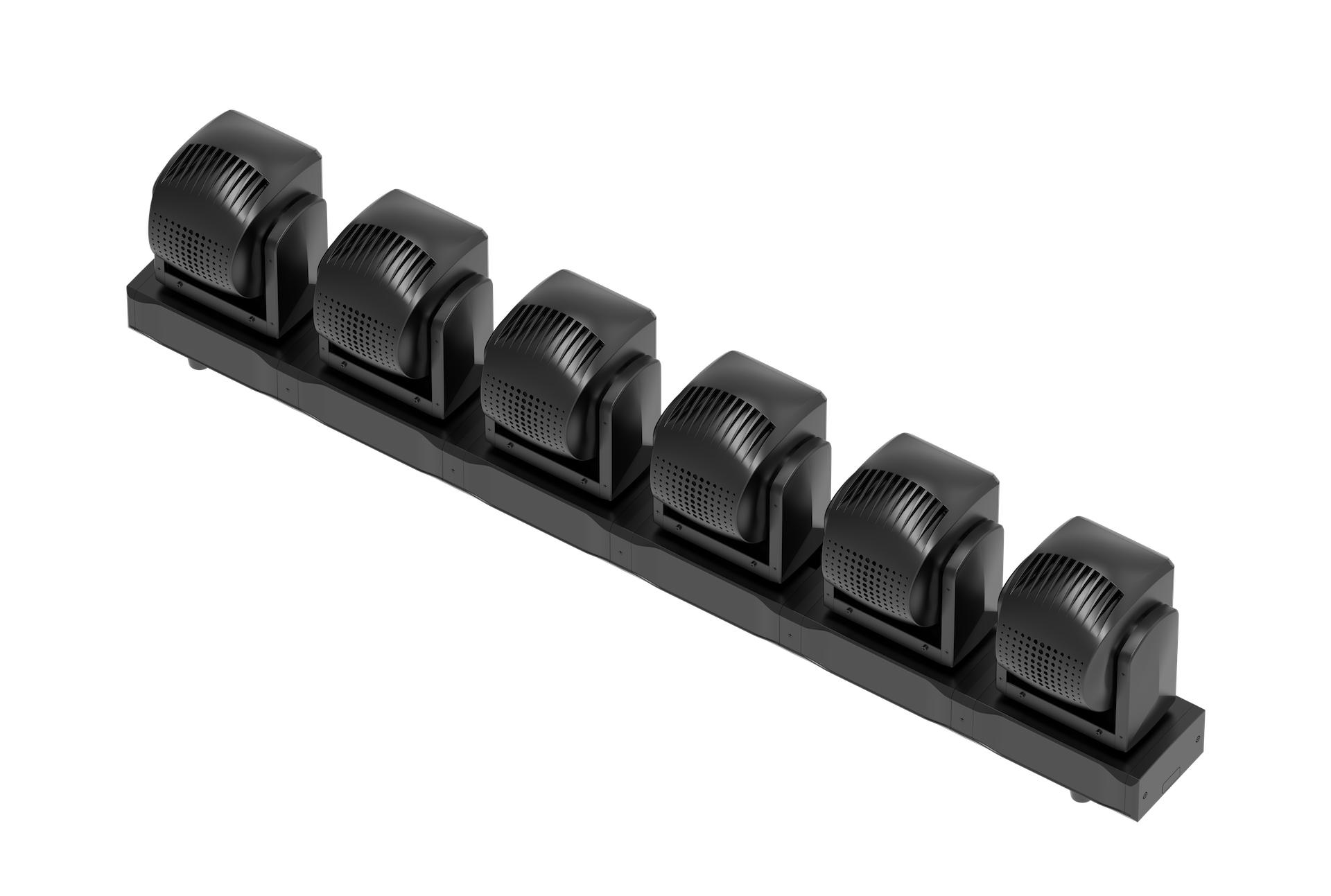

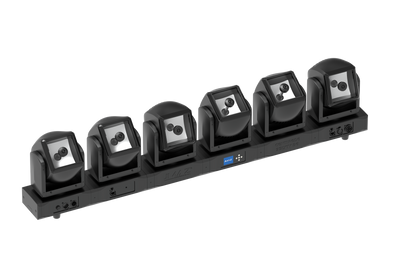

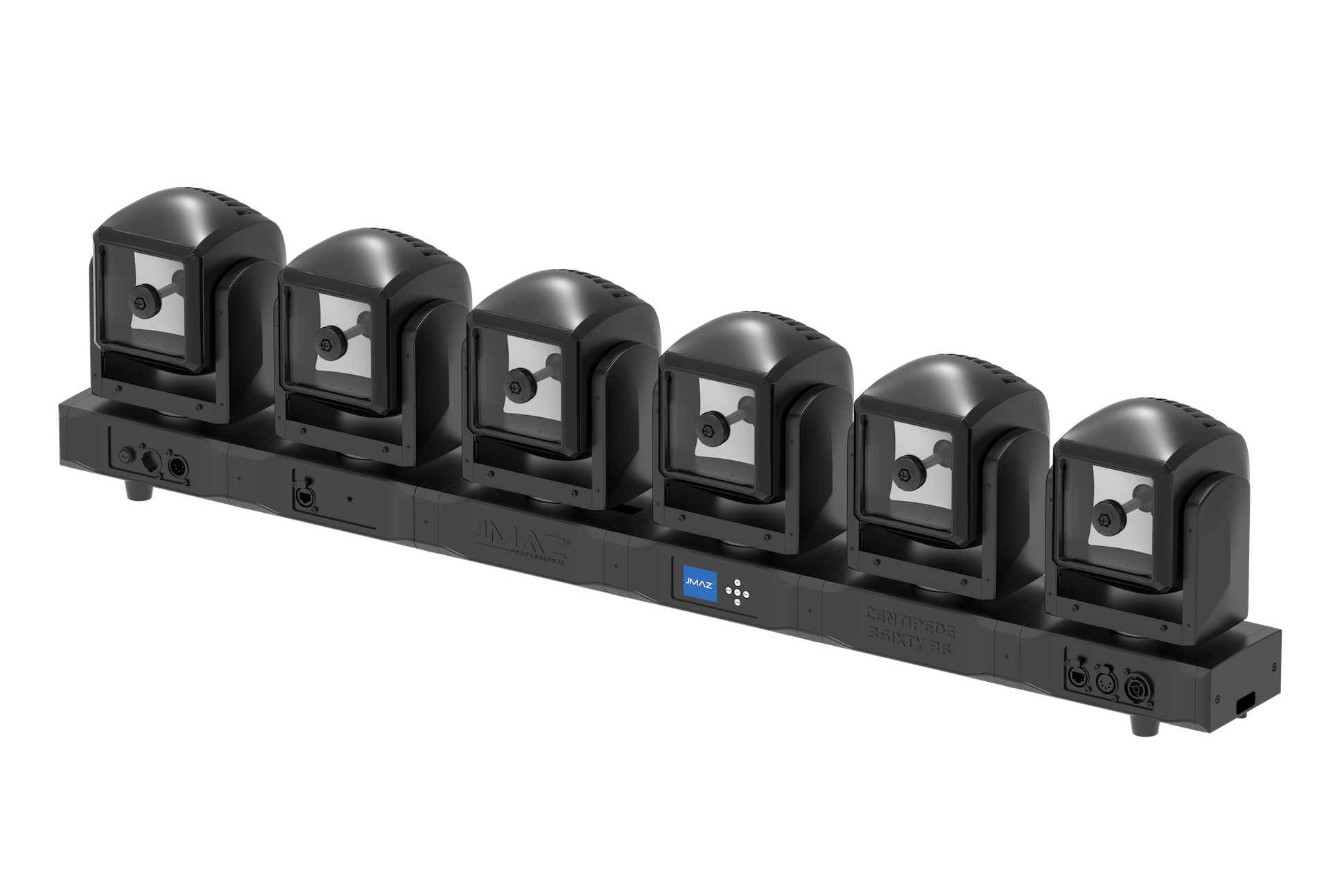

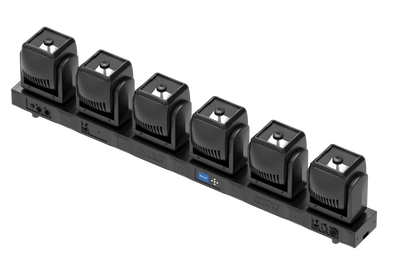

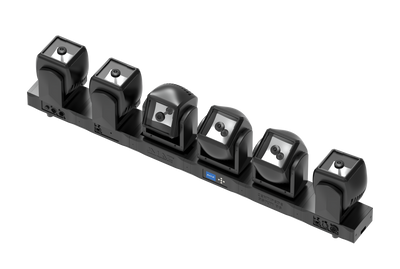

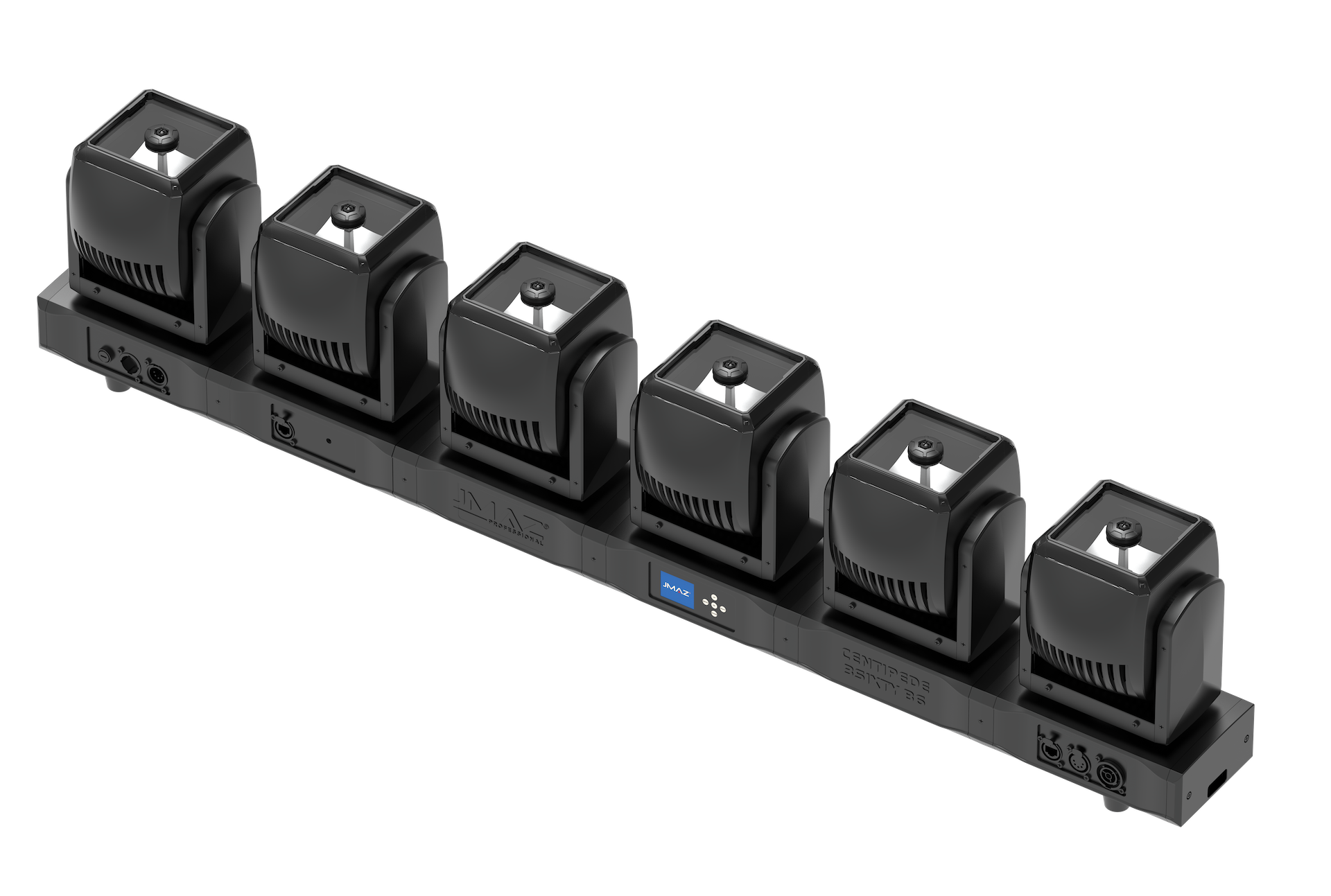

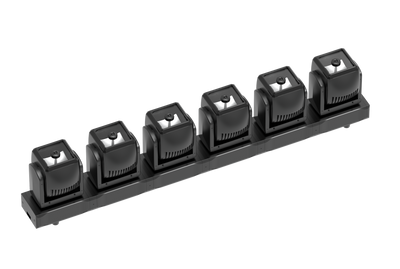

JMAZ PROFESSIONAL CENTIPEDE 3SIXTY B6 - RGBW LED Intelligent 6 Moving Head Bar

The JMAZ Professional Centipede 3SIXTY B6 is a dynamic RGBW moving head bar featuring six individually controlled 60W RGBW LED heads and 180 RGB SMD ring LEDs for striking visual effects. Each head offers 360° infinite pan/tilt rotation and pixel-level control, unlocking endless creative possibilities. Built-in macros include virtual color presets and animated movement sequences with full foreground and background color separation. With 16-bit RGBW color mixing and a variable CTO range of 2500K–8000K, the B6 delivers precision output through sharp 3.5° beams. Individual dynamic ring color effects and four personality modes (27/61/85/110 channels) make it versatile for everything from high-energy concerts to immersive installations. Compatible with DMX512, Art-Net, RDM, sACN, and Kling-Net, the 3SIXTY B6 ensures seamless integration into any advanced lighting setup. TRUE1 IN/OUT power connections and 5-pin DMX round out its professional-grade I/O. Includes TRUE1 power cable, 5-pin DMX cable, dual omega brackets, two safety cables, and a user manual. CE, cETL, FCC, and RoHS certified.

• Six high-output 60W RGBW LED heads arranged in a linear moving head bar deliver intense 3.5° beam effects with exceptional brightness, color saturation, and aerial impact.
• Independent 360° continuous pan and tilt movement on every head transforms the fixture into a dynamic moving beam bar capable of limitless motion effects and sweeping visual displays.
• Individual head pixel control enables intricate beam chases, animations, and custom pixel-mapped effects across all six moving heads for stunning stage looks.
• Integrated RGB LED rings feature built-in color and effect macros with variable speed control, adding dynamic eye-candy effects that enhance the fixture's visual presence.
• Advanced 16-bit RGBW color mixing with linear CTO adjustment from 2500K–8000K delivers smooth fades, vibrant colors, and precise white light control.
• Built-in movement macros, virtual color presets, and multi-protocol support including DMX512, Art-Net, RDM, sACN, and Kling-Net simplify programming and integration into professional lighting systems.

LIGHT SOURCE - 360W (6 x 60W) RGBW LED - Ring Effect: 36W (180 x 0.2W) RGB SMD LEDs - LED Life: 50,000 Hours COLOR SYSTEM - 16-bit RGBW Color Mixing; CTO: 2500K-8000K; Linear 16-bit Color Temperature - Individual Head Pixel Control; Individual Dynamic Ring Color And Effect Macro OPTICS - Beam Angle: 3.5° DYNAMIC EFFECT - Two Movement Modes: 360° Pan/Tilt Continuous & 540° Pan/270° Tilt (8-bit/16-bit) - Selectable preset home position macros by DMX function channel - Selectable movement speed by DMX function channel; scan position memory w/ auto tilt correction - Linear Dimmer 0-100%; High Speed Electronic Shutter/Strobe 0-25Hz variable speed - Preset Pulse Strobe, Random Strobe, Sharp Beam Effect - Dynamic Ring Effect with built-in macros, variable speed CONTROL - Protocol: 5-Pin DMX512, Art-Net, RDM, sACN, Kling-Net - Personalities: 4 Modes 27/61/85/110 BODY - Die-cast Aluminum and Steel w/ PA6 GF30 flame retardant plastic; Exterior finish: Black PHYSICAL - Cooling: Fan; Connection: TRUE1 (UL listed) In/Out - Protocol Connectors: 5-Pin DMX512 In/Out, Art-Net RJ45 - Cable Length: Power 5 ft, DMX 5 ft; IP Rating: 20 ELECTRICAL - Input Voltage: 100-240V AC 50/60Hz (auto-ranging, active PFC); Power Consumption: 420W - Power Linking: up to 5 units @110V/20A, 9 units @208V/20A, 9 units @230V/20A - Fuse: F12A 250V; Certifications: CE, cETL, FCC, RoHS - Operating Temp 40°C(104°F); Min -10°C(14°F); Max 60°C(140°F) BOX CONTENT - 1 x 3SIXTY B6, 1 x TRUE1 Power Cable, 1 x 5-Pin DMX Cable, 1 x User Manual, 2 x Omega Brackets, 2 x Safety Cable ITEM DIMENSIONS & WEIGHT - Dimensions: 47.3" x 10.5" x 6.6" - Weight: 49.4 lbs UPC: 618528599007 WARRANTY: 3 Years

- JMAZ PROFESSIONAL CENTIPEDE 3SIXTY B6 1
- Power cable 1
- 5-pin DMX Cable
- User Manual
- Omega Brackets
- 2x Safety Cable
