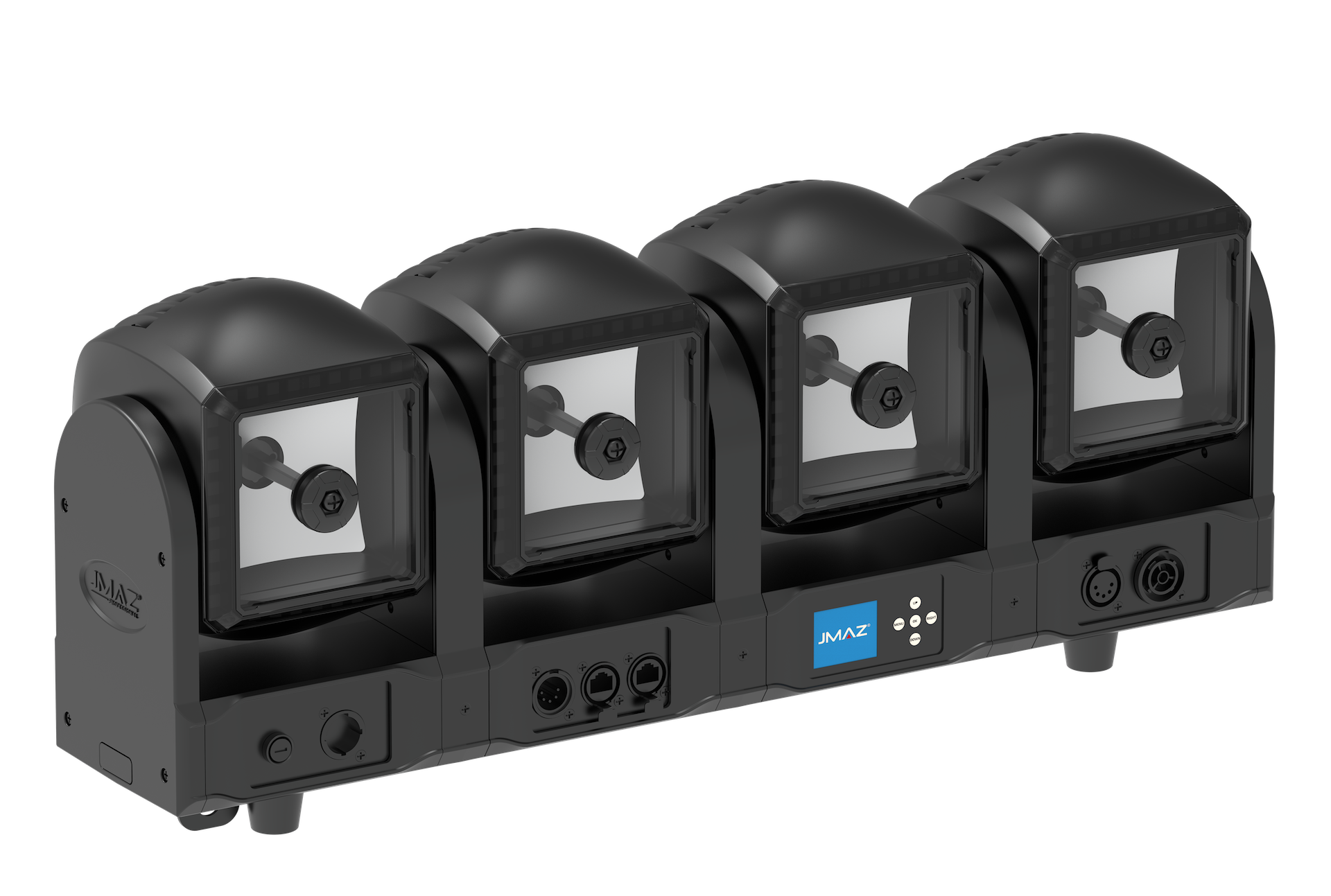

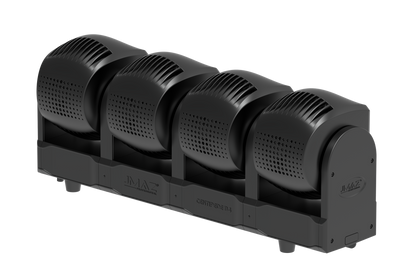

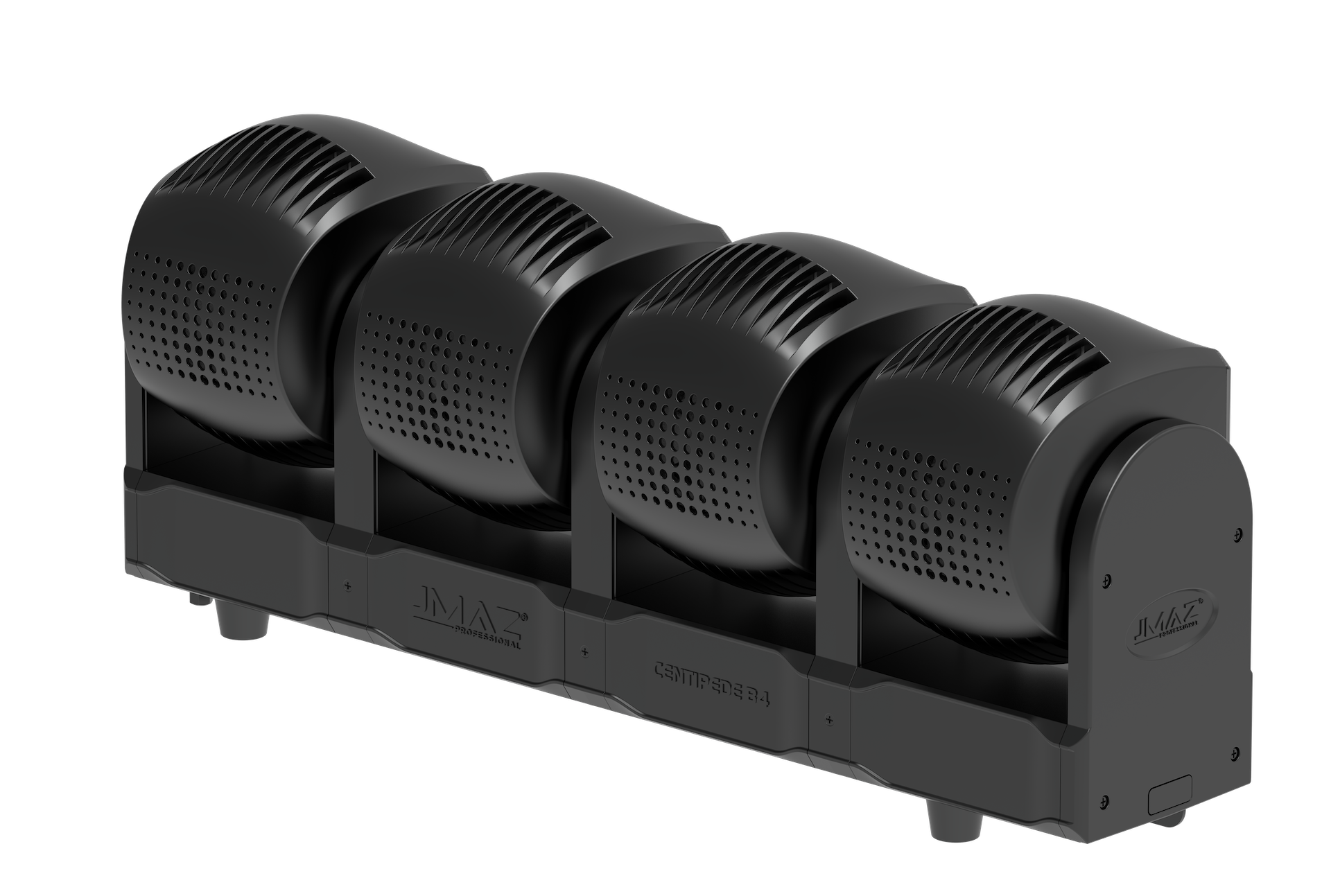

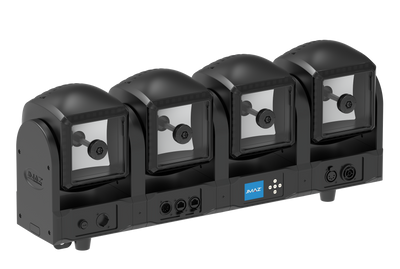

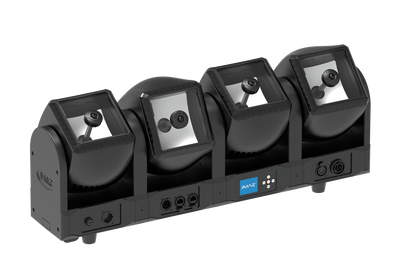

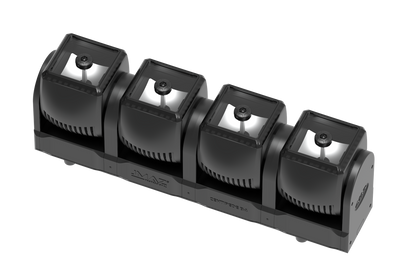

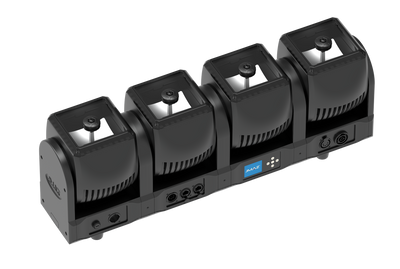

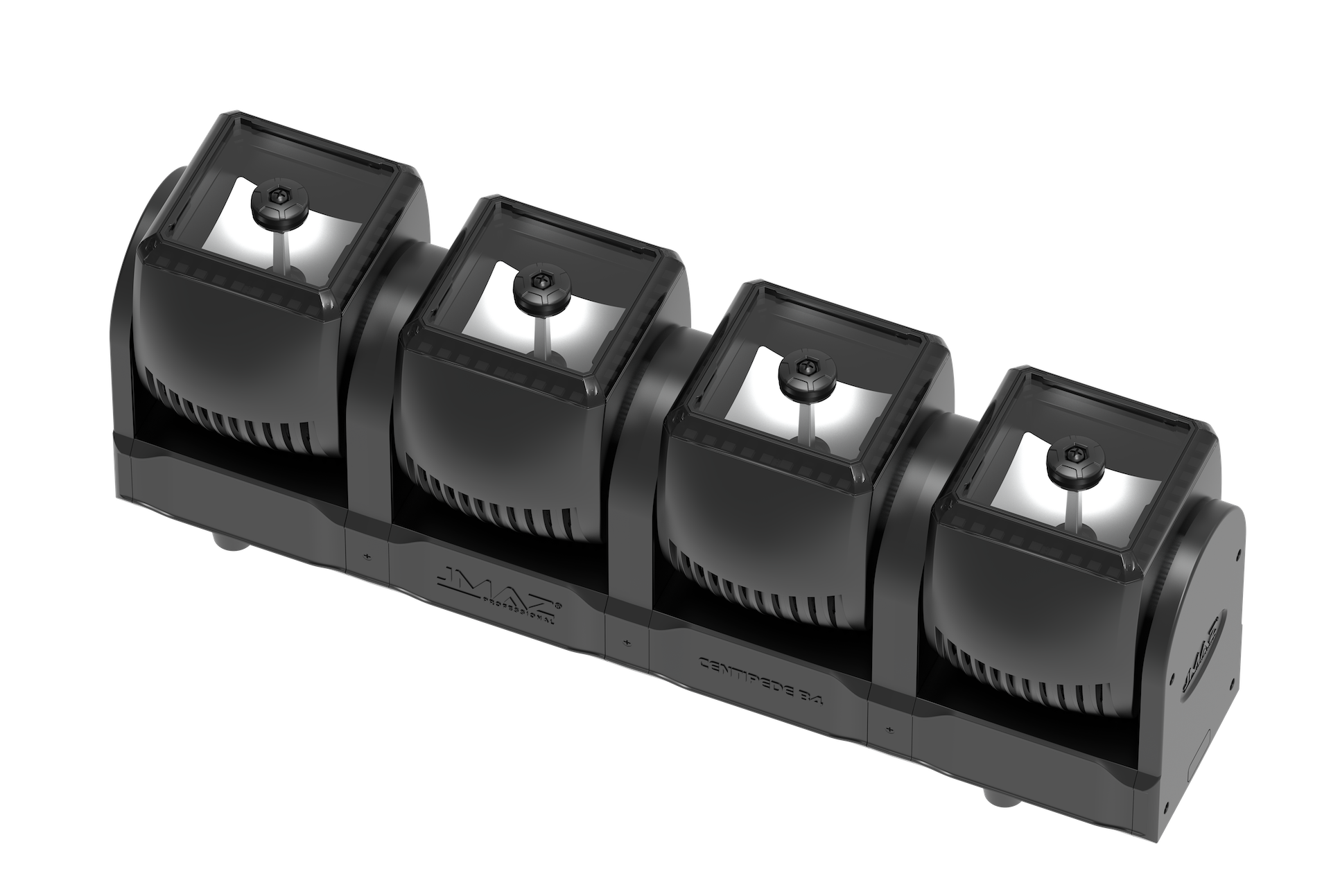

JMAZ PROFESSIONAL CENTIPEDE B4 - 270W LED Intelligent Bar RGBW LED
- 240W (4 x 60W) RGBW LED
- Ring Effect: 24W (120 x 0.2W) RGB SMD LEDs
- Individual Head 360° Infinite Tilt Control
- Individual Head Pixel Control
- Individual Dynamic Ring Color And Effect Macro
- Built-In Virtual Colors And Movement Macros w/ Foreground and
- Background Color Control
- Beam Angle: 3.5°
- 16 bit RGBW Color Mixing, CTO: 2500K – 8000K
- Personalities: 4 Modes 24/55/66/86
- Protocol: 5-Pin DMX512, Art-Net, RDM, sACN, Kling-Net
- Power Connection: TRUE1 In/Out
- CE, cETL, FCC, Rohs Certified
JMAZ PROFESSIONAL CENTIPEDE B4 - 270W LED Intelligent Bar RGBW LED
Product Details
Product Features
The JMAZ Professional Centipede B4 270W LED features 240W RGBW LEDs, 24W RGB SMD ring effects, and 360° infinite tilt control. With individual pixel and ring control, dynamic color macros, and CTC (2500K-8000K), it offers vibrant and versatile lighting. A 3.5° beam angle and advanced protocols (DMX512, Art-Net, Kling-Net) ensure professional-grade performance, making it ideal for captivating light displays.
Product Specifications
|
Control |
Control Protocol: DMX, Art-Net, RDM, sACN |
|
|
Personalities: 3 modes: 21/39/61 Control Channels |
|
Electronics |
Linear LED Dimmer: 0-100% Smooth |
|
|
Linear CTO: 2500-8000K |
|
|
Strobe Shutter: 1-25 Hz Variable |
|
Body |
Die-cast Aluminum and Steel structure with high impact flame retardant PA6 GF 30 (Polyamide 6) with 30% glass fiber |
|
|
Exterior finish: Black |
|
Physical |
IP Rating: 20 |
|
|
Cooling: Fan |
|
|
Power Connection: US Edison (UL listed) plug to Seetronic Powercon IP65 True1 |
|
|
Power Input: Seetronic Powercon IP65 True1 |
|
|
Power Output: Seetronic Powercon IP65 True1 |
|
|
Data Connectors: Seetronic 5pin XLR; Seetronic etherCON |
|
|
Cable Length: Power 5 feet (1.5 meter); DMX 5 feet (1.5 meter) |
|
|
Dimensions: 23.7″ x 9.3” x 6.6” |
|
|
Weight: 22 lbs. |
|
Electrical |
Input Voltage: 100 – 240V AC, 50/60Hz (Auto ranging with active PFC) |
|
|
Power Consumption: 320W |
|
|
Power Linking for connecting fixture in daisy-chain |
|
|
Up to 6 units @110V with a 20A circuit |
|
|
Up to 12 units @208V with a 20A circuit |
|
|
Up to 12 units @230V with a 20A circuit |
|
|
Fuse: F12A, 250V |
|
Certification / Qualifications |
cETLus Listed, CE, FCC |
|
|
IP Rating: IP 20 |
|
|
Operating Temperature: 40 ° C ( 104 °F) |
|
|
Minimum Temperature: – 10 ° C ( 14 ° F) |
|
|
Maximum Temperature: 60 ° C ( 140 ° F) |
|
Item Dimensions & Weight |
Dimensions: 23″ x 9.3″ x 5″ |
|
|
Weight: 42.1 lbs |
