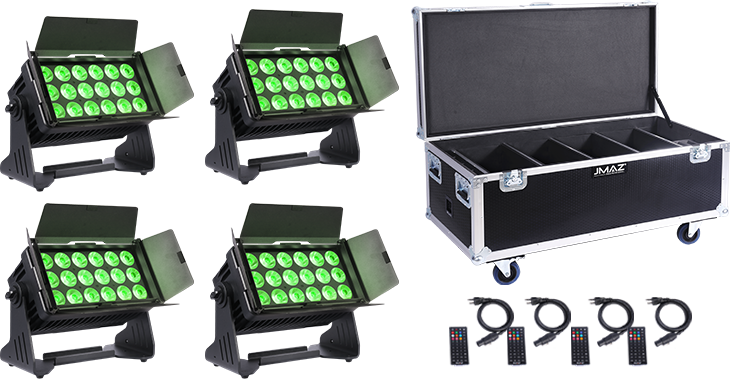

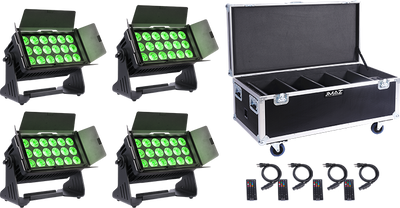

JMAZ PROFESSIONAL Electro Panel W18 4PK RGB+LIME Battery-Powered Outdoor LED Panel Light Kit w/ Charging Road Case

The Electro Panel W18 4-Pack with Charging Road Case delivers a complete wireless lighting solution designed for production companies, rental houses, houses of worship, and event professionals who demand powerful output, rapid deployment, and effortless transport. Featuring four Electro Panel W18 fixtures housed in a rugged charging road case, this turnkey package simplifies setup, charging, storage, and transportation while ensuring every fixture is show-ready when you arrive on site.

The integrated charging road case allows all four fixtures to be charged simultaneously without removing them from the case, reducing preparation time and streamlining event logistics. Combining vibrant wireless performance with professional-grade protection, the Electro Panel W18 4-Pack is the ideal solution for uplighting, stage washes, architectural lighting, and temporary event installations where flexibility and efficiency are essential.

• Complete turnkey package includes four Electro Panel W18 fixtures and a professional charging road case for streamlined deployment and transportation.
• Integrated charging system allows all fixtures to recharge simultaneously while stored securely inside the case, minimizing setup and turnaround time.
• Rugged touring-grade road case construction provides superior protection during transport, storage, and rental operations.
• Organized charging and storage solution helps reduce cable management, simplify inventory control, and improve operational efficiency.
• Ideal for uplighting, stage washes, architectural illumination, corporate events, houses of worship, and temporary production installations.
• Designed for production companies, rental houses, event professionals, integrators, and entertainment venues seeking a reliable wireless lighting package with maximum deployment efficiency.

216W (18 x 12W) RGBL LEDs
LED Life Expectancy: 50,000 hrs

RGBL Color Mixing 8/16 bit
CTO: 2300K – 8500K

Advanced Optics Beam Angle: 20 Degree
Diffuser Angle (included): 40 Degree

Max 11 Hour Battery Life / 40 Hour In Battery Saving Mode
Charging Time: 2.5 Hours
Selectable Battery Saving Mode: 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%, 100%
73 Preset Color Programs
72 Auto / Fade Built-In Programs
Stand Alone Color Mixing
Electronic Dimmer
Fading/Jumping Macros Light Change And Jump
Shutter/Strobe: Electronic
Strobe Rate: 0-25 Hz
Preset Color Temperature: 2300K – 8500K
4 Favorite Color Customization Triggered via DMX / IR Remote

Control Protocol: Wireless DMX, IR Remote
Wireless DMX: CRMX by LumenRadio
Personalities: HSV/HSI/3/4/6/11/16 DMX Channel Modes
OLED Graphical Display

Strobe Shutter: 1-25Hz
Dimming Modes: 4

Die-Cast Aluminum and Steel Structure
External Finish: Black

IP Rating: 65
Cooling: Fanless
Certifications / Qualifications:
RoHS, CE, FCC, cETL (Pending)
Operating Temperature: -10° C to (14°F) to 60° C (140° F)
Power Connection: US Edison (UL listed) plug to Seetronic Powercon IP65 True1
Power Input: Seetronic Powercon IP65 True1
Power Output: Seetronic Powercon IP65 True1
Data Connectors: Seetronic 5pin XLR IN/OUT
Cable Length: Power 4.1 feet (1.25 meter)

Input Voltage: 100V – 240V AC, 50/60 Hz
Power Consumption: 216W
PWM: 1.5KHz
Battery Voltage: 29.6V, 3A
Battery Capacity: 13000mAh, 384.8Wh/hour
Charger: 29.4V, 5.5A
Rechargeable Battery Type: Lithium Ion ***UL Listed***
Power Linking for connecting fixtures in daisy-chain:
Up to 8 units @110V with a 20A circuit
Up to 14 units @208V with a 20A circuit
Up to 17 units @230V with a 20A circuit

1 x Charging Case
4 x Electro Panel W18
4 x Powercon IP65 TRUE1 Power Cable
1 x Quick Start Guide
1 x User Manual
4 x IR Remote
4 x Barn Door
4 x 40 Degree Diffuser

618528600024

- 1 x Charging Case
- 4 x Electro Panel W18
- 4 x Powercon IP65 TRUE1 Power Cable
- 1 x Quick Start Guide
- 1 x User Manual
- 4 x IR Remote
- 4 x Barn Door
- 4 x 40 Degree Diffuser
