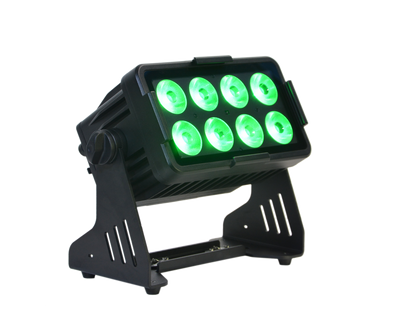

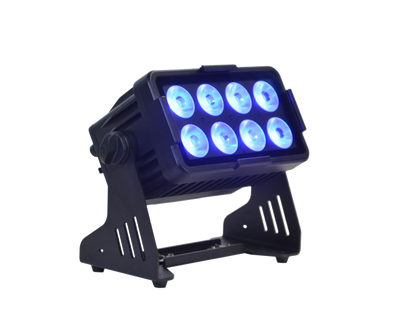

JMAZ PROFESSIONAL ELECTRO W8 PANEL - Electro W8 RGB+LIME LED Battery Outdoor Powered Panel
- Light Source: (8) 12W RGB+Lime LED
- IP65 Outdoor Rated
- Max 14 Hour Battery Life / 40 Hour In Battery Saving Mode
- Charging Time: 4.5 Hours
- CCT: 2300K – 8500K
- 73 Preset Color Programs
- 72 Auto / Fade Built In Programs
- 10° Beam Angle / 20° Beam Angle w/Diffuser Included
- Protocols: DMX512, Wireless DMX (CRMX by LumenRadio), RDM, IR Remote
- Personalities: 7 Modes: HSV / HSI / 3 / 4 / 6 / 11 / 16
- Power Connection: TRUE1 IN/OUT; Operates and charges simultaneously with built-in battery charger
- Data Connection: 5-Pin DMX IN/OUT; IP65 5-Pin DMX IN/OUT for Wired Data Connection
- Includes: Diffuser, TRUE1 Power Cable, IR Remote, QSG, Manual
- CE, FCC, RoHs Certified, UL Listed Battery
JMAZ PROFESSIONAL ELECTRO W8 PANEL - Electro W8 RGB+LIME LED Battery Outdoor Powered Panel
Product Details
Product Features
The JMAZ Professional Electro Panel W8 is a compact and powerful outdoor battery-powered LED panel, built for professional applications where flexibility, brightness, and color precision matter. Featuring 8 high-output 12W RGB+LIME LEDs, the W8 delivers vibrant color rendering with a tunable CCT range of 2300K to 8500K. With a native 10° beam angle (expandable to 20° using the included diffuser), it offers tight control or wide coverage as needed. Its IP65 rating ensures durability in outdoor environments, while the internal battery supports up to 16 hours of operation—or up to 40 hours in saver mode—with a fast 4.5-hour recharge. The W8 includes 73 preset color programs and 72 auto/fade effects, all controllable via DMX512, Wireless DMX (CRMX by LumenRadio), RDM, or IR remote. Seven personality modes (HSV, HSI, 3–16 channels) allow for tailored control. The TRUE1 IN/OUT power system enables simultaneous operation and charging via a built-in battery charger. Data connectivity is available via 5-pin DMX and IP65-rated wired ports. Comes complete with diffuser, TRUE1 power cable, IR remote, quick start guide, and manual. CE, FCC, and RoHS certified with a UL listed battery.

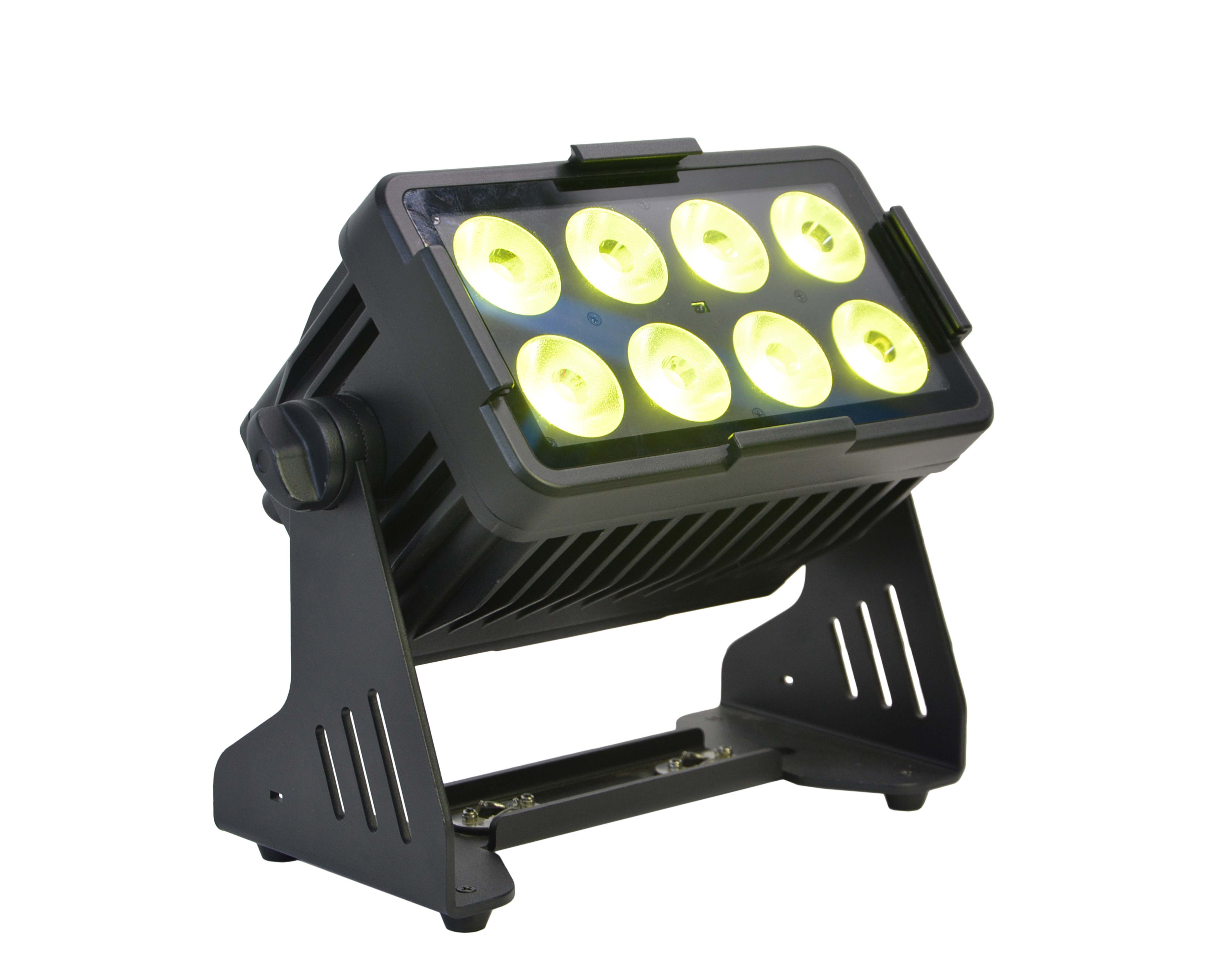

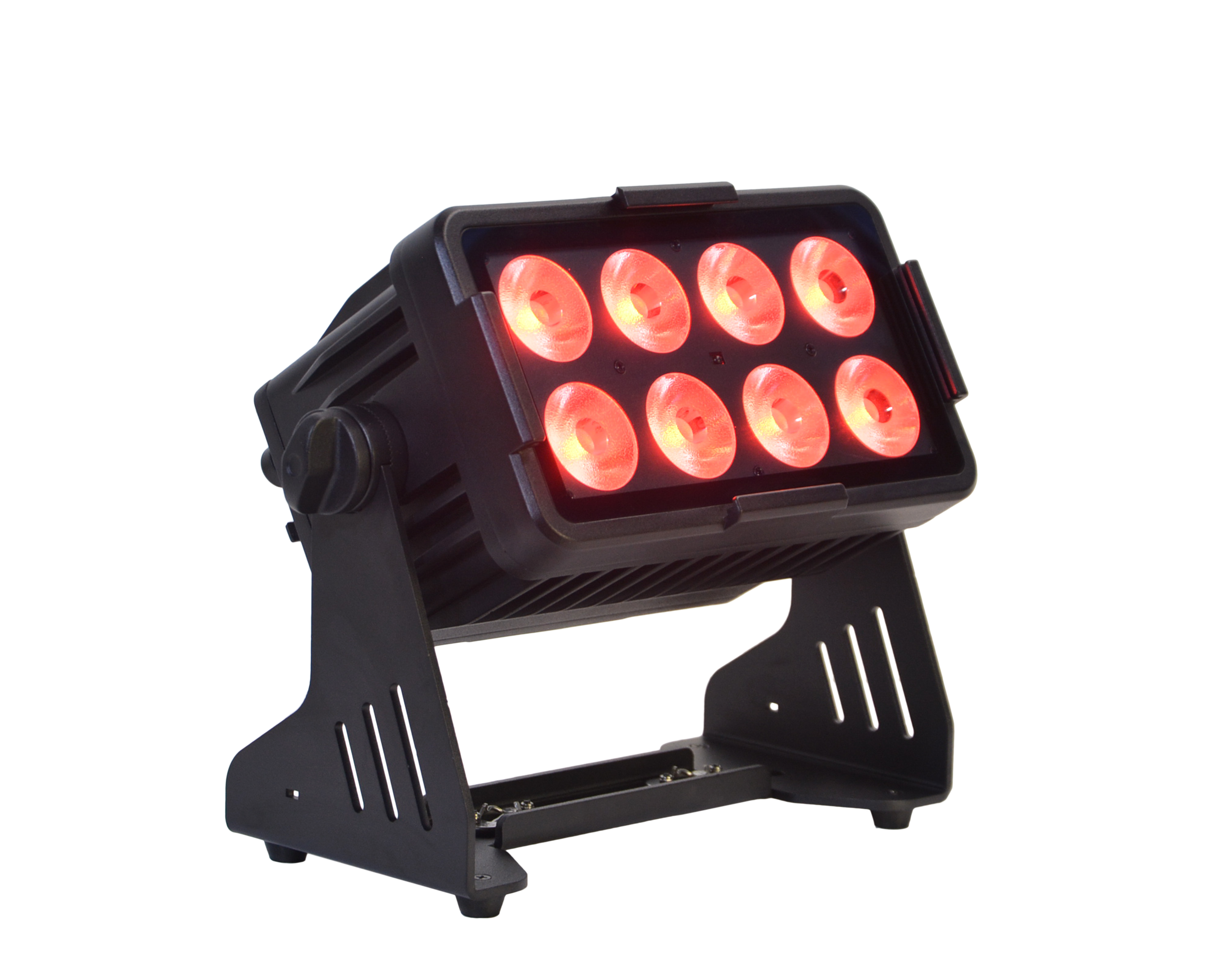

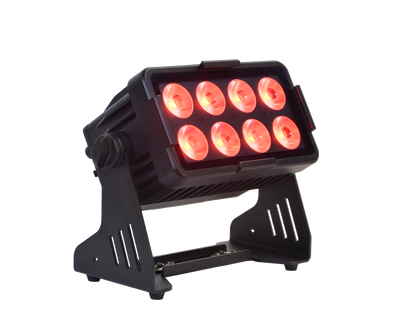

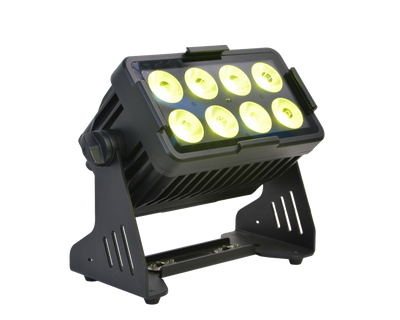

- Equipped with eight 12W RGB+LIME LEDs delivering vibrant saturated colors, enhanced pastel tones, and a tunable white range from 2300K to 8500K for exceptional color versatility.

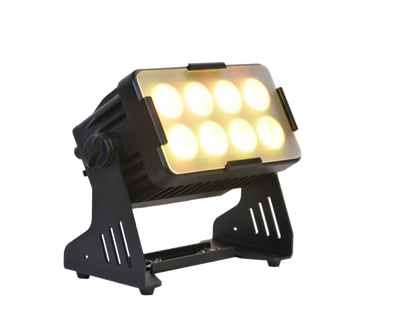

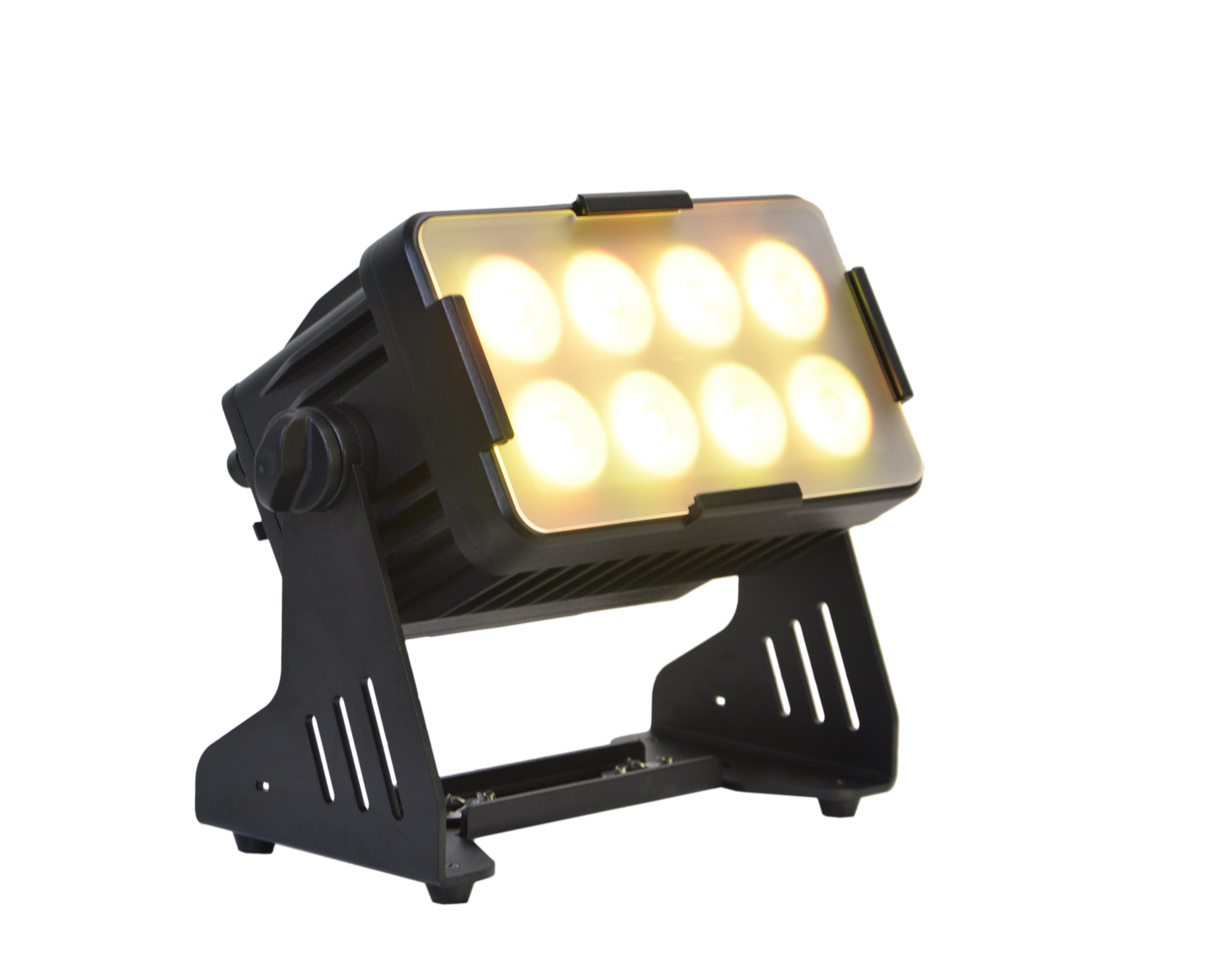

- Advanced optical system produces a powerful 20° beam for precise illumination, while the included 40° diffuser expands coverage for smooth stage washes, wall washing, and architectural lighting applications.

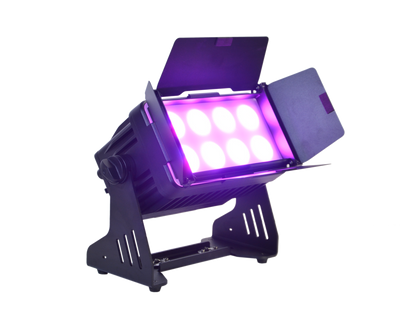

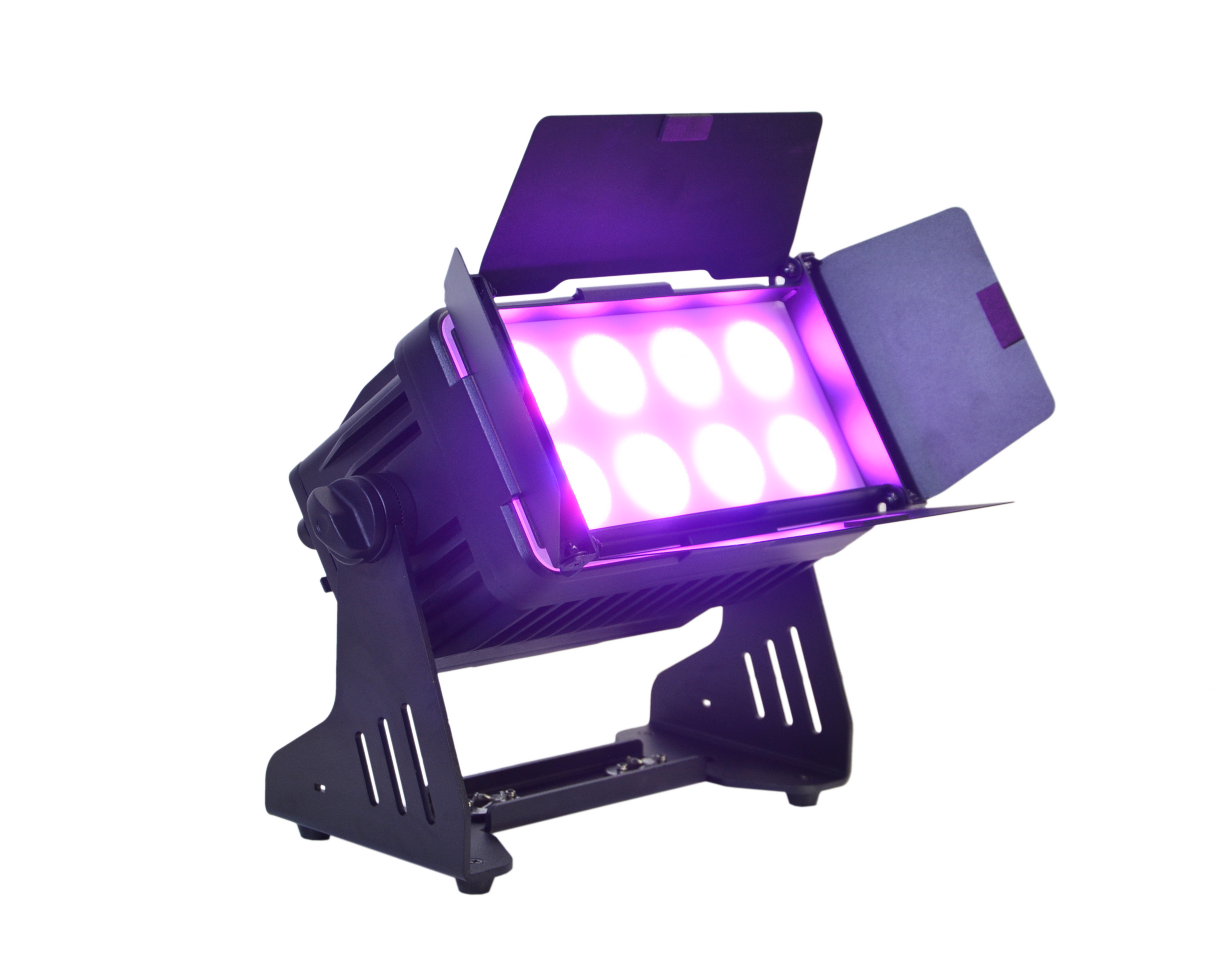

- Included barn doors provide precise beam shaping and spill-light control, allowing users to direct light exactly where needed while minimizing unwanted light contamination.
- Integrated rechargeable lithium-ion battery provides up to 16 hours of continuous operation or up to 40 hours in battery-saving mode for extended event and production use.
- Built-in CRMX by LumenRadio wireless DMX technology delivers reliable cable-free control, while the IP65-rated housing ensures dependable performance in both indoor and outdoor environments.
- Designed for production companies, rental houses, houses of worship, corporate event professionals, architectural lighting applications, and entertainment venues seeking powerful wireless wash lighting solutions.
Product Specifications
LIGHT SOURCE - 96W (8 x 12W) RGBL LEDs; LED Life: 50,000 hrs COLOR SYSTEM - RGBL Color Mixing 8/16-bit; CTO: 2300K-8500K OPTICS - Beam Angle: 20°; Diffuser Angle (included): 40° DYNAMIC EFFECT - Max 16 Hour Battery Life / 40 Hour Battery Saving Mode; Charging Time: 4.5 hrs - Selectable Battery Saving Mode: 20-100% in 10% steps - 73 Preset Color Programs; 72 Auto/Fade Built-In Programs - Stand Alone Color Mixing; Electronic Dimmer; Fading/Jumping Macros - Shutter/Strobe Electronic, Strobe Rate 0-25Hz - Preset Color Temperature 2300K-8500K; 4 Favorite Color Customization via DMX/IR Remote CONTROL - Protocol: Wireless DMX (CRMX by LumenRadio), IR Remote - Personalities: HSV/HSI/3/4/6/11/16 DMX Channel Modes; OLED Graphical Display ELECTRONICS - Strobe Shutter: 1-25Hz; Dimming Modes: 4 BODY - Die-Cast Aluminum and Steel Structure; External Finish: Black PHYSICAL - IP Rating: 65; Cooling: Fanless - Certifications: RoHS, CE, FCC, cETL (Pending) - Operating Temp: -10°C(14°F) to 60°C(140°F) - Power Connection: US Edison (UL) plug to Seetronic Powercon IP65 TRUE1 - Data Connectors: Seetronic 5-Pin XLR IN/OUT; Cable Length: Power 4.1 ft (1.25m) ELECTRICAL - Input Voltage: 100-240V AC 50/60Hz; Power Consumption: 120W; PWM: 1.5KHz - Battery Voltage: 18.5V; Battery Capacity: 15600mAh, 288.6Wh - Charger: 21V 3.5A; Battery Type: Lithium Ion (UL Listed) - Power Linking: up to 18 units @110V/20A, 30 units @208V/20A, 40 units @230V/20A BOX CONTENT - 1 x Electro Panel W8, 1 x Powercon IP65 TRUE1 Power Cable, 1x Quick Start Guide, 1 x User Manual, 1 x IR Remote, 1 x Barn Door, 1 x 40° Diffuser ITEM DIMENSIONS & WEIGHT - Dimensions: 12.56" x 5.51" x 9.77" - Weight: 14.7 lbs (6.6kg) UPC: 618528598963 WARRANTY: 3 Years; Battery: 6 Months
