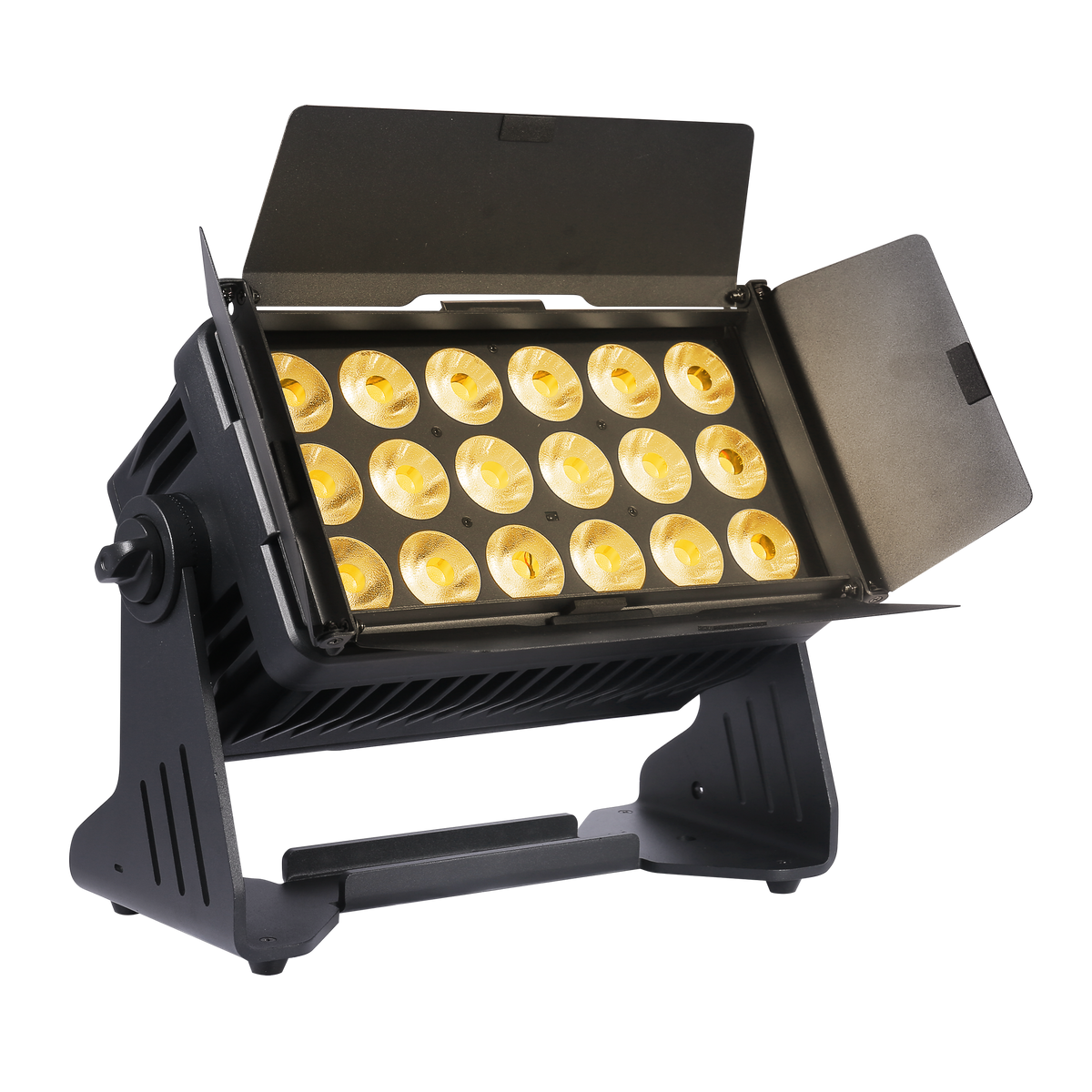

JMAZ PROFESSIONAL Gotham Panel W18 - RGB+LIME Outdoor LED Panel Light

The JMAZ Professional Gotham Panel W18 is a rugged and versatile RGB+LIME LED panel designed for professional outdoor lighting. Equipped with 18 high-efficiency 12W RGB+LIME LEDs, it delivers bold, vibrant output with a CCT range of 2300K to 8500K. Rated IP65 for outdoor use, the W18 provides consistent performance in demanding environments. With 73 preset color programs and 72 auto/fade built-in effects, it provides instant creative control for any environment. A native 20° beam angle ensures focused output, while the included diffuser widens coverage to 40° for softer washes. The fixture supports multiple control protocols, including DMX512, Wireless DMX (CRMX by LumenRadio), RDM, and IR remote, and features 7 personality modes (HSV, HSI, 3–16 channels). TRUE1 IN/OUT power allows continuous operation with daisy-chain capability, and IP65-rated 5-pin DMX ports support secure wired data. Accessories include a diffuser, barndoors, TRUE1 power cable, omega bracket, IR remote, quick start guide, and manual. CE, FCC, and RoHS certified.

• Eighteen high-output 12W RGB+Lime LEDs deliver 216W of powerful output with rich saturated colors, enhanced pastel tones, and smooth white light control from 2300K–8500K.
• Versatile beam-shaping system features a focused 20° native beam angle for long-throw applications and an included 40° diffuser for broad, even wash coverage.
• Integrated CRMX by LumenRadio, DMX512, RDM, and IR remote support provide flexible wireless and wired control for touring, installation, and production environments.
• IP65-rated construction and fanless operation ensure reliable, silent performance in outdoor venues, architectural applications, houses of worship, and broadcast environments.
• 73 preset color programs, 72 built-in auto effects, and four customizable favorite colors allow for fast programming and consistent operation with or without a lighting console.
• Professional-grade TRUE1 IP65 power linking and sealed 5-pin DMX connectivity support scalable deployments with the ability to link up to 17 fixtures on a single 230V circuit.

216W (18 x 12W) RGBL LEDs
LED Life Expectancy: 50,000 hrs

RGBL Color Mixing 8/16 bit
CTO: 2300K – 8500K

Advanced Optics Beam Angle: 20 Degree
Diffuser Angle (included): 40 Degree

73 Preset Color Programs
72 Auto / Fade Built-In Programs
Stand Alone Color Mixing
Electronic Dimmer
Fading/Jumping Macros Light Change And Jump
Shutter/Strobe: Electronic
Strobe Rate: 0-25 Hz
Preset Color Temperature: 2300K – 8500K
4 Favorite Color Customization Triggered via DMX / IR Remote

Control Protocol: Wireless DMX, IR Remote
Wireless DMX: CRMX by LumenRadio
Personalities: HSV/HSI/3/4/6/11/16 DMX Channel Modes
OLED Graphical Display

Strobe Shutter: 1-25Hz
Dimming Modes: 4

Die-Cast Aluminum and Steel Structure
External Finish: Black

IP Rating: 65
Cooling: Fanless
Certifications / Qualifications:
RoHS, CE, FCC, cETL (Pending)
Operating Temperature: -10° C to (14°F) to 60° C (140° F)
Power Connection: US Edison (UL listed) plug to Seetronic Powercon IP65 True1
Power Input: Seetronic Powercon IP65 True1
Power Output: Seetronic Powercon IP65 True1
Data Connectors: Seetronic 5pin XLR IN/OUT
Cable Length: Power 4.1 feet (1.25 meter)

Input Voltage: 100V – 240V AC, 50/60 Hz
Power Consumption: 216W
PWM: 1.5KHz
Power Linking for connecting fixtures in daisy-chain:
Up to 8 units @110V with a 20A circuit
Up to 14 units @208V with a 20A circuit
Up to 17 units @230V with a 20A circuit

1 x Gotham Panel W18
1 x Powercon IP65 TRUE1 Power Cable
1 x Quick Start Guide
1 x User Manual
1 x IR Remote
1 x Barn Door
1 x 40 Degree Diffuser

Dimensions: 16.2″ x 7.3″ x 10.6″
Weight: 18.74lbs (8.5Kgs)

3 Years

N/A

- 1 x Gotham Panel W18
- 1 x Powercon IP65 TRUE1 Power Cable
- 1 x Quick Start Guide
- 1 x User Manual
- 1 x IR Remote
- 1 x Barn Door
- 1 x 40 Degree Diffuser
