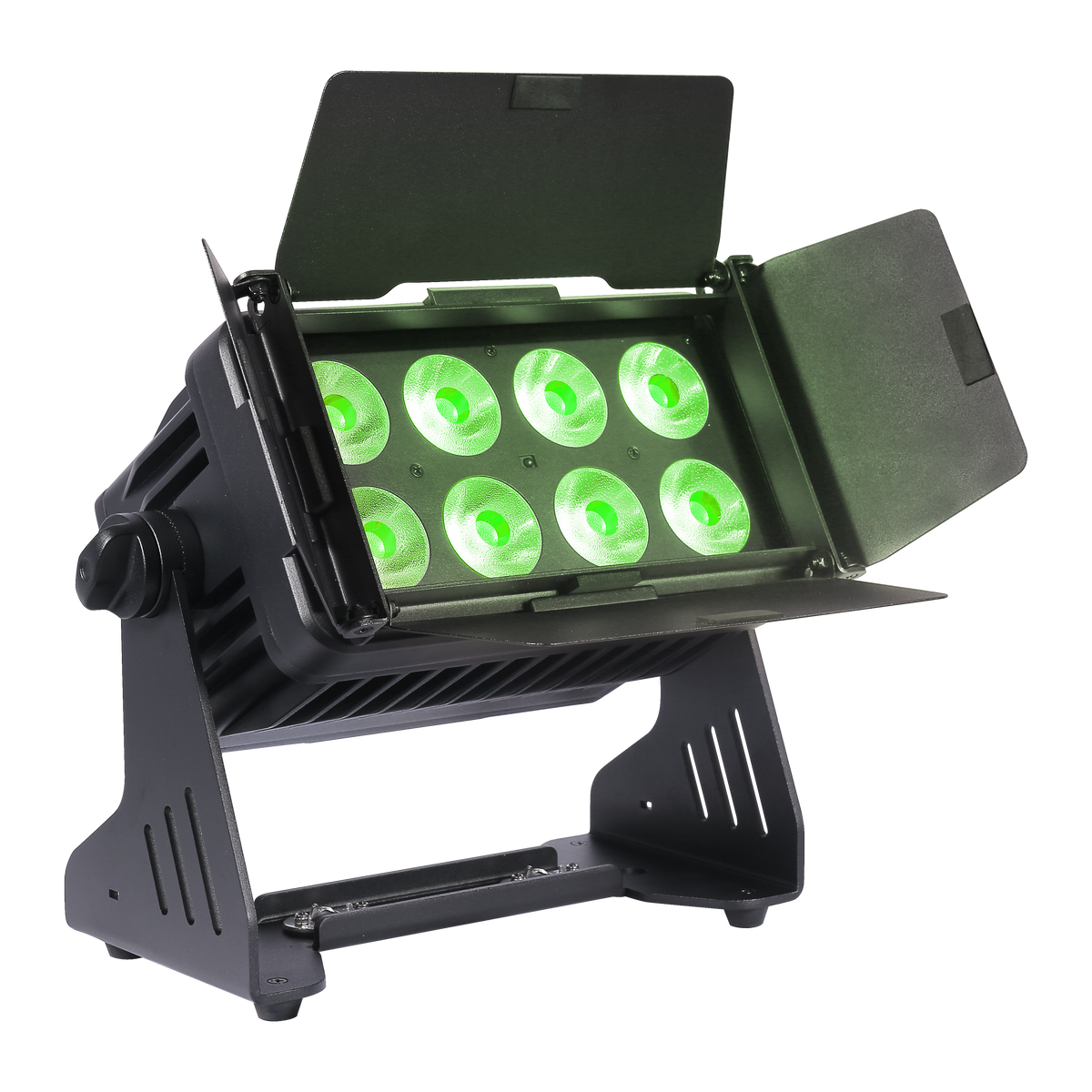

JMAZ PROFESSIONAL Gotham Panel W8 - RGB+LIME Outdoor LED Panel Light

The JMAZ Professional Gotham Panel W8 is a compact and powerful outdoor LED panel, built for professional applications where flexibility, brightness, and color precision matter. Featuring 8 high-output 12W RGB+LIME LEDs, the W8 delivers vibrant color rendering with a tunable CCT range of 2300K to 8500K. With a native 20° beam angle (expandable to 40° using the included diffuser), it offers tight control or wide coverage as needed. Its IP65 rating ensures durability in outdoor environments. The W8 includes 73 preset color programs and 72 auto/fade effects, all controllable via DMX512, Wireless DMX (CRMX by LumenRadio), RDM, or IR remote. Seven personality modes (HSV, HSI, 3–16 channels) allow for tailored control. The TRUE1 IN/OUT power system enables continuous operation with daisy-chain capability. Data connectivity is available via 5-pin DMX and IP65-rated wired ports. Comes complete with diffuser, TRUE1 power cable, IR remote, quick start guide, and manual. CE, FCC, and RoHS certified.

• Eight high-output 12W RGB+Lime LEDs deliver vibrant saturated colors, enhanced pastel reproduction, and smooth white light control with an adjustable CTO range from 2300K–8500K.
• Flexible beam-shaping system features a focused 20° native beam angle for controlled projection and an included 40° diffuser for wider, more uniform wash coverage.
• Integrated CRMX by LumenRadio, DMX512, RDM, and IR remote support provide versatile control options for professional wireless and wired lighting systems.
• IP65-rated construction and fanless operation ensure reliable, silent performance for outdoor productions, architectural lighting, houses of worship, and permanent installations.
• 73 preset color programs, 72 built-in auto effects, and four customizable favorite colors enable fast setup and creative programming with or without a lighting console.
• Compact design with TRUE1 IP65 power linking, professional 5-pin DMX connectivity, and support for up to 40 fixtures on a single 230V circuit makes deployment simple and scalable.

96W (8 x 12W) RGBL LEDs
LED Life Expectancy: 50,000 hrs

RGBL Color Mixing 8/16 bit
CTO: 2300K – 8500K

Advanced Optics Beam Angle: 20 Degree
Diffuser Angle (included): 40 Degree

73 Preset Color Programs
72 Auto / Fade Built-In Programs
Stand Alone Color Mixing
Electronic Dimmer
Fading/Jumping Macros Light Change And Jump
Shutter/Strobe: Electronic
Strobe Rate: 0-25 Hz
Preset Color Temperature: 2300K – 8500K
4 Favorite Color Customization Triggered via DMX / IR Remote

Control Protocol: Wireless DMX, IR Remote
Wireless DMX: CRMX by LumenRadio
Personalities: HSV/HSI/3/4/6/11/16 DMX Channel Modes
OLED Graphical Display

Strobe Shutter: 1-25Hz
Dimming Modes: 4

Die-Cast Aluminum and Steel Structure
External Finish: Black

IP Rating: 65
Cooling: Fanless
Certifications / Qualifications:
RoHS, CE, FCC, cETL (Pending)
Operating Temperature: -10° C to (14°F) to 60° C (140° F)
Power Connection: US Edison (UL listed) plug to Seetronic Powercon IP65 True1
Power Input: Seetronic Powercon IP65 True1
Power Output: Seetronic Powercon IP65 True1
Data Connectors: Seetronic 5pin XLR IN/OUT
Cable Length: Power 4.1 feet (1.25 meter)

Input Voltage: 100V –240V AC, 50/60 Hz
Power Consumption: 120W
PWM: 1.5KHz
Power Linking for connecting fixtures in daisy-chain:
Up to 18 units @110V with a 20A circuit
Up to 30 units @208V with a 20A circuit
Up to 40 units @230V with a 20A circuit

1 x Gotham Panel W8
1 x Powercon IP65 TRUE1 Power Cable
1x Quick Start Guide
1 x User Manual
1 x IR Remote
1 x Barn Door
1 x 40 Degree Diffuser

Dimensions: 12.56″ x 5.51″ x 9.77″
Weight: 11.2lbs (5.1Kgs)

618528599021

- 1 x Gotham Panel W8
- 1 x Powercon IP65 TRUE1 Power Cable
- 1x Quick Start Guide
- 1 x User Manual
- 1 x IR Remote
- 1 x Barn Door
- 1 x 40 Degree Diffuser
