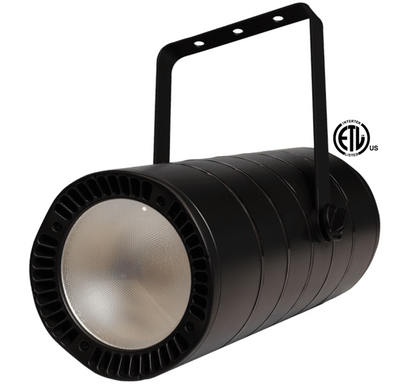

JMAZ PROFESSIONAL ZONA DWL - Zona DWS CW+WW LED House Light

The JMAZ Professional ZONA DWL redefines modern house lighting by delivering exceptional white light quality, silent operation, and refined performance for theaters, worship spaces, broadcast environments, and multipurpose venues. Featuring dedicated warm white and cool white LED sources, the ZONA DWL provides smooth color temperature adjustment from 2700K to 5600K with a CRI of 95+ for natural, accurate illumination. Its fanless design ensures completely silent operation, while smooth dimming enhances the audience experience without distraction. Integrated RGB LED ring effects offer an additional layer of visual creativity when the application calls for it, allowing venues to incorporate subtle accents and immersive environmental lighting. Whether illuminating an audience, enhancing architectural spaces, or creating welcoming venue atmospheres, the ZONA DWL delivers professional performance with outstanding reliability.

• Powerful 400W dual-white COB LED engine combines 200W warm white and 200W cool white LEDs to deliver exceptional output with smooth color temperature blending from 2700K–5600K.
• High CRI of ≥95 ensures accurate color rendering and natural skin tones, making the fixture ideal for theaters, houses of worship, auditoriums, and architectural lighting applications.
• Integrated five-ring RGB effect system featuring 250 SMD LEDs and 31 built-in ring color macros adds dynamic visual effects, ambient accents, and architectural enhancement beyond traditional house lighting.
• Wide 60° beam angle provides smooth, even coverage across large seating areas and venues, while an optional 30° lens offers increased throw and beam control for more focused applications.
• Completely fanless design delivers silent operation, making the fixture ideal for performance venues, broadcast environments, worship spaces, and other noise-sensitive installations.
• Professional control features including DMX, RDM, 16-bit dimming, four dimming curves, six DMX personalities, standalone operation, and optional CRMX wireless DMX support provide smooth fades and seamless system integration.

LIGHT SOURCE - 200W COB Warm White LED + 200W COB Cool White LED - 5-Ring Effect: (250) 0.3W RGB SMD LEDs - LED Life: 50,000 hours COLOR SYSTEM - CTO: 2700K-5600K; CRI: ≥95 OPTICS - Beam Angle: 60°; Optional Lens: 30° DYNAMIC EFFECT - Virtual Color Wheel: 31 Preset Color Macros on LED Rings - Color Temperature Presets: 2700K-5600K - Linear Dimmer 0-100%; Shutter/Strobe 1-25Hz variable, Preset Pulse, Random Strobe - Dimming Curves: 4 (Linear, Square, F-Square, S-Line); Dimming Modes: 4; Built-In Auto Programs: Yes CONTROL - Control Protocol: DMX, RDM - Optional Add-On Wireless DMX: CRMX USB by LumenRadio (SKU JP5001) - Personalities: 6 Modes 3/5/10/16/19/34; LED Graphical Display; Standalone Mode BODY - Die-Cast Aluminum and Steel Structure; External Finish: Mute Black; Optional Half Snoot Kit Available PHYSICAL - IP Rating: 20; Cooling: Fanless (Silent) - Bare Wire Block Terminal Connection (power & DMX) for permanent install - Power Connection: US Edison (UL) plug to Seetronic Powercon IP65 TRUE1 - Data Connectors: Seetronic 5-Pin XLR IN/OUT; Cable Length: 5 ft - Certifications: cETL (Pending), RoHS, CE, FCC - Operating Temp 40°C(104°F); Min -10°C(14°F); Max 45°C(113°F) ELECTRICAL - Input Voltage: 100-240V AC 50/60Hz; Power Consumption: 160W; Fuse: T3A 250V - Power Linking: up to 10 units @110V/20A, 19 units @208V/20A, 22 units @230V/20A BOX CONTENT - 1x ZONA DWL, 1x Hanging Yoke, 1x Powercon IP65 TRUE1 Power Cable, 1x 5-Pin DMX Cable, 1x Safety Cable, 1x Manual ITEM DIMENSIONS & WEIGHT - Dimensions: 17.25" x 7.1" x 7.1" - Weight: 17.4 lbs UPC: 618528598956 WARRANTY: 3 Years

- JMAZ PROFESSIONAL ZONA DWL
- Hanging Yolk
- TRUE1 Power Cable
- 5-Pin DMX Cable
- Safety Cable
- Manual
