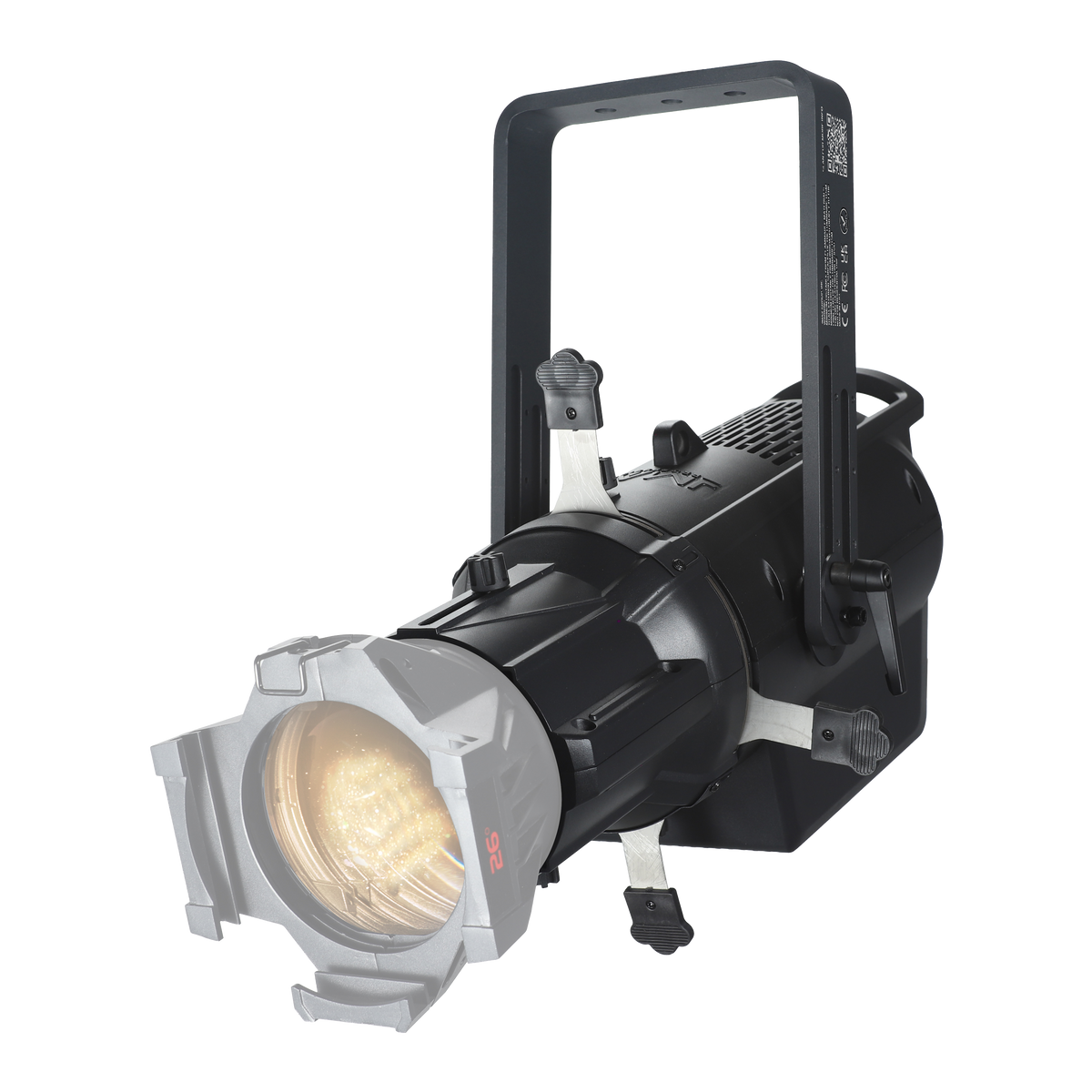

JMAZ PROFESSIONAL Zona Profile DW - Variable White LED Ellipsoidal

The ZONA PROFILE DW was created for designers, programmers, and production teams who demand beautifully controlled white light in a modern ellipsoidal fixture. Unlike traditional ellipsoidal fixtures that are limited to fixed 3200K tungsten or 5600K daylight output, the ZONA PROFILE DW gives lighting professionals the flexibility to precisely tune white light from 2700K to 7500K, allowing a single fixture to adapt seamlessly across theatre, broadcast, worship, studio, architectural, and live production environments.

Powered by a dedicated 350W warm white and 350W cool white LED system, the ZONA PROFILE DW delivers exceptionally balanced white light with smooth variable CCT control and outstanding color fidelity with CRI values up to 97. From warm tungsten-inspired tones to crisp daylight whites, it produces natural-looking illumination with accurate skin tones and refined on-camera performance that today’s productions demand.

Whether illuminating a stage, a broadcast set, a house of worship, or an architectural environment, the ZONA PROFILE DW delivers refined white-light performance, creative flexibility, and dependable operation for today’s demanding productions.

• High-output 350W warm white and 350W cool white LED engine for rich, natural white light reproduction.
• Precision variable CCT adjustment from 2700K to 7500K with exceptional color rendering up to CRI 97.
• Ultra-smooth 16-bit dimming with 6 dimming modes and 4 selectable dimming curves for seamless fades and precision control.
• Flicker-free performance with adjustable PWM for flawless results across virtually any camera system.
• Virtually silent operation with Auto, Fast, Slow, and Fan-Off cooling modes, ideal for studio, film, theatre, and other noise-sensitive environments.
• RDM-enabled for seamless remote configuration, monitoring, and system integration.
• Advanced adjustable yoke design for precise positioning and simplified installation in low-clearance environments.
• Compatible with standard ellipsoidal lenses, gel frames, and gobo holders for seamless integration with industry-standard accessories (lens not included).

350W (1 x 350W) Cool White LED
350W (1 x 350W) Warm White LED
LED Life Expectancy: 50,000 Hrs

Linear CCT: 2700K – 7500K
Color Temperature (At Full): 4687K
CRI (Ra): 97 @ 2700K
CRI (Ra) 95 @ 3200K
CRI (Ra) 95 @ 5600K

Optional Gobo Size:
o Maximum Size: 90mm (outside), 70mm (image), 2.5 mm (max. thickness)
o Size B: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
Lens Available (Not Included):
o 19° Degree
o 26° Degree
o 36° Degree
o 50° Degree

Linear Dimmer: 0-100% Smooth Linear LED
Strobe Shutter: 1-25 Hz Variable
Dimmer: 0 – 100% smooth linear electronic dimming
Shutter/ Strobe
o High speed electronic shutter and strobe
o 0-25Hz shutter/ strobe effect with variable speed
o Preset pulse strobe effect with variable speed
o Random strobe effect with variable speed
Dimming Modes: 6
Dimming Curves: 4
Built in-Auto Programs: Yes
Color Temperature: 2700K – 7500K

Control Protocol: DMX, RDM
Personalities: 1/3/4/8/11
Optional Add-On Wireless DMX: CRMX USB– Powered by LumenRadio (SKU: JP5001)

Die-Cast Aluminum Body
Exterior Finish: Black

IP Rating: 20
Cooling: Advanced Ultra Quiet Fan
Power Connection: US Edison (ETL listed) plug to REAN IP65 TRUE1
Power Input: REAN IP65 True1
Power Output: REAN IP65 True1
Data Connectors: NEUTRIK 5-Pin DMX
Cable Length: Power 5ft (1.5M)
Certifications:
o CE
o ETL (Pending)
o RoHS
o FCC

Input Voltage: 100 – 240V AC, 50/60Hz (Auto Ranging with Active PFC)
Power Consumption: 350W
Power Linking for connecting fixture in daisy-chain:
o Up to 5 units @110V with a 20A circuit
o Up to 9 units @208V with a 20A circuit
o Up to 11 units @230V with a 20A circuit
Fuse: T6.3A/250V
Operating Temperature: 40 ° C ( 104 °F)
o Minimum Temperature: – 10 ° C ( 14 ° F)
o Maximum Temperature: 60 ° C ( 140 ° F)

1 x ZONA Profile DW w/ Shutter Barrel (Lens Sold Separately)
1 x TRUE1 Power Cable
1 x User Manual
1 x Safety Cable
1 x Gobo Holder

Dimensions: 21.6″ x 10.8″ x 8.7″ / 551.2 x 276 x 221mm
Weight: 18.62lbs (8.5kgs)

618528599878

- 1 x ZONA Profile DW w/ Shutter Barrel (Lens Sold Separately)
- 1 x TRUE1 Power Cable
- 1 x User Manual
- 1 x Safety Cable
- 1 x Gobo Holder
