ProX 17FT 1 to 6 Outlet 3PIN DMX CABLE High Performance

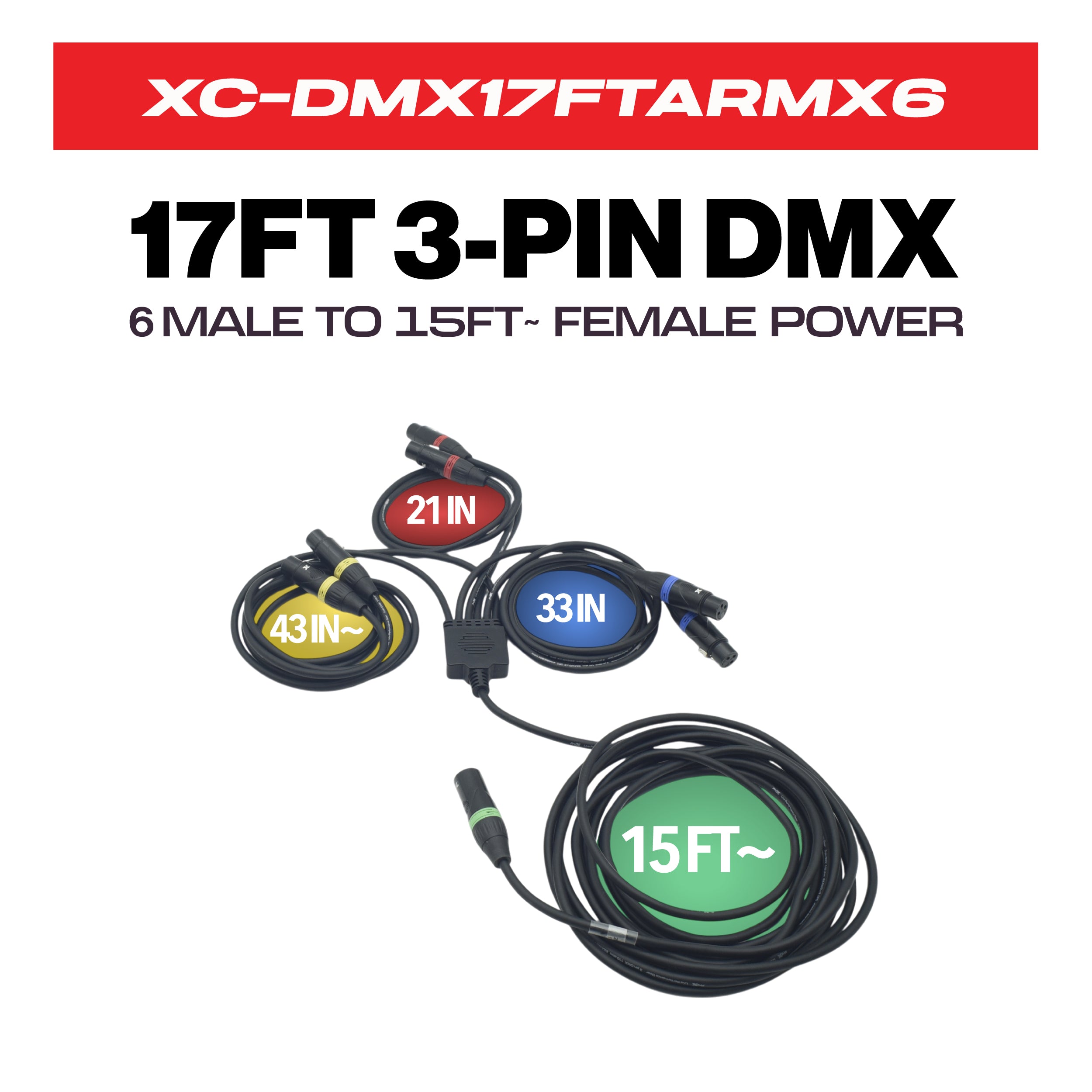

Featuring the ProX XC-DMX17FTARMX6, a high-performance 17-foot 3-pin DMX breakout cable built for lighting professionals who need fast, clean, and reliable signal distribution across multiple fixtures. When you're running a full truss rig, a concert stage, or a complex AV installation, the last thing you want to manage is a tangle of separate cables and external splitters. ProX XC-DMX17FTARMX6 solves that with a single, purpose-built assembly that sends DMX signal from one source to six independently spaced outputs, all from a compact inline distribution box at the center of the run.

Signal Source Connection The main input cable is a 14.92-foot 3-pin female connector with green color coding, giving you a clean reach back to your DMX controller or the previous fixture in your chain.

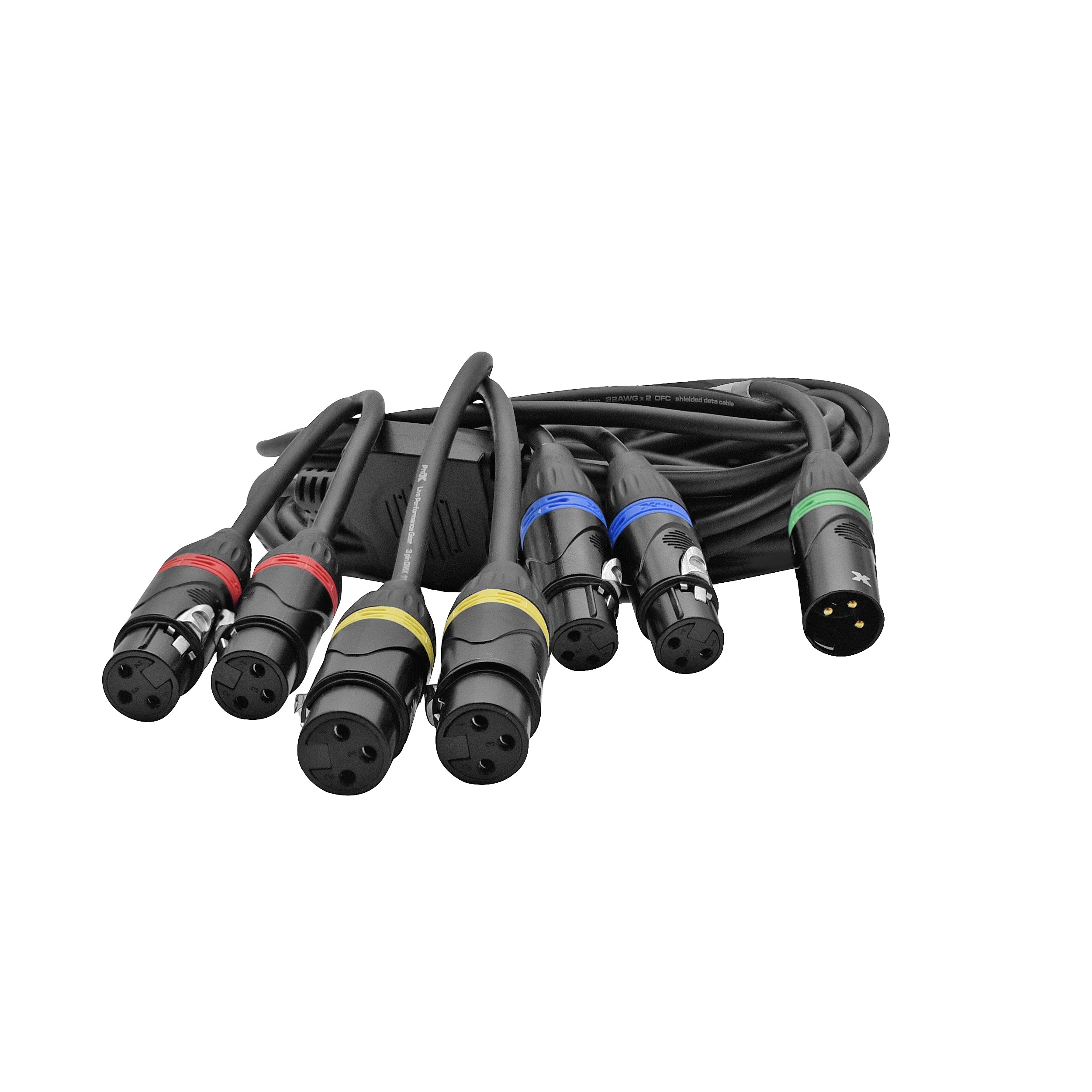

Inline Breakout Box All six output lines branch from a single centralized rectangular distribution box. Signal enters one side and exits the other through six labeled 3-pin male connectors, keeping your rig organized and reducing the need for additional splitters or external boxes.

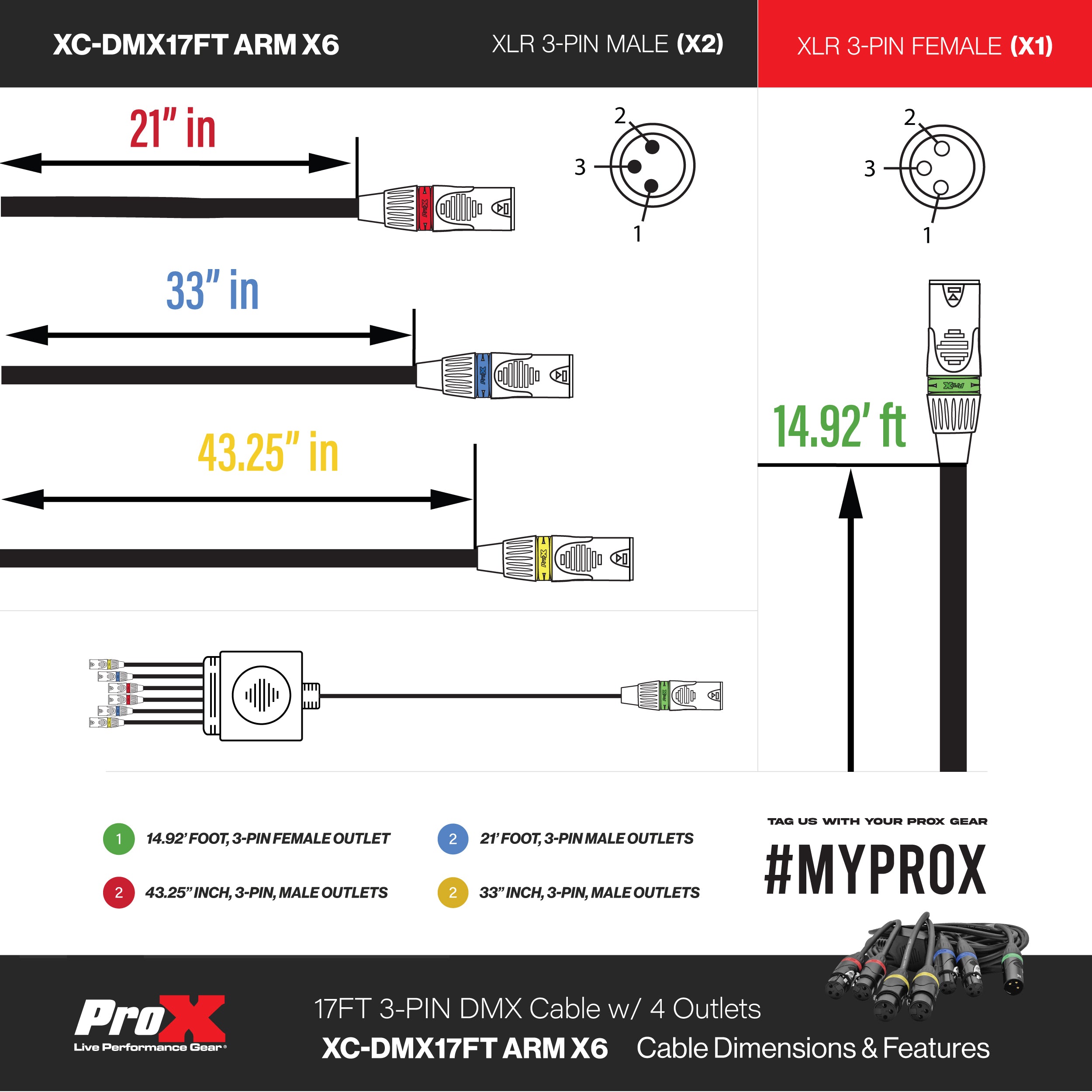

Color-Coded Outputs The six output lines are arranged in a symmetrical layout that mirrors practical stage rigging: two red-coded connectors at 21" for tight center positions, two blue-coded connectors at 33" for mid-range reach, and two yellow-coded connectors at 43.25" for the widest spans on each side. This Yellow, Blue, Red, Red, Blue, Yellow arrangement makes patching fast and reduces guesswork during setup.

Extended Outer Reach The yellow-coded connectors at 43.25" each give you the longest reach in the assembly, making them well suited for fixtures positioned at the ends of a truss section or across wider fixture gaps that shorter breakout arms can't cover.

110-Ohm Shielded DMX Cable The entire assembly is built on shielded 110-ohm DMX data cable, which is the correct impedance for DMX512 signal transmission. This matters in high-density stage environments where multiple DMX universes, power cables, and audio lines all run in close proximity. Proper shielding and impedance matching protect signal integrity across the full run.

DMX512 Protocol Compliant All connectors and cable are fully compliant with the DMX512 standard, meaning this assembly works with any compatible fixture, controller, or dimmer pack in your rig.

Built for Touring and Installation ProX XC-DMX17FTARMX6 is constructed to handle the physical demands of live production. Whether it's being packed into a case, rigged overhead, or routed through a permanent install, the cable resists kinking, twisting, and the general wear that comes with regular use.

Designed by Professionals. Built for Performers. Backed by 40 Years of Excellence.

ProX products are designed by a team of seasoned industry professionals who know firsthand what it means when power fails mid-show. Since 1984, ProX has built its reputation on one principle: every product must perform as hard as the professionals who depend on it. We listen to our customers, and their real-world feedback directly shapes the products we bring to market. The ProX XC-DMX17FTARMX6 is a direct result of that collaboration. When you choose ProX, you are investing in four decades of hands-on expertise and a brand that has never stopped raising the standard for live performance gear.

Built with shielded 110-ohm DMX data cable and fully compliant with DMX512 protocol, this assembly ensures dependable signal transmission in demanding environments such as concert stages, live events, film sets, and AV installations.

Whether you're designing a touring rig, upgrading a venue, or simplifying your lighting workflow, the XC-DMX17FTARMX6 delivers unmatched convenience, signal clarity, and durability.

Engineered by professionals, for professionals — ProX delivers performance you can trust.

• 17-foot main input cable with green-coded 3-pin female DMX connector for clean reach to your controller or signal source
• 6-output inline breakout distribution box eliminates the need for external DMX splitters
• Symmetrical color-coded output layout for fast, error-free patching: Yellow, Blue, Red, Red, Blue, Yellow
• 2x Red-coded 3-pin male outputs at 21" for tight center fixture positions
• 2x Blue-coded 3-pin male outputs at 33" for mid-range fixture reach
• 2x Yellow-coded 3-pin male outputs at 43.25" for maximum outer span and wider fixture gaps
• 110-ohm shielded DMX cable construction maintains correct impedance for reliable DMX512 signal transmission
• Fully DMX512 protocol compliant — works with any standard 3-pin DMX fixture, controller, or dimmer pack
• Compact rectangular inline distribution box with input on one side and all six outputs on the opposite side
• Compatible with concert stages, touring rigs, live events, AV installations, and permanent venue setups
• Resists kinking, twisting, and stage wear for consistent performance through repeated use and transport
