ProX XC-DMX300 - 300 Ft. High Performance DMX Male 3-Pin Bulk Spool Cable

Featuring the ProX XC-DMX300 300 Ft. High Performance DMX 3-Pin Bulk Spool Cable, a professional-grade raw DMX cable designed for installation professionals, integrators, production companies, and touring operations who need to run custom-length DMX feeds without buying pre-terminated cables that do not fit their rig. Three hundred feet of the same high-performance twisted quad data cable used across the entire ProX DMX line, wound on a spool and ready to cut, route, and terminate exactly where you need it.

A Different Kind of DMX Cable
The ProX XC-DMX300 is not a finished patch cable. It is the raw cable stock that finished cables are made from. There are no connectors on the ends. What you get is 300 feet of precision-spec DMX cable on a spool, ready for field termination with the 3-pin XLR-style DMX connectors of your choice.

Construction and Signal Path

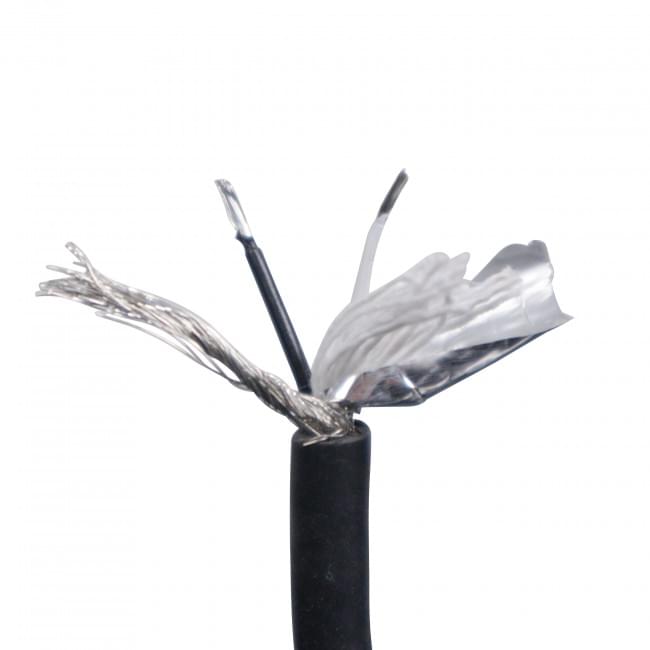

The ProX XC-DMX300 is built on a twisted quad data cable design with polyethylene insulation on each conductor. The nominal characteristic impedance is 110 ohms throughout, matched precisely to the EIA-485 / DMX512 standard. Duofoil shielding provides 100% coverage across the full length, and a tinned copper braid adds 85% coverage on top. Both shield layers are continuous through every foot of the spool.

Conductors and Transfer Quality
Conductors are 22 AWG tinned copper. Nominal capacitance from conductor to conductor at 1 kHz is 12.8 pF/ft, with conductor-to-shield capacitance at 23 pF/ft. Nominal propagation velocity is 66%, with a nominal delay of 1.6 nanoseconds per foot. Nominal conductor DC resistance is 24 ohms per 1000 ft at 20 degrees C, and outer shield resistance is 3.4 ohms per 1000 ft under the same conditions. Nominal attenuation is 0.6 dB per 100 ft at 1 MHz. Maximum recommended current is 2.1 amps per conductor at 25 degrees C.

Jacket
The flexible PVC outer jacket is rated for an operating temperature range of -30 degrees C to +75 degrees C. It routes cleanly through conduit, pulls through cable trays, and does not stiffen up in cold outdoor environments.

Who This Cable Is For
Venue installers building permanent lighting infrastructure, production companies putting together a touring show from the ground up, cable shops stocking pro-spec DMX raw cable, and technicians who simply prefer to terminate their own runs to exact length will find the ProX XC-DMX300 is the right starting point.

Designed by Professionals. Built for Performers. Backed by 40 Years of Excellence.
ProX products are designed by a team of seasoned industry professionals who know firsthand what it means when power fails mid-show. Since 1984, ProX has built its reputation on one principle: every product must perform as hard as the professionals who depend on it. When you choose ProX, you are investing in four decades of hands-on expertise and a brand that has never stopped raising the standard for live performance gear.

• 300 Ft. DMX 3-Pin bulk spool cable – raw unconnectorized cable stock for custom-length field termination, permanent installs, and touring builds
• 110-Ohm nominal characteristic impedance – precisely matched to EIA-485 / DMX512 protocol requirements throughout the full spool
• Twisted quad data cable construction – stable, accurate DMX data transmission at any cut length
• Dual-layer shielding – Duofoil (100% coverage) plus tinned copper braid (85% coverage) continuous through the full 300-foot spool
• 22 AWG tinned copper conductors – consistent, dependable conductivity
• Flexible PVC outer jacket – rated for conduit pulls, cable tray routing, and wide temperature range operation (-30°C to +75°C)
• Nominal attenuation – 0.6 dB per 100 ft at 1 MHz
• Nominal capacitance – 12.8 pF/ft conductor to conductor at 1 kHz; 23 pF/ft conductor to shield
• Nominal propagation velocity – 66% / Nominal delay: 1.6 ns/ft
• Nominal conductor DC resistance – 24 ohms per 1000 ft at 20°C
• Nominal outer shield DC resistance – 3.4 ohms per 1000 ft at 20°C
• Maximum recommended current – 2.1 amps per conductor at 25°C
• No connectors included – designed for field termination with 3-pin XLR-style DMX connectors
• ProX Limited Warranty

13.6"W x 15.2"D x 7.3"H

6.3 lbs

1x ProX 300 Ft. High Performance DMX Male 3-Pin Bulk Spool Cable
