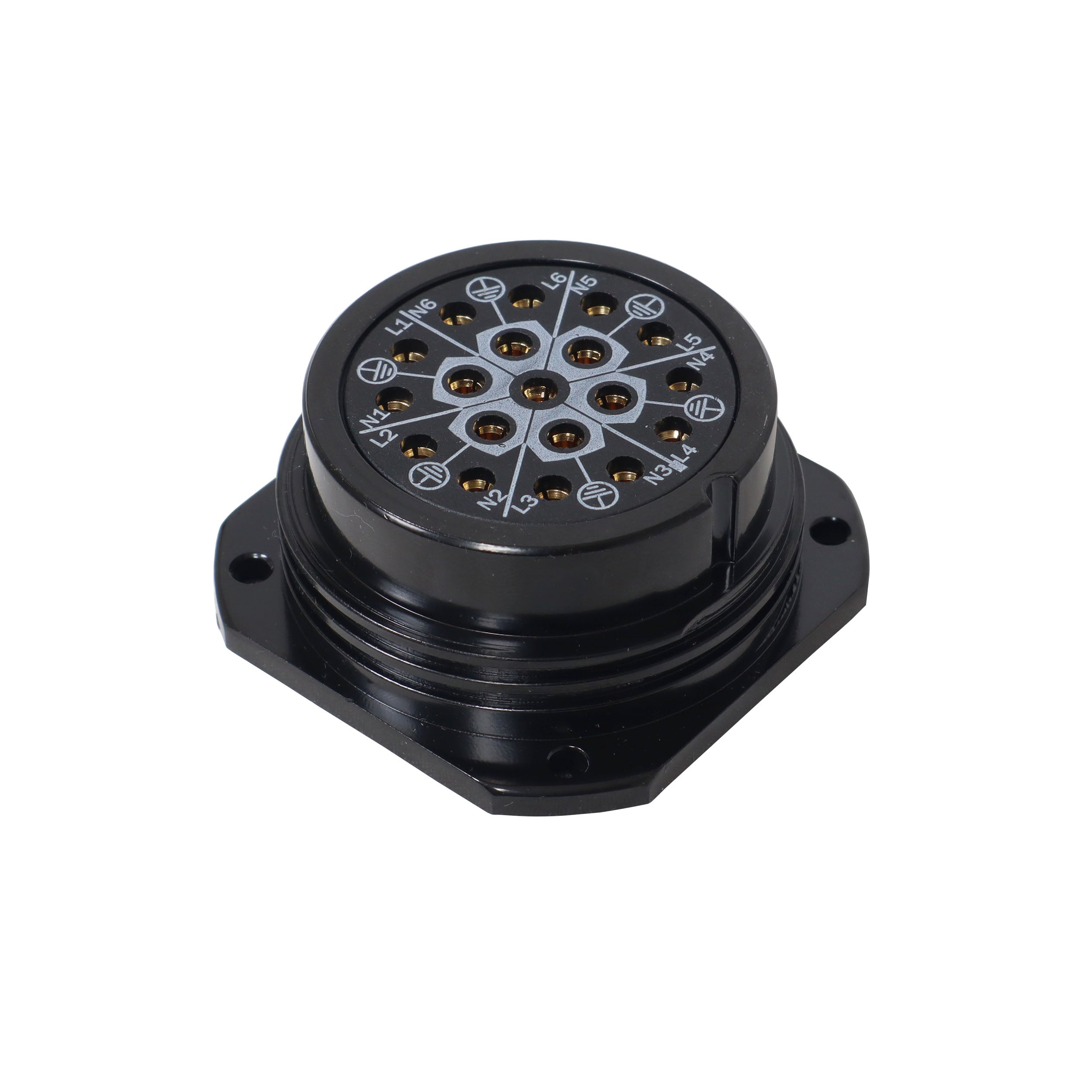

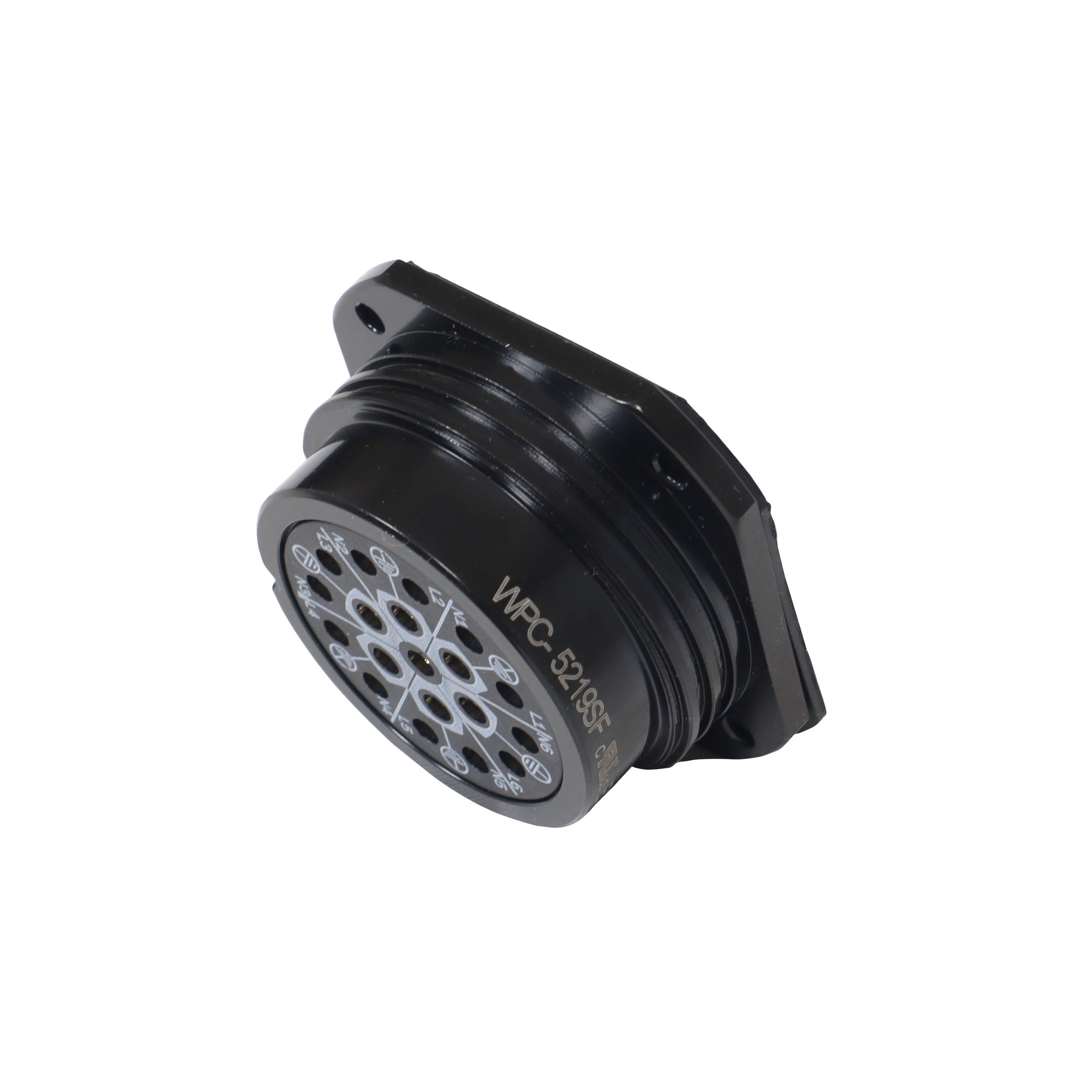

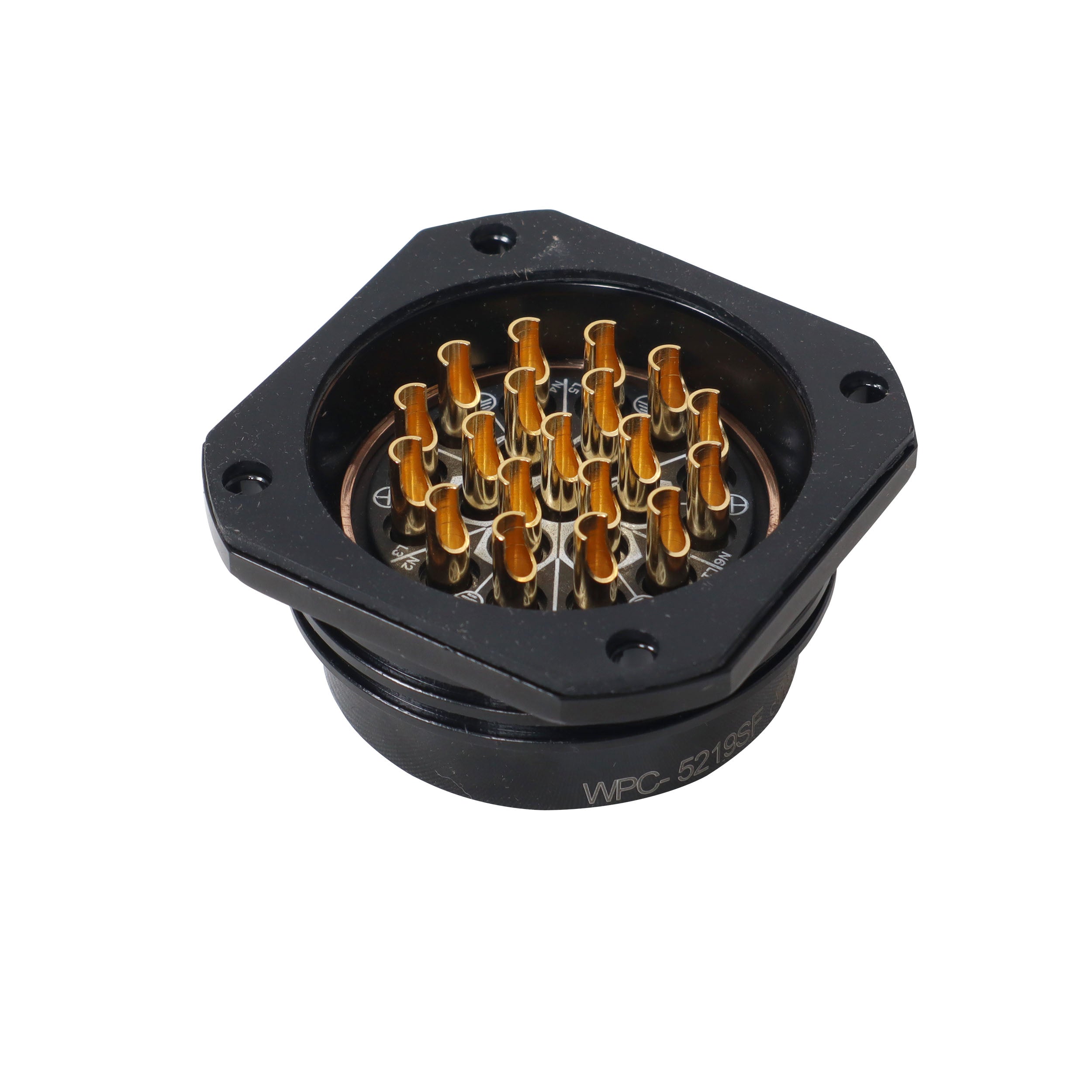

ProX 19-Pin Panel Female Connector - Solder Type - Kupo PLS-5219SF

Featuring the ProX XC-P19PANELFEMALE 19-Pin Panel Female Connector | Solder Type | Kupo PLS-5219SF is the panel-mount female side of a complete 19-pin power distribution system, built for the same demanding touring, rental, and fixed installation environments where reliable multi-circuit power delivery is non-negotiable. In a 19-pin power system, every connection point matters. A panel female connector like the ProX XC-P19PANELFEMALE is where incoming cable looms plug in, meaning it takes the repeated connection and disconnection of every show. Weak housings crack, soft contacts wear down, and poorly insulated bodies become a liability. The ProX XC-P19PANELFEMALE is built so none of that happens, giving you a fixed, permanent socket that holds up through load-in and load-out night after night.

Panel Mount Design This connector is built specifically for permanent installation into a chassis, enclosure, power distro box, or rack panel. Mounted flush to the panel surface, it provides a fixed, accessible socket that accepts incoming 19-pin cable plugs cleanly and consistently every time, without the connector moving or shifting under the stress of repeated use.

Extended Female Ground Contact for Safety The female side of the Kupo PLS-5219SF incorporates an extended ground contact that ensures the ground circuit connects first when a cable is plugged in and breaks last when it is unplugged. This "mate first, break last" sequencing is a fundamental safety feature in professional power connectors, reducing the risk of arcing across live current-carrying contacts during connection and disconnection on active systems.

Rugged Die-Cast Aluminum Shell The housing is die-cast aluminum alloy finished with a non-conductive black coating, giving the connector the structural strength to handle physical stress in working production environments while maintaining the electrical isolation required in high-current power distribution applications.

Hard Gold-Plated Copper Alloy Contacts Each of the 19 contacts is machined from copper alloy and finished with hard gold plating. Gold-plated contacts resist oxidation, maintain low contact resistance over time, and hold up through the repeated mating cycles that a working panel connector experiences across a touring season. Contact resistance is rated below 3 milliohms, with insulation resistance above 2,000 megaohms.

Solder Type Construction Solder terminations create a mechanically solid, permanent bond between the contact and the wire. For a panel-mounted connector that stays assembled inside a distro box or enclosure, solder type is the preferred choice for long-term connection integrity and resistance to vibration-induced loosening over time.

Electrical Ratings The PLS-5219SF is rated for AC 20A at 250V with an operating limit voltage of AC 400V, covering the full range of power distribution demands in professional stage lighting, audio, and live event production systems.

First-Grade Bakelite Insulation Non-conductive Bakelite is used between contacts to provide reliable dielectric separation at the voltages and currents this connector is rated for, contributing directly to the high insulation resistance performance of the connector.

Integral Strain Relief Built-in compressed strain relief accommodates a wide range of cable sizes, protecting solder joints from mechanical stress at the termination point and maintaining connection integrity over the long term.

Compatible with Socapex 419 and Veam VSC The PLS-5219SF mates with Socapex 419 and Veam VSC style 19-pin connectors in addition to the Kupo PLS series, making it practical in mixed-inventory touring and rental environments where multiple connector brands are in use.

UL / cUL Listed The connector carries UL and cUL listing, confirming independent evaluation to recognized safety standards for professional use in the United States and Canada.

All product names, trademarks, and registered trademarks are the property of their respective owners. ProX Live Performance Gear and related marks are trademarks of XStatic Pro Inc.

Designed by Professionals. Built for Performers. Backed by 40 Years of Excellence.

ProX products are designed by a team of seasoned industry professionals who know firsthand what it means when power fails mid-show. Since 1984, ProX has built its reputation on one principle: every product must perform as hard as the professionals who depend on it. We listen to our customers, and their real-world feedback directly shapes the products we bring to market. The ProX XC-P19PANELFEMALE is a direct result of that collaboration. When you choose ProX, you are investing in four decades of hands-on expertise and a brand that has never stopped raising the standard for live performance gear.

• Panel Mount Design Purpose-built for permanent installation into power distro boxes, rack panels, and custom breakout enclosures, providing a fixed, accessible female socket that holds up through repeated connection cycles
• Kupo PLS-5219SF Standard Manufactured to Kupo's professional PLS series specification, compatible with Socapex 419 and Veam VSC style 19-pin connectors for maximum flexibility across mixed cable inventories
• Extended Female Ground Contact "Mate first, break last" safety sequencing ensures the ground circuit connects before any current-carrying contacts engage and breaks last on disconnection, reducing arcing risk on active systems
• Die-Cast Aluminum Alloy Shell Rugged housing with a non-conductive black finish built to handle repeated connections in demanding touring and production environments
• Hard Gold-Plated Copper Alloy Contacts Machined contact sockets with hard gold plating resist oxidation and maintain low-resistance conductivity through repeated mating cycles
• Contact Resistance Under 3 Milliohms Precision-machined contacts rated below 3 milliohms contact resistance for consistent, reliable power delivery
• Insulation Resistance Above 2,000 Megaohms First-grade Bakelite insulation delivers superior dielectric protection between circuits
• Solder Type Termination Creates a permanent, vibration-resistant bond between connector and wiring, preferred for fixed installations and custom builds where connection integrity is critical
• Rated AC 20A at 250V Operating limit voltage of AC 400V, covering standard 6-circuit 19-pin power distribution demands for stage lighting and production equipment
• Integral Strain Relief Built-in compressed strain relief accommodates a wide range of cable sizes, protecting solder joints from mechanical stress over time
• UL / cUL Listed Independently evaluated and listed to recognized safety standards for professional use in the United States and Canada

All registered trademarks and trade names are properties of their respective owners and are used only for the clarification of the compatibility of our products with the products of the different manufacturers.
