ProX XC-P19PM6X5-20R-CYDUO - 19PIN Break-Out Kupo WPS-5219LM to 6x Edison 5-20R SJOOW - 12AWG

Featuring the ProX XC-P19PM6X5-20R-CYDUO, a professional 19-pin Kupo to 6x Edison 5-20R female break-out cable system built specifically for stage and lighting power distribution. Built on SJOOW 12AWG portable power cable with a Kupo WPS-5219LM 19-pin male connector on the source end and six Edison 5-20R female outlets on the output end, this break-out system lets you pull power from a single 19-pin distribution point and branch it cleanly to six individual loads, all in one organized, professional package.

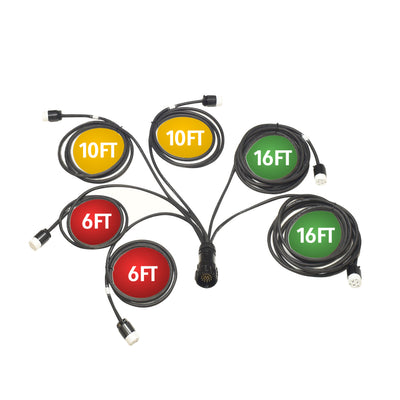

Cable Configuration and Lengths The six output tails are sized to give you real-world coverage across a stage or truss system. Two tails are 6 ft, two are 10 ft, and two are 16 ft, giving you short-reach and long-reach options from the same break-out head.

19-Pin Connector The Kupo WPS-5219LM 19-pin male connector on the input end is built for the production world. All 19-pin connectors in this assembly are rated at 25A and engineered to connect and disconnect cleanly even after repeated use on the road. The contacts are gold-plated for superior conductivity and corrosion resistance.

Edison 5-20R Output Connectors Each of the six output ends terminates in an Edison 5-20R female receptacle. The 5-20R format is one of the most widely used standard power connectors in professional event production, compatible with a broad range of stage lighting fixtures, LED panels, and power boxes. All connectors are professionally soldered to the cable.

Cable Construction Built on SJOOW-rated 12AWG multi-conductor portable power cable with bare copper conductors. S for extra-hard service use, J for junior service voltage rating suited to stage and event environments, OO for oil-resistant insulation and jacket, and W for approval in both indoor and outdoor environments. A reverse planetary lay construction adds flexibility and makes the cable easy to coil, store, and reuse.

Jacket and Durability The outer jacket is a rugged oil-resistant PVC rubber jacket that holds up against abrasion, moisture, and the general punishment of touring and rental environments.

Key Features

• Professional 19-Pin Break-Out Cable purpose-built for stage and lighting power distribution in touring, rental, and fixed installation environments
• Kupo WPS-5219LM 19-Pin Male Connector on the input end, rated at 25A for reliable high-current power delivery
• Six Edison 5-20R Female Outlets providing six independent output points from a single 19-pin distribution source
• Staggered Output Lengths for real-world stage coverage: 2x 6 ft, 2x 10 ft, and 2x 16 ft tails
• SJOOW 12AWG Multi-Conductor Power Cable with bare copper conductors built for portable professional power applications
• Reverse Planetary Lay Construction for superior flexibility and easy coiling without cable memory
• Gold-Plated Multi-Point Contacts for low-resistance conductivity and corrosion resistance across repeated connections
• Professionally Soldered Connections at every termination for secure, long-lasting electrical integrity
• Oil-Resistant PVC Rubber Jacket resists abrasion, moisture, and the daily demands of touring and event production
• Compatible With stage lighting fixtures, LED video panels, audio equipment, and power distribution boxes
• Ideal Applications include concerts, corporate events, theatres, houses of worship, and broadcast environments

Configuration: 19-Pin Kupo WPS-5219LM male input to 6x Edison 5-20R female outlets, staggered CYDUO lengths: 2x 6 ft, 2x 10 ft, 2x 16 ft Ratings: 25A rated 19-pin connectors, 12 AWG bare copper conductors Cable: SJOOW rated multi-conductor portable power cable, reverse planetary lay construction, oil-resistant PVC rubber jacket Construction: Professionally soldered terminations, gold-plated multi-point contacts Applications: Stage lighting fixtures, LED video panels, audio equipment, power distribution boxes; concerts, corporate events, theatres, houses of worship, broadcast UPC: 798239008484 Shipping Method: Parcel Shipping Dimensions (single unit): 4.00"H x 17.50"W x 17.50"L - Shipping Weight: 12.00 lbs Master Box: Qty 4 pcs, 17.00"H x 18.00"W x 18.00"L, Shipping Weight: 48.00 lbs, 1 master box

1x ProX 19PIN Break-Out Kupo WPS-5219LM to 6x Edison 5-20R SJOOW - 12AWG
