ProX XC-P19PM6XPWB-CYDUO - 19-Pin Kupo WPS-5219LM to 6x PowerCon Blue 2x 6ft 2x 10ft 2x 16f SJOOW - 12AWG

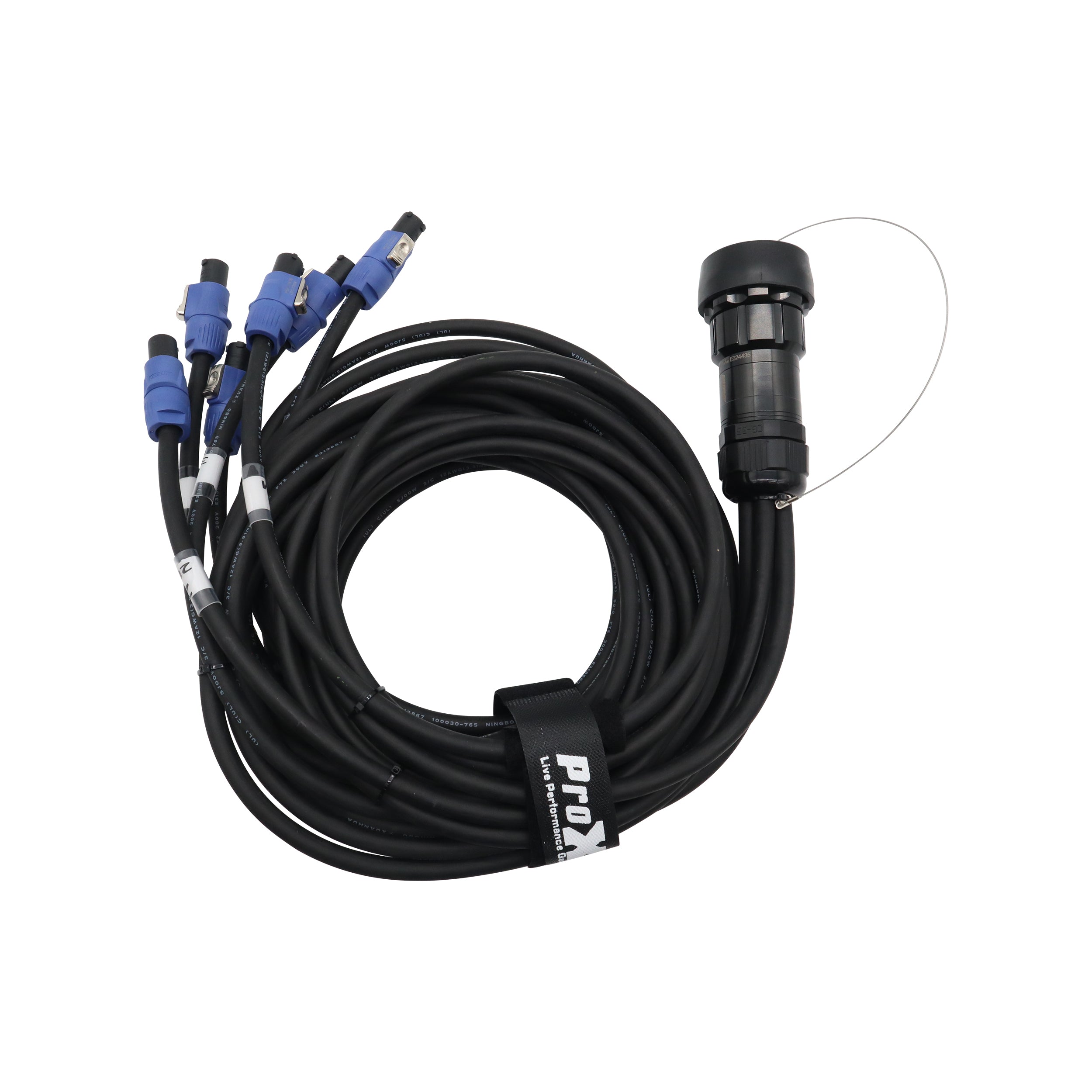

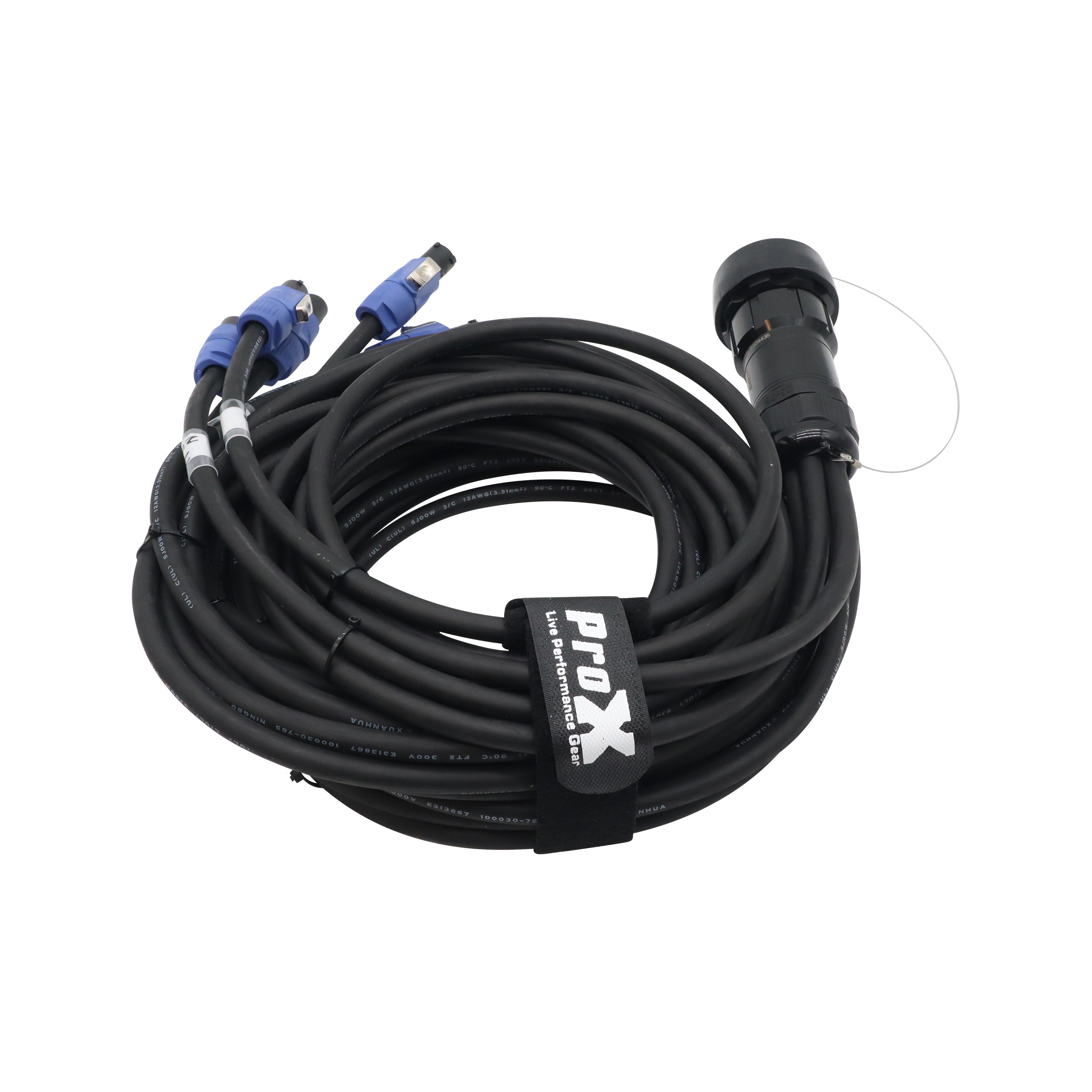

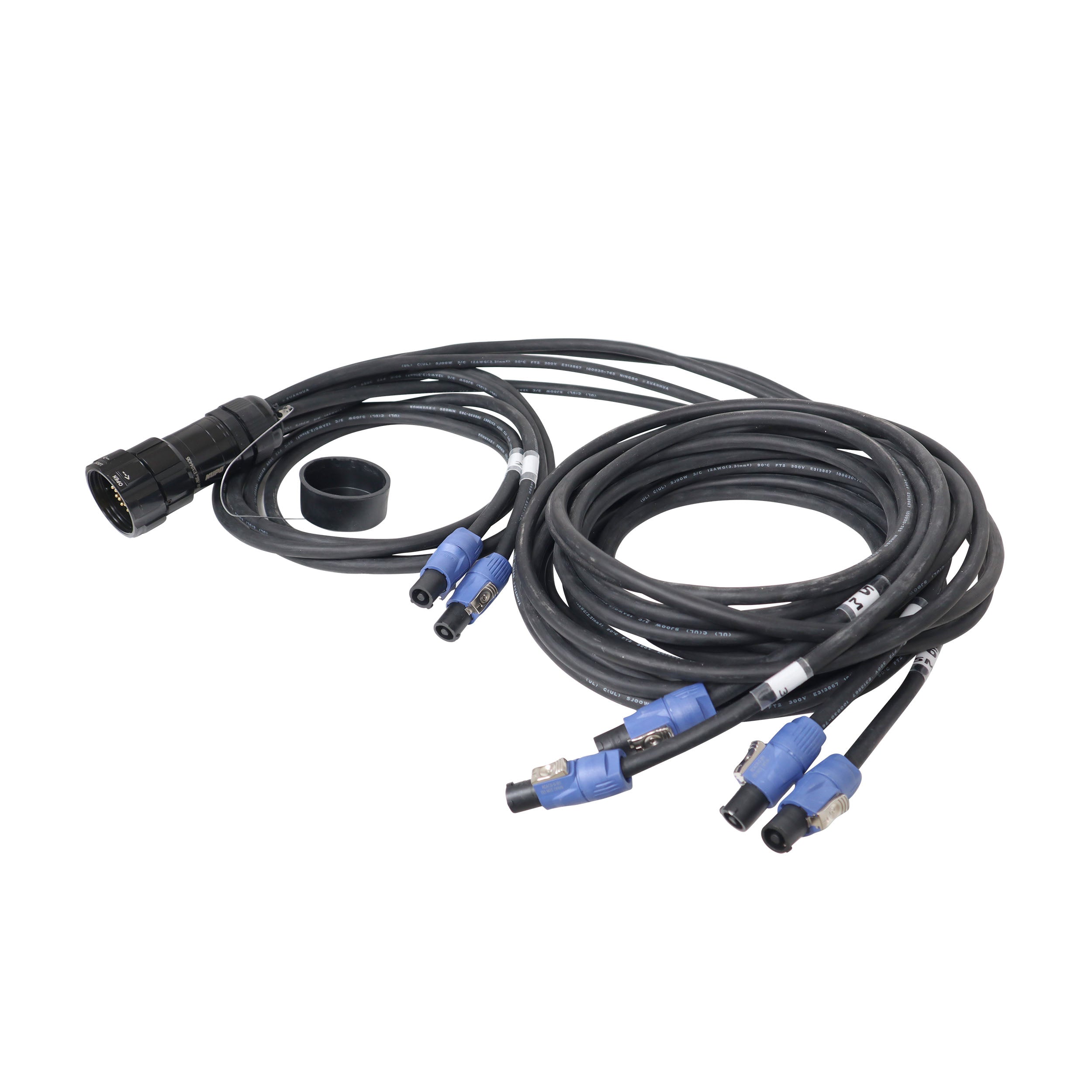

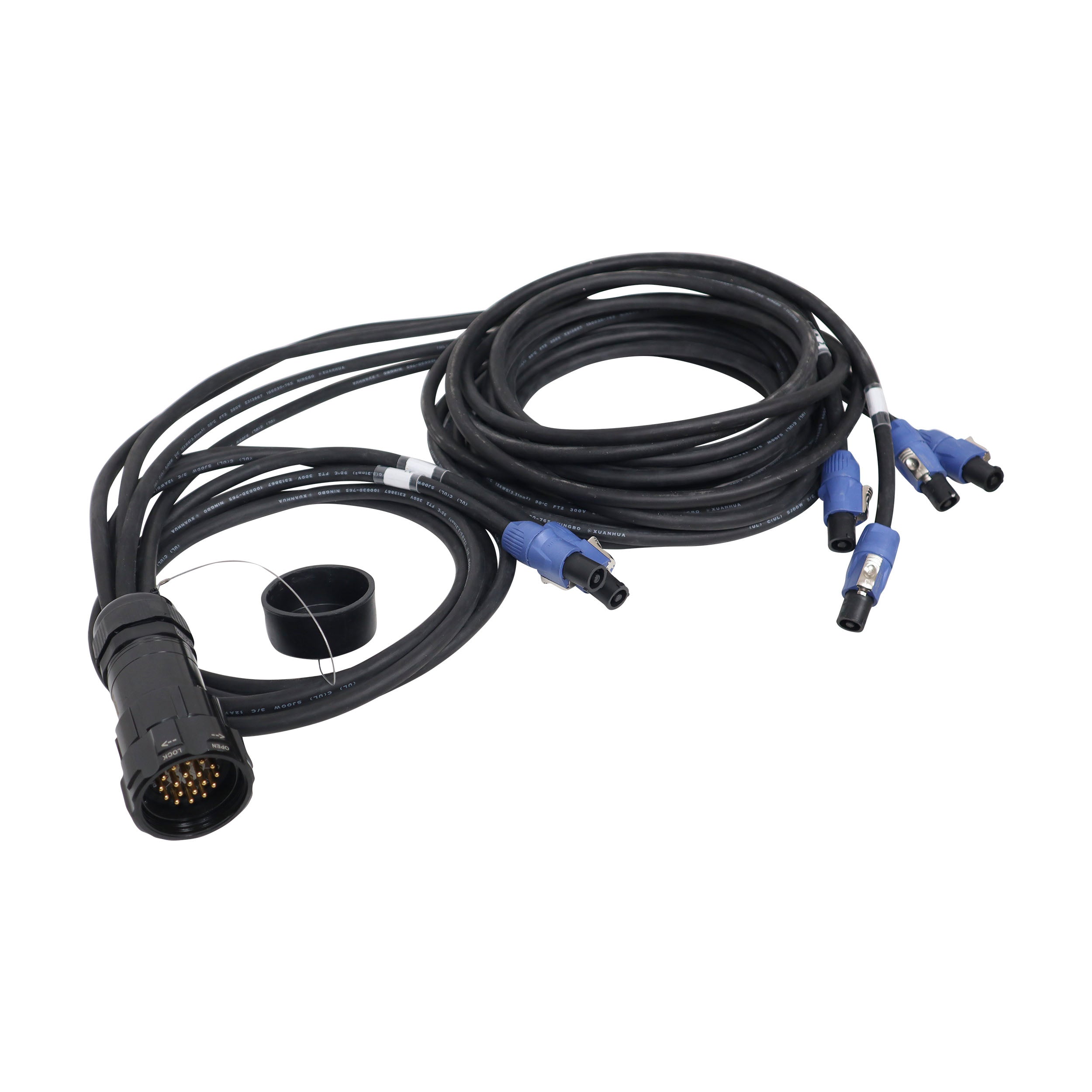

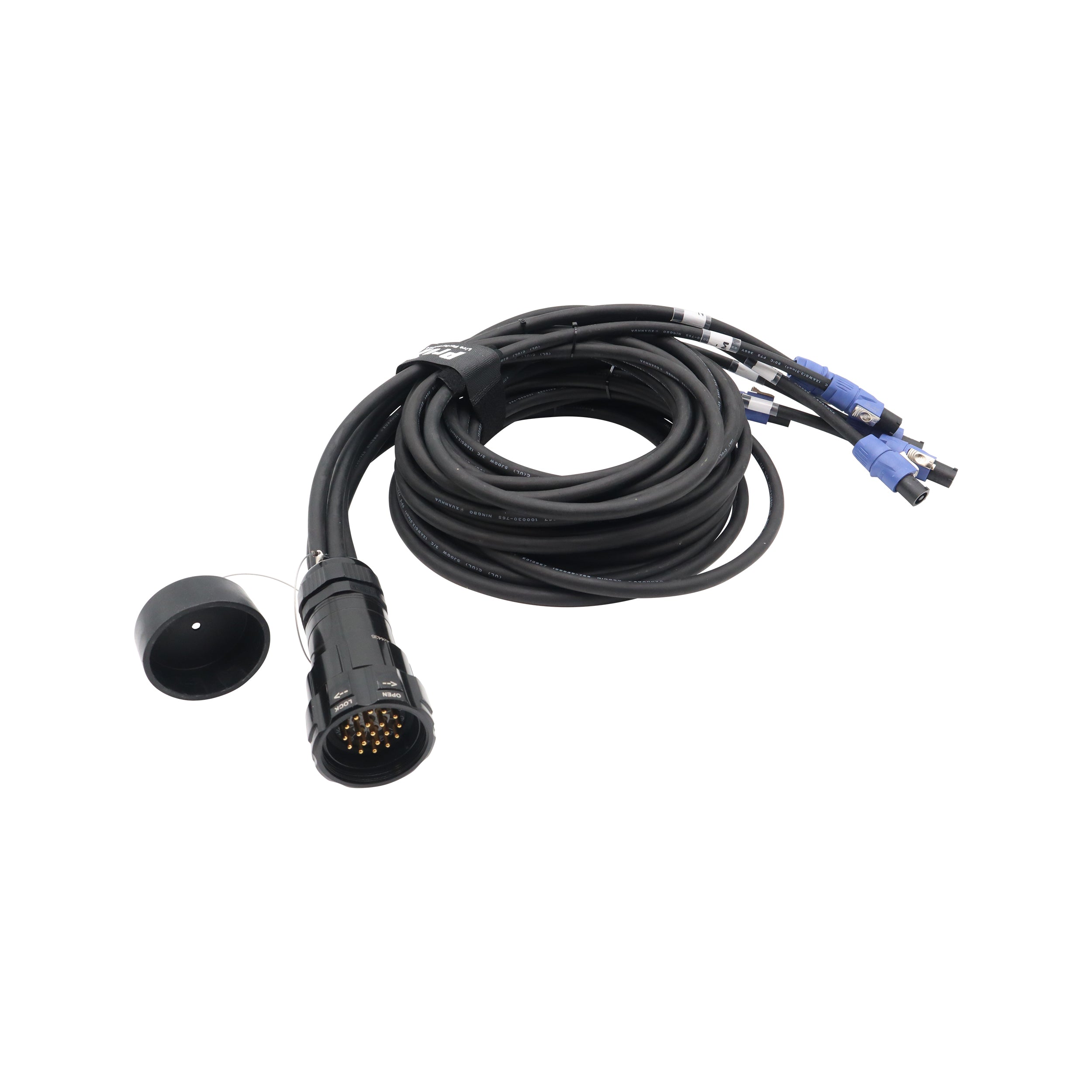

Featuring the ProX XC-P19PM6XPWB-CYDUO, a professional 19-pin to 6x REAN® by NEUTRIK® powerCON Blue break-out cable assembly built for the demands of live production power distribution. If you run a power distro rig and you need to feed multiple fixtures from a single 19-pin source with reach that actually works across a stage, this is the cable you have been looking for. The staggered-length DUO configuration ships you six output tails at three different lengths: 2 at 6 ft, 2 at 10 ft, and 2 at 16 ft, so you can position fixtures at varying distances from your distro without pulling extra extensions or leaving slack piled on the deck.

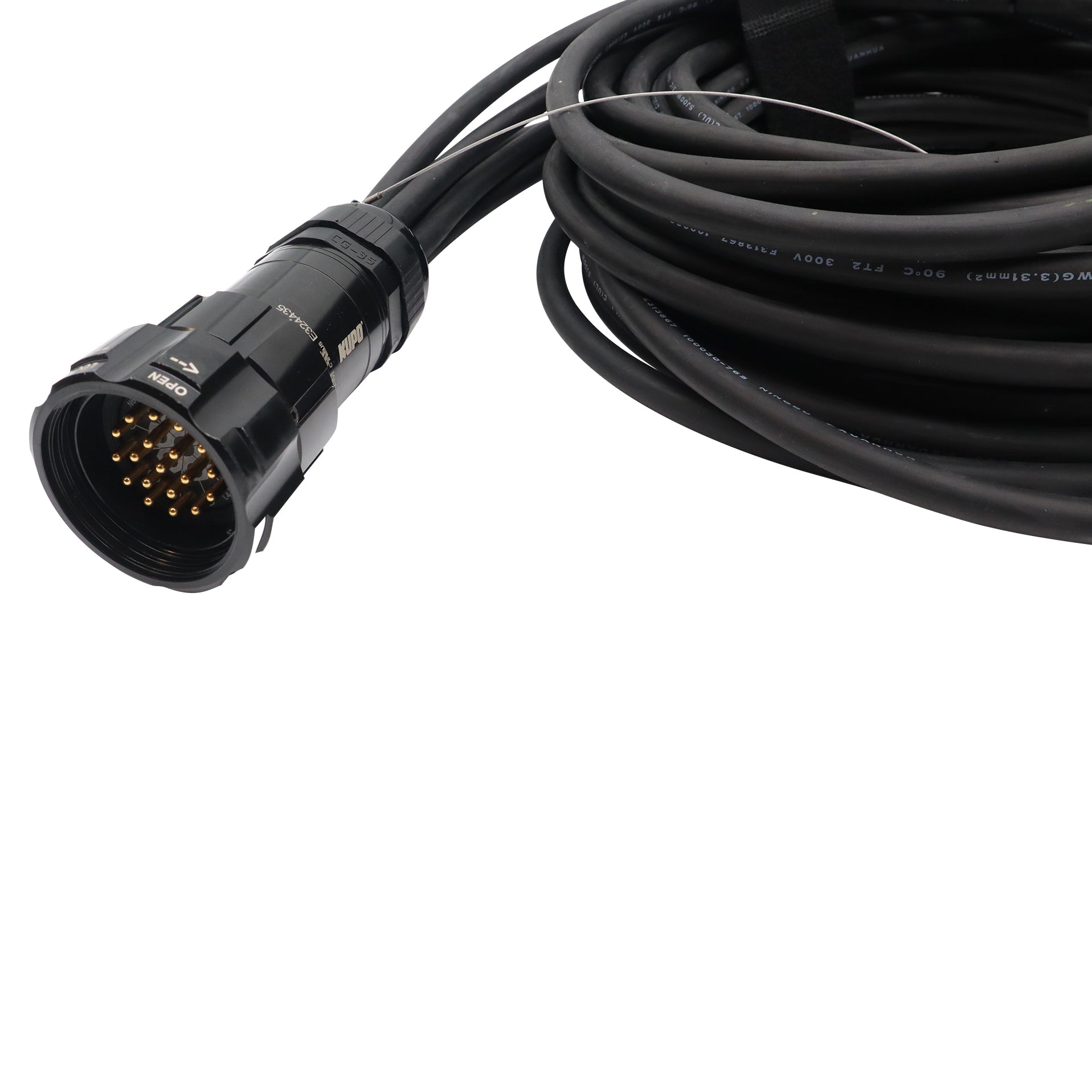

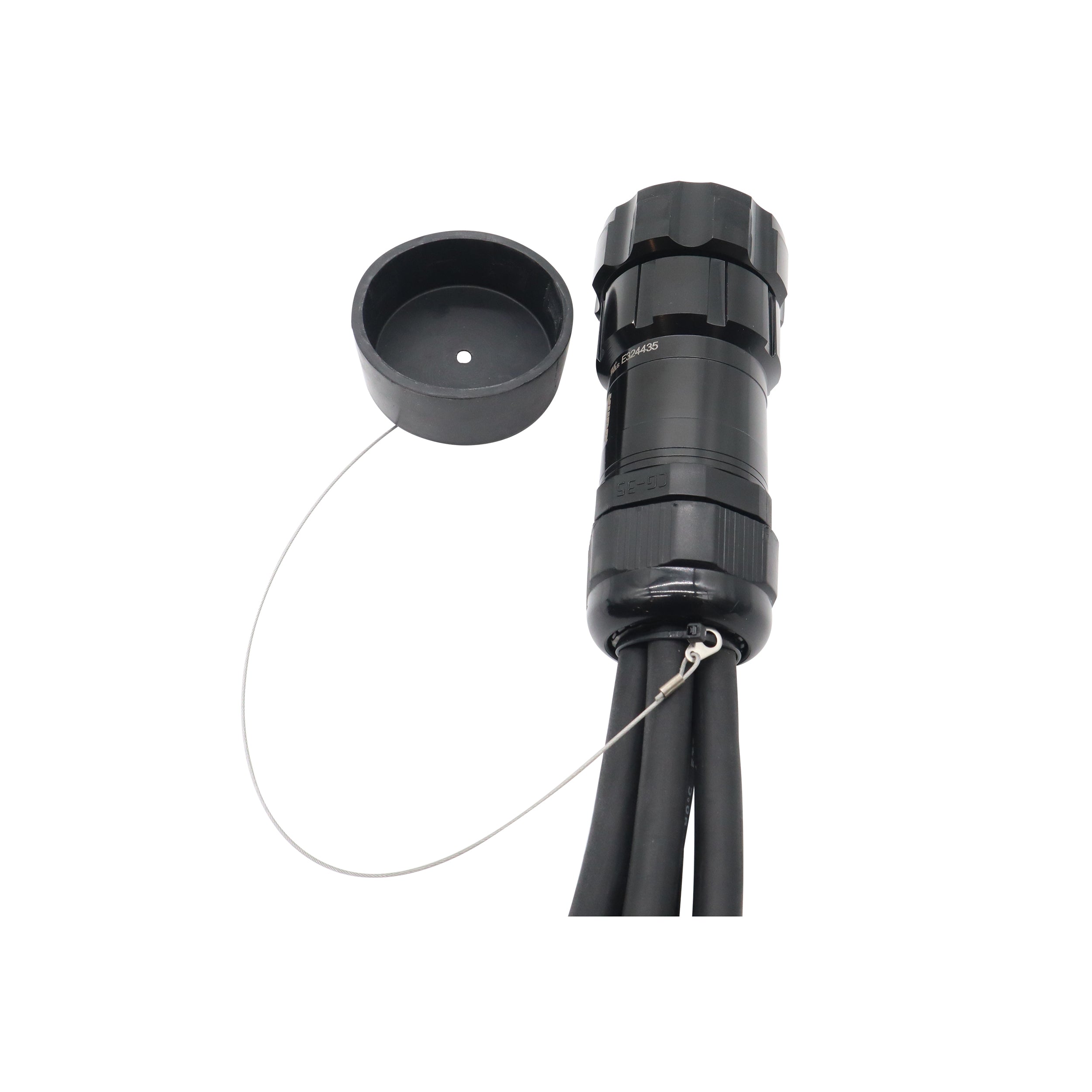

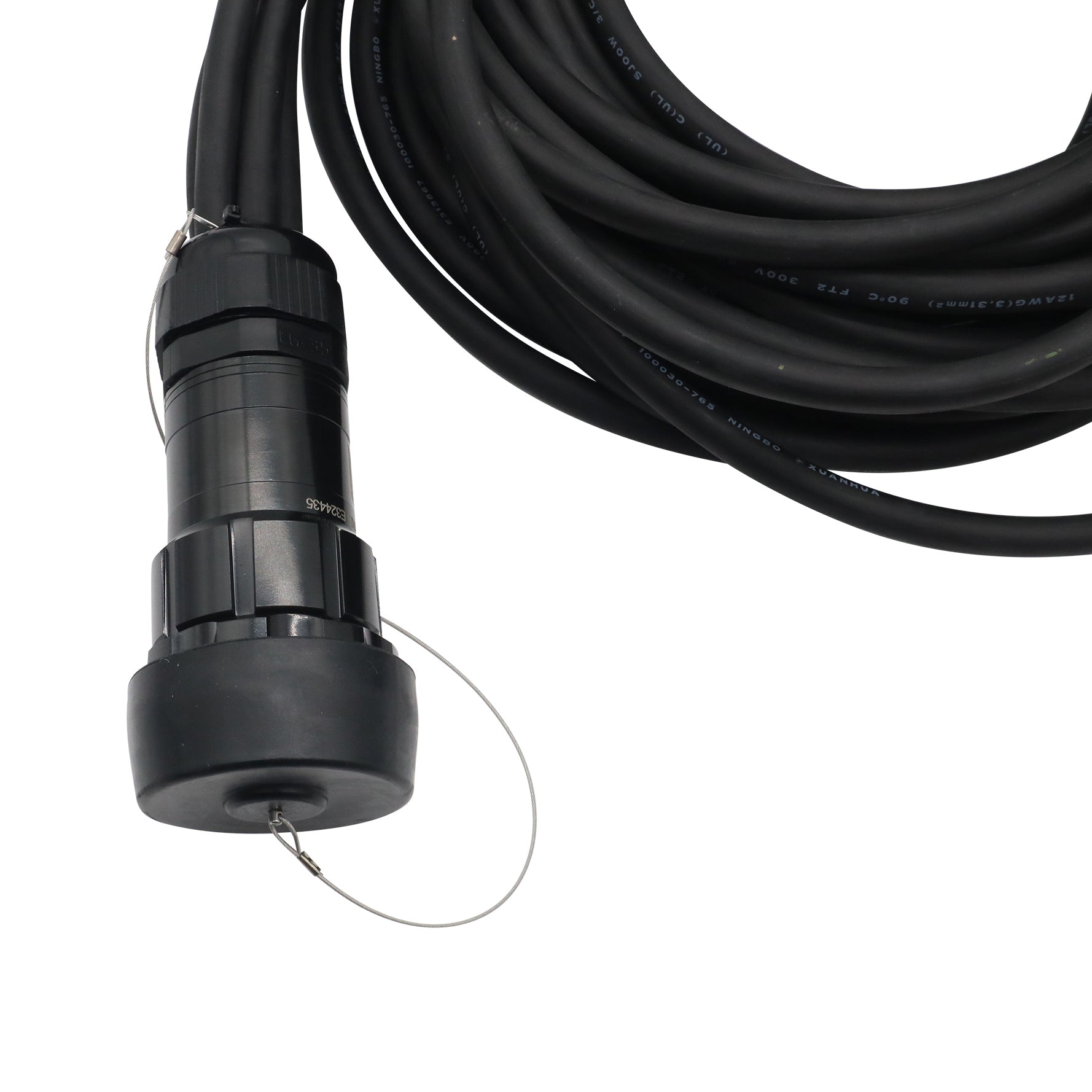

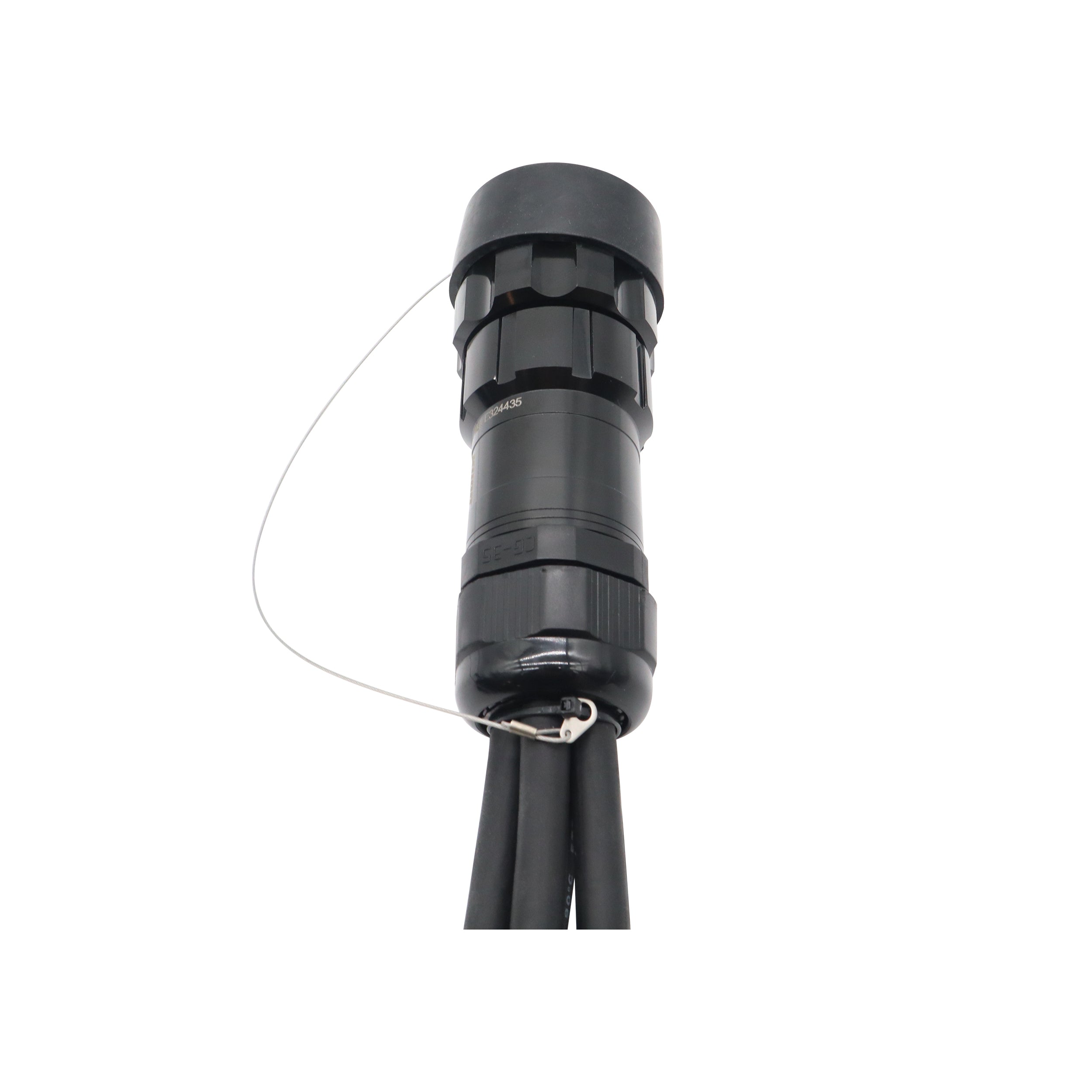

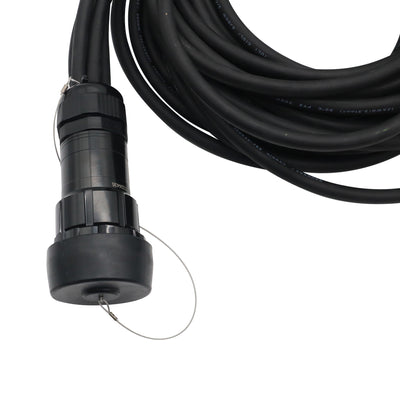

19-Pin Kupo WPS-5219LM Source Connector The input side of this assembly uses the Kupo WPS-5219LM, a heavy-duty 19-pin male cable connector rated for professional power distribution applications. It is UL/cUL listed and features hard gold-plated contacts for low resistance and long connection life. The extended female ground contact on mating connectors in this system follows the industry standard "mate first, break last" safety protocol, meaning the ground connection is established before any live contacts engage and drops last when disconnecting.

Six Output Tails with REAN® by NEUTRIK® powerCON Blue Female Connectors Each of the six breakout tails terminates in a REAN® by NEUTRIK® RCAC3I-G-001 powerCON Blue female cable-end connector. The blue color coding is the industry standard designation for power in, distinguishing it from the grey power-out version and preventing accidental mismatching. These are locking 3-pole AC power inlet connectors carrying line, neutral, and pre-mating ground contacts. powerCON connectors are not designed for live switching and should always be connected and disconnected with power off.

SJOOW 12 AWG Portable Power Cable The cable throughout this assembly is built on SJOOW rated multi-conductor portable power cable with 12 AWG bare copper conductors. S means extra-hard service. J identifies junior service voltage rating appropriate for stage and event power. The first O means the insulation is oil-resistant. The second O means the jacket is also oil-resistant. W means the cable is approved for both indoor and outdoor use.

Reverse Planetary Lay Construction The conductors inside this cable are arranged in a reverse planetary lay, distributing flex stress evenly rather than concentrating it at one point, so the cable coils cleanly, resists kinking, and lasts longer under repeated load-in/load-out cycles.

Professionally Soldered Connections Every connector on this assembly is professionally soldered directly to the cable, maintaining consistent electrical contact under vibration and mechanical stress.

Gold-Plated Multi-Point Contacts resist corrosion and maintain stable conductivity over hundreds of connection cycles.

Oil-Resistant PVC Rubber Jacket handles wet stage floors, cleaning chemicals, and dragging equipment while providing solid abrasion resistance.

Built for production companies, rental houses, touring professionals, and fixed installation teams who need a break-out assembly that performs the same on its 500th show as it did on its first — for stage lighting fixtures, LED video walls, audio equipment, and power distribution boxes in concert touring, theatres, houses of worship, corporate events, and broadcast environments.

Key Features

• 19-Pin Kupo WPS-5219LM Male Connector input end rated for professional power distribution applications
• Six REAN® by NEUTRIK® powerCON Blue Female Outputs (RCAC3I-G-001) for locking, keyed AC power-in connections
• Staggered DUO Length Configuration 2x 6 ft, 2x 10 ft, 2x 16 ft output tails for flexible fixture placement across any stage layout
• 25A Rated 19-Pin Connectors suitable for multi-circuit lighting, LED video, and stage power distribution
• 12 AWG Bare Copper Conductors on SJOOW rated multi-conductor portable power cable throughout
• SJOOW Cable Rating S (extra-hard service), J (junior service voltage), OO (oil-resistant insulation and jacket), W (indoor and outdoor approved)
• Reverse Planetary Lay Construction reduces kinking, promotes clean coiling, and distributes flex stress evenly for long cable life
• Professionally Soldered Terminations on every connector for stable, consistent electrical contact under load and repeated use
• Gold-Plated Multi-Point Contacts resist corrosion and maintain low-resistance conductivity over hundreds of connection cycles
• Oil-Resistant PVC Rubber Jacket protects against abrasion, moisture, and harsh stage floor conditions
• "Mate First, Break Last" Ground Contact safety protocol on the 19-pin connector side
• UL/cUL Listed 19-Pin Connector meets professional safety standards
• Blue Color Coded Outputs industry standard designation for power-in to prevent accidental mismatching with power-out connectors
• Compatible with Lighting Rigs, LED Video Panels, Audio Equipment, and Power Distribution Systems
• Designed for Touring, Rental, and Fixed Installation Environments

Configuration: 19-Pin Kupo WPS-5219LM male input to 6x REAN by NEUTRIK powerCON Blue female outputs (RCAC3I-G-001), staggered DUO lengths: 2x 6 ft, 2x 10 ft, 2x 16 ft Ratings: 25A rated 19-pin connectors, 12 AWG bare copper conductors, UL/cUL listed 19-pin connector Cable: SJOOW rated multi-conductor portable power cable, reverse planetary lay construction, oil-resistant PVC rubber jacket Construction: Professionally soldered terminations, gold-plated multi-point contacts, "mate first, break last" ground safety protocol Applications: Lighting rigs, LED video panels, audio equipment, power distribution systems; touring, rental, and fixed installation environments UPC: 798239008477 Shipping Method: Parcel Shipping Dimensions (single unit): 18.00"H x 17.00"W x 19.00"L - Shipping Weight: 26.00 lbs Master Box: Qty 4 pcs, 19.00"H x 18.00"W x 18.00"L, Shipping Weight: 49.00 lbs, 1 master box

1x ProX 19-Pin Kupo WPS-5219LM to 6x PowerCon Blue 2x 6ft 2x 10ft 2x 16f SJOOW - 12AWG
