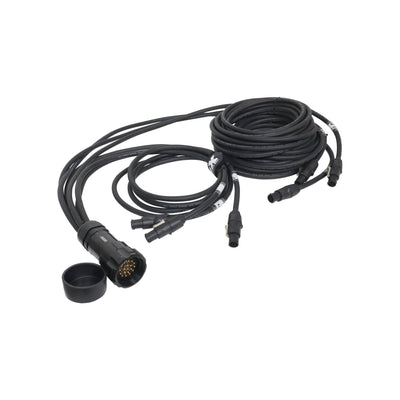

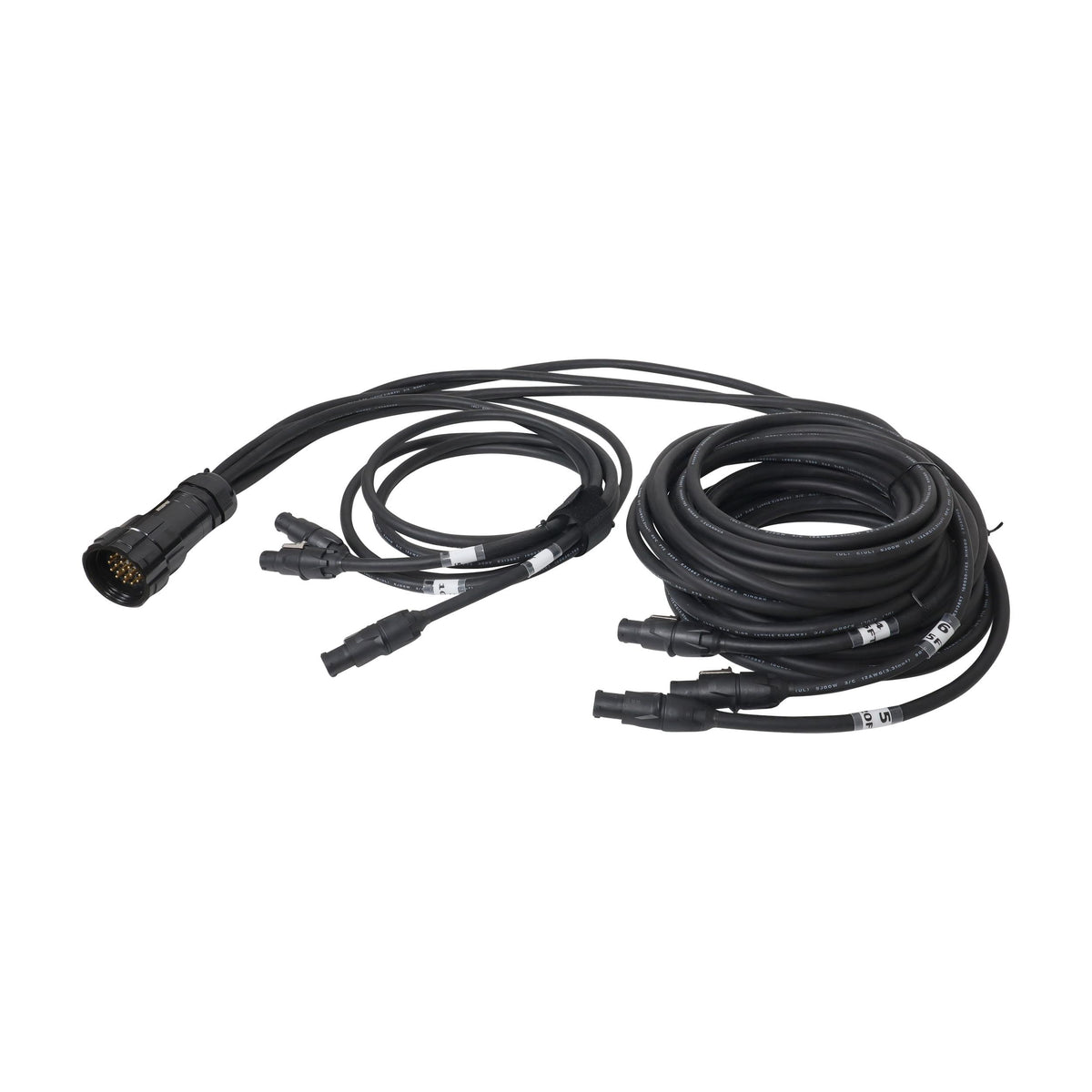

ProX XC-P19PM6XTR1-CXMAX - 19PIN Kupo WPS-5219LM to 6x Rean True1 PowerCon 3, 5, 10, 15, 20, 25 ft SJOOW - 12AWG

Featuring the ProX XC-P19PM6XTR1-CXMAX, a professional 19-pin to 6x REAN® by NEUTRIK® True1 powerCON female break-out extension cable built for real-world stage power distribution. Whether you are powering a run of stage lighting fixtures, LED video panels, or power distribution boxes, this cable gives you a clean, single-source feed that branches into six independent outputs without sacrificing conductivity, flexibility, or durability. One Source. Six Outputs. Zero Compromise.

Connector Configuration The trunk end terminates in a rugged 19-pin Kupo WPS-5219LM male connector, which interfaces with compatible 19-pin power distribution systems and dimmer racks commonly used in professional touring and fixed installation environments. Each of the six branch ends is fitted with a REAN® by NEUTRIK® True1 powerCON female connector (RCAC3F-X-000), the trusted locking power connector standard across professional stage and lighting gear. All 19-pin connectors are rated at 25A, and each connector is professionally soldered directly to the cable for long-term electrical integrity.

Multi-point Gold-Plated Contacts ensure low-resistance connections and strong corrosion resistance across every output.

Length Options This cable set is available in six length variants per the CXMAX configuration: 3 ft, 5 ft, 10 ft, 15 ft, 20 ft, and 25 ft. Having all six lengths in a single set lets you place fixtures at varying distances from the distro without excess cable that creates stage clutter and tripping hazards.

Cable Construction The cable is built on SJOOW-rated 12 AWG portable power conductor, a heavy-duty multi-conductor cable construction designed for professional power distribution in demanding environments. The 12 AWG bare copper conductors provide the current-carrying capacity needed for stage lighting loads, and the reverse planetary lay construction gives the cable a natural flexibility that makes it easy to coil, store, and deploy show after show. The rugged oil-resistant PVC rubber outer jacket stands up to abrasion, moisture, and job-site abuse on tour, in theatre, and in broadcast environments.

Key Features

• 19-Pin Kupo WPS-5219LM Male Connector rated at 25A for compatibility with professional 19-pin power distribution systems and dimmer racks
• 6x REAN® by NEUTRIK® True1 powerCON Female Outputs (RCAC3F-X-000) industry-standard locking power connectors on every branch output
• Gold-Plated Contacts on all connectors for low-resistance, corrosion-resistant connections across every output
• Professionally Soldered Terminations on all connectors for long-term electrical integrity through heavy use
• 12 AWG Bare Copper Conductors provide the current-carrying capacity needed for stage lighting and power distribution loads
• SJOOW-Rated Cable Construction extra-hard service rating with oil-resistant insulation and jacket approved for indoor and outdoor use
• Reverse Planetary Lay Construction gives the cable natural flexibility for easy coiling, storage, and repeated deployment
• Oil-Resistant PVC Rubber Outer Jacket stands up to abrasion, moisture, and job-site abuse on tour, in theatre, and in broadcast environments
• Six Length Options Per Set 3 ft, 5 ft, 10 ft, 15 ft, 20 ft, and 25 ft branches to accommodate fixtures at varying distances without excess cable
• Ideal for Stage Lighting, LED Video Walls, Houses of Worship, Broadcast, and Corporate Event Production

Configuration: 19-Pin Kupo WPS-5219LM male trunk to 6x REAN by NEUTRIK True1 powerCON female outputs (RCAC3F-X-000), six length variants per set: 3 ft, 5 ft, 10 ft, 15 ft, 20 ft, 25 ft Ratings: 25A rated 19-pin connectors, 12 AWG bare copper conductors Cable: SJOOW rated multi-conductor portable power cable, reverse planetary lay construction, oil-resistant PVC rubber jacket Construction: Professionally soldered terminations, gold-plated multi-point contacts Applications: Stage lighting fixtures, LED video panels, power distribution boxes; concert touring, theatre, houses of worship, corporate events, broadcast, LED video wall installations UPC: 798239008460 Shipping Method: Parcel Shipping Dimensions (single unit): 4.00"H x 18.00"W x 18.00"L - Shipping Weight: 14.00 lbs Master Box: Qty 4 pcs, 19.00"H x 18.00"W x 18.00"L, Shipping Weight: 49.00 lbs, 1 master box

1x ProX 19PIN Kupo WPS-5219LM to 6x Rean True1 PowerCon 3, 5, 10, 15, 20, 25 ft SJOOW - 12AWG
