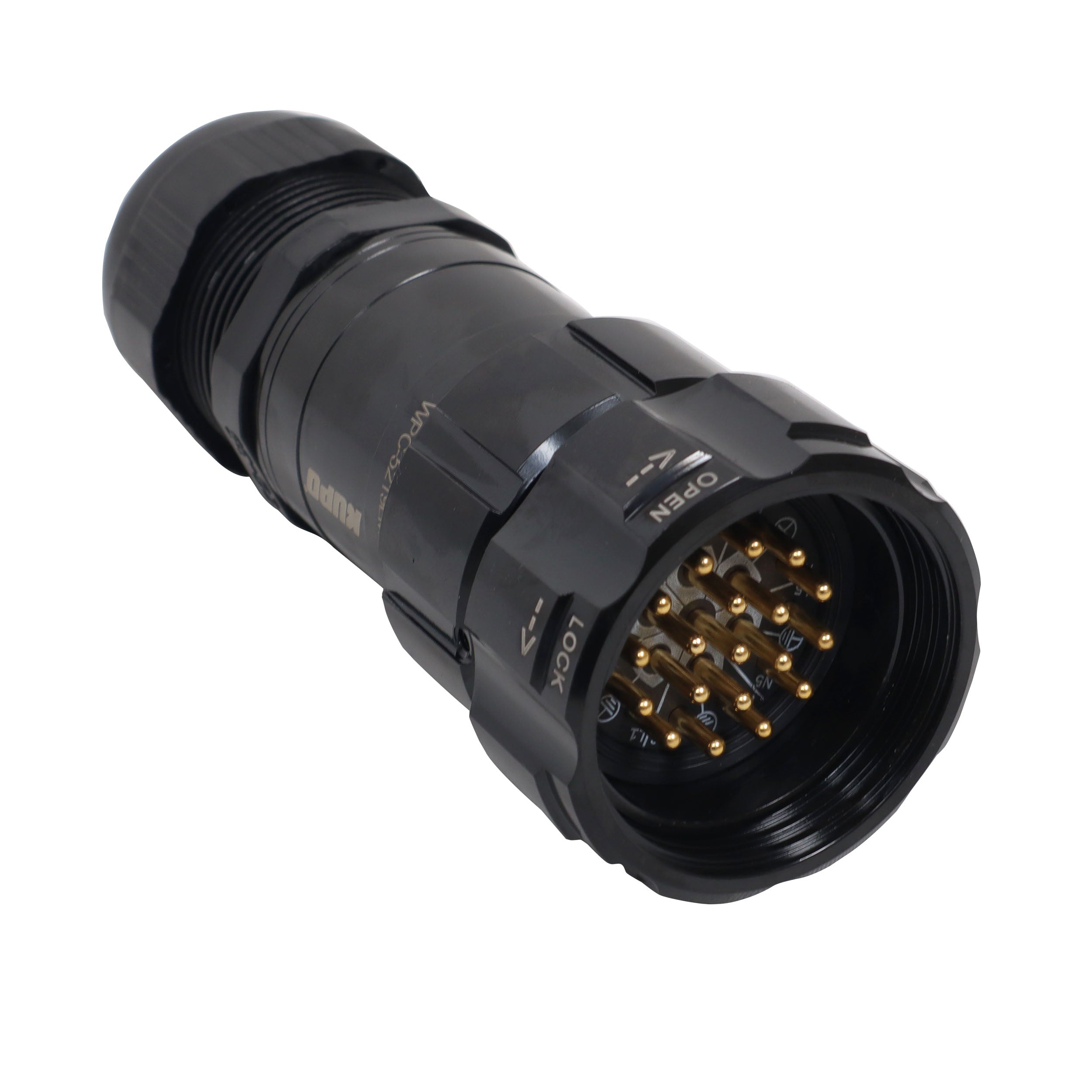

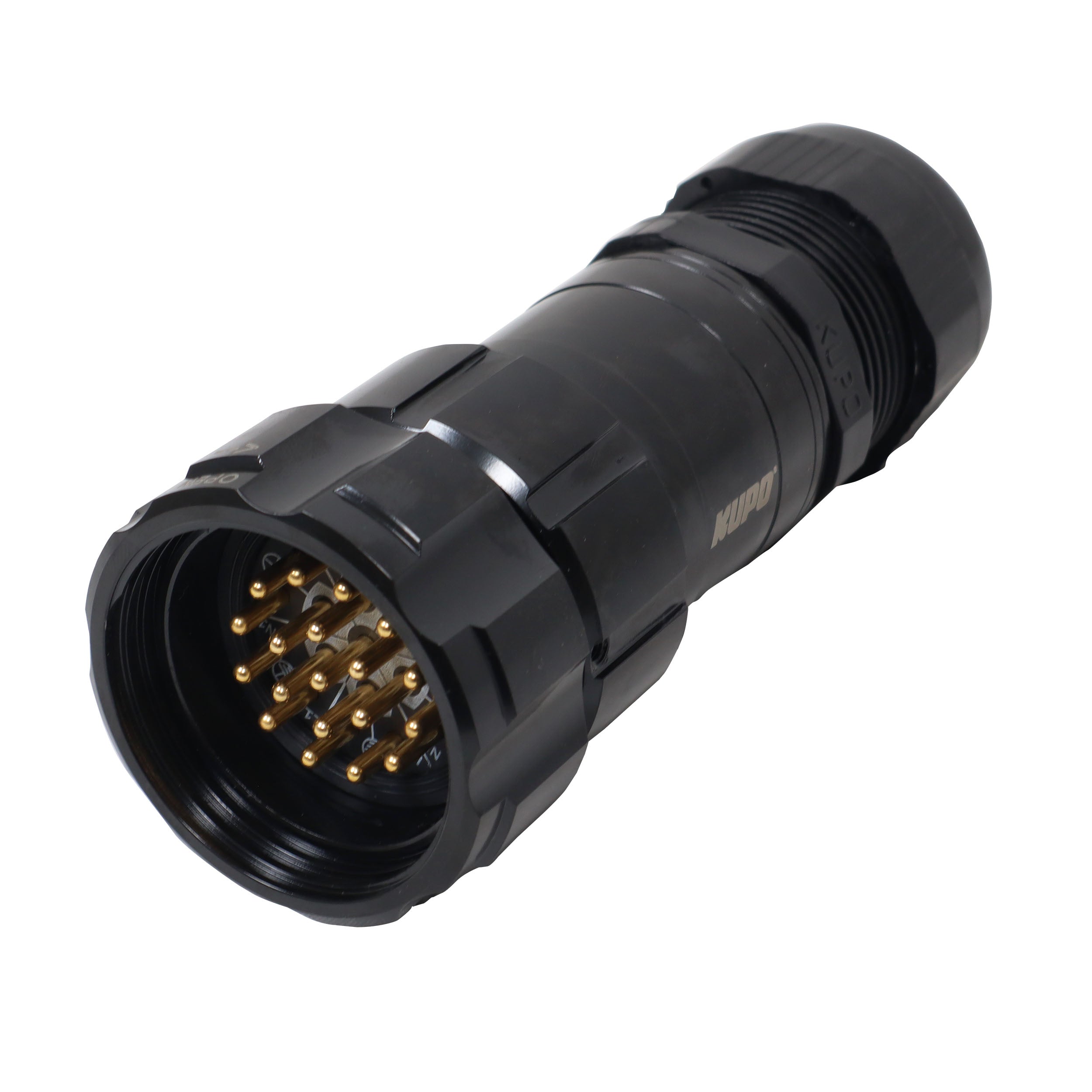

ProX 19-Pin Male Connector - Solder Type - Kupo PLS-5219LM

Featuring the ProX XC-P19PMALE 19-Pin Male Connector, this solder type multi-pin connector is purpose built for technicians and systems integrators who need a reliable, high performance solution for professional power distribution. Whether you are building custom power looms for a touring rig, wiring stage breakout systems, or completing a permanent installation, ProX XC-P19PMALE delivers the electrical integrity and long term durability that working professionals depend on every night.

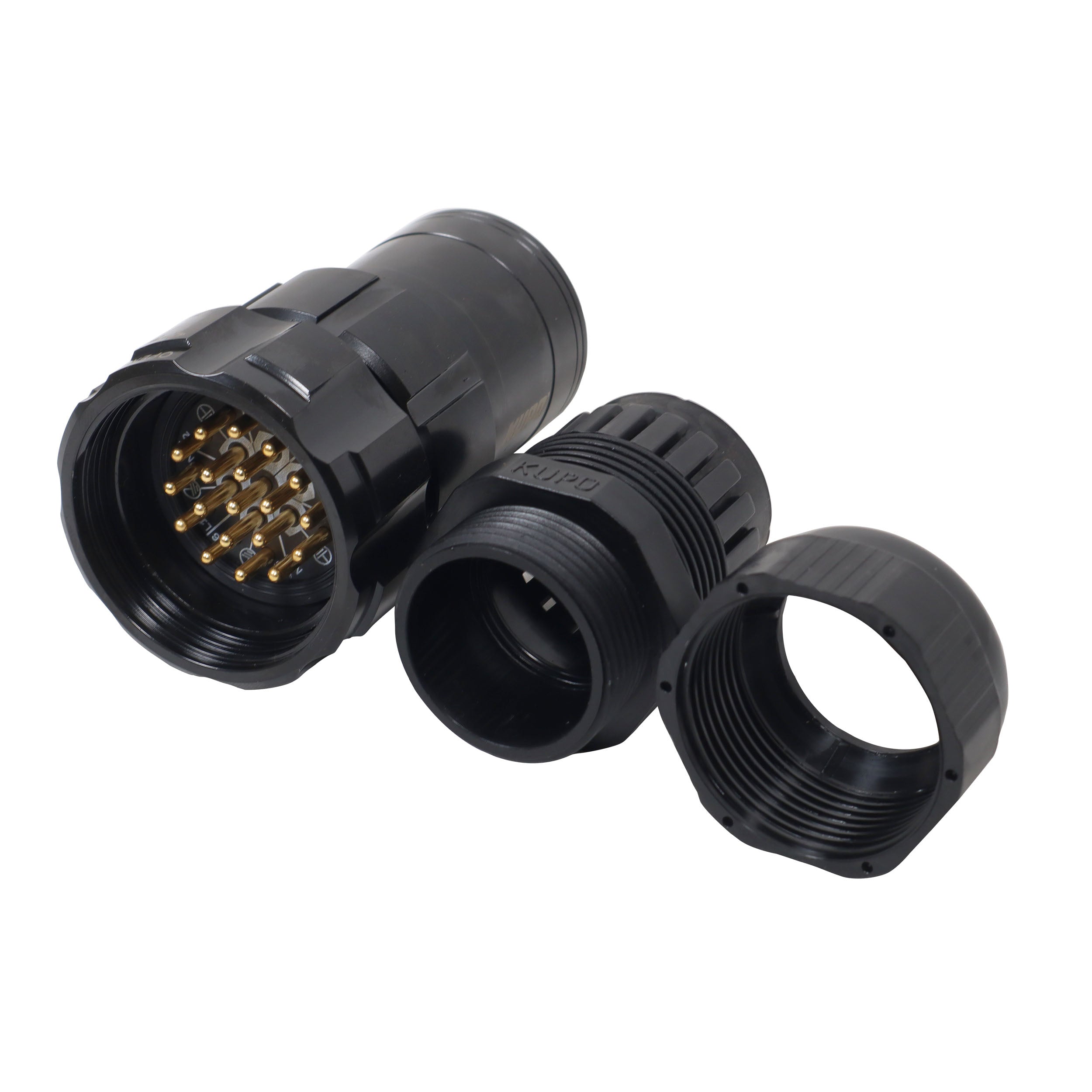

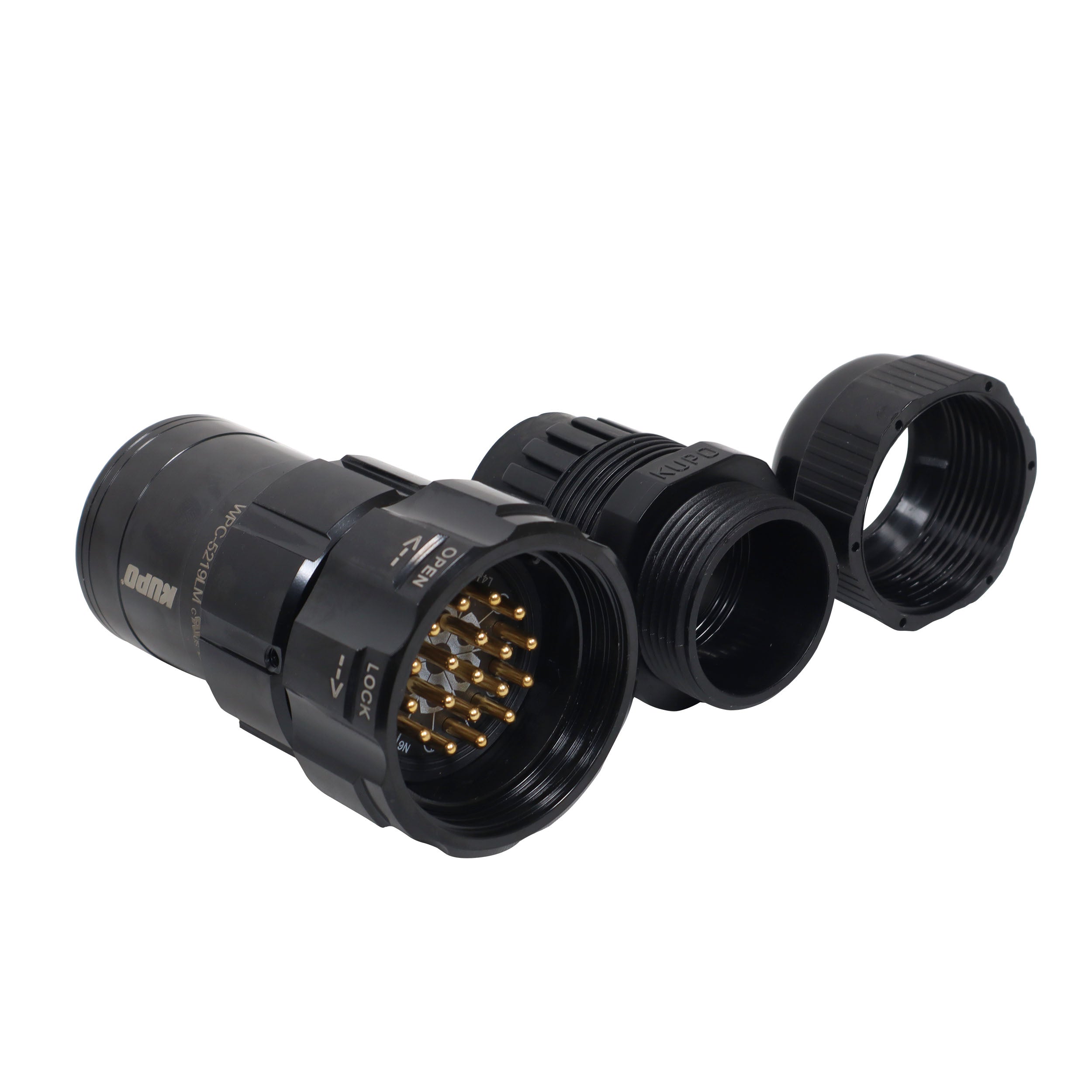

Die-Cast Aluminum Shell Construction The connector body features a rugged die-cast aluminum alloy shell with a black non-conductive finish. The two-shell design makes cable assembly straightforward and efficient, reducing assembly time without sacrificing structural integrity. This is a connector built to take the wear and handling that comes with real production environments.

Hard Gold-Plated Copper Alloy Contacts At the core of the connector are precision machined copper alloy contacts with hard gold plating. This construction ensures excellent conductivity and consistent electrical transfer across the life of the connector. The contacts are compatible with both solder and crimp termination methods, giving technicians flexibility in how they build their assemblies.

First-Grade Bakelite Insulation The internal insulation uses first-grade Bakelite material, chosen for its high insulating properties. This keeps individual circuits properly isolated and maintains safe operation across the full range of the connector's rated performance.

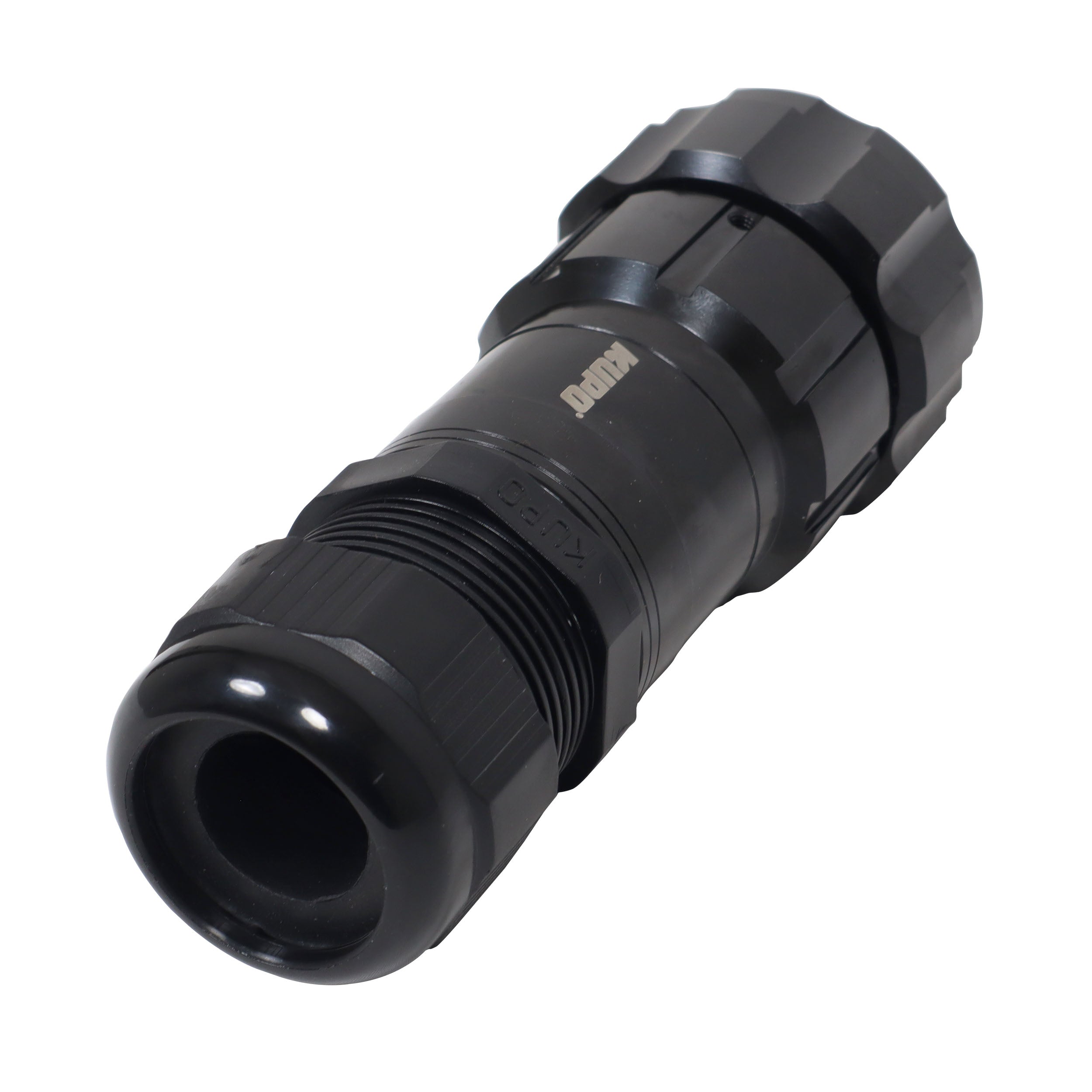

Integral Strain Relief ProX XC-P19PMALE includes an integral-compressed strain relief designed to accommodate a wide range of cable diameters. This protects solder joints from the stress of cable movement and handling, which is critical for connectors that go in and out of road cases regularly.

Safety-First Ground Contact Design The female side of the system features an extended ground contact that ensures the ground connection is made first and broken last during mating and unmating. This is a standard safety feature for professional power connectors and is essential in live production applications where accidental disconnection under load is a real concern.

Broad Compatibility ProX XC-P19PMALE is compatible with Socapex "419," Veam "VSC," and LK connector systems, making it a versatile choice across a range of existing power distribution infrastructure. This cross-compatibility is particularly useful when integrating into systems that already use a mix of multi-pin connector standards.

UL/cUL Listed and Rated for Professional Use The connector carries UL and cUL listings and is rated at AC 20A at 250V with an operating limit voltage of AC 400V. Insulation resistance exceeds 2000M Ohms, contact resistance is under 3M Ohms, and the connector is rated for 5000 or more connection cycles. The hipot test rating is 1800 VAC per minute, and operating temperature range spans from -40 to 85 degrees C. These are the kinds of numbers that matter when building power systems that have to work night after night.

Designed by Professionals. Built for Performers. Backed by 40 Years of Excellence.

ProX products are designed by a team of seasoned industry professionals who know firsthand what it means when power fails mid-show. Since 1984, ProX has built its reputation on one principle: every product must perform as hard as the professionals who depend on it. We listen to our customers, and their real-world feedback directly shapes the products we bring to market. The ProX XC-P19PMALE is a direct result of that collaboration. When you choose ProX, you are investing in four decades of hands-on expertise and a brand that has never stopped raising the standard for live performance gear.

• 19-Pin Male Multi-Pin Connector solder type, designed for professional power distribution and loom applications
• Die-Cast Aluminum Alloy Shell rugged two-shell construction with black non-conductive finish for durability in demanding production environments
• Hard Gold-Plated Copper Alloy Contacts precision machined for superior conductivity and long term reliability
• Solder and Crimp Compatible contacts support both termination methods for flexible field assembly
• First-Grade Bakelite Insulation high grade insulating material keeps circuits properly isolated during operation
• Integral Compressed Strain Relief accommodates a wide range of cable diameters, protecting solder joints from cable stress and handling wear
• Extended Ground Contact Design ground connection is made first and broken last for safe mating and unmating under professional load conditions
• Broad System Compatibility works with Socapex "419," Veam "VSC," and LK connector systems
• UL/cUL Listed rated AC 20A at 250V, operating limit voltage AC 400V
• High Insulation Resistance exceeds 2000M Ohms
• Low Contact Resistance under 3M Ohms
• Hipot Test Rating 1800 VAC per minute
• Rated for 5000+ Connection Cycles built for repeated use in touring and permanent installation environments
• Operating Temperature Range -40 to 85 degrees C
