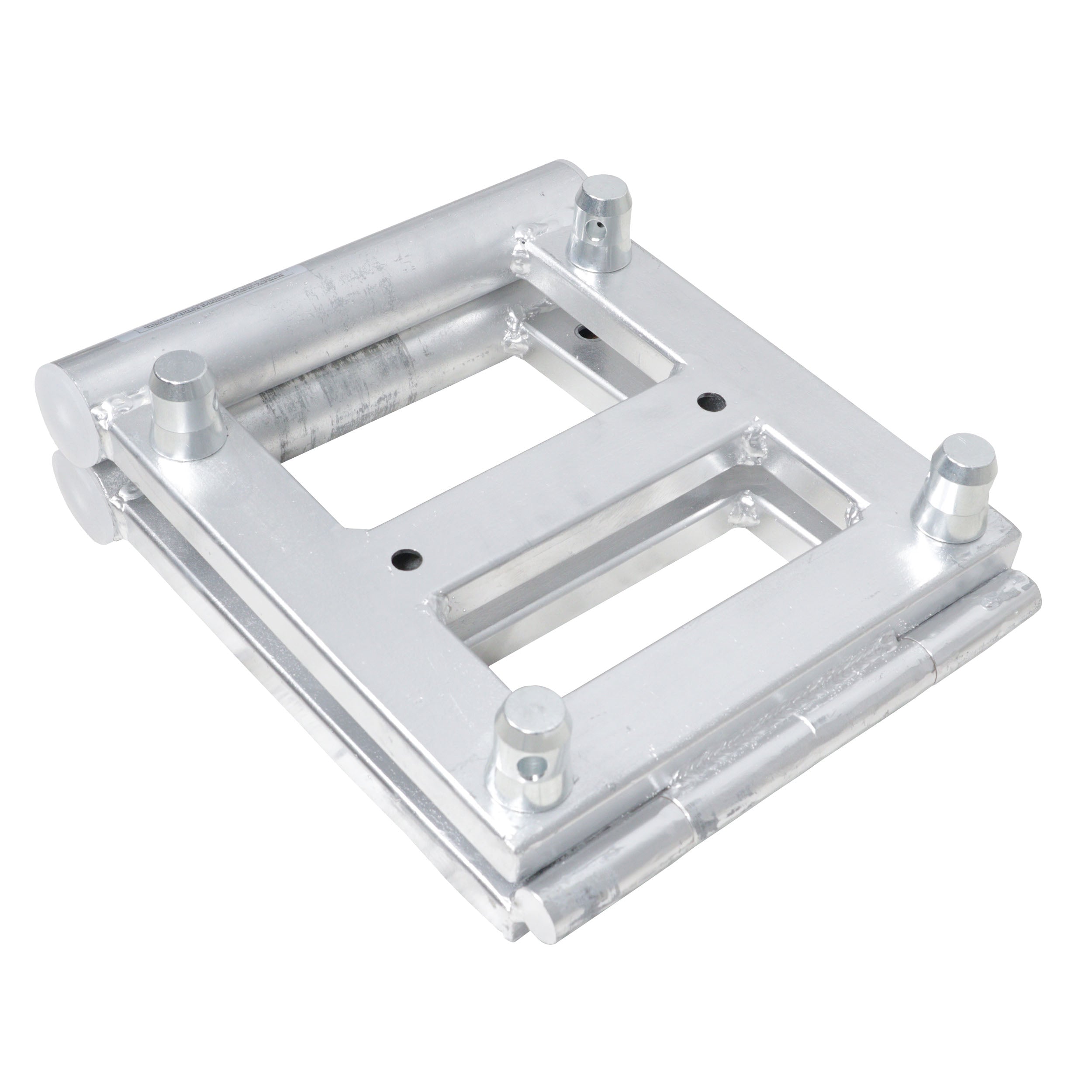

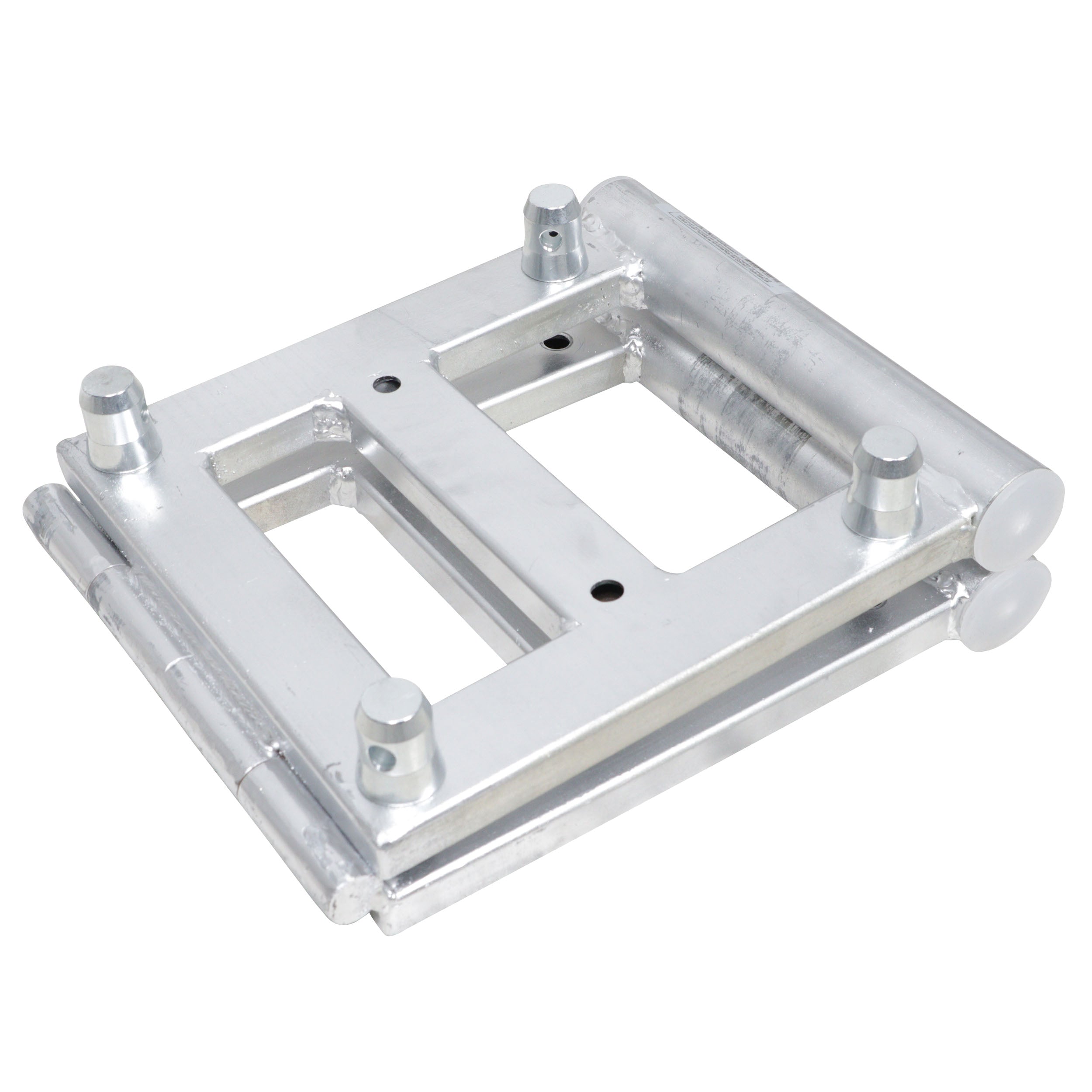

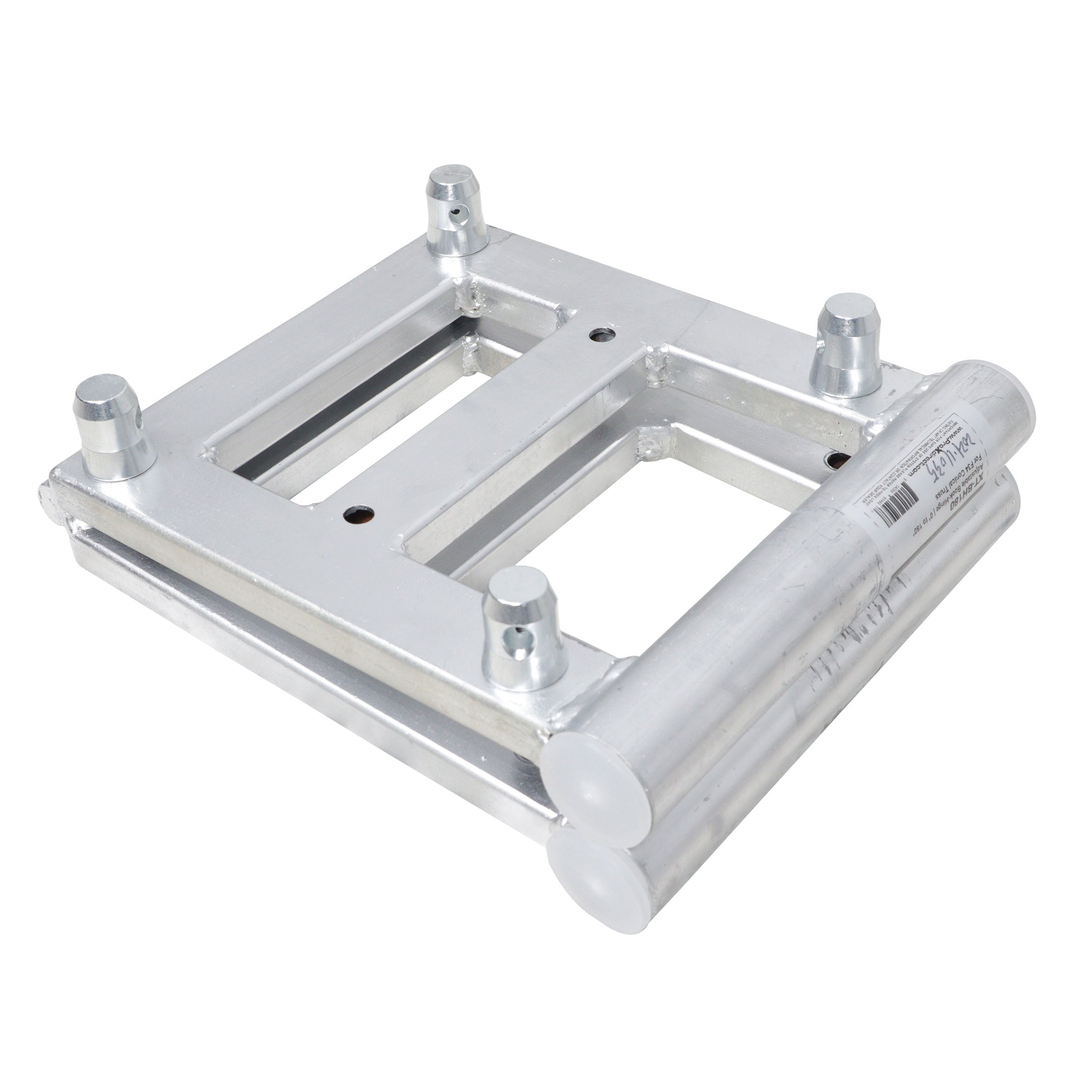

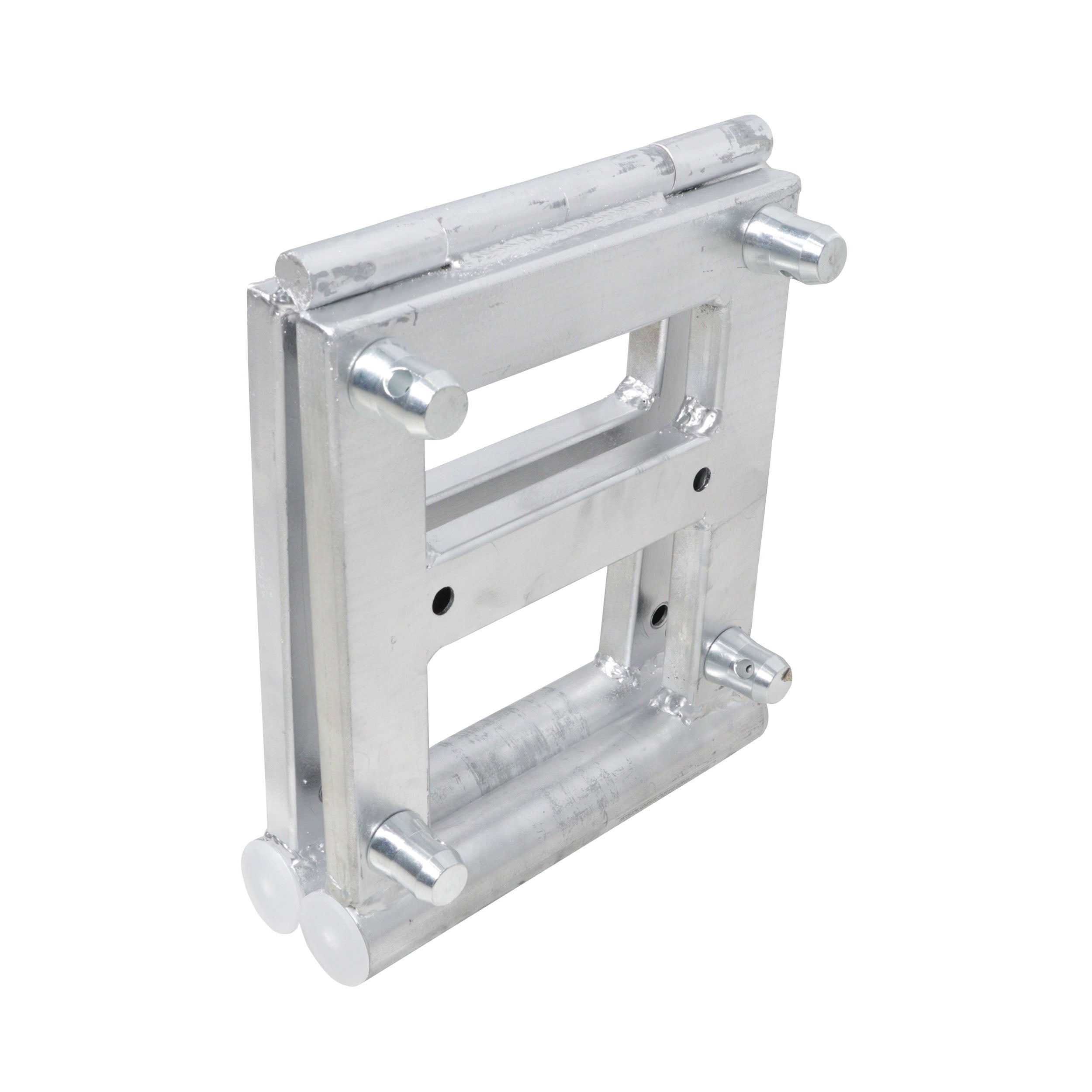

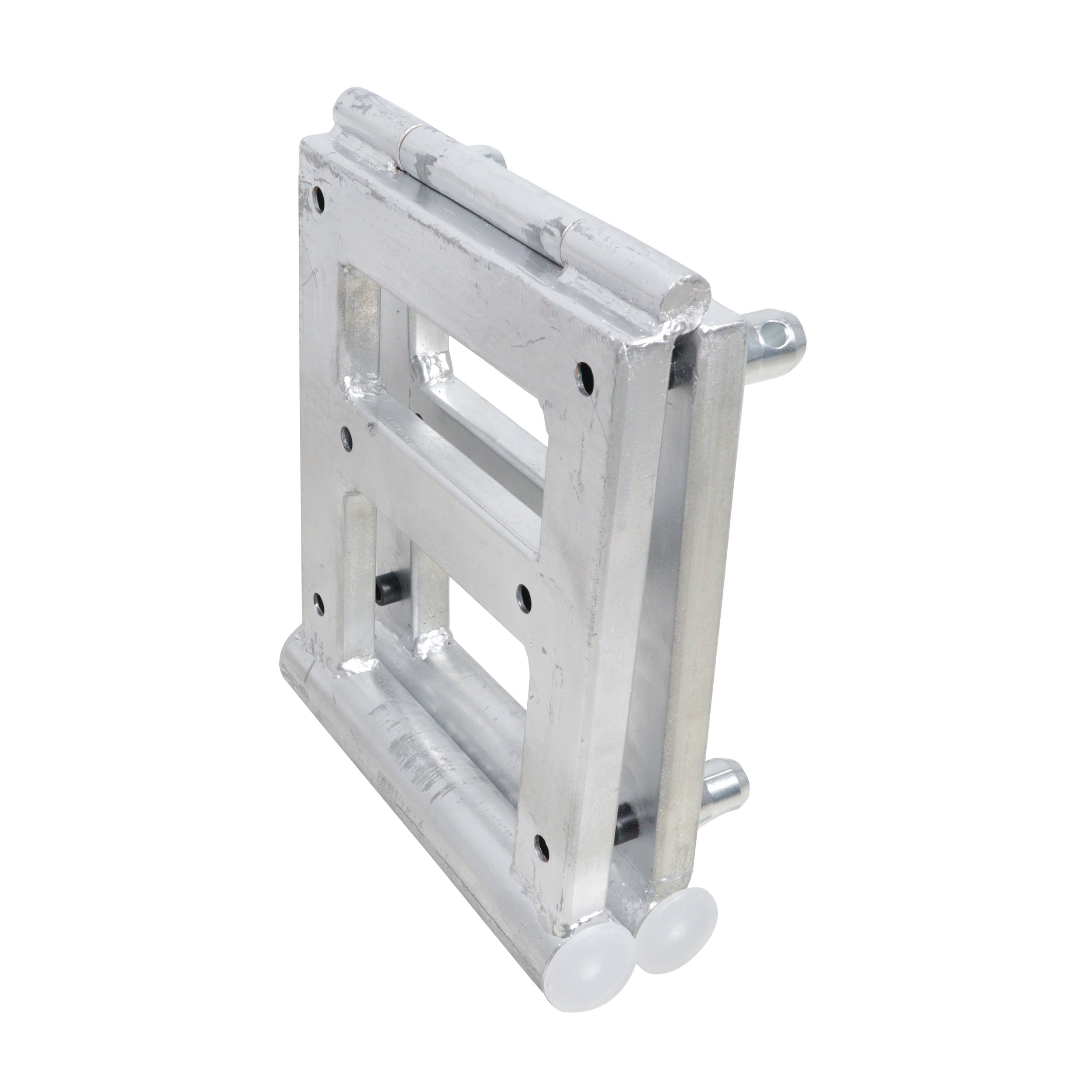

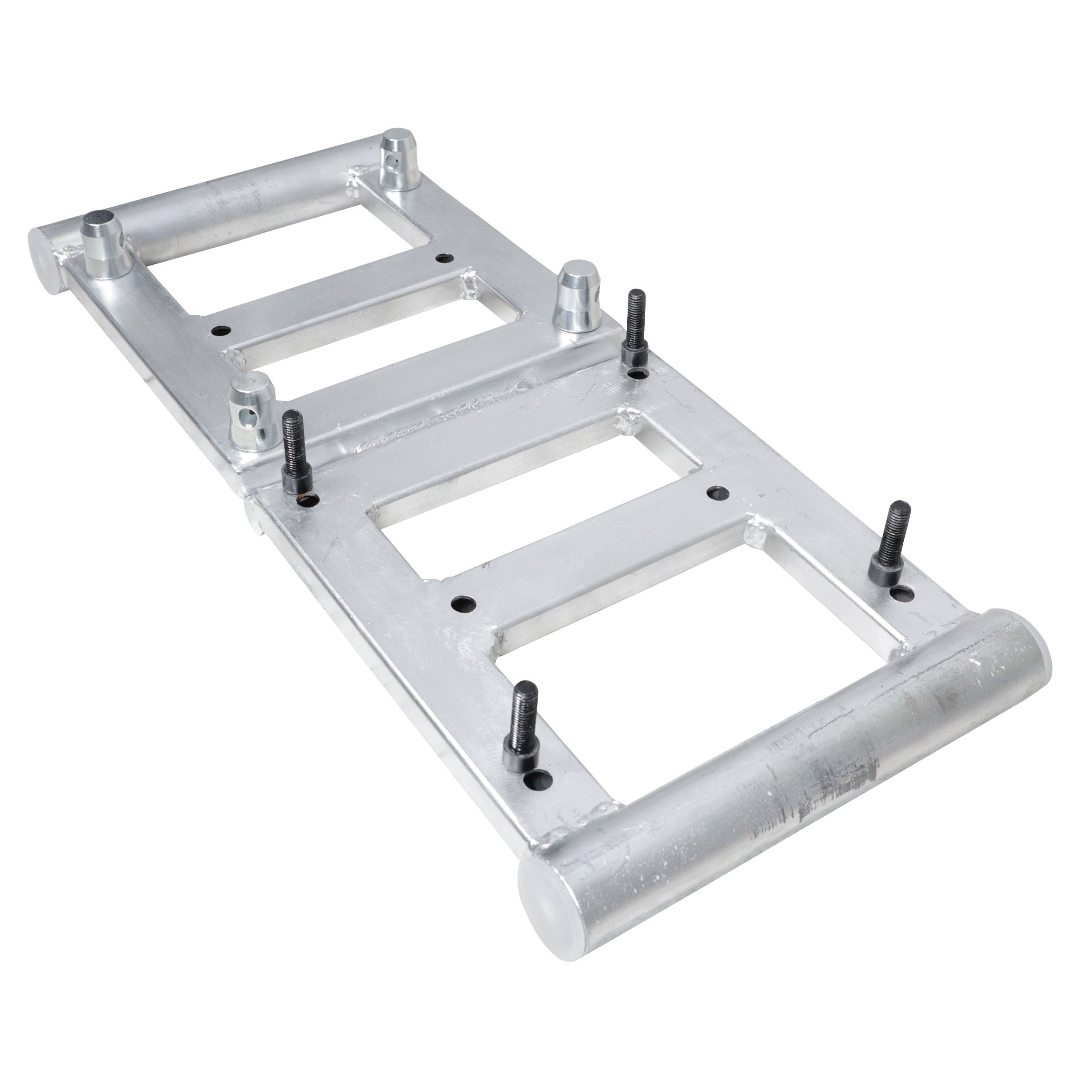

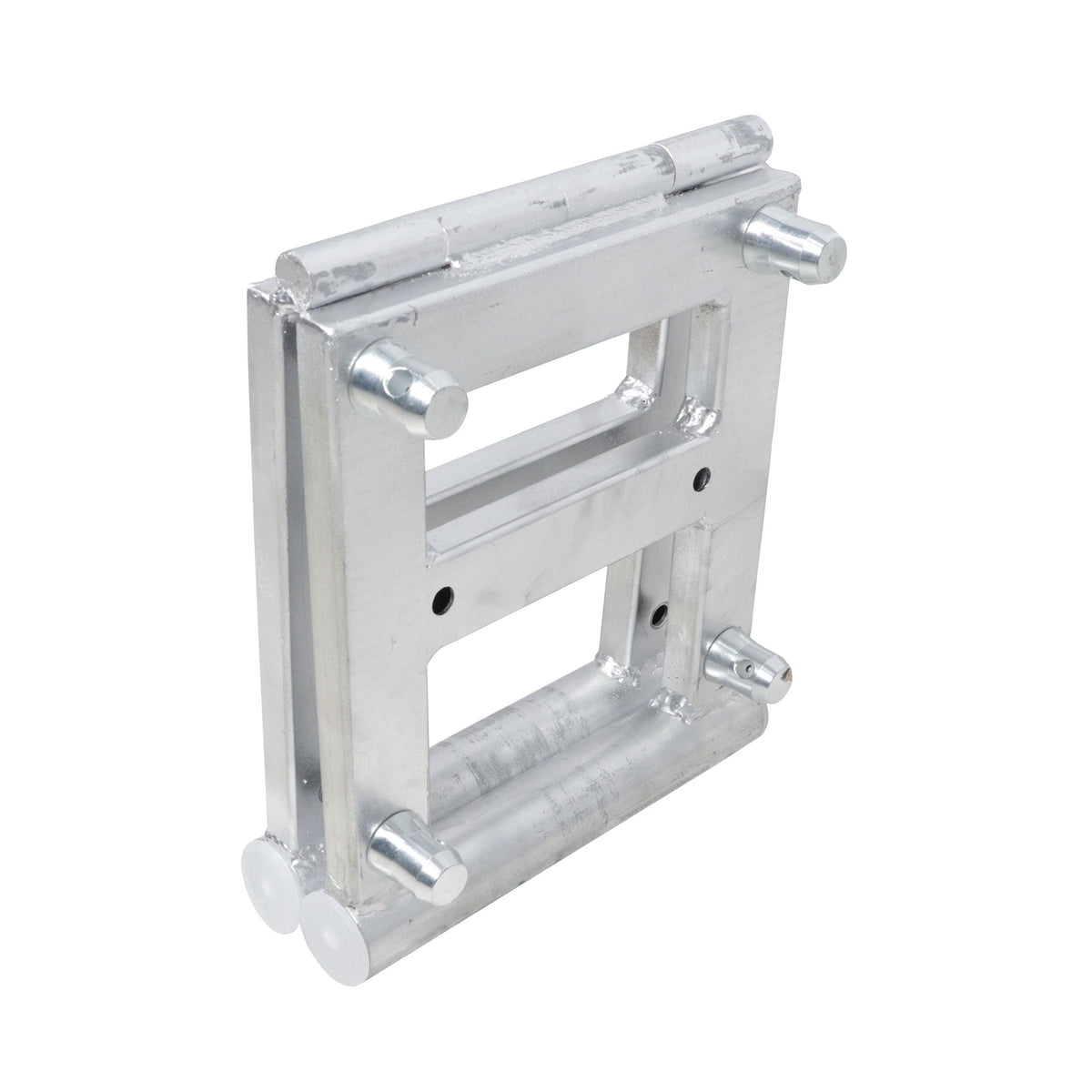

ProX XT-BH180 - 180˚ degree Adjustable Plate Hinge For XT-SQ F34 Conical Truss – Junction Box Angle

The ProX XT-BH180 Adjustable Plate-Hinge Truss Plate from the most trusted staging support systems in the industry, and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations. It adjusts from 3° to 180° and fits ProX 12" SQ F34 Conical trussing. Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup! This product can provide a universal solution for truss angles.

The ProX XT-BH180 is the first trussing hinge from ProX that adjusts from 3° to 180° for unique truss construction projects. There is a built-in adjustable arm to lock the desired angle between sections of truss and Junction Boxes. The superior construction quality of ProX trussing products guarantees many years of trouble-free use.

At the heart of the system is square truss that utilizes a standard conical connector system, which easily mates with other brands of trussing of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.

XT-SQ Series Dimensions

• Height: 11.42in / 290mm
• Width: 11.42in / 290mm
• Weight: 21lb per 3.28 ft / 9.5kg per meter
• Main Tube: 2in / 50mm
• Wall Thickness: .08in / 2mm
• Braces: .75in / 20mm
• Tolerance Free Standard Conical Connector

Connecting hardware included: Conical connectors, spigots, cotter pins (8 sets). ProX Truss products utilize industry standard dimensions to be compatible to connect to/with many other manufacturers trussing.

Key Features

• Manufactured in our Own Factory!
• Allows angles not possible with standard trussing corners
• One Side Conical Couplers Included
• Material: 10mm EN-AWT6 6061 Aluminum
• TUV Certified Aluminium Welding

Adjustment Range: 3° to 180° Compatibility: ProX 12" SQ F34 Conical trussing Material: 10mm EN-AWT6 6061 Aluminum Certification: TUV certified aluminium welding Includes: Conical connectors, spigots, cotter pins (8 sets), one side conical couplers Exterior Dimensions: 4.00"H x 12.00"W x 14.50"L Exterior Weight: 21.00 lbs UPC: 804589614937 Shipping Dimensions: 4.50"H x 13.50"W x 15.50"L Shipping Weight: 22.00 lbs

1x ProX 180˚ degree Adjustable Plate Hinge For XT-SQ F34 Conical Truss – Junction Box Angle
