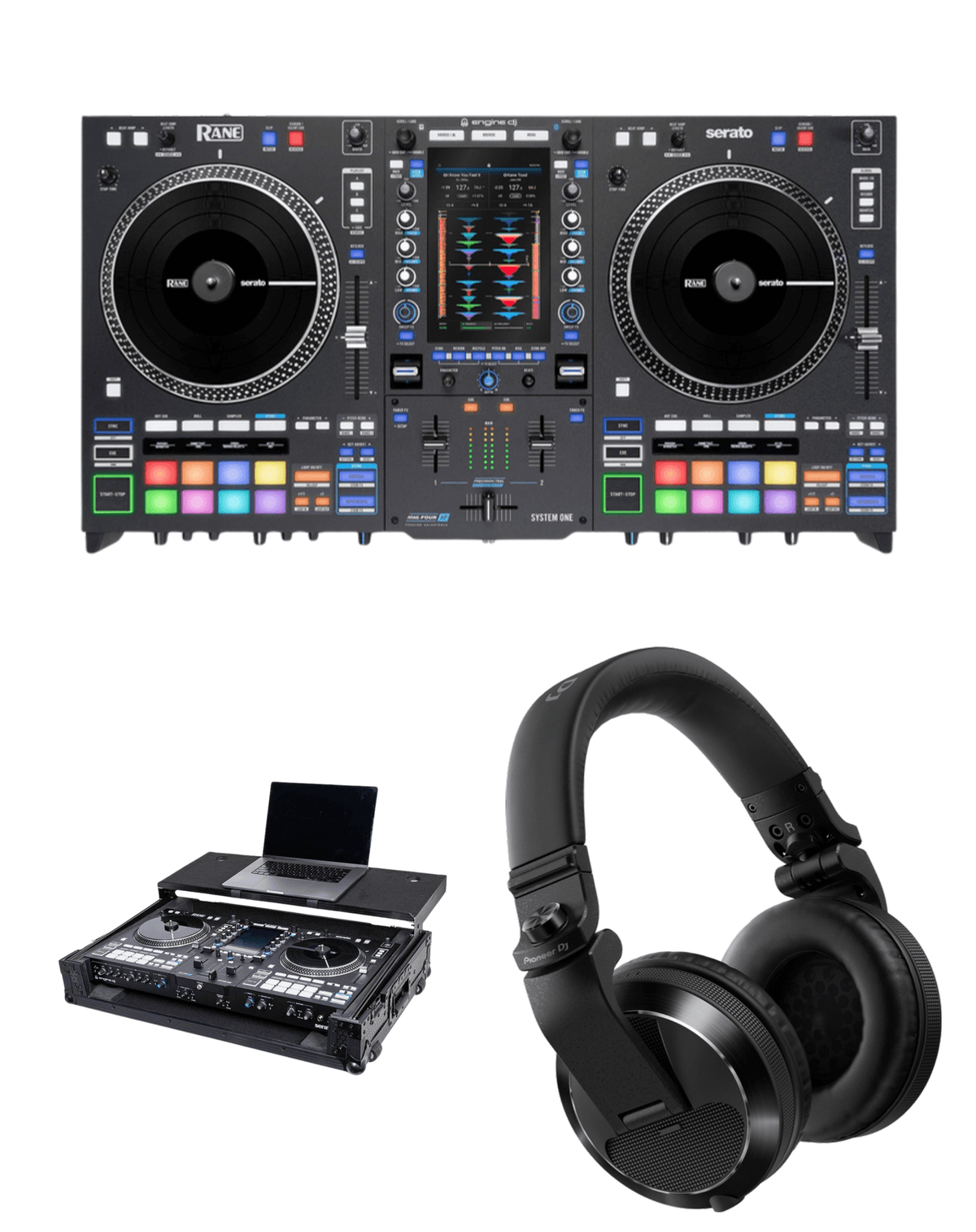

Name: Rane SYSTEM ONE + Headliner HL10027 Flight Case + Pioneer DJ HDJ-X7 Headphones Bundle
Brand: Rane
SKU: RNE-SYSONE-BDL5
Price: 2823.99 USD
Availability: InStock

Question 1

Product Features

Accepted Answer

Gig-ready from day one. This bundle pairs the Rane SYSTEM ONE all-in-one standalone DJ system with the Headliner HL10027 Pitch Black flight case and Pioneer DJ HDJ-X7 professional DJ headphones.

What's in the bundle

1x Rane SYSTEM ONE — All-in-One Standalone DJ System with Engine DJ
1x Headliner HL10027 — Pitch Black Flight Case for System ONE with Laptop Platform and Wheels
1x Pioneer DJ HDJ-X7 — Professional Over-Ear DJ Headphones (Black)

Highlights

Rane SYSTEM ONE

All-in-one standalone DJ system
High-torque motorized 7.2” platters
7” HD touch vertical display with RGB waveforms
Instant Acapella and Instrumental buttons, Stems pad mode, Stem Level EQ mode, and Stem FX
Standalone Embedded Sampler
PRECISION FEEL channel faders with tension adjust
Responsive RGB performance pads with OLED displays
Internal Main FX with paddle activation, Touch FX, Fader FX, and Sweep FX

Headliner HL10027

Custom-fit flight case for the Rane System One
Made from 3/8” (9mm) plywood with rugged hexagon laminate construction
Gliding laptop platform with laptop straps and cable access port
Heavy duty wheels and rubber feet
Steel ball corners and aluminum edge profiles
Recessed spring-loaded padded handles and butterfly latches with padlock staples

Pioneer DJ HDJ-X7 (Black)

Professional DJ headphones
Newly developed 50-mm driver
Durable metal construction
Flexible, durable headband and a flexible swivel for a comfortable fit
Includes carry pouch, 1.2 m coiled cable, 1.6 m straight cable, and L-type mini-jack

Why buy this bundle from The DJ Hookup?

Authorized dealer for Pioneer DJ, AlphaTheta, Rane, Denon DJ and other major brands — full manufacturer warranty included.
Price-match guarantee and 90-day returns.
Expert support — talk to working DJs about setup, cabling, and best practices.
No Tax Outside WI.

Have a question about compatibility, shipping, or a custom configuration? Contact our DJ specialists at support@thedjhookup.com.

Question 2

Product Specifications

Accepted Answer

Rane SYSTEM ONE

Digital Audio
Converters	Cirrus Logic, 24-bit PCM, 44.1 kHz
Digital Signal Processing	32-bit, Floating Point, Double Precision
Audio Outputs
Main Output
(XLR, RCA stereo pair)
DAC:	24-bit
Dynamic Range:	117 dB
Output Type:	Balanced XLR
Max Output Level (XLR):	8 Vrms
Max Output Level (RCA):	4 Vrms
Frequency Response:	20 Hz–20 kHz: +0, -1 dB
THD+N:	0.002% @ 1 kHz, 4 Vrms
Channel Separation:	> 80 dB
Input Gain Trim Range:	Off to +12 dB
Output Level Range:	Off to 0 dB
Booth Output
(1/4” [6.35 mm] TRS)
DAC:	24-bit
Dynamic Range:	117 dB
Output Type:	Balanced TRS
Max Output Level:	8 Vrms
Frequency Response:	20 Hz – 20 kHz: +0, -1 dB
THD+N:	0.002% @ 1 kHz, 4 Vrms
Channel Separation:	> 80 dB
Input Gain Trim Range:	Off to +12 dB
Output Level Range:	Off to 0 dB
Headphone Output
(1/4” [6.35 mm] and 1/8”  [3.5 mm] TRS)
AC:	24-bit
Dynamic Range:	117 dB
Output Type:	Stereo TRS (1/8” and 1/4” jacks)
Cue Features:	Cue / Split Cue
Max Output Level (No Load):	4 Vrms
Max Power Output @ 50 Ω:	150 mW
Frequency Response:	20 Hz – 20 kHz: +0, -1 dB
THD+N @ 1 kHz, 4 Vrms (No Load):	0.002%
THD+N @ 1 kHz, Full Power @ 50 Ω:	0.08%
Channel Separation:	> 80 dB
Level Control Range:	Off to 0 dB
Inputs (Combo XLR/1/4” [6.35 mm] TRS)
ADC:	24-bit, 115 dB DR
Input Type:	Balanced XLR/TRS combo
Max Input Level:	110 mV
Analog Gain:	25 dB
Max System Gain:	60 dB
Frequency Response @ 20 Hz:	-2.5 dB
Frequency Response @ 20 kHz:	-5 dB
THD+N @ 0.1 Vin, Gain = 25 dB:	0.015% (100 Hz–20 kHz)
DR (A-weighted), Gain = 25 dB:	102 dB
DR (A-weighted), Gain = 60 dB:	72 dB
IRN (A-weighted), Gain = 60 dB:	-132 dB
IRN (20 Hz–20 kHz), Gain = 60 dB:	-130 dB
Auxiliary Input
(RCA stereo pair)
ADC:	24-bit, 115 dB DR (A-weighted)
	Input Type:
	Unbalanced RCA
Max Input Level:	4 Vrms
Frequency Response:	20 Hz –20 kHz: +0, -1 dB
THD+N @ 3 Vrms, Unity Gain:	0.005% (20 Hz–20 kHz)
Gain Range:	Off to +12 dB
DR (A-weighted), Unity Gain:	108 dB
Crosstalk:	≤ -90 dB
Performance Pads
Pads:	16 total, on/off multi-color back-lit (8 per deck)
Faders	2 PRECISION FEEL tension-adjustable with contour and reverse
Channel Faders:
Crossfader:	1 MAG FOUR tension-adjustable with contour and reverse
Displays	7"/178 mm (diagonal) full-color LED-backlit display with touch interface
Main Display:
Pad Displays:	(8) 128 x 32 monochrome OLEDs
CPU
Processor:	Quad-core ARM®
RAM:	4 GB
Wi-Fi & Bluetooth
Wi-Fi:	2.4GHz/5GHz
	802.11a/b/g/n/ac
	Wi-Fi 5
Bluetooth:	v5.4
Supported Media
File Systems	exFAT (recommended)
exFAT (recommended)	FAT32
Playable Formats	AAC/M4A
	AIF/AIFF (44.1–192 kHz, 16–32-bit)
	ALAC
	FLAC
	MP3 (32–320 kbps)
	MP4
	Ogg Vorbis
	WAV (44.1–192 kHz, 16–32-bit)
Streaming Services	Onboard Streaming Services (subscription required)
	Amazon Music Unlimited
	Apple Music
	Beatport
	Beatsource
	SoundCloud Go+
	TIDAL
Lighting
Onboard Smart Lighting	Philips Hue
	Nanoleaf
Supported DMX	SoundSwitch DMX Micro
	SoundSwitch Control One
Power
(Internal with locking IEC)
Input Type:	Locking IEC
Input Voltage:	100–240 VAC
Frequency:	50/60 Hz
Power Consumption:	150 W
General
Dimensions (W x D x H):	Inches: 29.00 x 15.87 x 5.70
	Centimeters: 73.66 x 40.30 x 14.47
Weight:	29.4 lbs (13.33 kg)
Connections
Inputs
Microphones:	Mic 1: XLR + 1/4” Combo Jack
	Mic 2: XLR + 1/4” Combo Jack
Aux:	Stereo Pair (RCA)
Outputs
Main:	(2) XLR, Stereo Pair (RCA)
Booth:	(2) 1/4” TRS Jacks
Headphones:	1/4” Stereo Jack
	3.5-mm Stereo Mini-Jack
Media Inputs
USB:	USB 1: Type-A, USB 2.0 High Speed
	USB 2: Type-C, USB 3.0 SuperSpeed
	USB 3: Type-A, USB 3.0 SuperSpeed
	USB 4: Type-A, USB 3.0 SuperSpeed
	USB to Computer: Type-C, USB 3.0 SuperSpeed
SD Media:	SD, SDHC, SDXC
Internal HD:	SATA 3.0
Power
Input:	Locking IEC

Headliner HL10027

Dimensions: 35″ x 23″ x 11″
Weight: 39 lb

Pioneer DJ HDJ-X7 (Black)

Main Features

Type	Closed, dynamic
Driver Units	50 mm dome type
Cord	1.2 m coiled cable (3 m extended length) 1.6 m straight cable
Included Accessories	6.3 mm stereo plug adapter (threaded type) Carry pouch

Specifications

Weight (without cord)	312 g
Maximum Input Power	3500 mW
Output Sound Level	102 dB
Frequency Range	5 - 30000 Hz
Impedance	36 Ω

Bundle

Bundle SKU: RNE-SYSONE-BDL5
Components ship in their individual manufacturer cartons (3 boxes).
Total packed weight: 72.75 lb

Question 3

What's included

Accepted Answer

1x Rane SYSTEM ONE:
Rane System ONE
IEC Power Cable
2x Black Felt Slip Mats
4x Scratch Washers
USB-C Cable
DeoxIT Fader Lube (2ml)
Cleaning Cloth
Rane Sticker
Sheet Software
Download Card
Quickstart Guide
Safety & Warranty Manual
1x Headliner HL10027:
Headliner HL10027
1x Pioneer DJ HDJ-X7 (Black):
Pioneer DJ HDJ-X7
Carry pouch
1.2 m coiled cable
1.6 m straight cable
L-type mini-jack
