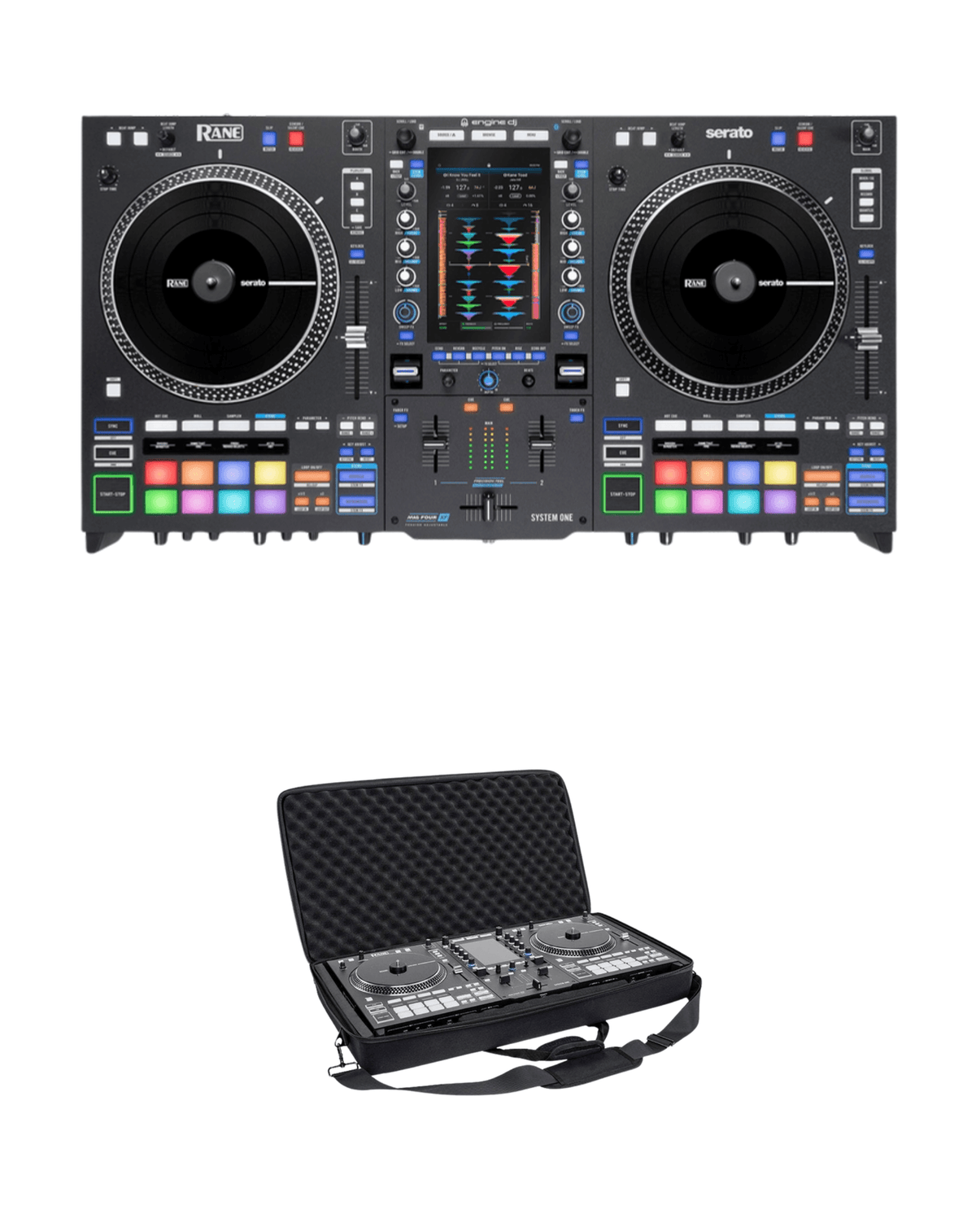

Rane SYSTEM ONE + Headliner HL12024 Pro-Fit Case Bundle

Digital Audio

Converters

Cirrus Logic, 24-bit PCM, 44.1 kHz  

Digital Signal Processing

32-bit, Floating Point, Double Precision  

Audio Outputs

Main Output 

(XLR, RCA stereo pair)  

DAC:

24-bit

Dynamic Range: 

117 dB  

Output Type:

Balanced XLR    

Max Output Level (XLR): 

8 Vrms 

Max Output Level (RCA): 

4 Vrms

Frequency Response:

20 Hz–20 kHz: +0, -1 dB  

THD+N:

0.002% @ 1 kHz, 4 Vrms  

Channel Separation:

> 80 dB 

Input Gain Trim Range:

Off to +12 dB  

Output Level Range:

Off to 0 dB  

Booth Output

(1/4” [6.35 mm] TRS)  

DAC:

24-bit 

Dynamic Range: 

117 dB 

Output Type:

Balanced TRS 

Max Output Level:

8 Vrms  

Frequency Response:

20 Hz – 20 kHz: +0, -1 dB  

THD+N:

0.002% @ 1 kHz, 4 Vrms  

Channel Separation:

> 80 dB 

Input Gain Trim Range: 

Off to +12 dB  

Output Level Range: 

Off to 0 dB  

Headphone Output

(1/4” [6.35 mm] and 1/8” 
[3.5 mm] TRS)  

AC:

24-bit 

Dynamic Range: 

117 dB 

Output Type:

Stereo TRS (1/8” and 1/4” jacks)  

Cue Features:

Cue / Split Cue  

Max Output Level (No Load):

4 Vrms  

Max Power Output @ 50 Ω: 

150 mW  

Frequency Response: 

20 Hz – 20 kHz: +0, -1 dB

THD+N @ 1 kHz, 4 Vrms (No Load): 

0.002% 

THD+N @ 1 kHz, Full Power @ 50 Ω: 

0.08%  

Channel Separation: 

> 80 dB

Level Control Range:

Off to 0 dB  

Inputs (Combo XLR/1/4”
[6.35 mm] TRS) 

ADC: 

24-bit, 115 dB DR  

Input Type:

Balanced XLR/TRS combo  

Max Input Level: 

110 mV  

Analog Gain:

25 dB  

Max System Gain:

60 dB  

Frequency Response @ 20 Hz:

-2.5 dB  

Frequency Response @ 20 kHz: 

-5 dB  

THD+N @ 0.1 Vin, Gain = 25 dB: 

0.015% (100 Hz–20 kHz)  

DR (A-weighted), Gain = 25 dB: 

102 dB  

DR (A-weighted), Gain = 60 dB:

72 dB 

IRN (A-weighted), Gain = 60 dB: 

-132 dB  

IRN (20 Hz–20 kHz), Gain = 60 dB:

-130 dB  

Auxiliary Input

(RCA stereo pair)

ADC:

24-bit, 115 dB DR (A-weighted)  

Input Type: 

Unbalanced RCA 

Max Input Level: 

4 Vrms  

Frequency Response: 

20 Hz –20 kHz: +0, -1 dB 

THD+N @ 3 Vrms, Unity Gain:

0.005% (20 Hz–20 kHz) 

Gain Range:

Off to +12 dB

DR (A-weighted), Unity Gain:

108 dB

Crosstalk: 

 ≤ -90 dB 

Performance Pads

Pads: 

16 total, on/off multi-color back-lit (8 per deck)  

Faders

2 PRECISION FEEL tension-adjustable with contour and reverse 

Channel Faders: 

Crossfader: 

1 MAG FOUR tension-adjustable with contour and reverse

Displays

7"/178 mm (diagonal) full-color LED-backlit display with touch interface  

Main Display: 

Pad Displays: 

(8) 128 x 32 monochrome OLEDs 

CPU

Processor: 

Quad-core ARM®  

RAM: 

4 GB 

Wi-Fi & Bluetooth  

Wi-Fi:  

2.4GHz/5GHz  

802.11a/b/g/n/ac  

Wi-Fi 5  

Bluetooth:

v5.4 

Supported Media

File Systems

exFAT (recommended)  

exFAT (recommended)  

FAT32

Playable Formats

AAC/M4A  

AIF/AIFF (44.1–192 kHz, 16–32-bit)  

ALAC  

FLAC  

MP3 (32–320 kbps)  

MP4  

Ogg Vorbis  

WAV (44.1–192 kHz, 16–32-bit)

Streaming Services

Onboard Streaming Services (subscription required)  

Amazon Music Unlimited  

Apple Music  

Beatport  

Beatsource  

SoundCloud Go+  

TIDAL 

Lighting

Onboard Smart Lighting

Philips Hue  

Nanoleaf  

Supported DMX  

SoundSwitch DMX Micro  

SoundSwitch Control One  

Power

(Internal with locking IEC)

Input Type: 

Locking IEC 

Input Voltage: 

100–240 VAC 

Frequency:

50/60 Hz

Power Consumption: 

150 W 

General

Dimensions (W x D x H): 

Inches: 29.00 x 15.87 x 5.70  

Centimeters: 73.66 x 40.30 x 14.47  

Weight:

29.4 lbs (13.33 kg)

Connections

Inputs

Microphones:

Mic 1: XLR + 1/4” Combo Jack

Mic 2: XLR + 1/4” Combo Jack

Aux: 

Stereo Pair (RCA)

Outputs

Main:

(2) XLR, Stereo Pair (RCA)

Booth:

(2) 1/4” TRS Jacks

Headphones:

1/4” Stereo Jack

3.5-mm Stereo Mini-Jack

Media Inputs

USB:

USB 1: Type-A, USB 2.0 High Speed

USB 2: Type-C, USB 3.0 SuperSpeed

USB 3: Type-A, USB 3.0 SuperSpeed

USB 4: Type-A, USB 3.0 SuperSpeed

USB to Computer: Type-C, USB 3.0 SuperSpeed

SD Media:

SD, SDHC, SDXC

Internal HD:

SATA 3.0

Power

Input:

Locking IEC
