L Class represents the next generation of advanced, intelligent, active loudspeakers for applications ranging from simple, portable, plug-and-play setups, to demanding, networked, high-tech AV productions and fixed installations.
The exceptional result of a deep understanding of customer needs and application requirements, L Class delivers a brilliant combination of leading-edge innovation, refined engineering and unparalleled ease of use. L Class delivers exceptional performance and audio experience via high-output amplification, state-of-the-art DSP, premium components, extensive system intelligence and an elegantly intuitive interface.
L Class also sets a new standard for ease of use, as its users will be able to confidently configure and deploy any L Class system with unmatched speed and reliability. Onboard Dante® connects L Class to networked AV systems and connected stages. Simply Brilliant in every regard, L Class elevates audio technology in the service of art, creativity and live performance.
|
Model |

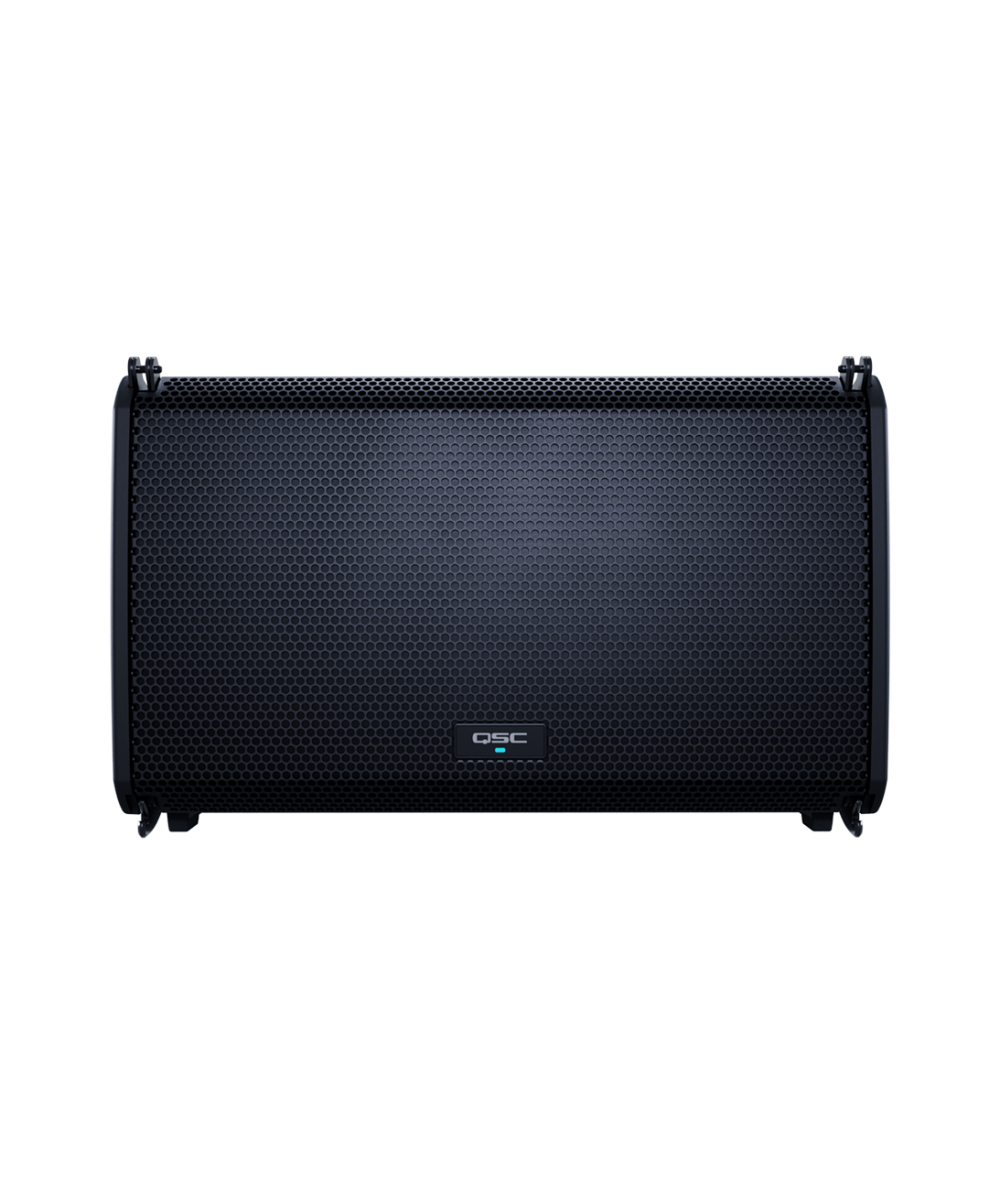

LA112 |
|
Configuration |
Two-way active line array loudspeaker |
|
LF Transducer |
305 mm (12-inch), cone |
|
HF Transducer |
2x 44 mm (1.75-inch), compression drivers with Polyimide diaphragm |
|
Frequency Response (-6 dB) |
58 Hz - 20 kHz |
|
Frequency Range (-10 dB) |
53 Hz - 20 kHz |
|
Nominal Coverage Angle |
90° H x 15° V |
|
Maximum Rated SPL1 (peak) |
136 dB @1 m |
|
Amplifier (peak) |
Class D, LF 1600 W / HF 800 W |
|
Cooling |
Convection cooling |
|
Controls |
Rotary push encoder |
|
2 x Push buttons (Menu, ID) |
|
|
Display Screen |
61 mm (2.4-inch) Full color display area (240 x 320 pixels) |
|
Indicators |
Power LED |
|
Limiter active LED |
|
|
Standby active LED |
|
|
2 x Signal LED |
|
|

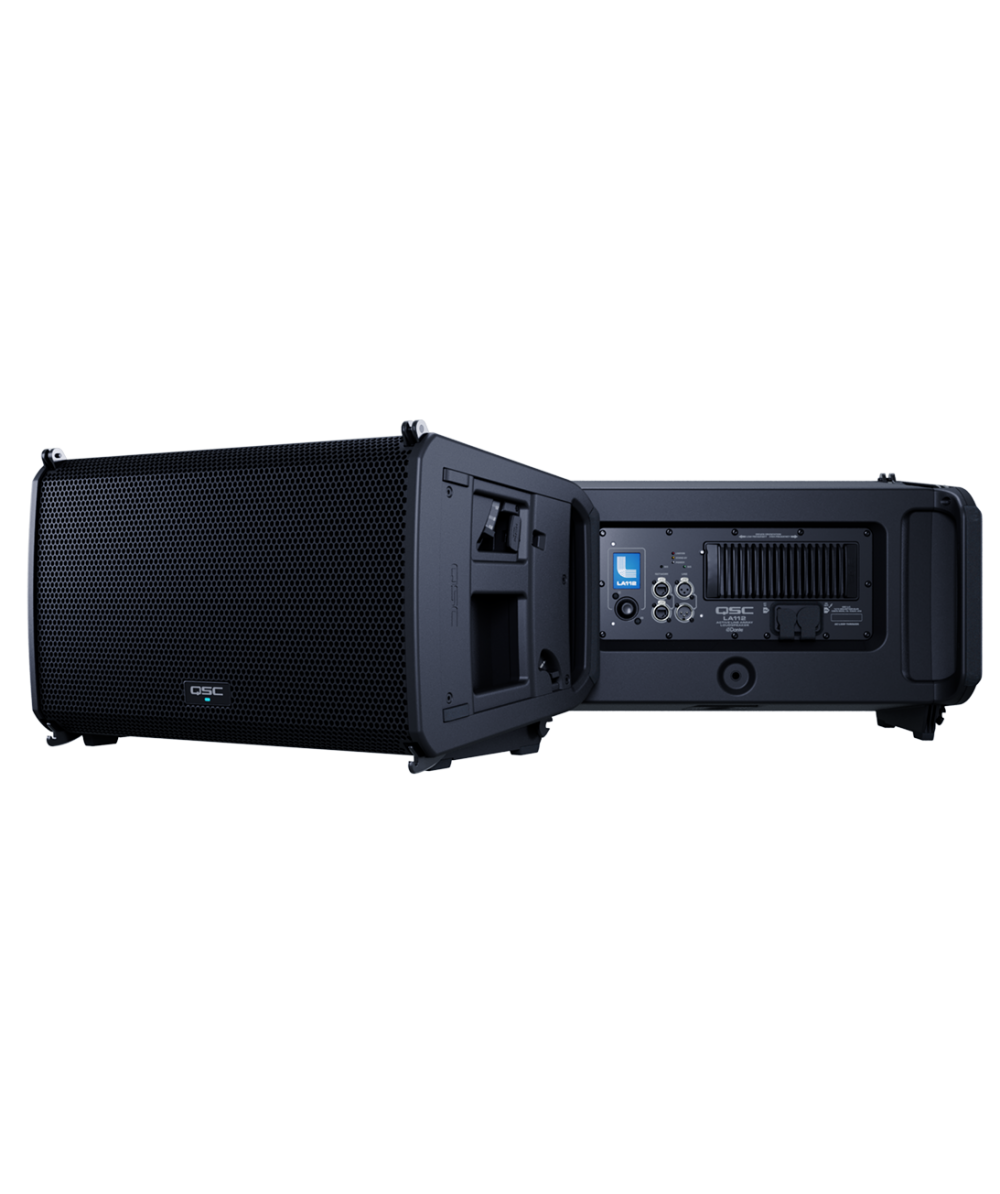

Connectors |
XLR Female (Analog In) |
|
XLR Male (Analog Thru) |
|
|
2 x RJ45 EtherCON (Dante® and QSC SysNav™ In/Thru) |
|
|
2 x PowerCON TRUE1 (AC Power Inlet/Outlet) |
|
|
AC Power Input |
Universal power supply 100 – 240 VAC, 50 – 60 Hz |
|
AC Power Consumption2 |
100 VAC, 1.8 A / 120 VAC, 1.5 A / 230 VAC, 1 A |
|
Enclosure Material |
Impact Resistant ABS |
|
Attachment Points |
QSC RapidDeploy™ rigging system |
|
1x M10 (on rear panel for pull-back) |
|
|
Color |
Black (RAL 9011) |
|
Grille |
16 GA Powder coated steel |
|
Dimensions (H × W × D) |
392 x 630 x 417 mm |
|
15.4 x 24.8 x 16.4 inches |
|
|
Net Weight |
21.4 kg (47.2 lb) |
|
Shipping Weight |
26.2 kg (57.7 lb) |
|
Supplied Accessories |
1 x PowerCON TRUE1 power cable |
|
Regulatory |
UL, CE, FCC Class A |
- QSC LA112
- PowerCON TRUE1 power cable
-
QSC LA112 TOTE - Transport Tote
Regular Price: $233.99
Special Price: $199.99
