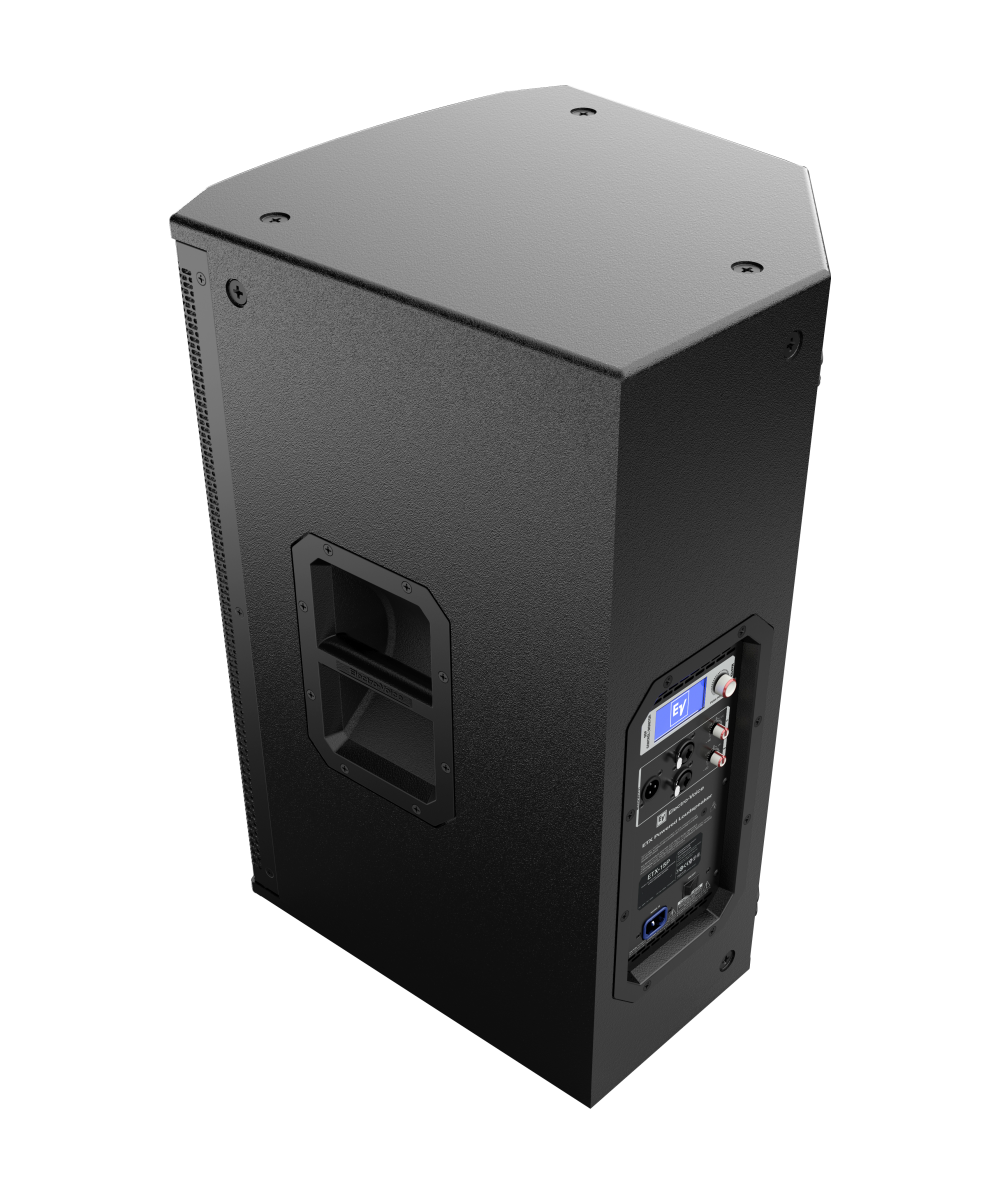

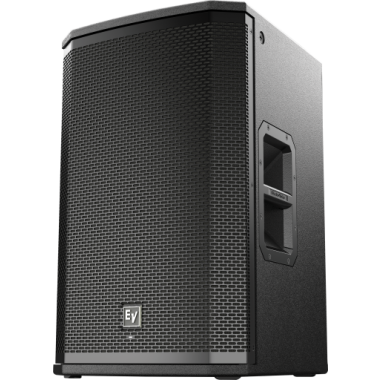

Electro-Voice ETX-15P is a Powered Class-D portable powered loudspeaker from powered that can be used as a floor monitor, mounted on a tripod, or suspended from the ceiling
|
Frequency Response (-3 dB) |
48 Hz – 20 kHz1 |
|
Frequency Range (-10 dB) |
40 Hz – 20 kHz1 |
|
Maximum SPL |
135 dB peak2 |
|
Coverage (H x V) |
90° x 60° |
|
Power Rating |
2000 W |
|
LF Transducer |
SMX2150 380 mm (15 in) |
|
HF Transducer |
DH3-B 1.25-in titanium compression driver |
|
Crossover Frequency |
1500 Hz |
|
Connectors |
(2) XLR/TRS combo jack and (1) XLR link output |
|
Enclosure |
18 mm, 13-ply birch plywood with EVCoat |
|
Grille |
16AWG steel with powdercoat |
|
Suspension |
(8) M10 suspension points |
|
Dimensions (H x W x D) |
691 mm x 431 mm x 447 mm (27 in x 17 in x 18 in) |
|
Net Weight |
27.7 kg (61.1 lb) |
|
Shipping Weight |
31.5 kg (69.5 lb) |
|
Power Consumption |
100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A3 |
|
1 Full space measurement using the music DSP preset. |
|
|
2 Maximum SPL is measured at 1 m using broadband pink noise at maximum output. |
|
|
3 Current rating is 1/8 power. |
|
- Electro-Voice ETX-15P
- Power Cord
- Owners Manual
