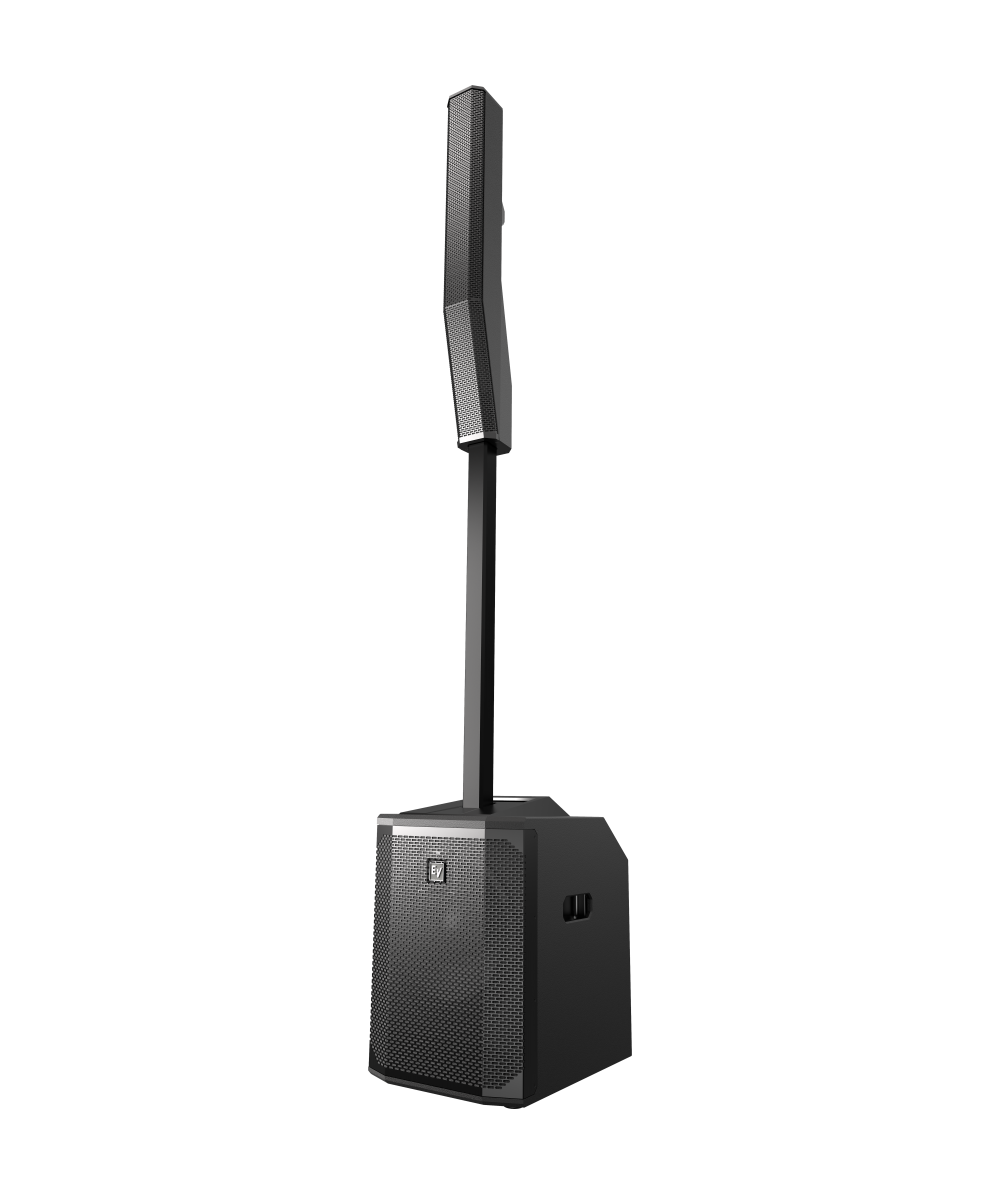

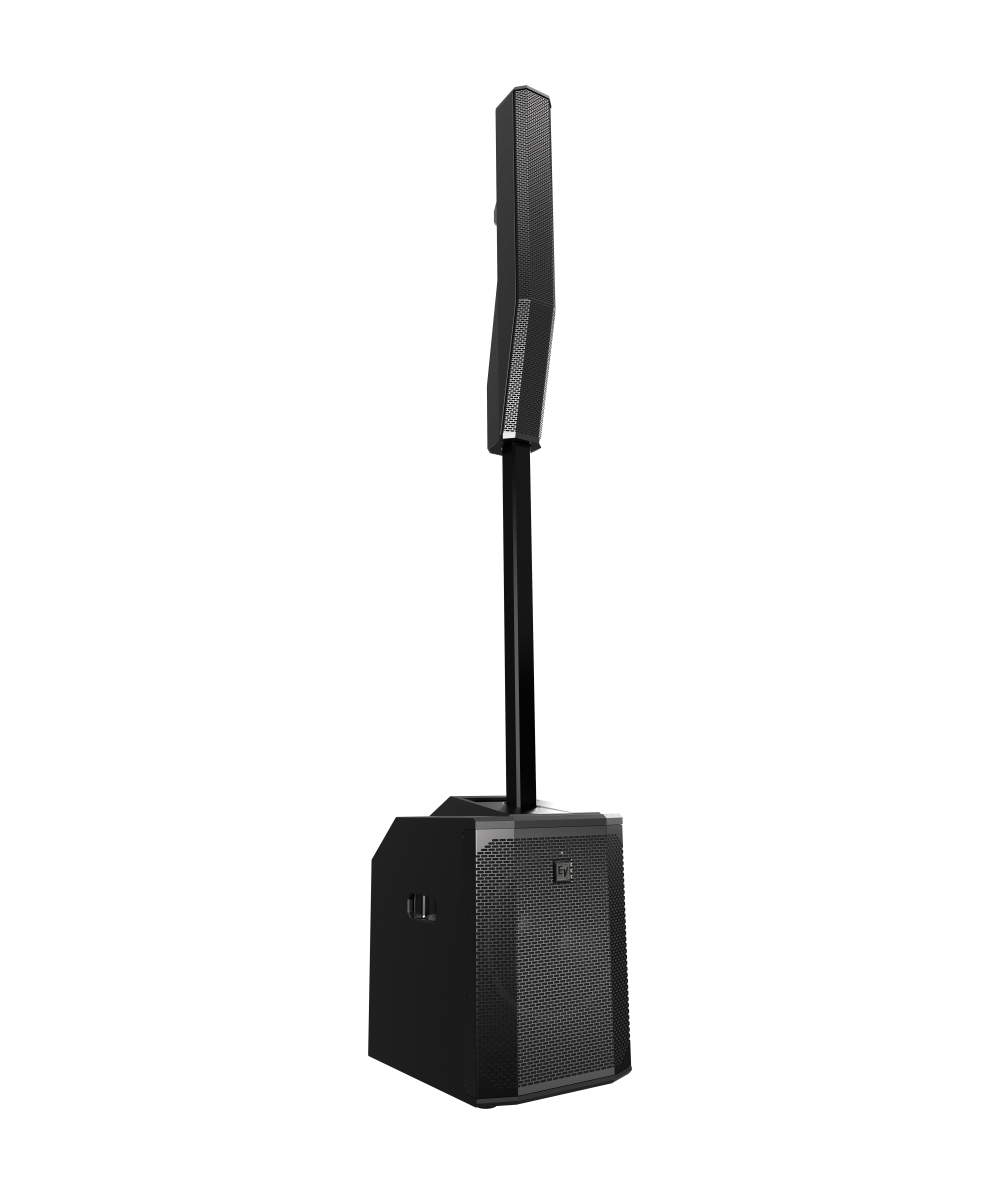

Electro-Voice EVOLVE 50M Portable column system
Electro-Voice is expanding its industry-leading EVOLVE series with the launch of the EVOLVE 50M column loudspeaker system. The EVOLVE 50M features ElectroVoice’s new QuickSmart Link digital audio and control technology, an onboard mixer, DSP and effects - all combined within the sleek EVOLVE 50 format. The EVOLVE 50M is the perfect choice for bands/musicians, AV rental companies, DJs and any application where true professional audio performance is required in a super-compact and portable package.
|

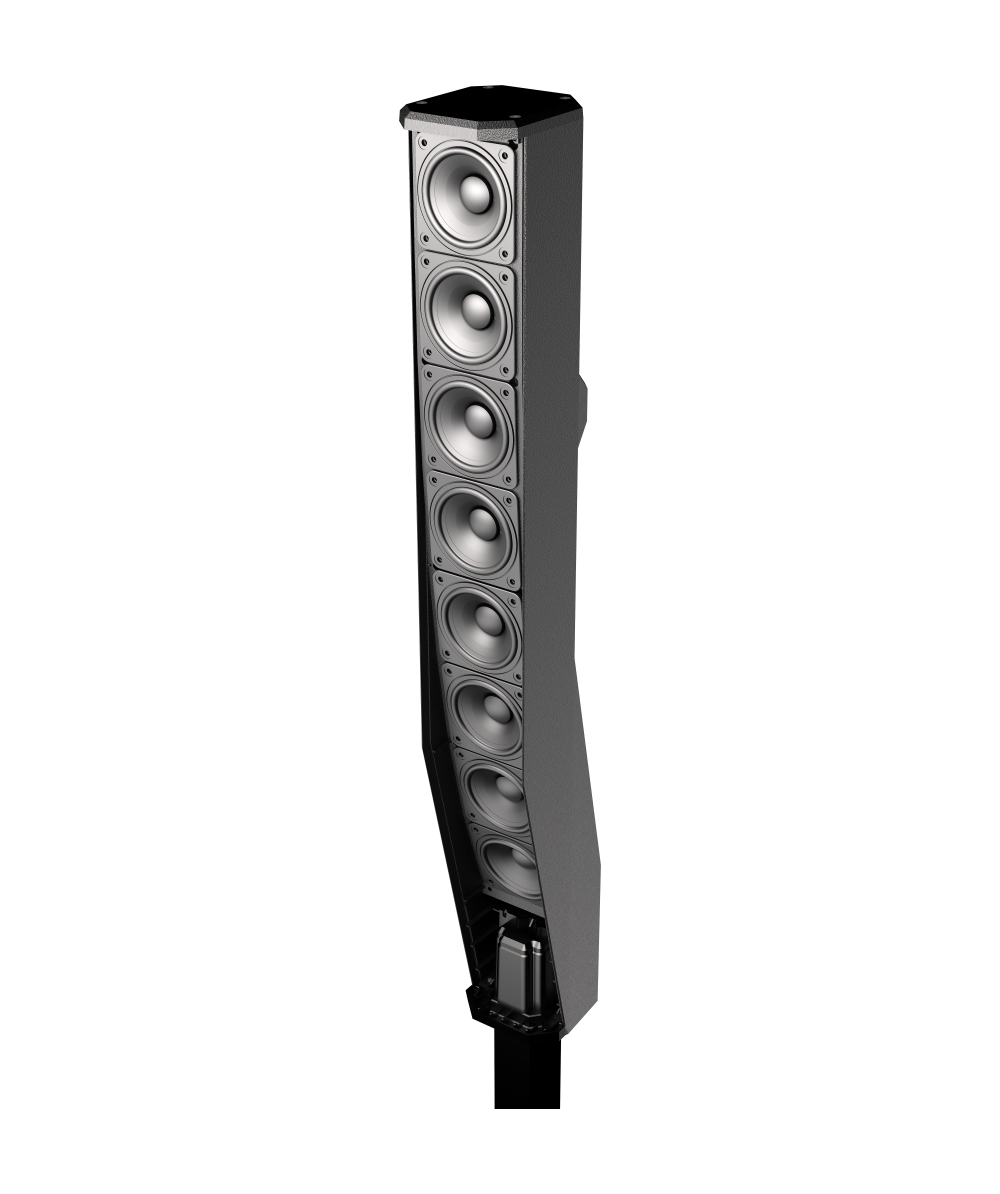

Column array |
8x 3.5” neodymium drivers |
|
Subwoofer |
1x 12” |
|
Frequency response (-3 dB) |
43 Hz - 20 KHz |
|
Frequency range (-10 dB) |
37 Hz - 20 KHz |
|
Maximum SPL |
127 dB |
|
Coverage (H x V) |
120° x 40° |
|
Amplifier rating |
1000 W |
|
LF channel rating |
500 W |
|
HF channel rating |
500 W |
|
Crossover frequency |
200 Hz |
|

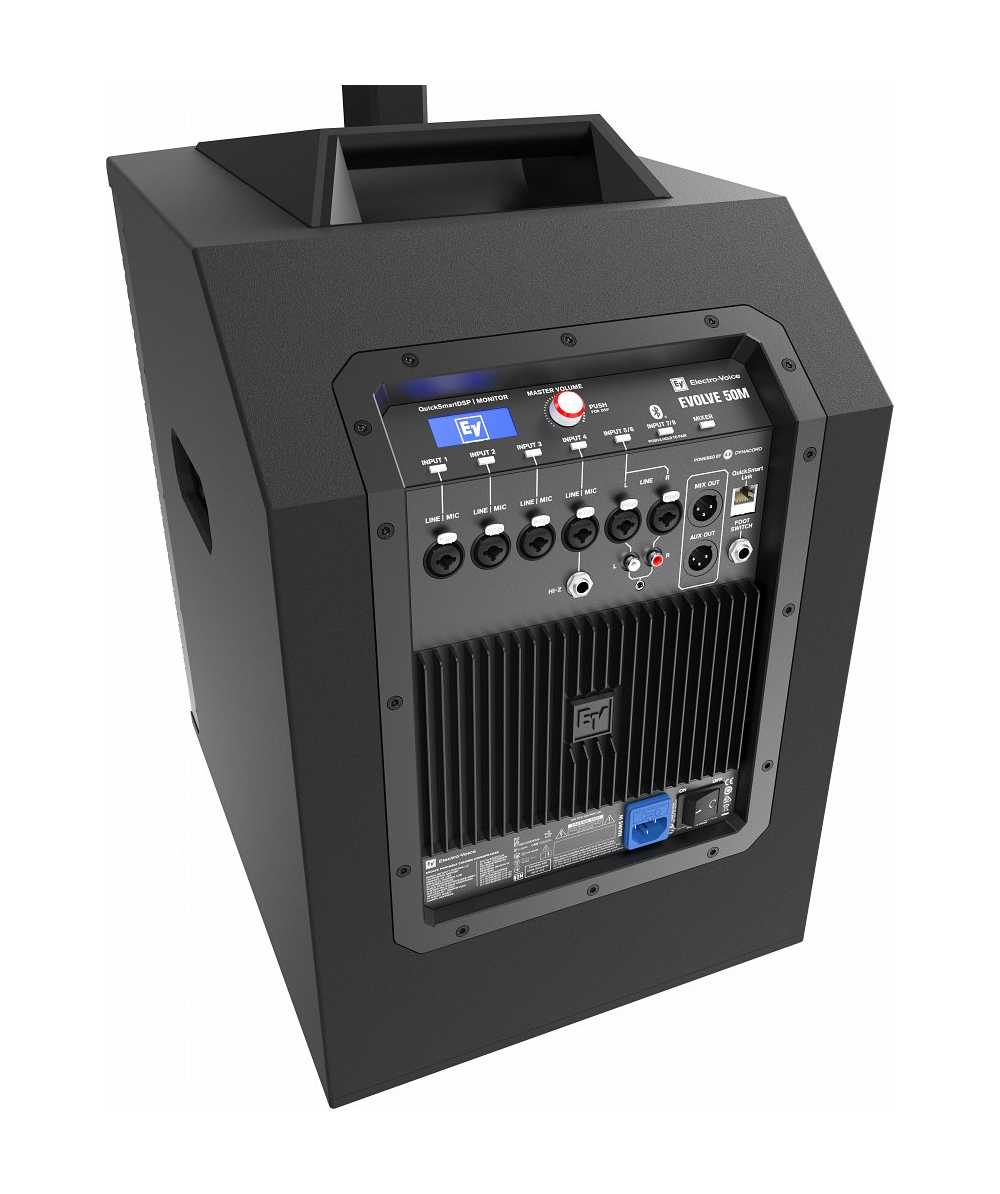

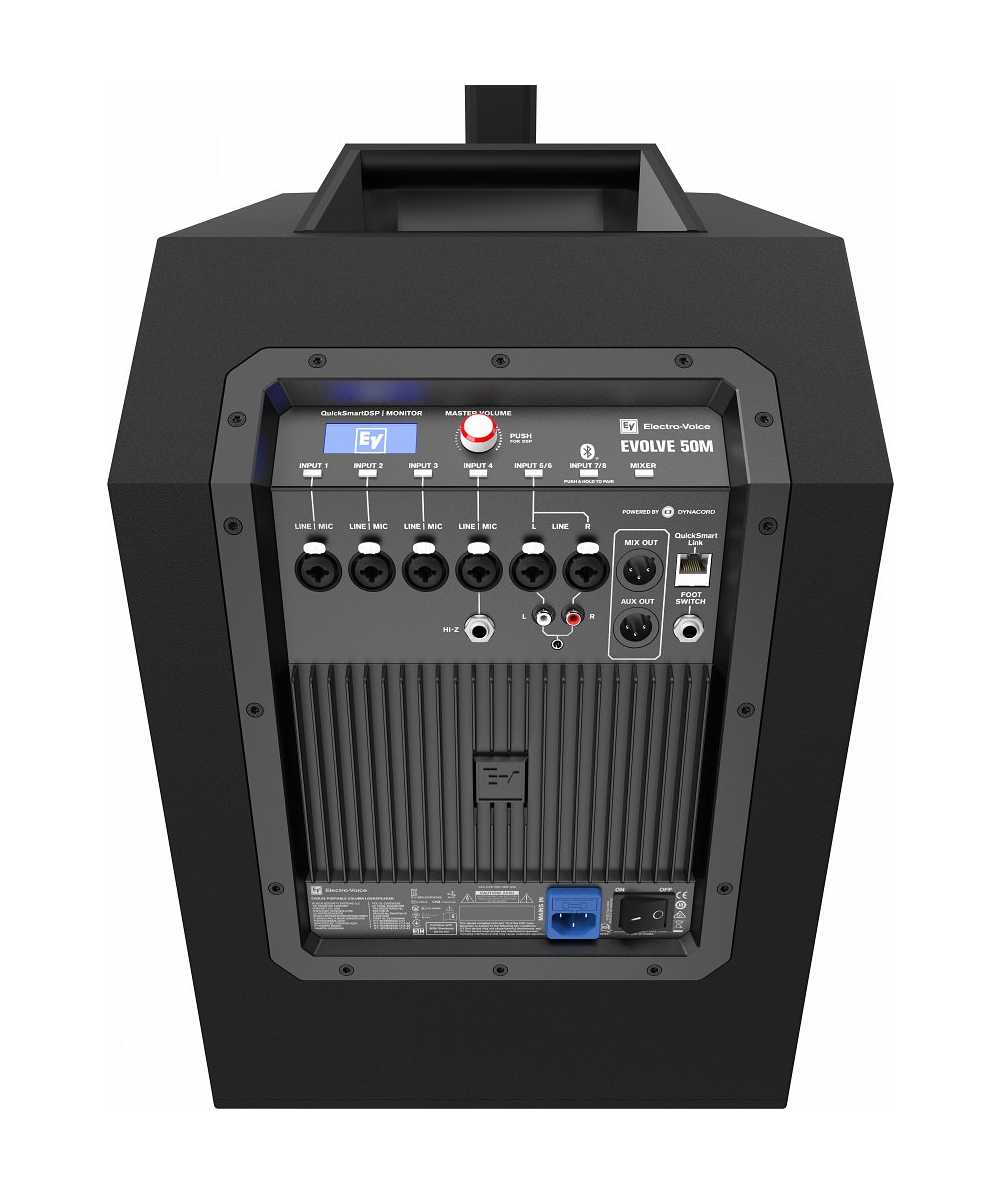

Connectors |
4x XLR/TRS combo jack line/mic input |
|
2x XLR/TRS combo jack for stereo line input |
|
|
1x 1/4” TRS Hi-Z input |
|
|
1x stereo RCA input |
|
|
1x 3.5 mm stereo input |
|
|
1x wireless stereo Bluetooth® audio input |
|
|
1x 1/4” foot switch input |
|
|
1x XLR mix out output |
|
|
1x XLR aux out output |
|
|
1x RJ45 QuickSmart Link connector |
|
|
Enclosure |
Column: composite |
|
Pole: aluminum |
|
|
Sub: 15 mm plywood |
|
|
Grille |
Steel with black or white powder coat |
|
Colors |
Black or white |
|
Dimensions (HxWxD): in (mm) |
Column: 32.5 x 4.0 x 6.9 (825 x 102 x 172) |
|
Pole: 36.6 x 1.9 x 2.2 (929 x 48.5 x 55) |
|
|
Sub: 20.9 x 13.6 x 18.5 (530 x 345 x 471) |
|
|
Assembled: 80.5 x 13.6 x 18.5 (2045 x 345 x 471) |
|
|
Net weight: lbs (kg) |
Column: 10.34 (4.7) |
|
Pole: 2.75 (1.25) |
|
|
Sub: 44.66 (20.3) |
|
|
Total: 57.75 (26.25) |
|
|
Power consumption |
100-240 V AC, 50-60 Hz, 1.5-0.6 A |
- Electro-Voice EVOLVE50-TB
- Sub pole
- Carry bag
- Electro-Voice EVOLVE50M-SB-US
- Column speaker array
- Subwoofer
- Sub pole (2 sections)
- Power cord
- Carrying bag
- Installation manual
- Safety manual
