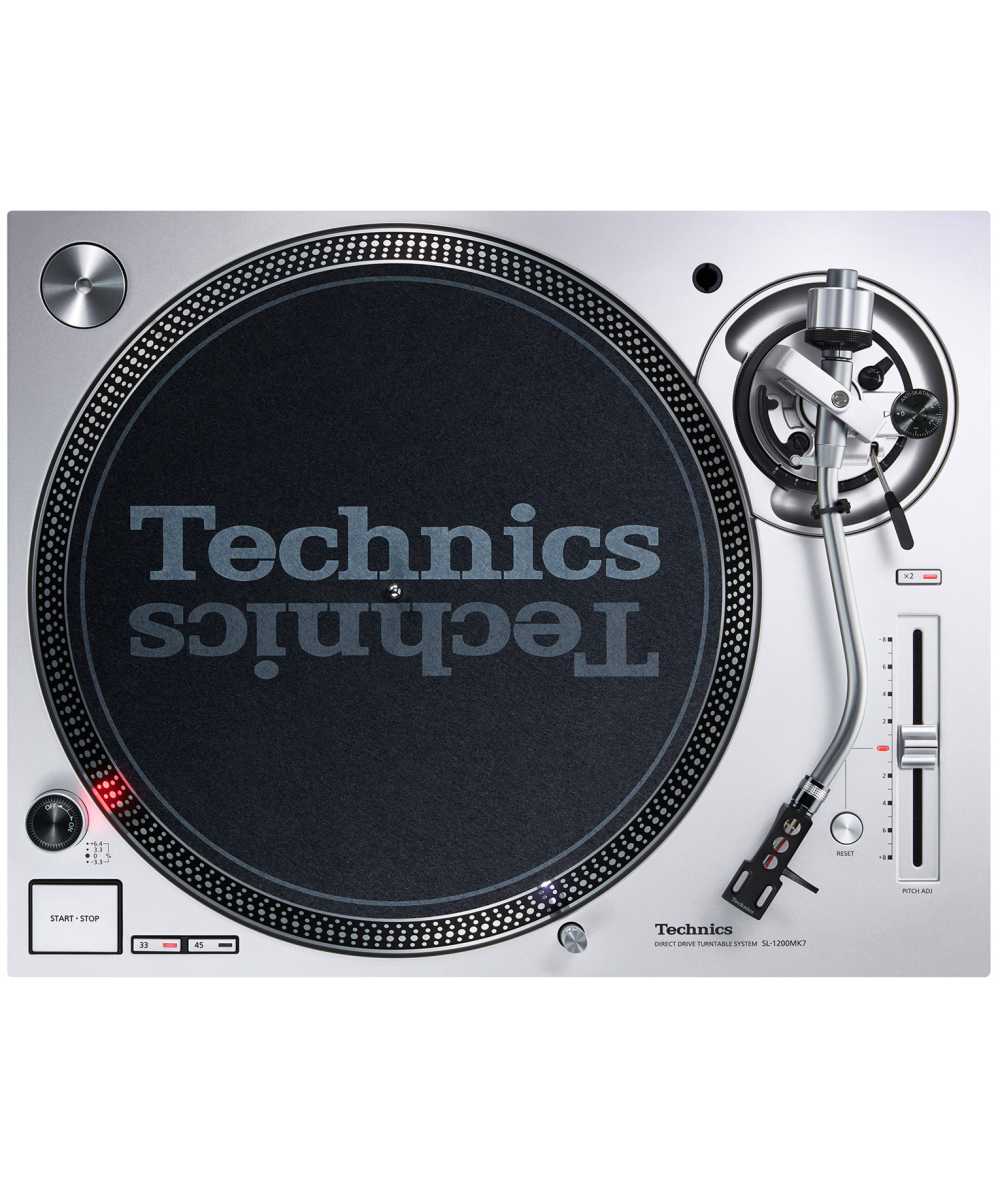

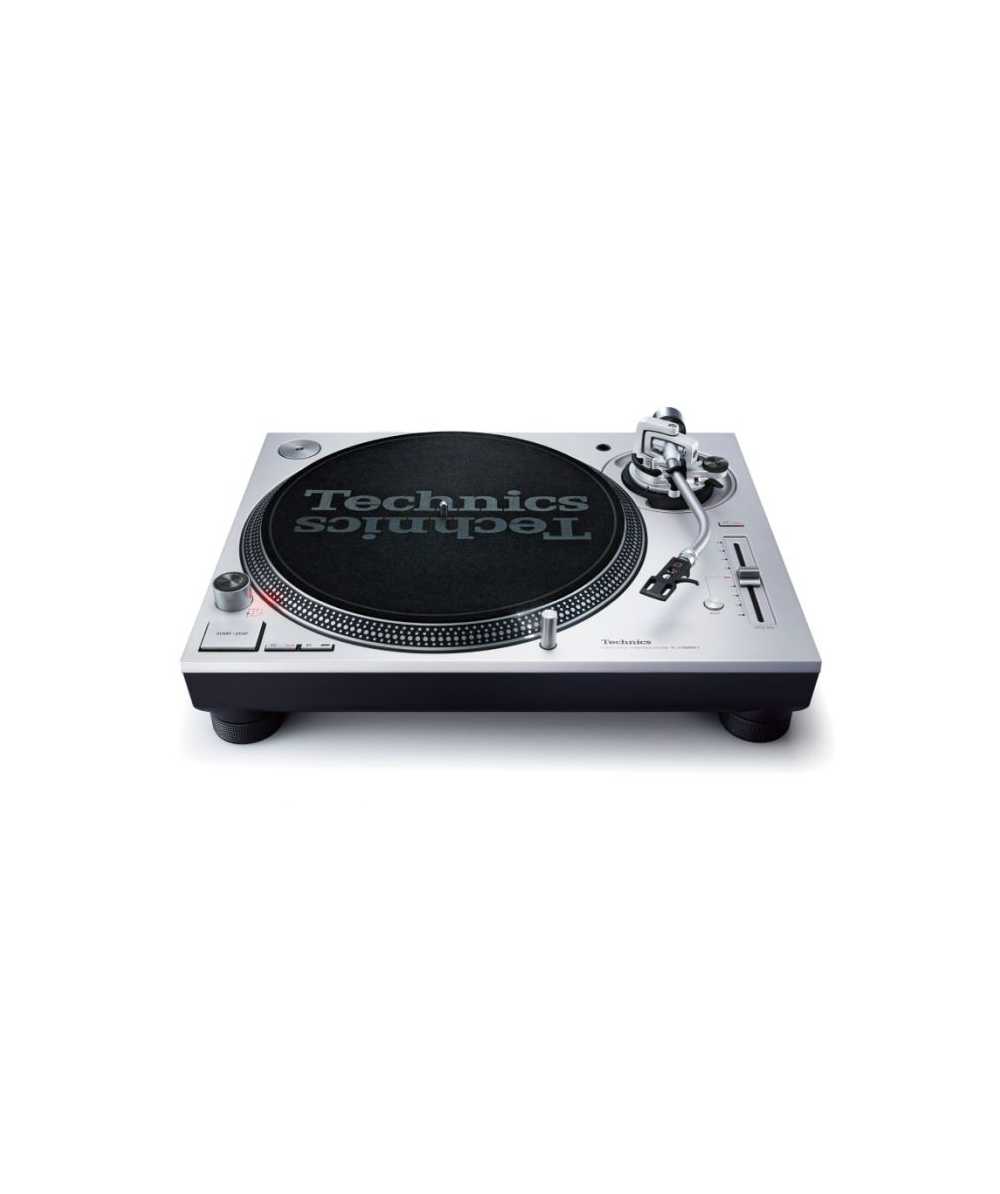

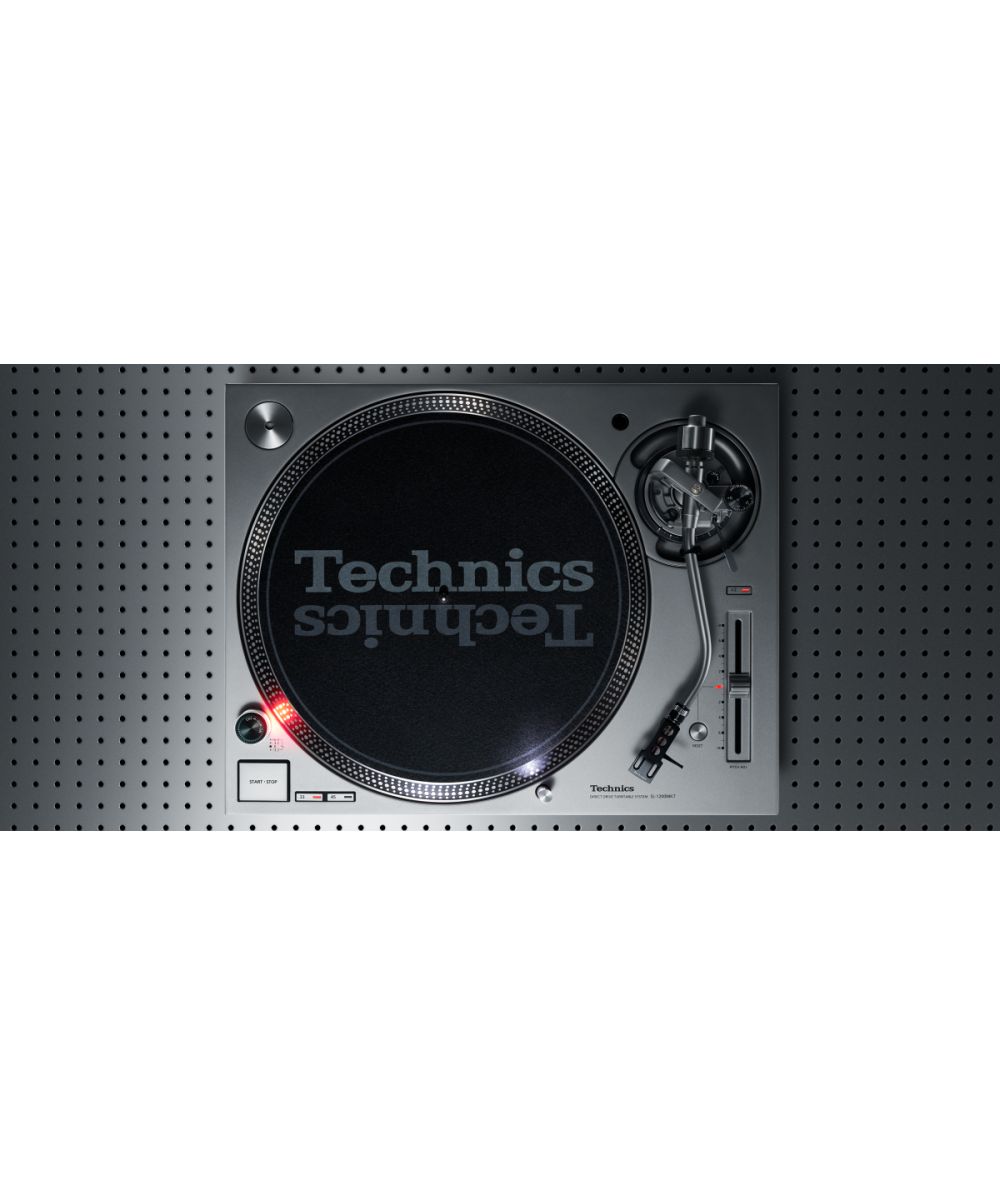

Technics SL-1200MK7 - Direct Drive Turntable System (Silver)

Availability: Sold out. More coming soon. Pre-Order now.

$1,099.95
$1,099.95




Overview

- Direct Drive Turntable System
- Coreless Direct-Drive Motor Achieving Stable Rotation
- Diverse New Functions Adapt to Various Playing Styles
- High Sensitive Tonearm
- Stylus Illuminator Featuring a High-brightness and Long-life White LED
- Power / Phono Cable Terminals
- High-rigidity Cabinet and High-damping Insulator

Details

The Direct-Drive System That Pioneered the DJ Culture

The direct-drive motor (D.D. Motor) formed the core of the SL-1200 Series. In addition to providing unparalleled accuracy, the D.D. Motor technology that was introduced in 1970 offered reliability for long-term use with its excellent durability. This further evolved with the SL-1200/1210MK7, and achieved even higher sound quality as the Coreless Direct Drive Motor.

Key features:

  • Coreless Direct-Drive Motor Achieving Stable Rotation
  • Diverse New Functions Adapt to Various Playing Styles
  • High Sensitive Tonearm
  • Stylus Illuminator Featuring a High-brightness and Long-life White LED
  • Power / Phono Cable Terminals
  • High-rigidity Cabinet and High-damping Insulator

Other features

Diverse New Functions Adapt to Various Playing Styles

Torque / Brake Speed Adjustment

The newest digital motor control technology, accumulated through the development of Blu-ray disc products, is applied to improve adjustment by allowing the torque and brake speed to be adjusted individually in four steps.

S-shaped Tonearm, a Technics Tradition

The SL-1200/1210MK7 comes with a static balance S-shaped tonearm to carry on the Technics tradition. The tonearm moves in a unique arc as it tracks the record disc, and reproduces music with high fidelity. The bearing section features a high-precision bearing structure. The tonearm provides high tracking performance without stylus skipping even under hard usage such as scratching

Stable Operation under All Conditions

Each insulator foot consists of an internal spring and rubber, and the bottom surface is covered with a cushion material. They effectively shut out vibration even in a loud sound environment. If the turntable cannot be set up on a perfectly level surface, its height and inclination can be adjusted by turning individual insulator feet.

Pitch Control for a New Chapter in Music History

Pitch control on the SL-1200 was originally utilised for the precise adjustment of rotation speed. Club DJs began using this function to match the pitch between two tracks to achieve smooth transition. This technique led to the explosive popularity of the SL-1200 worldwide. The current vertical fader was first installed on the SL-1200MK2. This change was made to simplify use for DJs. The MK7 has newly incorporated full digital control to enable accurate and stable adjustment within the range of ±8/16%

User-friendly Stylus Light

The light that illuminates the stylus and its position on the record was featured for the first time on the SL-1200MK2. Technics opted for a popup-type light, not a detachable type, for easier use. The SL-1200/1210MK7 comes with a white LED that offers high brightness and a long life. The illumination was improved and its range was reviewed to ensure optimal visibility

Symbol of the SL-1200 Series

The original purpose of the strobe light, a standard feature on all models from the first-generation SL-1200, was to enable an accurate visual adjustment of the rotation speed. Since Technics incorporated quartz control, in models starting with the MK2, the rotation speed became extremely stable; thus, there was no need for the strobe anymore. However, DJs wanted the familiar strobe on the turntables they use, so it is still provided on the current model. The SL-1200/1210MK7 comes with an LED strobe that can be set to illuminate in red or blue

Sound Quality Backed by Functional Beauty

The SL-1200 Series was originally developed in pursuit of pure audio performance. The vibration-absorbing cabinet and insulators suppress undesirable noise, while the gimbal suspension tonearm provides high tracking performance for high-fidelity sound reproduction. The design has not been changed much for more than 40 years, thus retaining the ultimate functional beauty achieved in the first-generation model. The SL-1200/1210MK7 has also further unified the all black design scheme, even in every part, to become more stylish and attractive.

specifications

Turntable section

Type

Direct Drive Manual Turntable

Turntable Speeds

33-1/3, 45 rpm (with switch 78 rpm)

Starting Torque

0.18 N・m / 1.8 kg・cm

Build-up Characteristics

0.7 s. from standstill to 33 1/3 rpm

Wow And Flutter

0.025 % W.R.M.S.

Turntable Platter

Aluminium diecast



Diameter: 332 mm (13-5/64 inch)



Weight: Approx. 1.8 kg (4.0 lbs)



(including slipmat and slipsheet)

Tonearm Section

Type

Universal Static Balance

Effective Length

230 mm (9-1/16")

Overhang

15 mm (19/32")

Tracking Error Angle

Within 2° 32' (at the outer groove of 30 cm record)



Within 0° 32' (at the inner groove of 30 cm record)

Offset Angle

22°

Arm-height Adjustment Range

0 - 6 mm

Stylus Pressure Adjustment Range

0 - 4 g (Direct Reading)

Head Shell Weight

Approx. 7.6 g

Applicable Cartridge Weight Range

(without auxiliary weight)



5.6 - 12.0 g



14.3 - 20.7 g (including head shell)

Head Shell Terminal Lug

1.2 mmφ 4-pin terminal lug

Terminals

Audio Output

PHONO (Pin Jack) x 1, EARTH TERMINAL x 1

General

Power Supply

AC 110-240 V, 60 Hz

Power Consumption

8 W



Approx. 0.2 W (Standby)

Dimensions (W x H x D)

453 x 169 x 353 mm



17-27/32 × 6-21/32 × 13-29/32 inch

Weight

Approx. 9.6 kg / 21.2 lbs

Accessories

Turntable, Slipmat, Slipsheet, Dust cover, EP record adaptor, Balance weight, Head shell, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Owner's Manual

what's included
  • Technics SL-1200 MK7 (Silver)
  • Slipmat
  • Slipsheet
  • Dust cover
  • EP record adaptor
  • Balance weight
  • Head shell
  • Screw set for cartridge
  • PHONO cable
  • PHONO earth lead
  • AC power supply cord
  • Owner's Manual
