· Digital Audio System
o ADCs: 24-bit @ 44.1, 48, 88.2, or 96 kHz
o DACs: 24-bit @ 44.1, 48, 88.2, or 96 kHz
o Digital Signal Processing: 32-bit floating point
· Mic Inputs 1–2
(2) balanced XLR+1/4” (6.35 mm) TRS
o Frequency Response: 20 Hz – 20 kHz (+0.19 / -0.16 dB)
o Dynamic Range: 109.8 dB (A-weighted)
o SNR: 109.3 dB (1 kHz, +4 dBu, A-weighted)
o THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS)
o Preamp EIN:
§ -134 dBu (max gain, 40 Ω source, A-weighted)
§ -129 dBu (max gain, 150 Ω source, unweighted)
o Maximum Input Level: +12.7 dBu
o Sensitivity: -45.5 dBu
o Gain Range: 58.2 dB
· Line Inputs 1–2
(2) balanced XLR+1/4” (6.35 mm) TRS
o Frequency Response: 20 Hz – 20 kHz (+0.09 / -0.05 dB)
o Dynamic Range: 109.8 dB (A-weighted)
o SNR: 109.4 dB (1 kHz, +4 dBu, A-weighted)
o THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS)
o Maximum Input Level: +20.1 dBu
o Sensitivity: -9.6 dBu
o Gain Range: 29.7 dB
· Line Inputs 3–4
(2) balanced 1/4” (6.35 mm) TRS
o Frequency Response: 20 Hz – 20 kHz (+0.09 / -0.05 dB)
o Dynamic Range: 110.8 dB (A-weighted)
o SNR: 109.7 dB (1 kHz, +4 dBu, A-weighted)
o THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS)
o Maximum Input Level: +20.3 dBu
o Sensitivity: -10.3 dBu
o Gain Range: 30.6 dB
· Instrument Inputs 1–2
(2) unbalanced 1/4” (6.35 mm) TS
o Frequency Response: 20 Hz – 20 kHz (+0.15 / -0.05 dB)
o Dynamic Range: 111.0 dB (A-weighted)
o SNR: 109.6 dB (1 kHz, +0 dBu, A-weighted)
o THD+N: 0.0013% (1 kHz, +0 dBu, -1 dBFS)
o Maximum Input Level: +10.1 dBu
o Sensitivity: -19.6 dBu
o Gain Range: 29.7 dB
· Phono Inputs
(2) unbalanced RCA
o Dynamic Range: 103.3 dB (A-weighted, 65 mVrms @ 1 kHz, -1 dBFS, 20 Ω source)
o SNR: 97 dB (A-weighted, 4 mVrms @ 1 kHz, 20 Ω source)
o THD+N: 0.036% (1 kHz, -46 dBu, -1 dBFS)
o Maximum Input Level: 65 mVrms (1 kHz)
o Sensitivity: 2 mVrms (1 kHz)
· Main Outputs 1–2
(2) impedance-balanced 1/4” (6.35 mm) TRS
o Frequency Response: 20 Hz – 20 kHz (+0.06 / -0.31 dB)
o Dynamic Range: 115.6 dB (A-weighted)
o THD+N: 0.003% (1 kHz, -1 dBFS)
o Maximum Output Level: +20.3 dBu
o Output Impedance: 100 Ω
· Line Outputs 3–8
(6) impedance-balanced 1/4” (6.35 mm) TRS
o Frequency Response: 20 Hz – 20 kHz (+0.06 / -0.24 dB)
o Dynamic Range: 116.3 dB (A-weighted)
o THD+N: 0.005% (1 kHz, -1 dBFS)
o Maximum Output Level: +20.4 dBu
o Output Impedance: 100 Ω
· Headphone Outputs
o (1) 1/4” (6.35 mm) stereo headphone
o (1) 1/8” (3.5 mm) stereo headphone
o Dynamic Range: 100.6 dB (A-weighted)
o THD+N: 0.025% (1 kHz, -1 dBFS, 10 mW/channel into 32 Ω headphones)
o Frequency Response: 20 Hz – 20 kHz (+0.06 / -0.31 dB)
o Maximum Power Delivered: 260 mW (<1% THD, 32 Ω headphones)
o Maximum Output Level: +20.4 dBu
o Output Impedance: 32 Ω
· Pads
o (16) velocity- and pressure-sensitive pads with 3D sensing
o (8) banks (selectable via Pad Bank buttons)
· Knobs
o (17) 360° touch-sensitive Q-Link knobs
o (1) 360° encoder with push
o (7) 270° knobs (gain, mix, level)
· Buttons
o (105) dedicated buttons
§ (36) single-color LED
§ (43) dual-color LED
§ (1) dual color + red
§ (17) RGB LED
§ (8) unlit
· Displays
o (1) 1280×800 full-color, optically bonded, multi-touch display (10.1” / 256.5 mm)
o (17) monochrome 128×32 OLED displays
· CPU/Memory/Storage
o CPU: 8-core processor
o Memory: 16 GB
o Storage: 256 GB internal NVMe SSD + SATA expansion bay

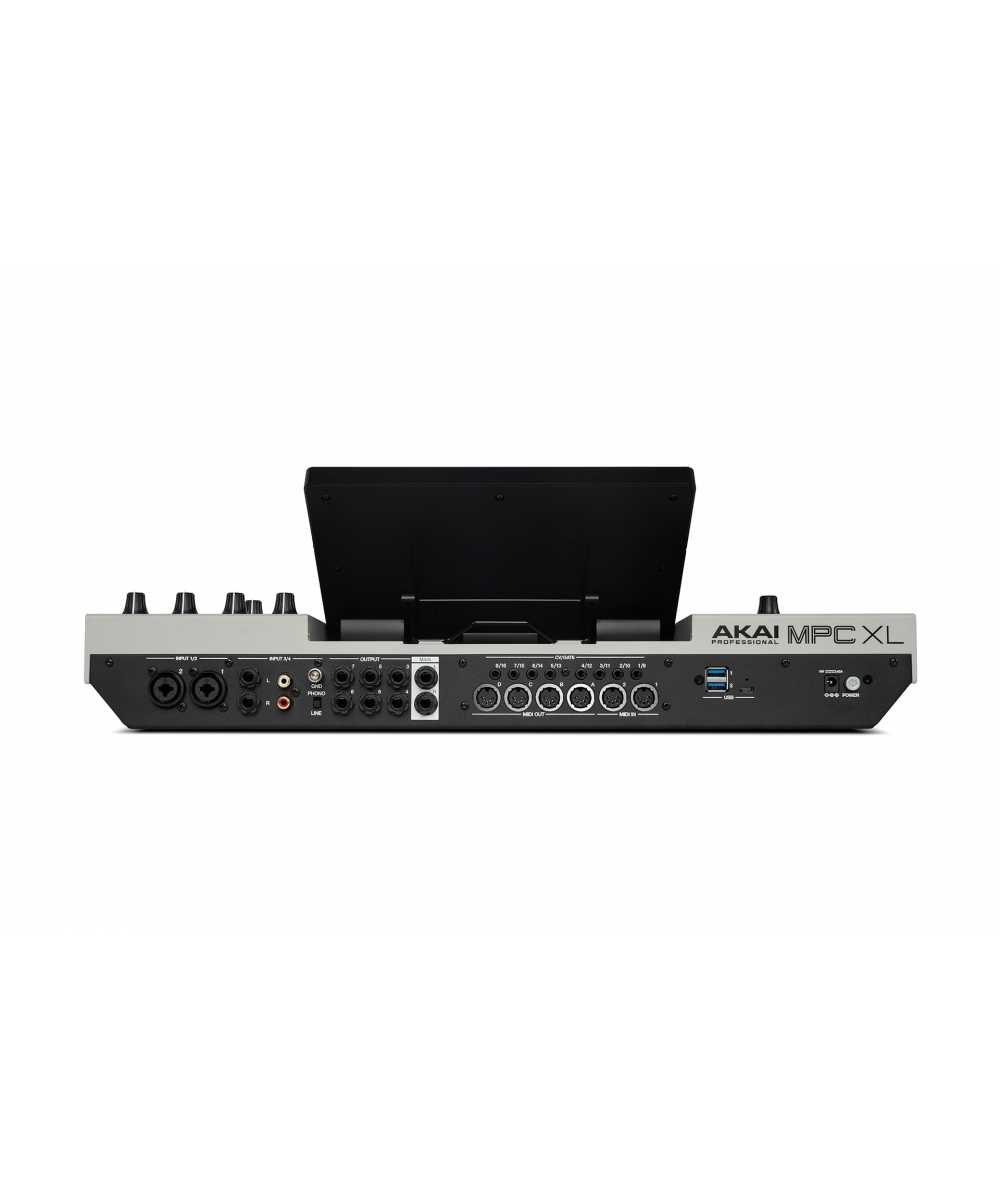

· Connections
o Physical
§ (2) 1/4” (6.35 mm) combo XLR/TRS inputs (stereo pair)
§ (2) 1/4” (6.35 mm) TRS line inputs (stereo pair)
§ (2) RCA phono inputs (stereo pair)
§ (2) 1/4” (6.35 mm) instrument inputs
§ (2) 1/4” (6.35 mm) TS footswitch inputs
§ (8) 1/4” (6.35 mm) TRS outputs (4 stereo pairs)
§ (1) 1/4” (6.35 mm) stereo headphone output
§ (1) 1/8” (3.5 mm) stereo headphone output
§ (4) 5-pin MIDI outputs
§ (2) 5-pin MIDI inputs
§ (8) stereo 1/8” (3.5 mm) CV/Gate outputs
§ (1) USB Type-C port
§ (3) USB Type-A ports
§ (1) SD card slot
§ (1) power adapter input
§ (1) drive bay for 2.5” SATA drive
o Wireless
§ Wi-Fi
§ Bluetooth
· Power
o 19 V, 3.42 A, center-positive (adapter included)
· Dimensions (Display Flat)
o 21.4” × 19.2” × 3.7” (543 × 488 × 94 mm)
· Weight
o 15.87 lbs / 7.2 kg
|
