JMAZ ATTCO BEAM 230 - OSRAM Moving Head

Availability: This product will be shipped directly by the manufacturer to you

Regular Price: $1,399.95

Special Price: $999.95

Qty:
+ -

Regular Price: $1,399.95

Special Price: $999.95

free shipping
Free Shipping
On Continental US Orders Over $100!




Overview

- 231W OSRAM SIRIUS HRI Discharge Lamp
- Lux: 164,230 lx @ 10m , 73,170 lx @ 15m
- Color Wheel: 11 Colors + Open
- Static Gobos: 16 + Open
- Dual Prism Wheel: Frist Prism 16 Facet , Second 8 Facet + 16 w/ Variable Speed
- Frost Filter
- Electronic Focus: 2.5m-30m
- Beam Angle: 2.5°
- Protocols: 3-Pin In/Out DMX512, Wireless DMX, RF Remote
- 9 Built-In Auto/Sound Programs
- powerCON In/Out

Details

The JMAZ ATTCO BEAM 230 features a powerful 231W OSRAM SIRIUS HRI discharge lamp, delivering up to 164,230 lux at 10m. It includes an 11-color wheel, 16 static gobos, dual prism wheels, and a frost filter for versatile effects. With a 2.5° beam angle, electronic focus (2.5m-30m), and DMX512 or RF remote control, it’s ideal for impactful lighting. Includes RF remote, Omega bracket, powerCON, DMX cable, and safety accessories.

specifications

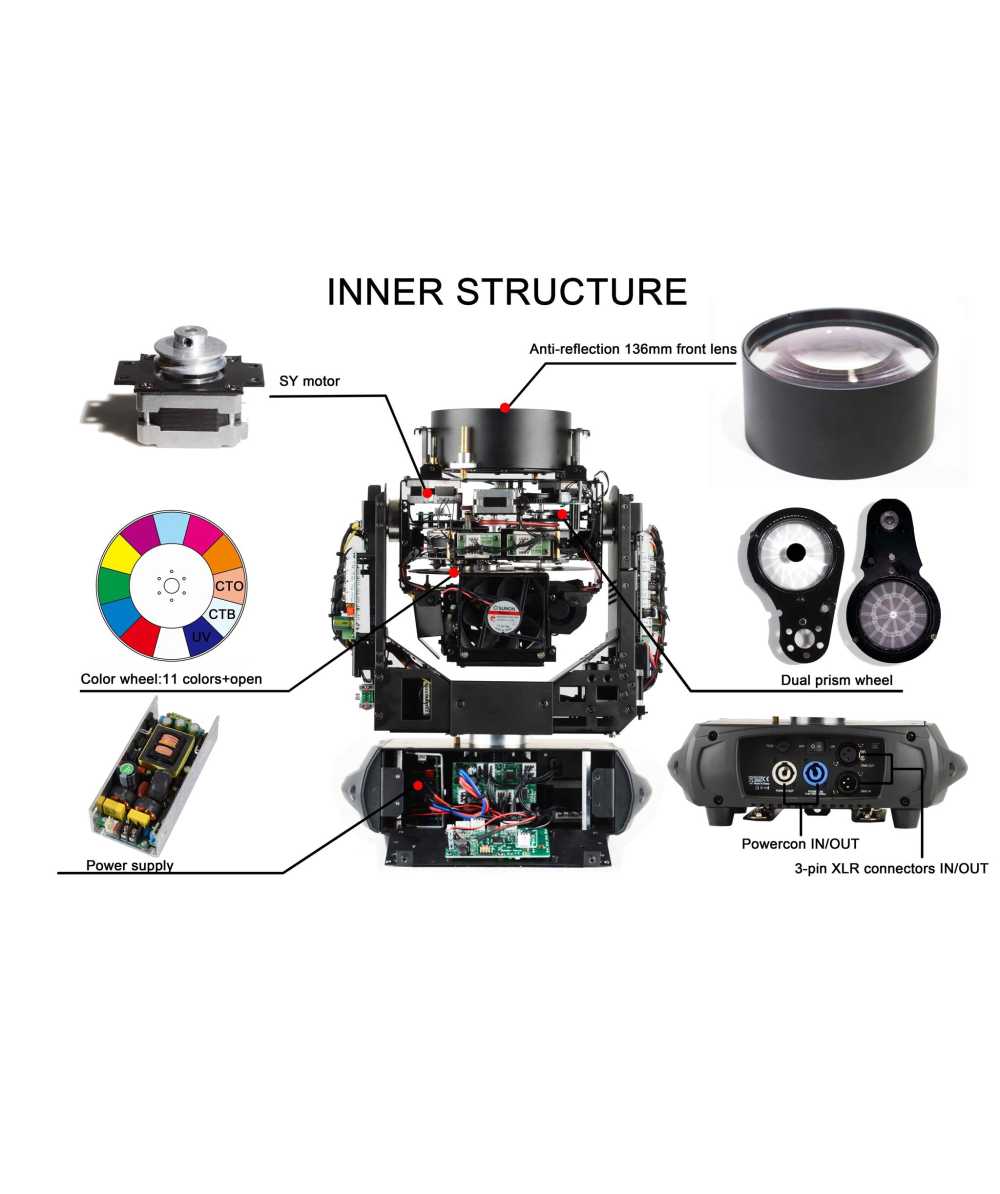

Light Source

231W OSRAM SIRIUS HRI Discharge Lamp



Lux: 164,230 lx @ 10m , 73,170 lx @ 15m



Life Expectancy: 2,000 hrs





Color System

Color Wheel: 11 colors + Open





Optics

Beam Angle: 2.5°



Electronic Motorized Focus: 2.5m-30m



Lens Diameter: 136mm



Lens Type: Anti-Reflections

Dynamic Effect

Static Gobos: 16 + Open

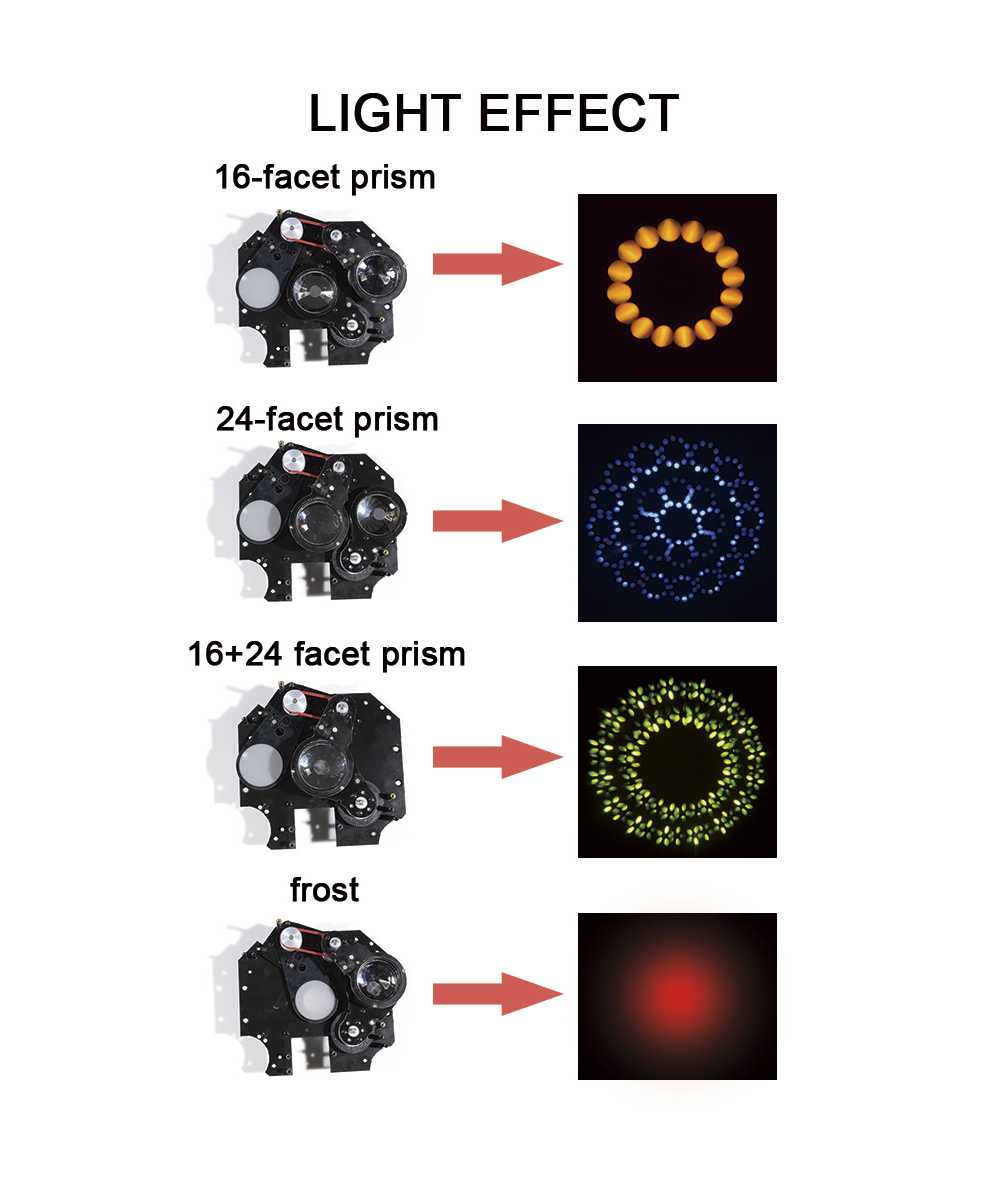

Dual Prism Wheel: Frist Prism 16 Facet , Second 8 Facet + 16 w/ Variable Speed



9 Built-In Auto/Sound Programs



Frost Filter



Dual Flag Mechanical Dimming

Control

Protocols: 3-Pin In/Out DMX512, Wireless DMX



Personalities: 2 Modes 14/16



Wireless Control:  RF Remote



Display: 2.4″ TFT LCD Display

Electronics

Dimmer:0-100% Linear Dimmer



Operating Temperature:-35° C to 45° C

Body

Quick-Lock Omega Bracket



Pan Angle: 630°



Title Angle: 270°



High Temperature Engineered Plastic and Cast Aluminum Casing

Physical

Cooling: Fan



Pan/Tilt: 8/16 bit smooth



powerCON In/Out

Electrical

Max Power Consumption: 190W



Input Voltage: AC91-260V, 50/60Hz

Box Content

2 x Omega Brackets



1 x DMX Cable



1 x powerCON Cable



1 x RF Remote



1 x Safety Cable



1 x User Manual

Item Dimensions & Weight

Dimensions: 15.2″ x 15″ x 8.7″



Weight: 30.6 lbs

Warranty

2 Years

what's included
  • JMAZ ATTCO BEAM 230
  • 2 x Omega Brackets
  • 1 x DMX Cable
  • 1 x powerCON Cable
  • 1 x RF Remote
  • 1 x Safety Cable
  • 1 x User Manual
