JMAZ PHANTOM PIXELWASH 1930Z - 930Z 570W RGBW LED Zoom Moving Head w/ Ring Effect

Availability: This product will be shipped directly by the manufacturer to you

Regular Price: $1,999.95

Special Price: $1,499.95

Qty:
+ -

Regular Price: $1,999.95

Special Price: $1,499.95

free shipping
Free Shipping
On Continental US Orders Over $100!




Overview

- 570W (19 x 30W) RGBW LEDs
- Ring Effect: 10W (48 x 0.2W) RGB SMD LEDs
- Electronic Zoom: 6° to 60°
- CCT: 2700K – 8000K
- Individual Pixel Control, Graphic Effect Macro
- Protocols: 3-Pin In/Out DMX512, Wireless DMX, RF Remote
- 9 Built-In Auto/Sound Programs
- powerCON In/Out

Details

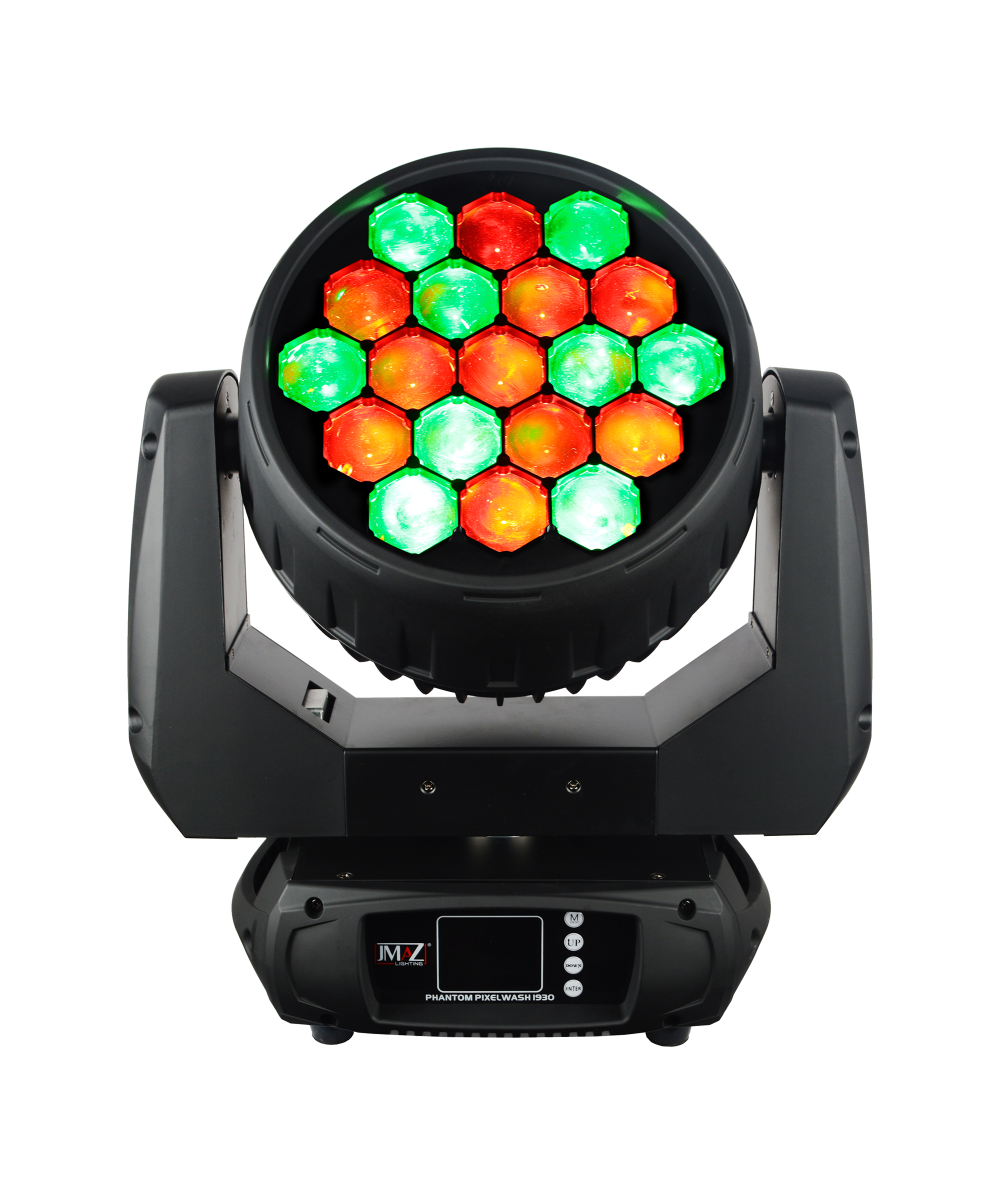

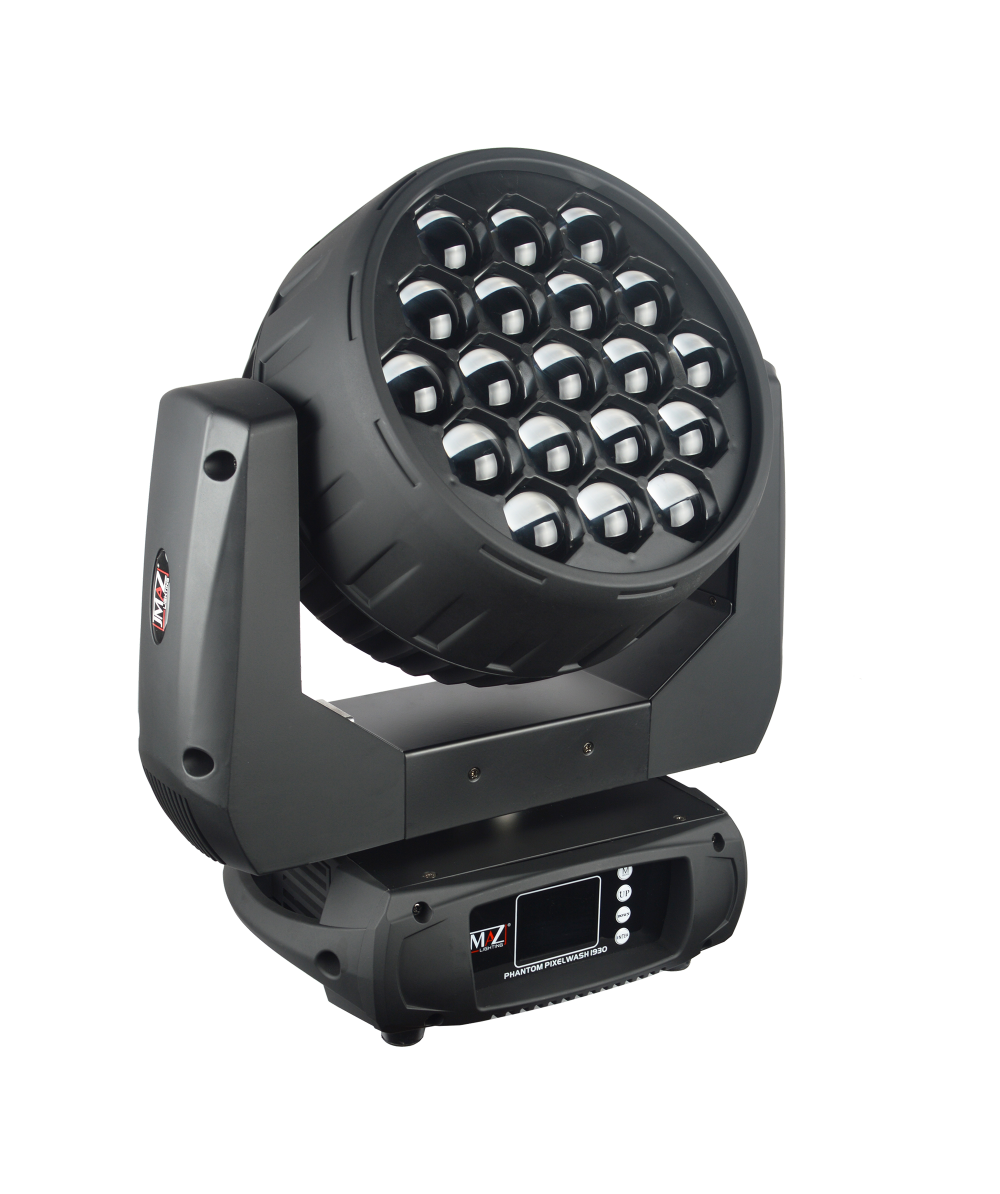

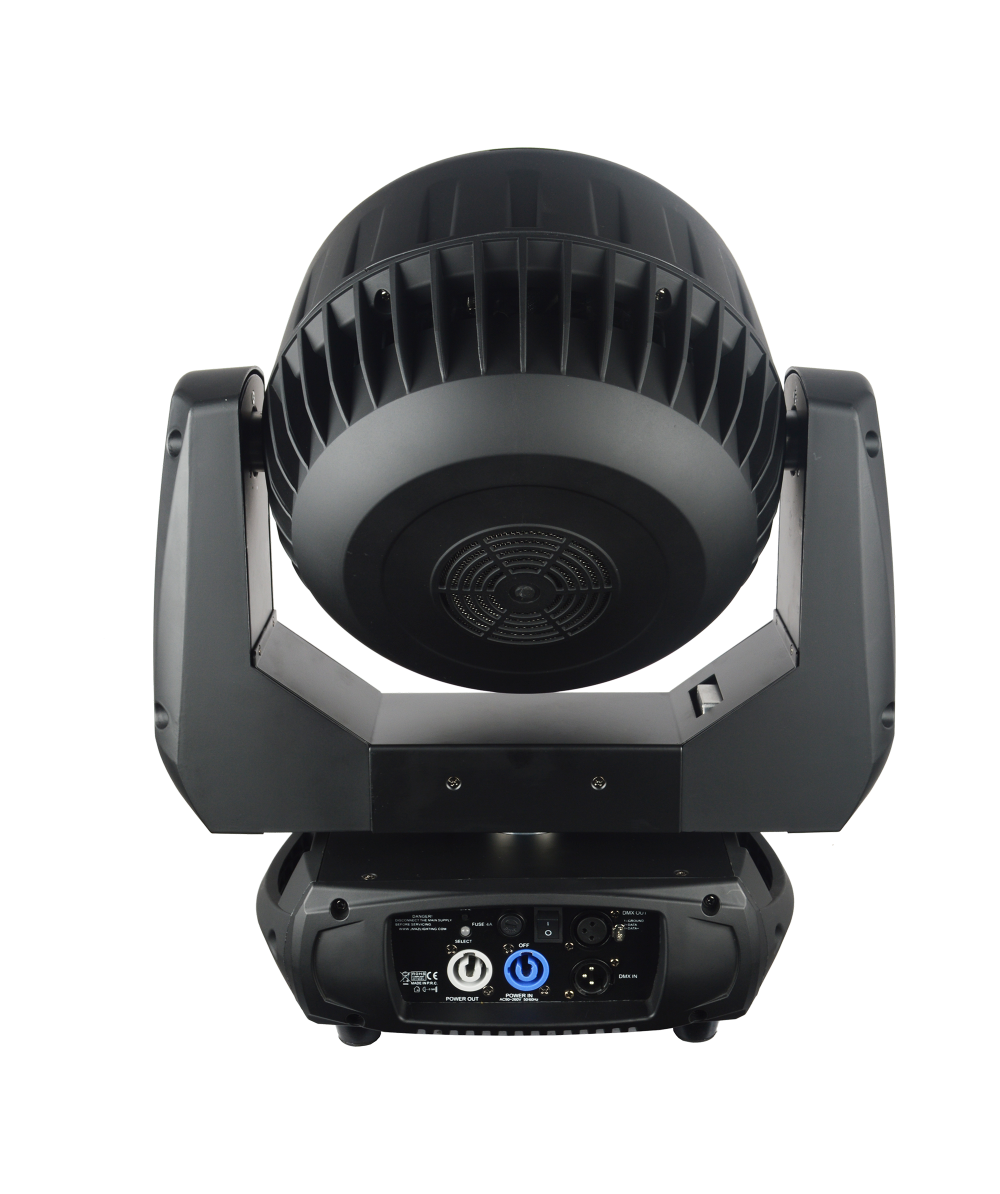

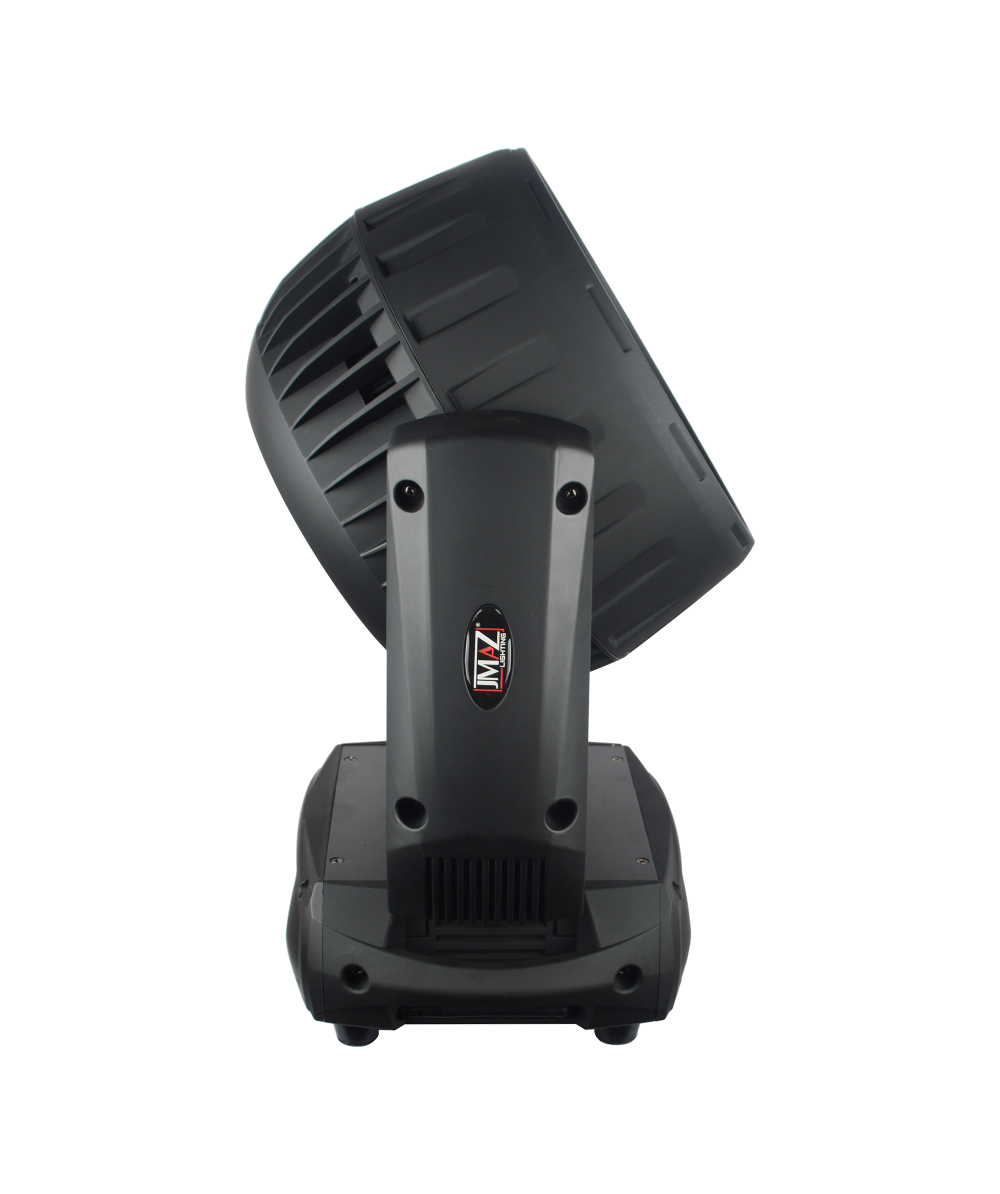

The JMAZ PHANTOM PIXELWASH 1930Z is a powerful 570W RGBW LED Zoom Moving Head with a ring effect and 6° to 60° electronic zoom. It offers a wide CCT range (2700K-8000K), individual pixel control, and graphic effect macros for creative lighting effects. Supports DMX512, wireless DMX, and RF remote control. Includes an RF remote, Omega bracket, powerCON cable, and DMX cable, making it ideal for dynamic stage and event lighting setups.

specifications

Light Source

570W (19 x 30W) RGBW LEDs



Ring Effect: 10W (48 x 0.2W) RGB SMD LEDs

Color System

Color LEDs: RGBW



Color SMDs: RGB



CCT: 2700K -8000K

Optics

Electronic Zoom: 6° to 60°

Dynamic Effect

Individual Pixel Control, Graphic Effect Macro



9 Built-In Auto/Sound Programs



Electronic Zoom

Control

Protocols: 3-Pin In/Out DMX512, Wireless DMX



Personalities: 2 Modes 13/15



Wireless Control:  RF Remote



Display: 2.4″ TFT LCD Display

Electronics

Dimmer: 0-100% Linear Dimmer



Operating Temperature: -35° C to 45° C

Body

Quick-Lock Omega Bracket



Pan Angle: 630°



Title Angle: 270°



High Temperature Engineered Plastic and Cast Aluminum Casing

Physical

Cooling: Fan



Pan/Tilt: 8/16 bit smooth



powerCON In/Out

Electrical

Max Power Consumption: 570W



Input Voltage: AC90-260V 50HZ/60HZ

Box Content

2 x Omega Brackets



1 x DMX Cable



1 x powerCON Cable



1 x IR Remote



1 x Safety Cable



1 x User Manual

Item Dimensions & Weight

Dimensions: 16.2″ x 11.1″ x 16.4″



Weight: 29 lbs

Warranty

2 Years

what's included
  • JMAZ PHANTOM PIXELWASH 1930Z
  • 2 x Omega Brackets
  • 1 x DMX Cable
  • 1 x powerCON Cable
  • 1 x IR Remote
  • 1 x Safety Cable
  • 1 x User Manual
