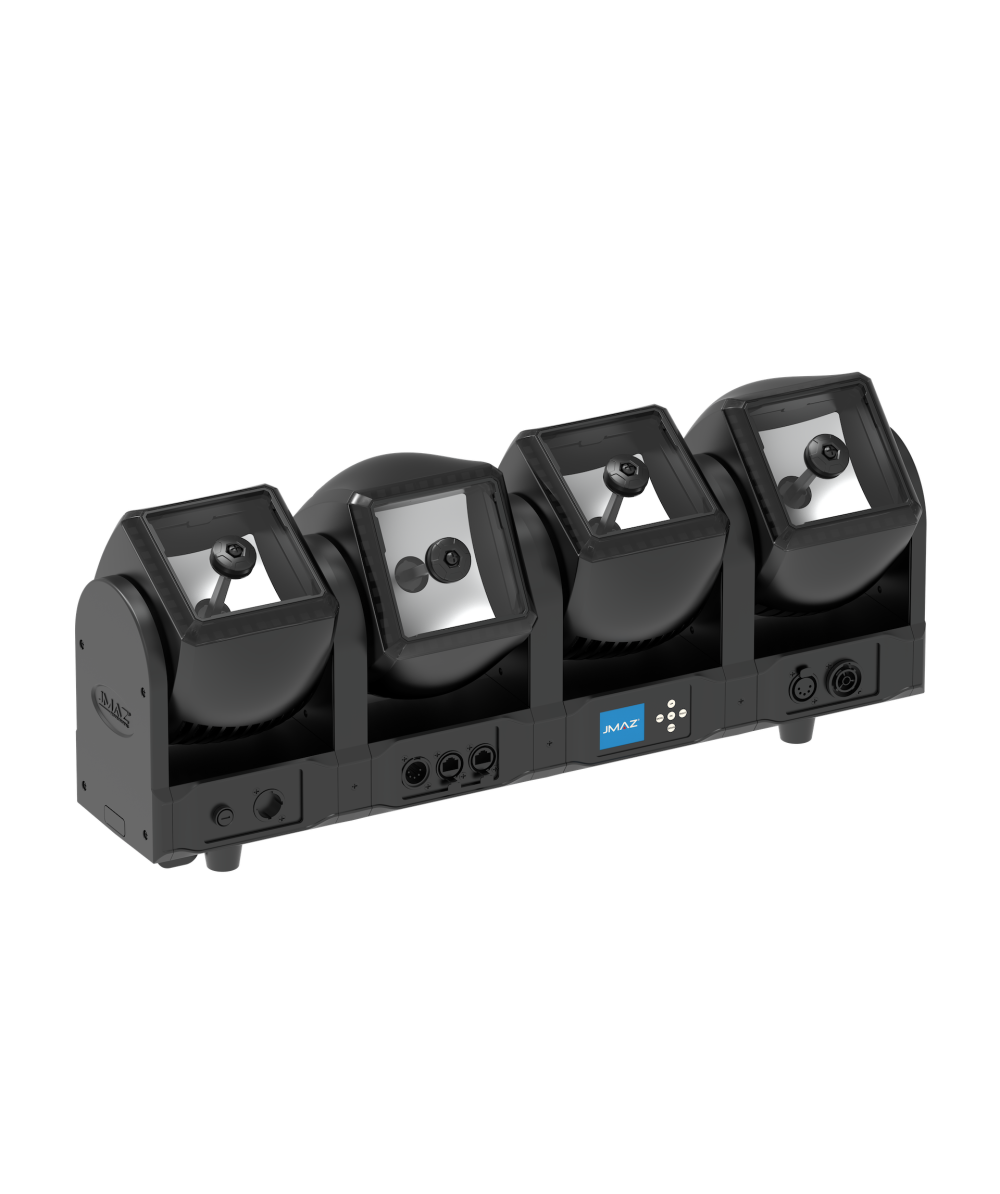

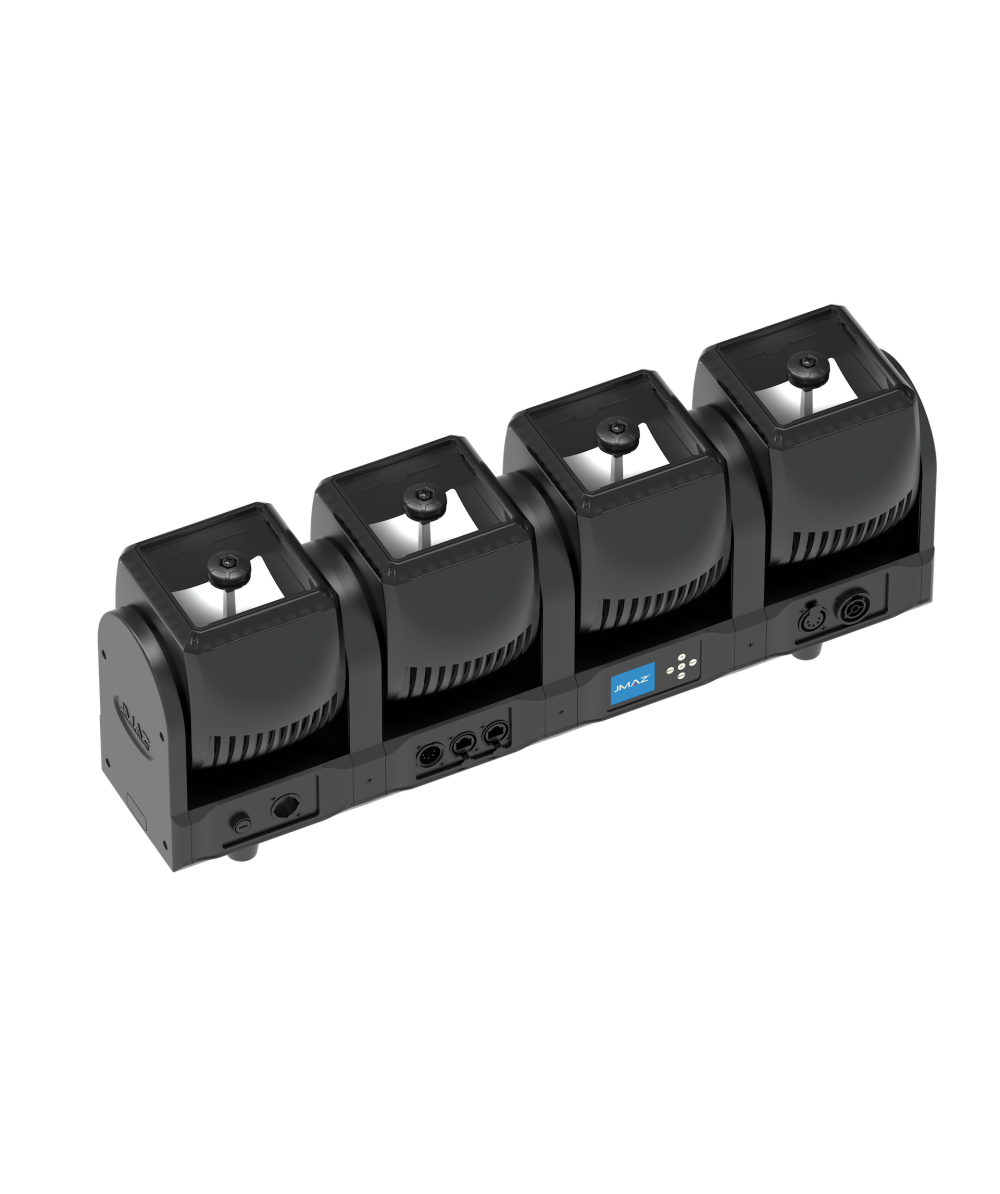

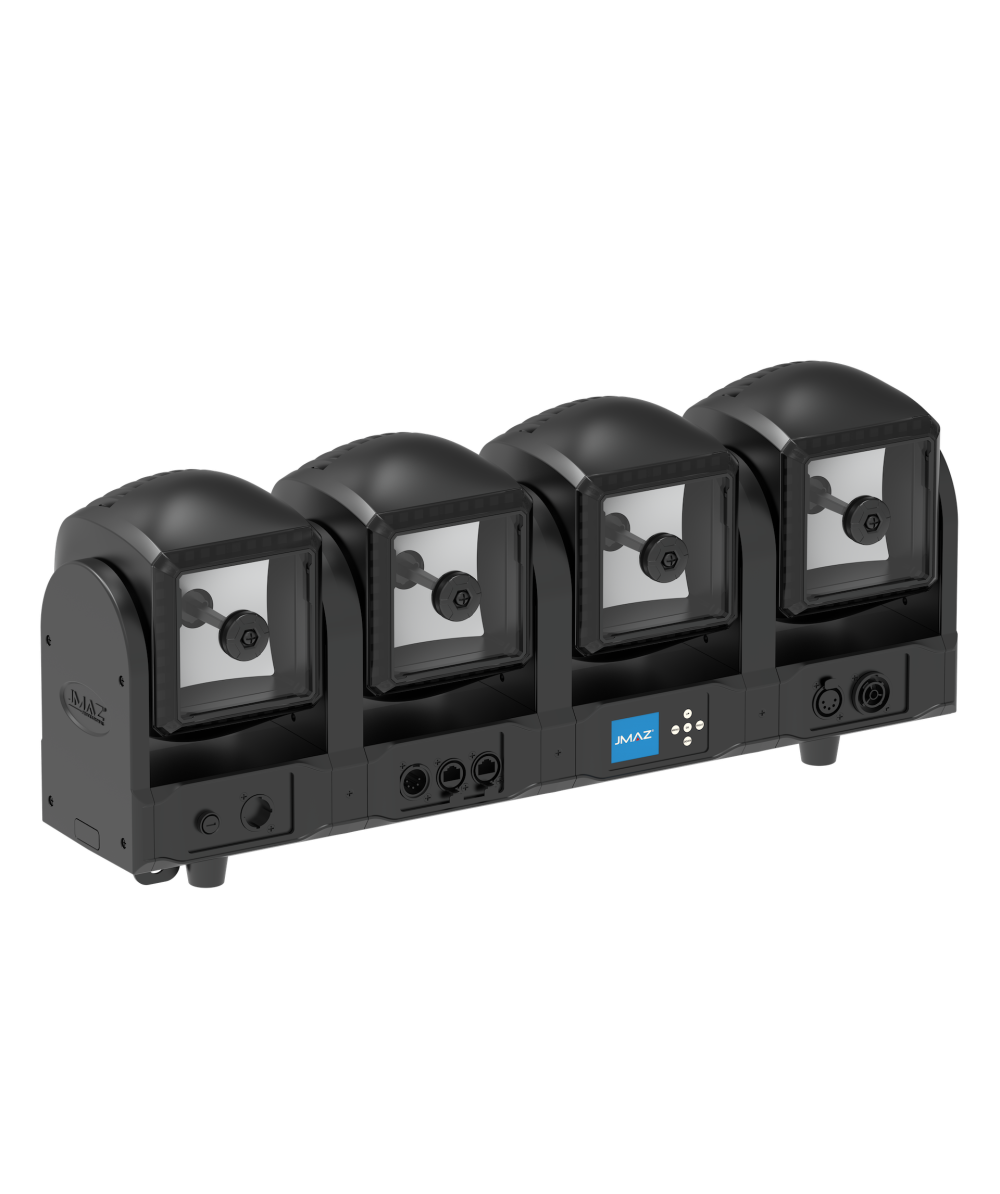

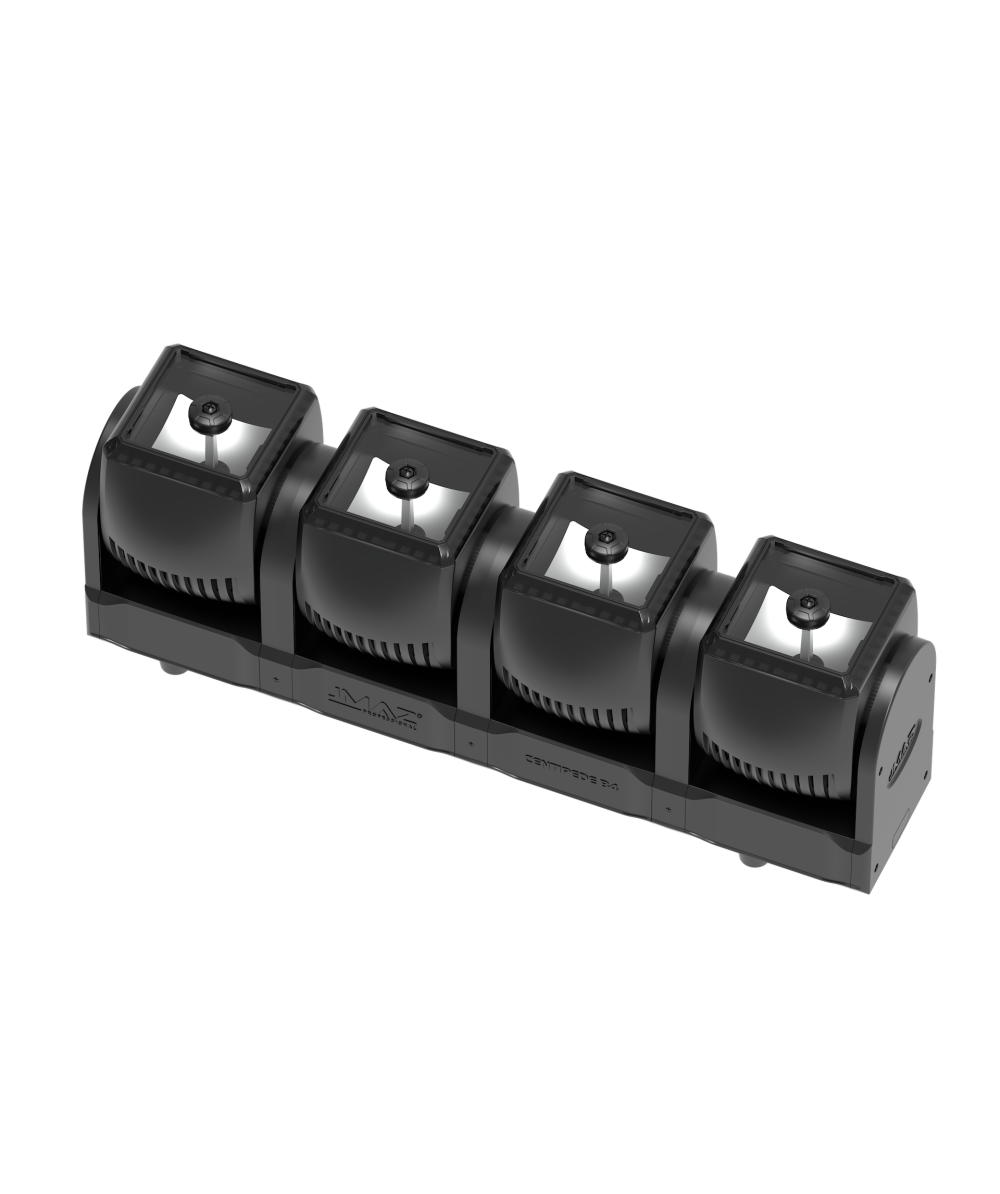

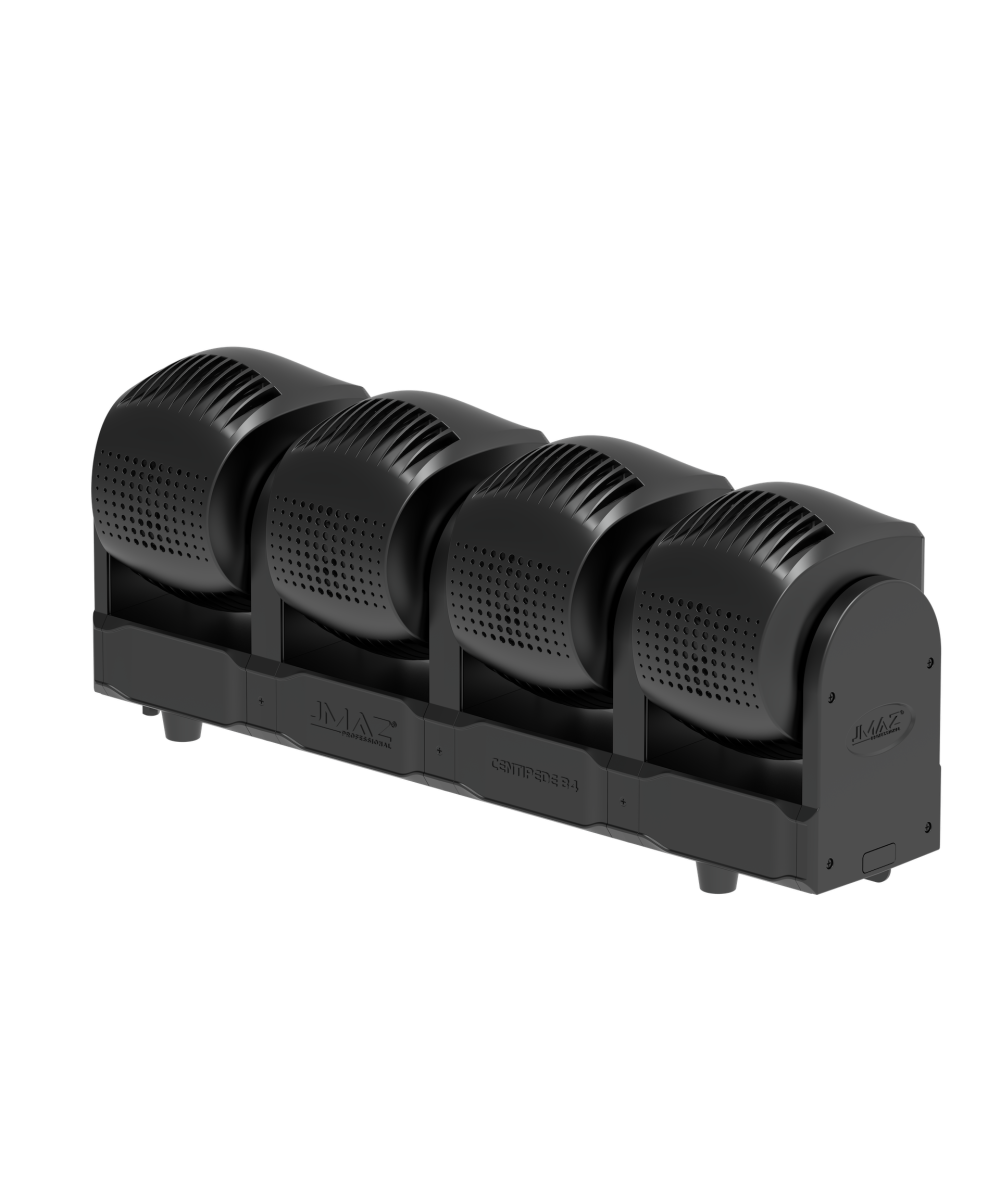

JMAZ PROFESSIONAL CENTIPEDE B4 - 270W LED Intelligent Bar RGBW LED

Availability: This product will be shipped directly by the manufacturer to you

Regular Price: $2,150.00

Special Price: $1,600.00

Qty:
+ -

Regular Price: $2,150.00

Special Price: $1,600.00

free shipping
Free Shipping
On Continental US Orders Over $100!




Overview

- 240W (4 x 60W) RGBW LED
- Ring Effect: 24W (120 x 0.2W) RGB SMD LEDs
- Individual Head 360° Infinite Tilt Control
- Individual Head Pixel Control
- Individual Dynamic Ring Color And Effect Macro
- Built-In Virtual Colors And Movement Macros w/ Foreground and
- Background Color Control
- Beam Angle: 3.5°
- 16 bit RGBW Color Mixing, CTO: 2500K – 8000K
- Personalities: 4 Modes 24/55/66/86
- Protocol: 5-Pin DMX512, Art-Net, RDM, sACN, Kling-Net
- Power Connection: TRUE1 In/Out
- CE, cETL, FCC, Rohs Certified

Details

The JMAZ Professional Centipede B4 270W LED features 240W RGBW LEDs, 24W RGB SMD ring effects, and 360° infinite tilt control. With individual pixel and ring control, dynamic color macros, and CTC (2500K-8000K), it offers vibrant and versatile lighting. A 3.5° beam angle and advanced protocols (DMX512, Art-Net, Kling-Net) ensure professional-grade performance, making it ideal for captivating light displays.

specifications

Control

Control Protocol: DMX, Art-Net, RDM, sACN



Personalities: 3 modes: 21/39/61 Control Channels

Electronics

Linear LED Dimmer: 0-100% Smooth



Linear CTO: 2500-8000K



Strobe Shutter: 1-25 Hz Variable

Body

Die-cast Aluminum and Steel structure with high impact flame retardant PA6 GF 30 (Polyamide 6) with 30% glass fiber



Exterior finish: Black

Physical

IP Rating: 20



Cooling: Fan



Power Connection: US Edison (UL listed) plug to Seetronic Powercon IP65 True1



Power Input: Seetronic Powercon IP65 True1



Power Output: Seetronic Powercon IP65 True1



Data Connectors: Seetronic 5pin XLR; Seetronic etherCON



Cable Length: Power 5 feet (1.5 meter); DMX 5 feet (1.5 meter)



Dimensions: 23.7″ x 9.3” x 6.6”



Weight: 22 lbs.

Electrical

Input Voltage: 100 – 240V AC, 50/60Hz (Auto ranging with active PFC)



Power Consumption: 320W



Power Linking for connecting fixture in daisy-chain



Up to 6 units @110V with a 20A circuit



Up to 12 units @208V with a 20A circuit



Up to 12 units @230V with a 20A circuit



Fuse: F12A, 250V

Certification / Qualifications

cETLus Listed, CE, FCC



IP Rating: IP 20



Operating Temperature: 40 ° C ( 104 °F)



Minimum Temperature: – 10 ° C ( 14 ° F)



Maximum Temperature: 60 ° C ( 140 ° F)

Item Dimensions & Weight

Dimensions: 23″ x 9.3″ x 5″



Weight: 42.1 lbs

what's included
  • JMAZ PROFESSIONAL CENTIPEDE B4
  • 1 x Centipede B4
  • 1 x Powercon IP65 TRUE1 Power cable
  • 1 x 5-pin DMX Cable
  • 1 x User Manual
  • 2 x Omega Brackets
  • 1 x Safety Cable
