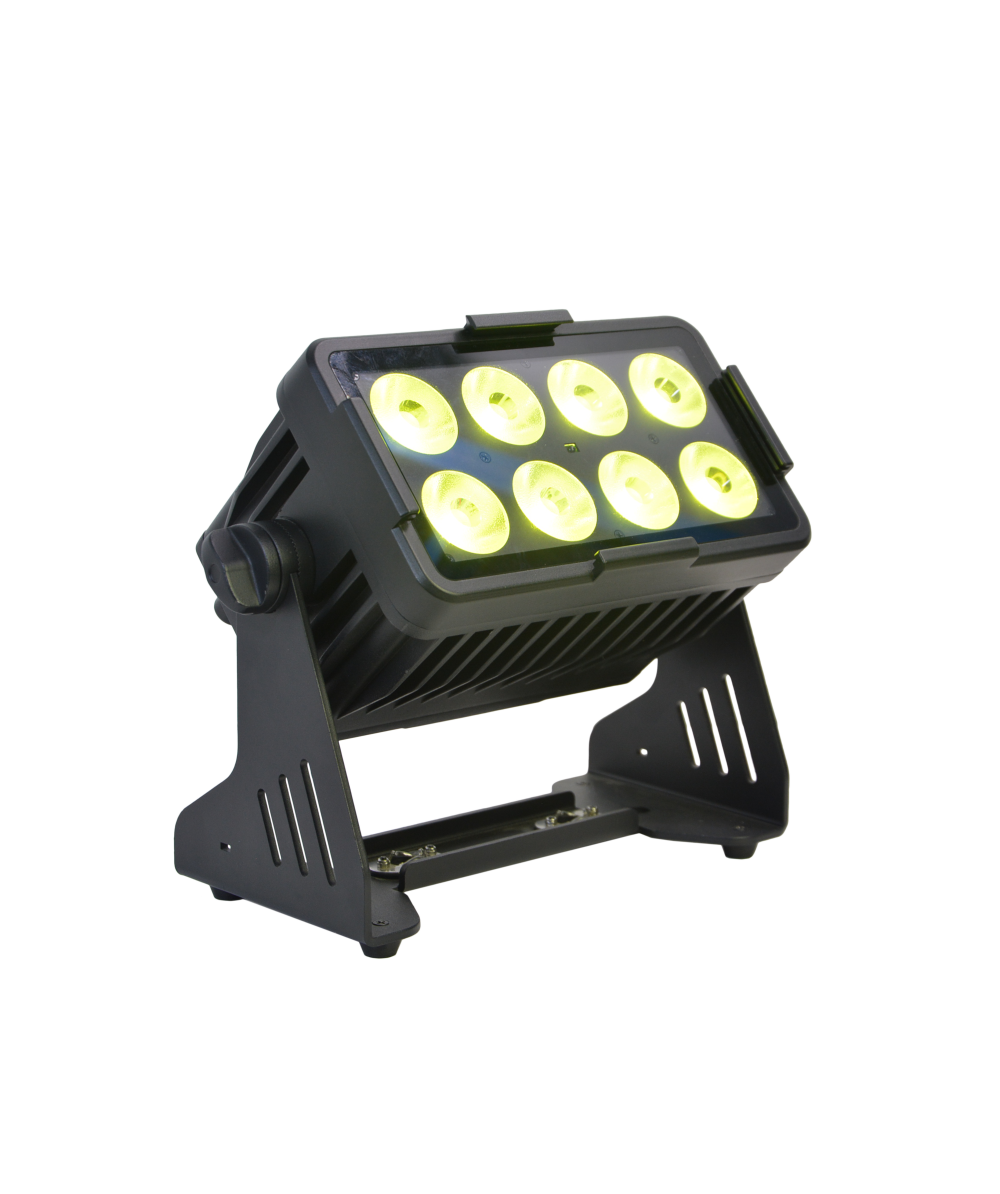

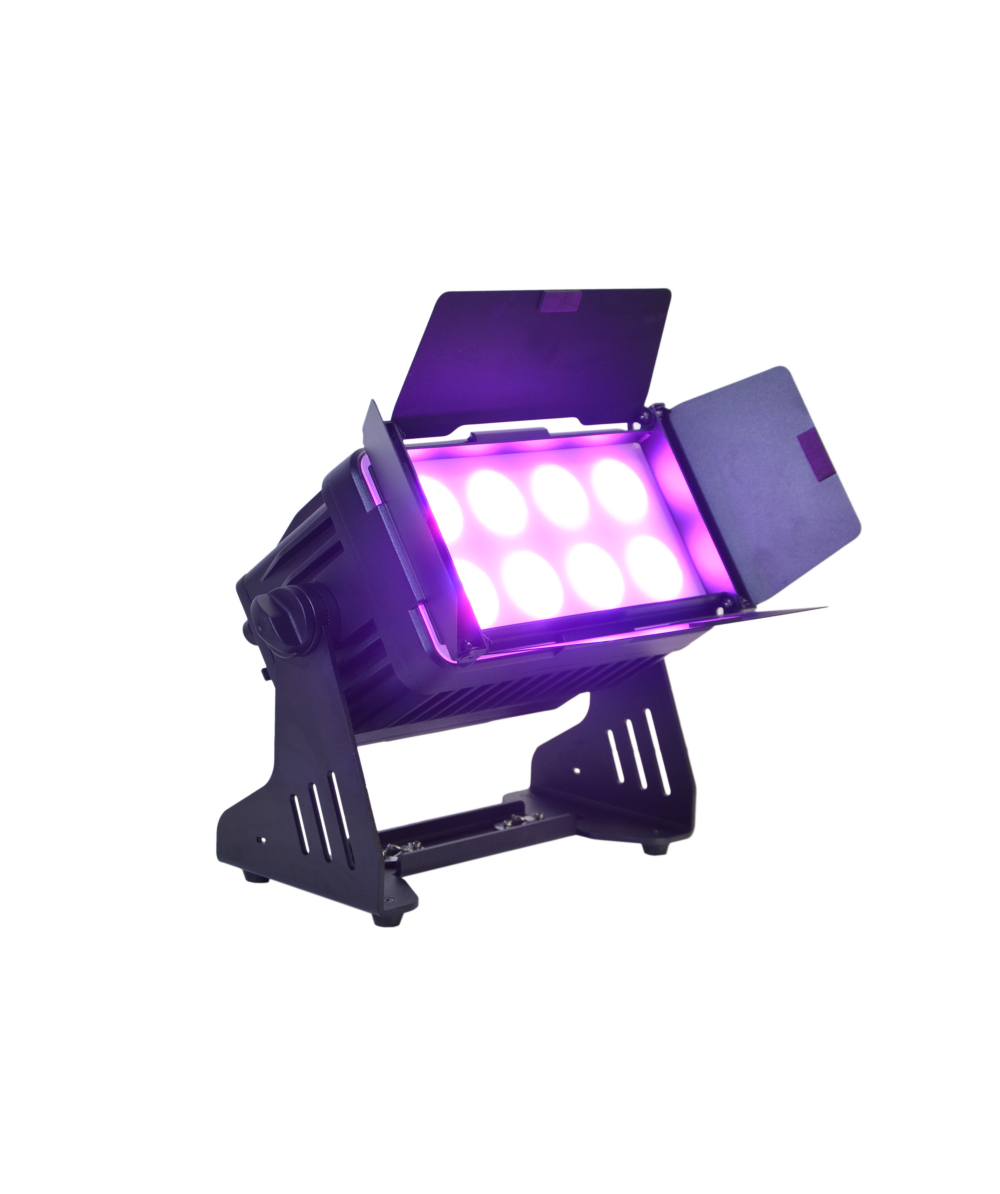

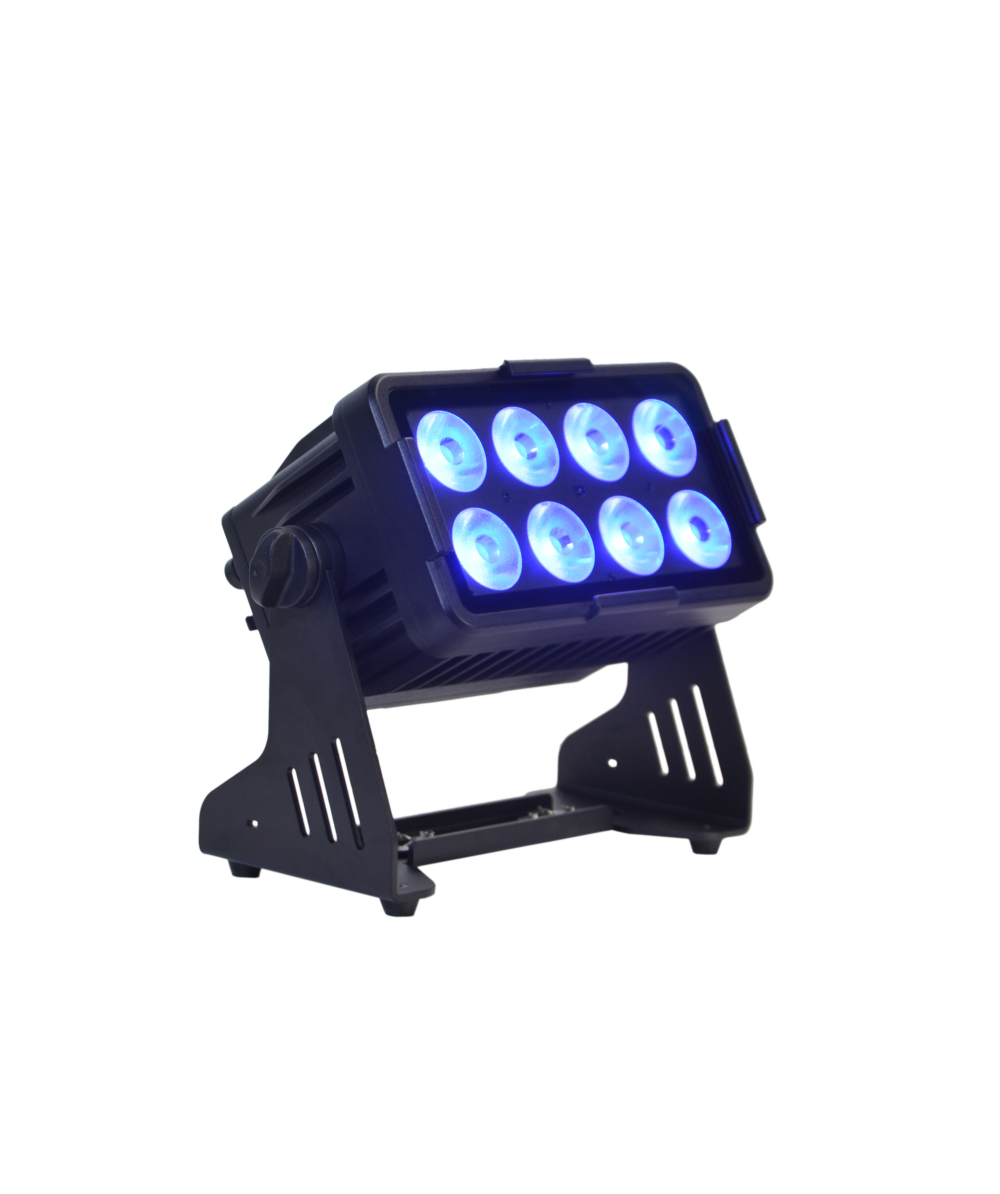

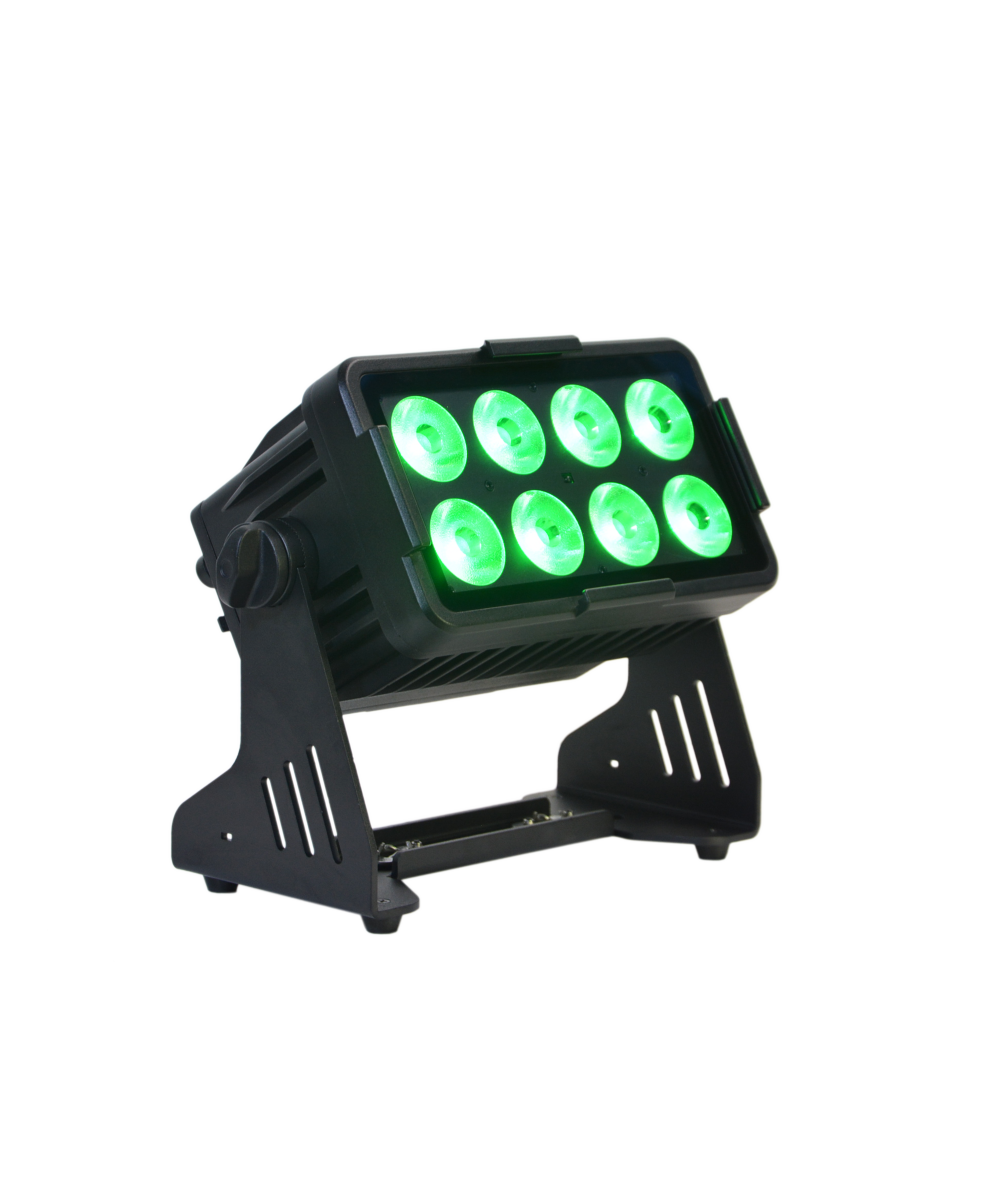

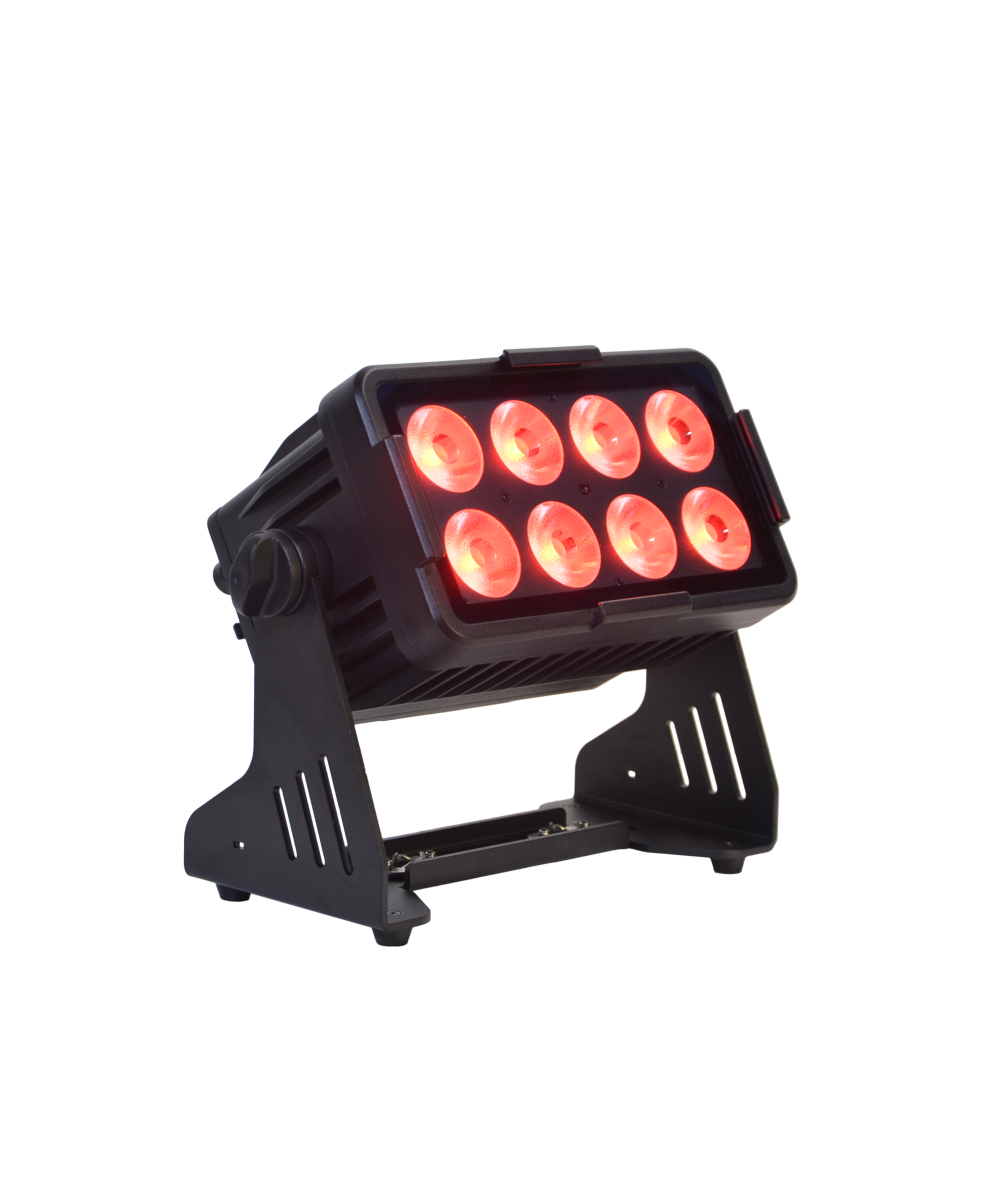

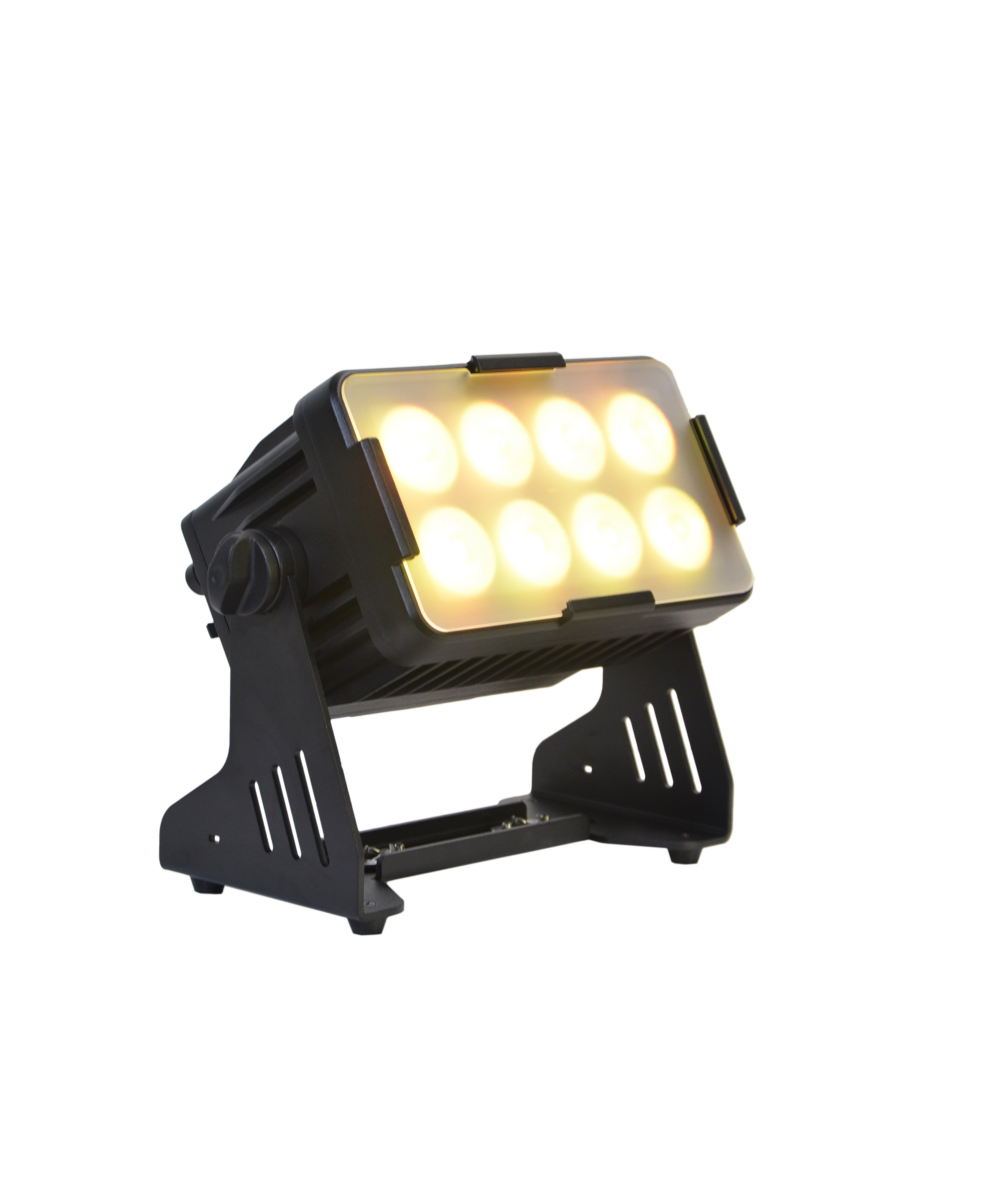

JMAZ PROFESSIONAL ELECTRO W8 PANEL - Electro W8 RGB+LIME LED Battery Outdoor Powered Panel

Availability: This product will be shipped directly by the manufacturer to you

Regular Price: $1,250.00

Special Price: $800.00

Qty:
+ -

Regular Price: $1,250.00

Special Price: $800.00

free shipping
Free Shipping
On Continental US Orders Over $100!




Overview

- Light Source: (8) 12W RGB+Lime LED
- IP65 Outdoor Rated
- Max 14 Hour Battery Life / 40 Hour In Battery Saving Mode
- Charging Time: 4.5 Hours
- CCT: 2300K – 8500K
- 73 Preset Color Programs
- 72 Auto / Fade Built In Programs
- 10° Beam Angle / 20° Beam Angle w/Diffuser Included
- Protocols: DMX512, Wireless DMX (CRMX by LumenRadio), RDM, IR Remote
- Personalities: 7 Modes: HSV / HSI / 3 / 4 / 6 / 11 / 16
- Power Connection: TRUE1 IN/OUT; Operates and charges simultaneously with built-in battery charger
- Data Connection: 5-Pin DMX IN/OUT; IP65 5-Pin DMX IN/OUT for Wired Data Connection
- Includes: Diffuser, TRUE1 Power Cable, IR Remote, QSG, Manual
- CE, FCC, RoHs Certified, UL Listed Battery

Details

The JMAZ Professional Electro W8 is a compact and powerful outdoor battery-powered LED panel, built for professional applications where flexibility, brightness, and color precision matter. Featuring 8 high-output 12W RGB+LIME LEDs, the W8 delivers vibrant color rendering with a tunable CCT range of 2300K to 8500K. With a native 10° beam angle (expandable to 20° using the included diffuser), it offers tight control or wide coverage as needed. Its IP65 rating ensures durability in outdoor environments, while the internal battery supports up to 14 hours of operation—or up to 40 hours in saver mode—with a fast 4.5-hour recharge. The W8 includes 73 preset color programs and 72 auto/fade effects, all controllable via DMX512, Wireless DMX (CRMX by LumenRadio), RDM, or IR remote. Seven personality modes (HSV, HSI, 3–16 channels) allow for tailored control. The TRUE1 IN/OUT power system enables simultaneous operation and charging via a built-in battery charger. Data connectivity is available via 5-pin DMX and IP65-rated wired ports. Comes complete with diffuser, TRUE1 power cable, IR remote, quick start guide, and manual. CE, FCC, and RoHS certified with a UL listed battery.

specifications

Light Source

(8) 12W RGB+Lime LED



CTO: 2500K – 5600K

Color System

RGB+LIME LED

Optics

10° Beam Angle / 20° Beam Angle w/Diffuser Included

Dynamic Effect

73 Preset Color Programs



72 Auto / Fade Built In Programs

Control

Protocols: DMX512, Wireless DMX (CRMX by LumenRadio), RDM, IR Remote



Personalities: 7 Modes: HSV / HSI / 3 / 4 / 6 / 11 / 16

Electronics

Max 14 Hour Battery Life / 40 Hour In Battery Saving Mode



Charging Time: 4.5 Hours



Data Connection: 5-Pin DMX IN/OUT; IP65 5-Pin DMX IN/OUT for Wired Data Connection

Physical

IP65 Outdoor Rated

Electrical

Power Connection: TRUE1 IN/OUT



Operates and charges simultaneously with built-in battery charger



CE, FCC, RoHs Certified, UL Listed Battery

Box Content

Diffuser



Barndoors



TRUE1 Power Cable



Omega Bracket



IR Remote



QSG



Manual

Item Dimensions & Weight

Dimensions: 12.6″ x 5.6″ x 9.5″



Weight: 13.1 lbs

what's included
  • JMAZ PROFESSIONAL ELECTRO W8 PANEL
  • Diffuser
  • Barndoors
  • TRUE1 Power Cable
  • Omega Bracket
  • IR Remote
  • QSG
  • Manual
