Details

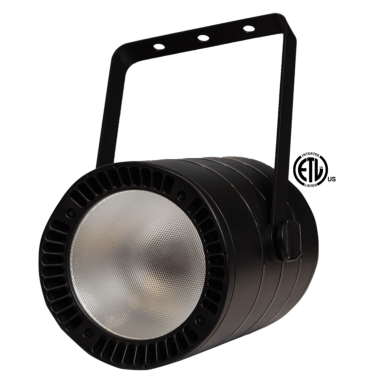

The JMAZ Professional Zona 5L is a powerful 350W RGBA+LIME COB LED house light designed to deliver full-spectrum brilliance with stunning precision. Featuring a 5-ring effect system powered by 250 RGB SMD LEDs, it offers dynamic visual impact and vibrant effects. With 16-bit RGBAL color mixing and a wide CTO range of 2000K to 12000K, it ensures superior color flexibility and a CRI of ≥95 for high-quality rendering. The Zona 5L includes 81 preset COB macros, 31 LED ring macros, and customizable ring effects. Its 60° beam angle and fanless cooling ensure wide coverage and quiet operation—ideal for theaters, houses of worship, and event spaces. Control is seamless through 5-pin DMX and RDM, with six channel modes from 4 to 41. TRUE1 IN/OUT power, 5-pin DMX IN/OUT, and bare wire terminal connections make integration easy. The fixture comes complete with a hanging yoke, TRUE1 power cable, 5-pin DMX cable, safety cable, and manual. CE, FCC, and RoHS certified; ETL & cETL pending.

specifications

Light Source

350W COB RGBA+LIME LED



5 Ring Effect (250) 0.3W RGB SMD LEDs



16-bit RGBAL Color Mixing



CTO:2000K – 12000K

Color System

Full Spectrum COB RGBA+LIME LED

Optics

Beam Angle: 60°



CRI: ≥ 95

Dynamic Effect

Individual Dynamic Ring Color & Effect Macro



81 Preset Color Macros on COB / 31 Preset Color Macros on LED Rings



4 Dimming Curves



4 Dimming Modes



Cooling: Fanless (Silent Performance)

Control

Protocols: 5-Pin DMX, RDM (Remote Device Management)



Data Connection: 5-Pin IN/OUT



Personalities: 6 Modes: 4/8/12/19/26/41



Bare Wire Block Terminal Connection (Both Power & DMX)

Electronics

Power Connection: TRUE1 IN/OUT

Electrical

CE, FCC, RoHS Certified, ETL &cETL Pending

Box Content

Hanging Yolk



TRUE1 Power Cable



5-Pin DMX Cable



Safety Cable



Manual

Item Dimensions & Weight

Dimensions: 20″ x 9.1″ x 7.1″



Weight: 16.8 lb

what's included
  • JMAZ PROFESSIONAL ZONA 5L
  • 1x Hanging Yolk
  • 1x TRUE1 Power Cable
  • 1x 5-Pin DMX Cable
  • 1x Safety Cable
  • 1x Manual
