JMAZ PHANTOM BEAM 120 - 120W LED Moving Head

Availability: This product will be shipped directly by the manufacturer to you

Regular Price: $1,399.95

Special Price: $1,099.95

Qty:
+ -

Regular Price: $1,399.95

Special Price: $1,099.95

free shipping
Free Shipping
On Continental US Orders Over $100!




Overview

- 570W (19 x 30W) RGBW LEDs
- Ring Effect: 10W (48 x 0.2W) RGB SMD LEDs
- Electronic Zoom: 6° to 60°
- CCT: 2700K – 8000K
- Individual Pixel Control, Graphic Effect Macro
- Protocols: 3-Pin In/Out DMX512, Wireless DMX, RF Remote
- 9 Built-In Auto/Sound Programs
- powerCON In/Out

Details

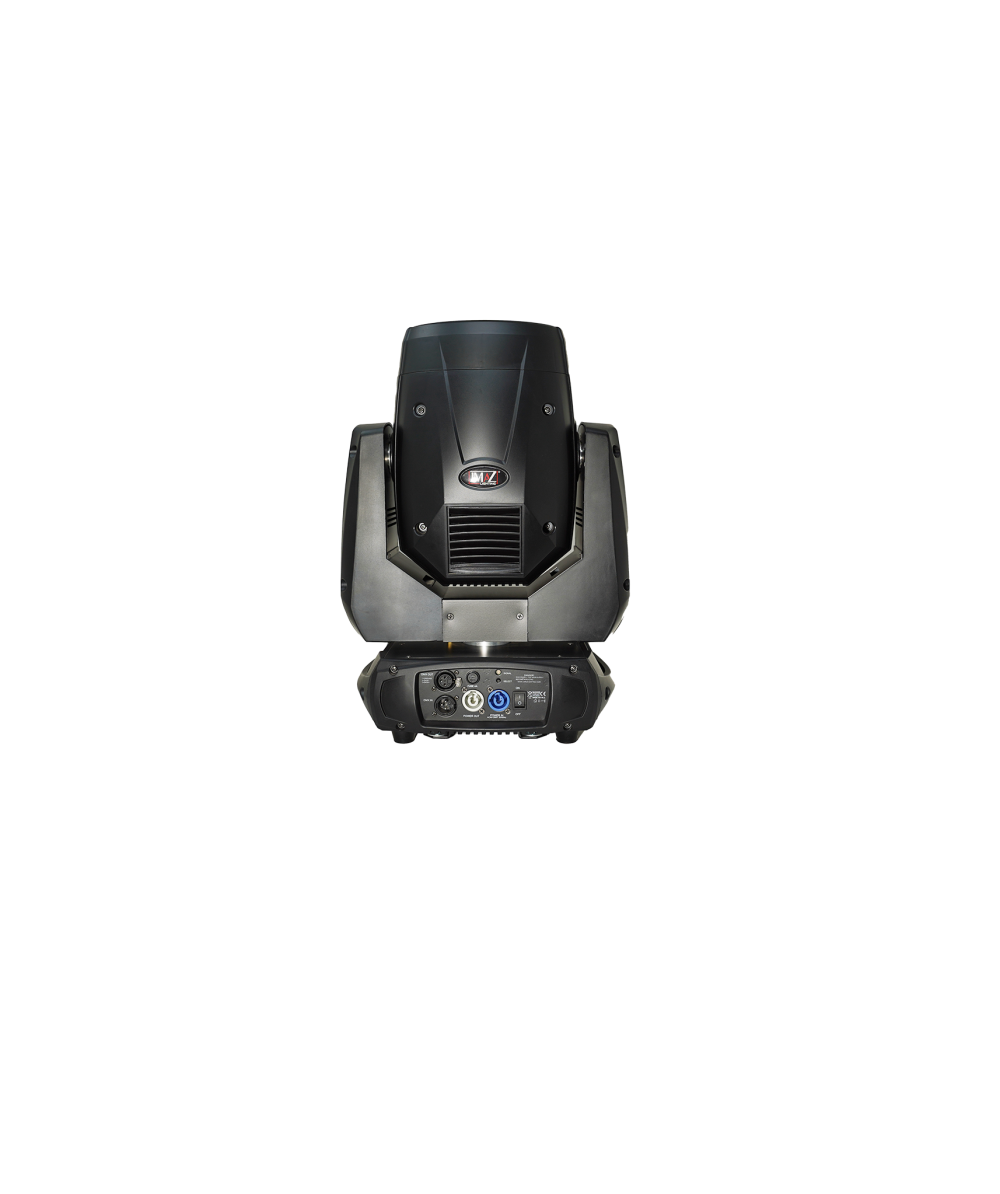

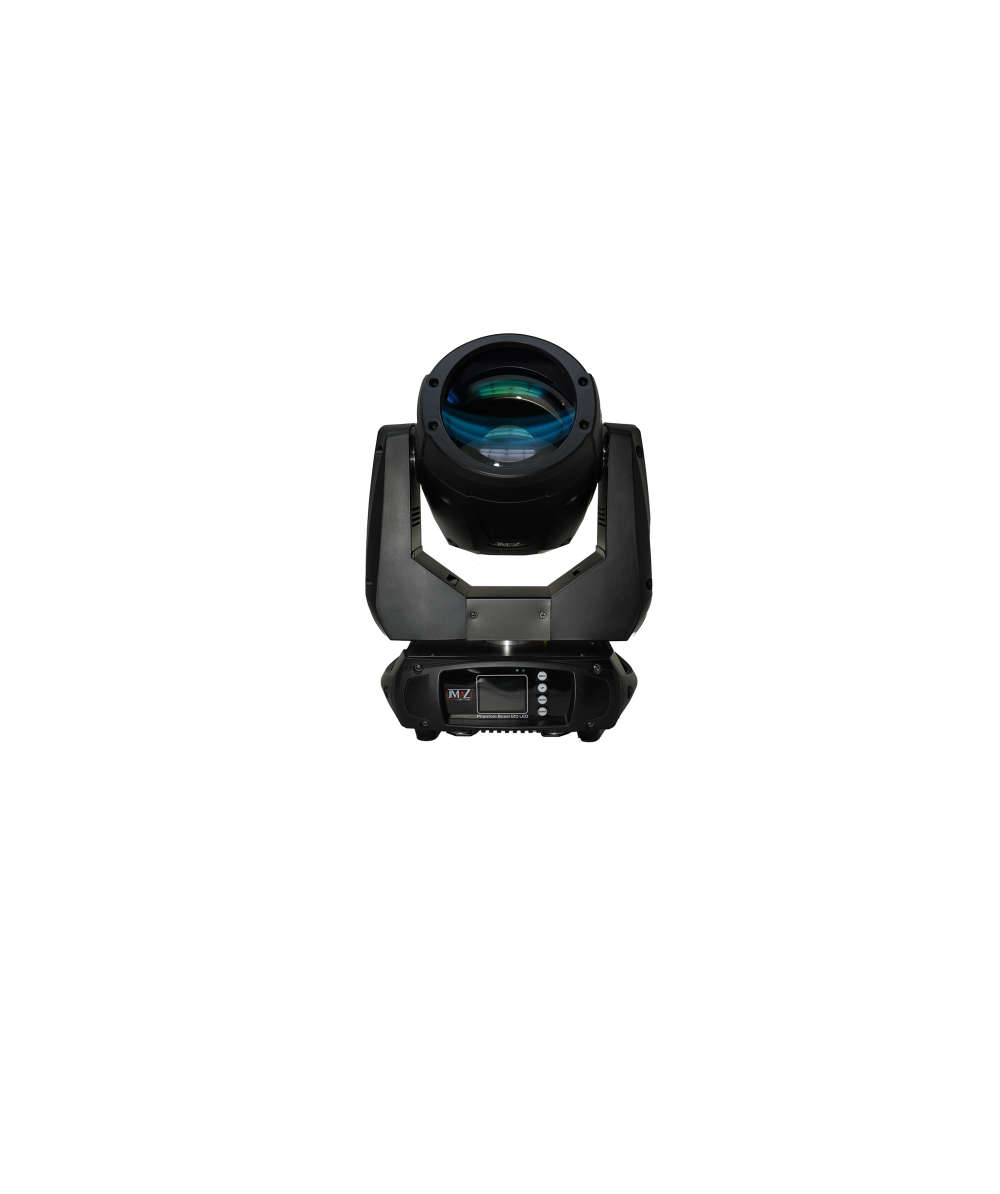

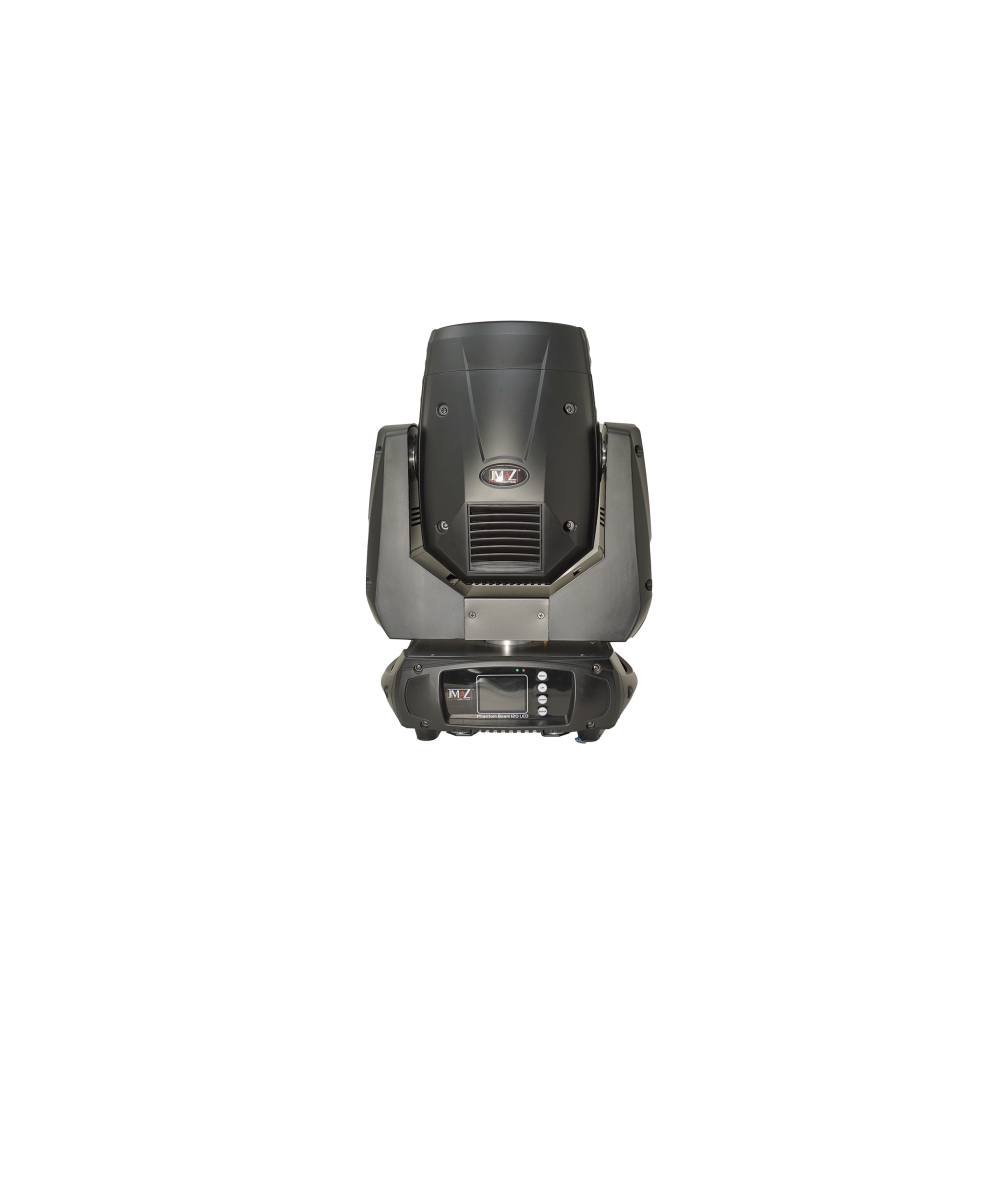

The JMAZ PHANTOM BEAM 120 is a 120W LED Moving Head featuring an 8000K cool white LED, a 2° beam angle, and motorized focus. It offers an 11-color wheel, 19 static gobos, a frost filter, and a dual prism wheel with variable speed. Compatible with DMX512, wireless DMX, and RF remote control, it includes 9 auto/sound programs. Comes with an RF remote, Omega bracket, powerCON cable, and DMX cable for versatile lighting applications.

specifications

Light Source

 120W 8000K Cool White LED

Color System

Color Wheel: 11 Colors + Open

Optics

Beam Angle: 2°

Dynamic Effect

Gobos: 19 Static + Open



Dual Prism Wheel: Frist Prism 16 Facet , Second 8 Facet + 16 w/ Variable Speed



Motorized Focus



9 Built-In Auto/Sound Programs



Frost Filter

Control

Protocols: 3-Pin In/Out DMX512, Wireless DMX



Personalities: 2 Modes 12/14



Wireless Control:  RF Remote



Display: 2.4″ TFT LCD Display

Electronics

Dimmer: 0-100% Linear Dimmer



Operating Temperature: -35° C to 45° C

Body

Quick-Lock Omega Bracket



Pan Angle: 630°



Title Angle: 270°



High Temperature Engineered Plastic and Cast Aluminum Casing

Physical

Cooling: Fan



Pan/Tilt: 8/16 bit smooth



powerCON In/Out

Electrical

Max Power Consumption: 180W



Input Voltage: 110-240V, 50HZ/60HZ

Box Content

2 x Omega Brackets



1 x DMX Cable



1 x powerCON Cable



1 x RF Remote



1 x Safety Cable



1 x User Manual

Item Dimensions & Weight

Dimensions: 13.2″ x 8.8″ x 19.4″



Weight: 31.3 lbs

Warranty

2 Years

what's included
  • JMAZ PHANTOM BEAM 120
  • 2 x Omega Brackets
  • 1 x DMX Cable
  • 1 x powerCON Cable
  • 1 x RF Remote
  • 1 x Safety Cable
  • 1 x User Manual
