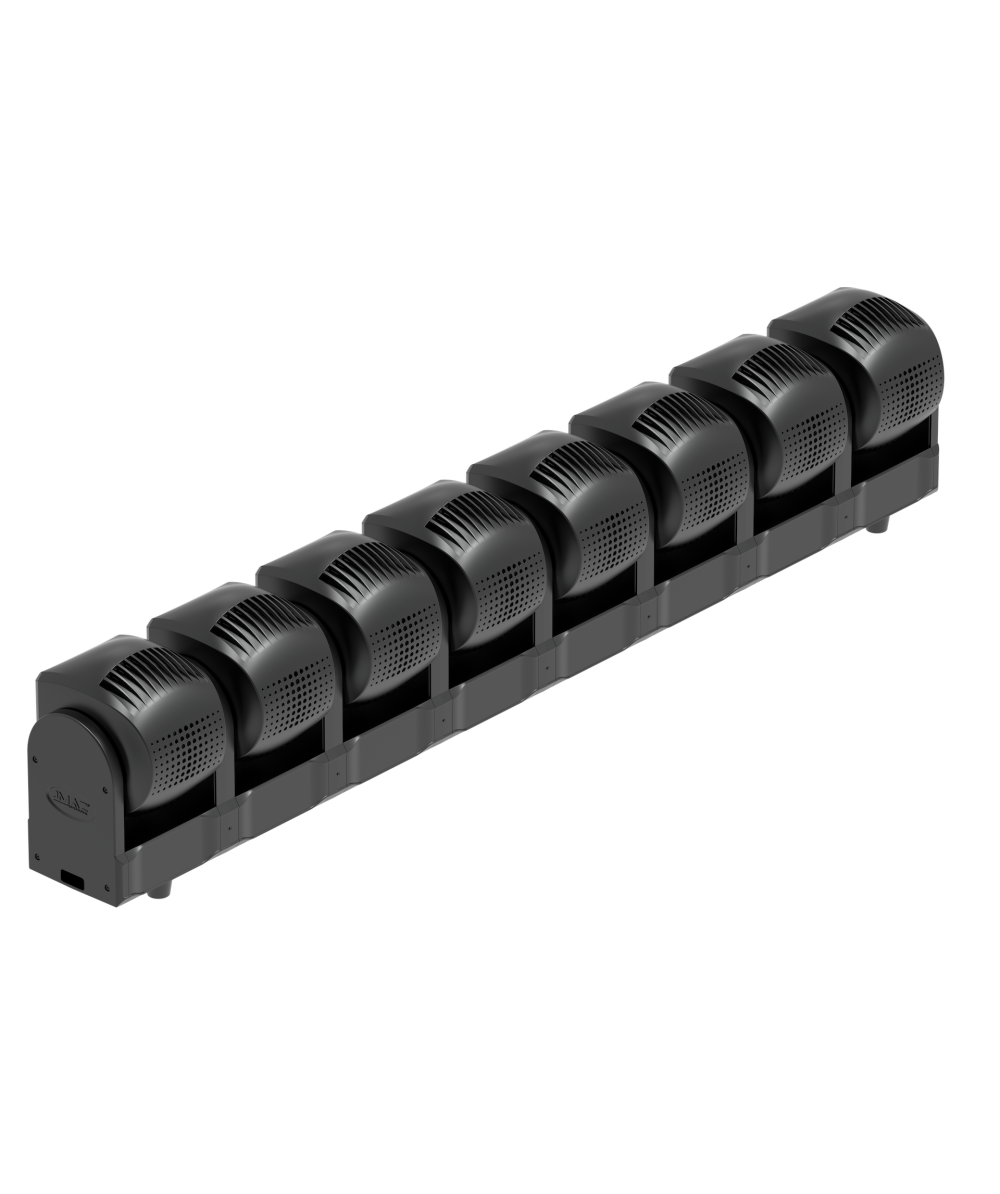

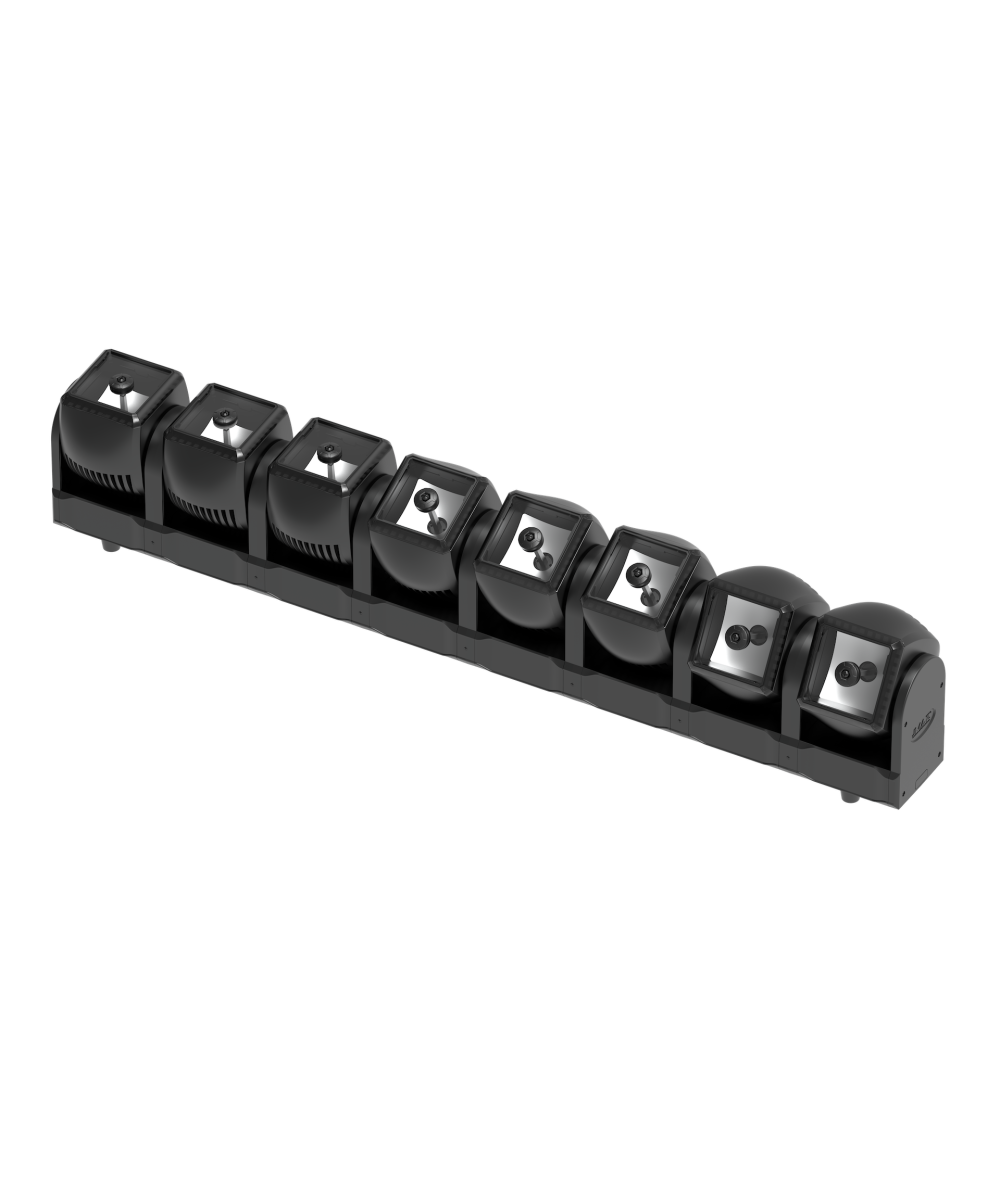

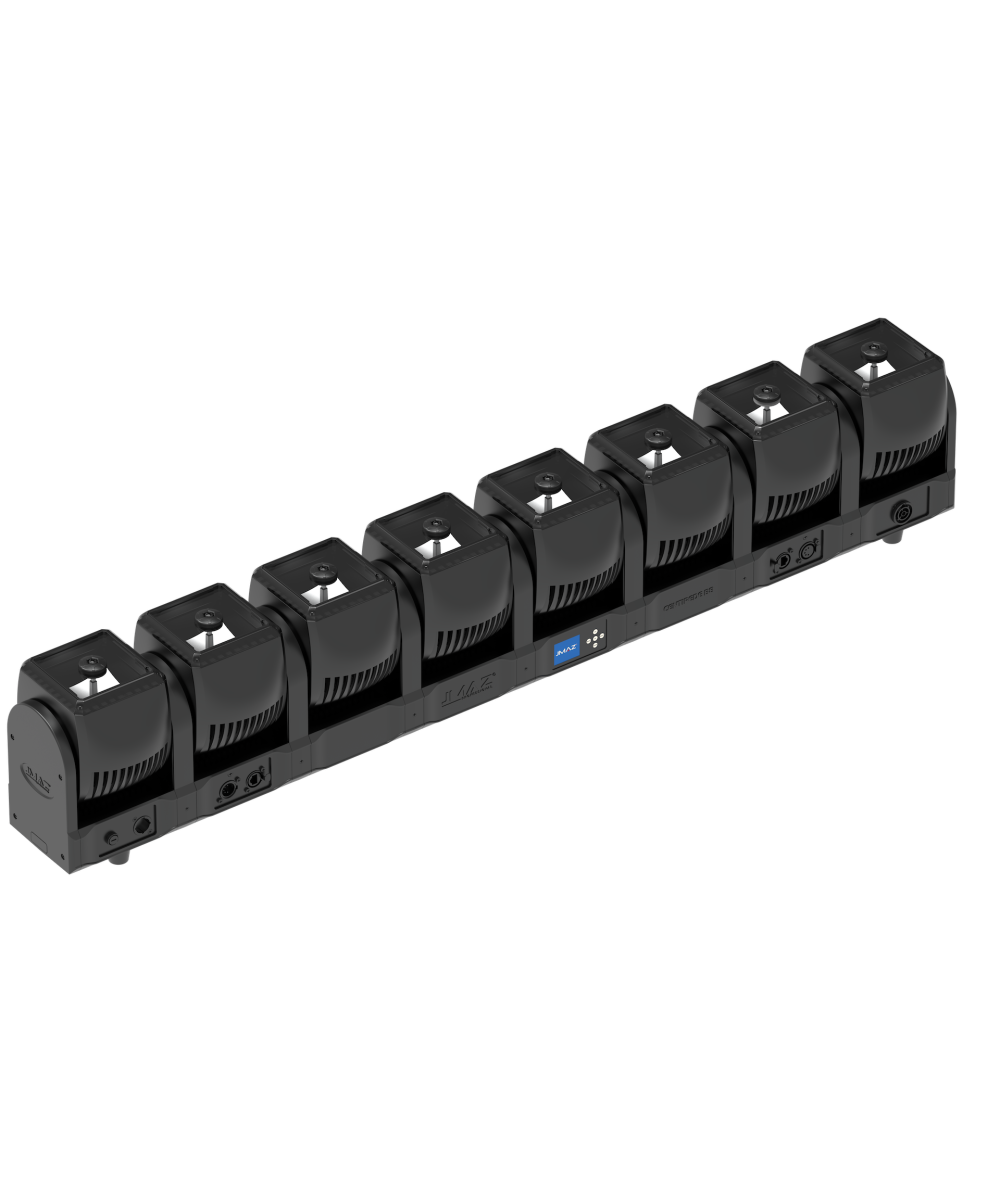

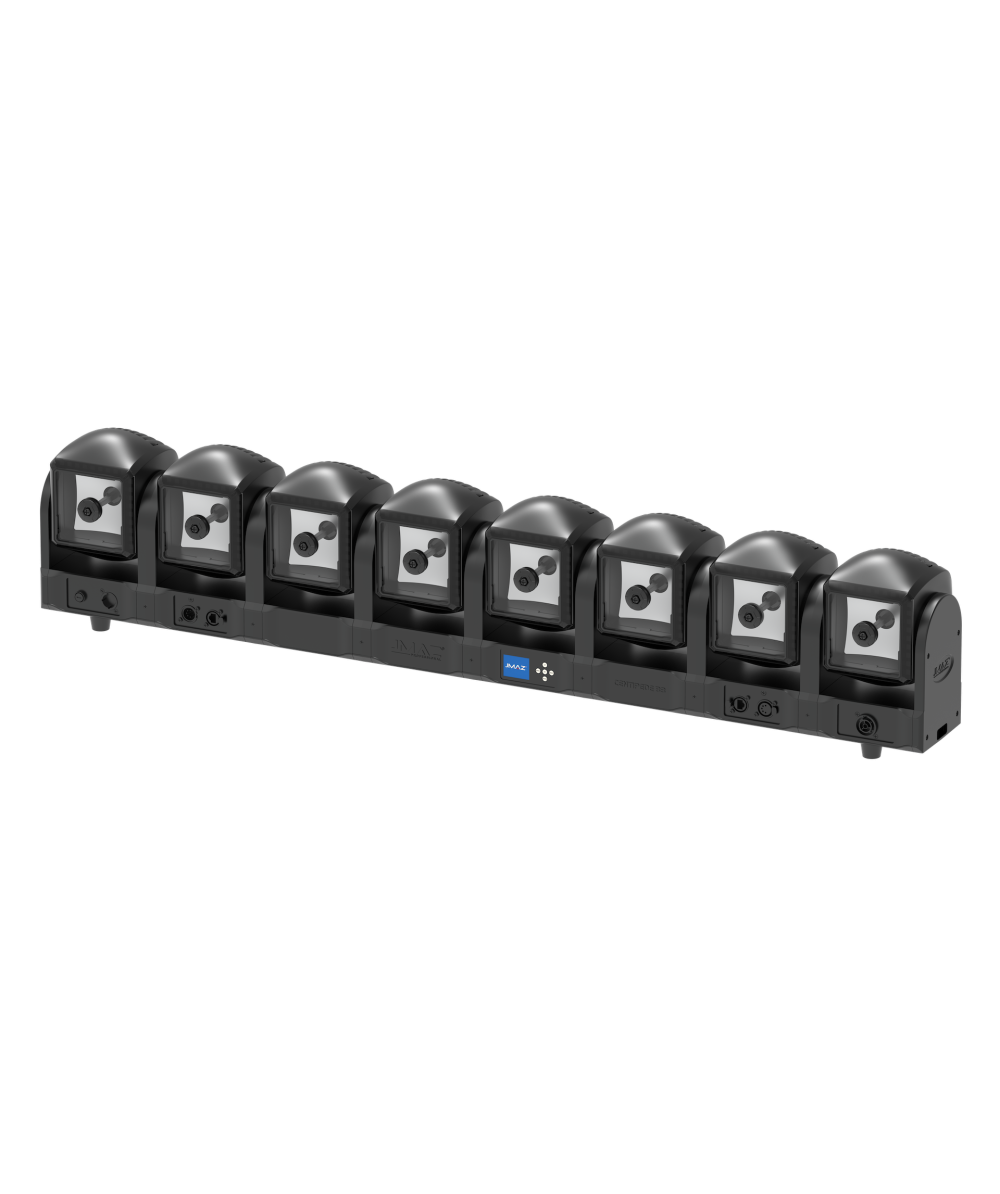

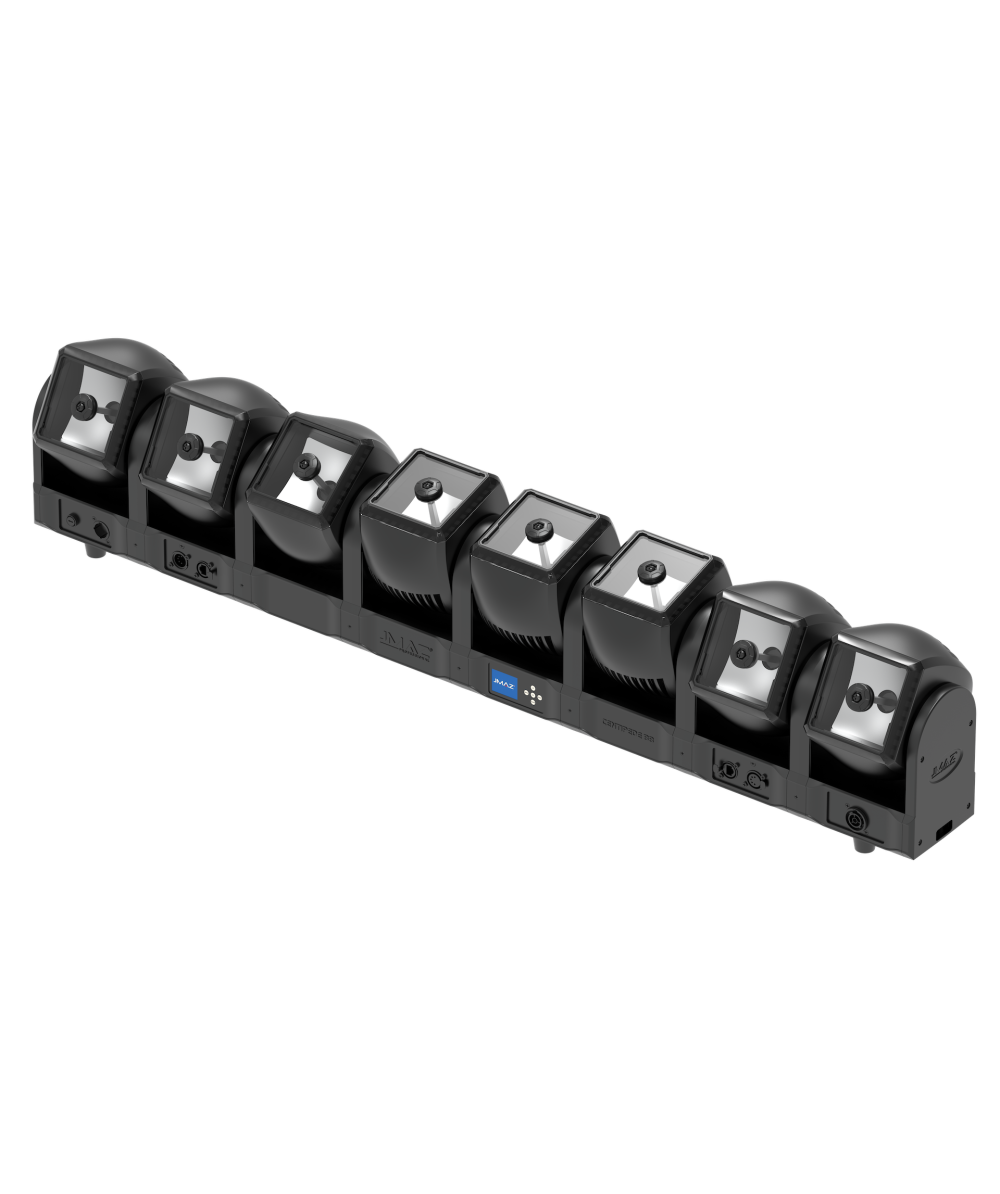

JMAZ PROFESSIONAL CENTIPEDE B8 - RGBW LED Intelligent 8 Head Bar

Availability: This product will be shipped directly by the manufacturer to you

Regular Price: $3,450.00

Special Price: $2,900.00

Qty:
+ -

Regular Price: $3,450.00

Special Price: $2,900.00

free shipping
Free Shipping
On Continental US Orders Over $100!




Overview

- Light Source: (8) 60W RGBW LED
- Ring Light Source: (240) 0.2W RGB SMD LEDs
- Individual Head 360° Infinite Tilt Control
- Individual Head Pixel Control
- Individual Dynamic Ring Color And Effect Macro
- Built-In Virtual Colors And Movement Macros w/ Foreground and Background Color Control
- Beam Angle: 3.5°
- 16 bit RGBW Color Mixing
- CTO: 2500K – 8000K
- Personalities: 4 Modes 24/58/90/130
- Protocol: 5-Pin DMX512, Art-Net, RDM, sACN, Kling-Net
- Power Connection: TRUE1 In/Out
- CE, cETL, FCC, RoHs Certified

Details

The JMAZ Professional Centipede B8 is an advanced moving head bar featuring eight powerful 60W RGBW LEDs and 240 RGB SMD LEDs for captivating multi-beam and ambient ring effects. Each head offers 360° infinite tilt and full pixel control, giving lighting designers the flexibility to create complex, high-impact visual sequences. With built-in virtual color presets and movement macros—plus foreground and background color separation—the Centipede B8 enables rich, layered effects without complex programming. Its narrow 3.5° beam angle ensures intense, focused output, while 16-bit RGBW color mixing and a CTO range of 2500K to 8000K allow for precise color control across any environment. Operate in four DMX personality modes (24/58/90/130 channels) and integrate effortlessly with major protocols including 5-pin DMX512, Art-Net, RDM, sACN, and Kling-Net. Designed for professional use, it features TRUE1 IN/OUT power connections and includes essential accessories: a TRUE1 power cable, 5-pin DMX cable, 2 omega brackets, 2 safety cables, and a manual. CE, cETL, FCC, and RoHS certified for global compliance.

specifications

Control

Protocol: 5-Pin DMX512, Art-Net, RDM, sACN, Kling-Net



Personalities: 4 Modes 24/58/90/130

Body

Die-cast Aluminum and Steel structure with high impact flame retardant PA6 GF 30 (Polyamide 6) with 30% glass fiber



Exterior finish: Black

Physical

Cooling: Fan



Power Connection: True1 (UL listed)



Power In/Out: True1



Protocol Connectors: 5-Pin DMX512 In/Out, Art-Net RJ45



Cable Length: Power 5 feet (1.5 meter); DMX 5 feet (1.5 meter)



IP Rating: 20

Electrical

Input Voltage: 100 – 240V AC, 50/60Hz (Auto ranging with active PFC)



Power Consumption: 640W



Power Linking for connecting fixture in daisy-chain



Up to 3 units @110V with a 20A circuit



Up to 6 units @208V with a 20A circuit



Up to 6 units @230V with a 20A circuit



Fuse: F12A, 250V

Certification / Qualifications

CE, cETL, FCC, Rohs



Operating Temperature: 40 ° C ( 104 °F)



Minimum Temperature: – 10 ° C ( 14 ° F)



Maximum Temperature: 60 ° C ( 140 ° F)

Item Dimensions & Weight

Dimensions: 47.3″ x 9.3″ x 6.6″



Weight: 42.1 lbs.

Warranty

3 Years



what's included
  • JMAZ PROFESSIONAL CENTIPEDE B8
  • 1 x TRUE1 Power cable
  • 1 x 5-pin DMX Cable
  • 1 x User Manual
  • 2 x Omega Brackets
  • 2 x Safety Cable
