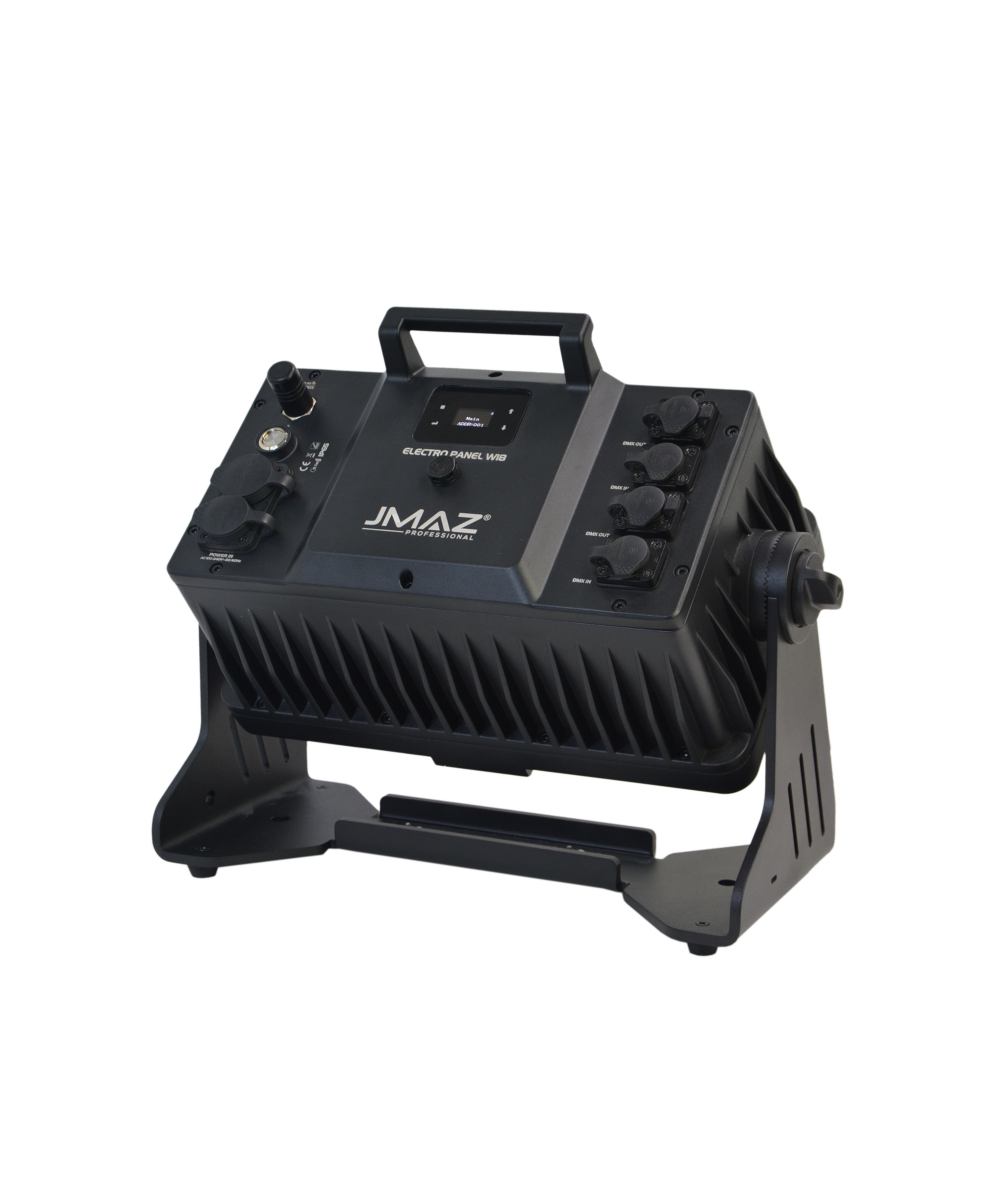

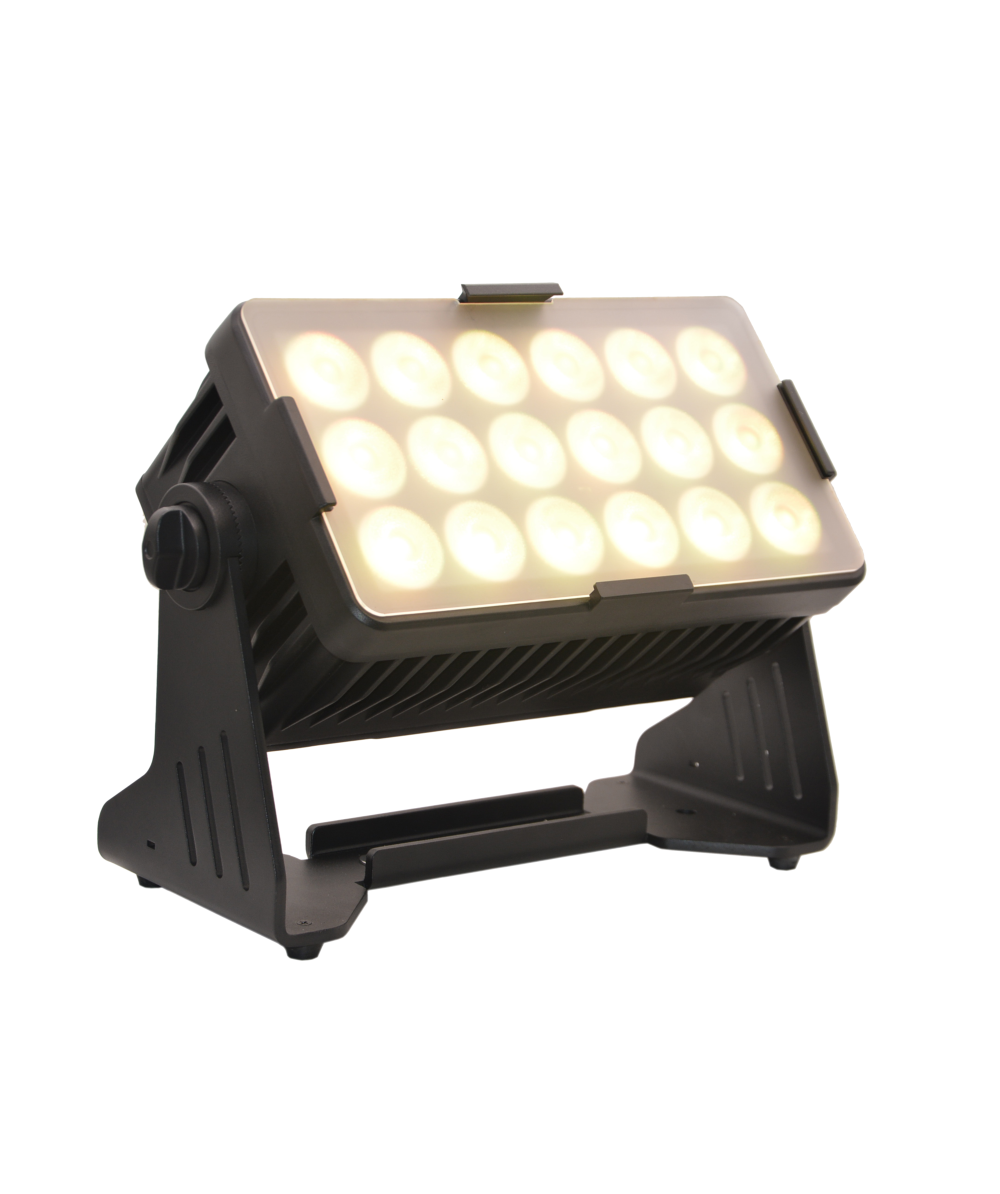

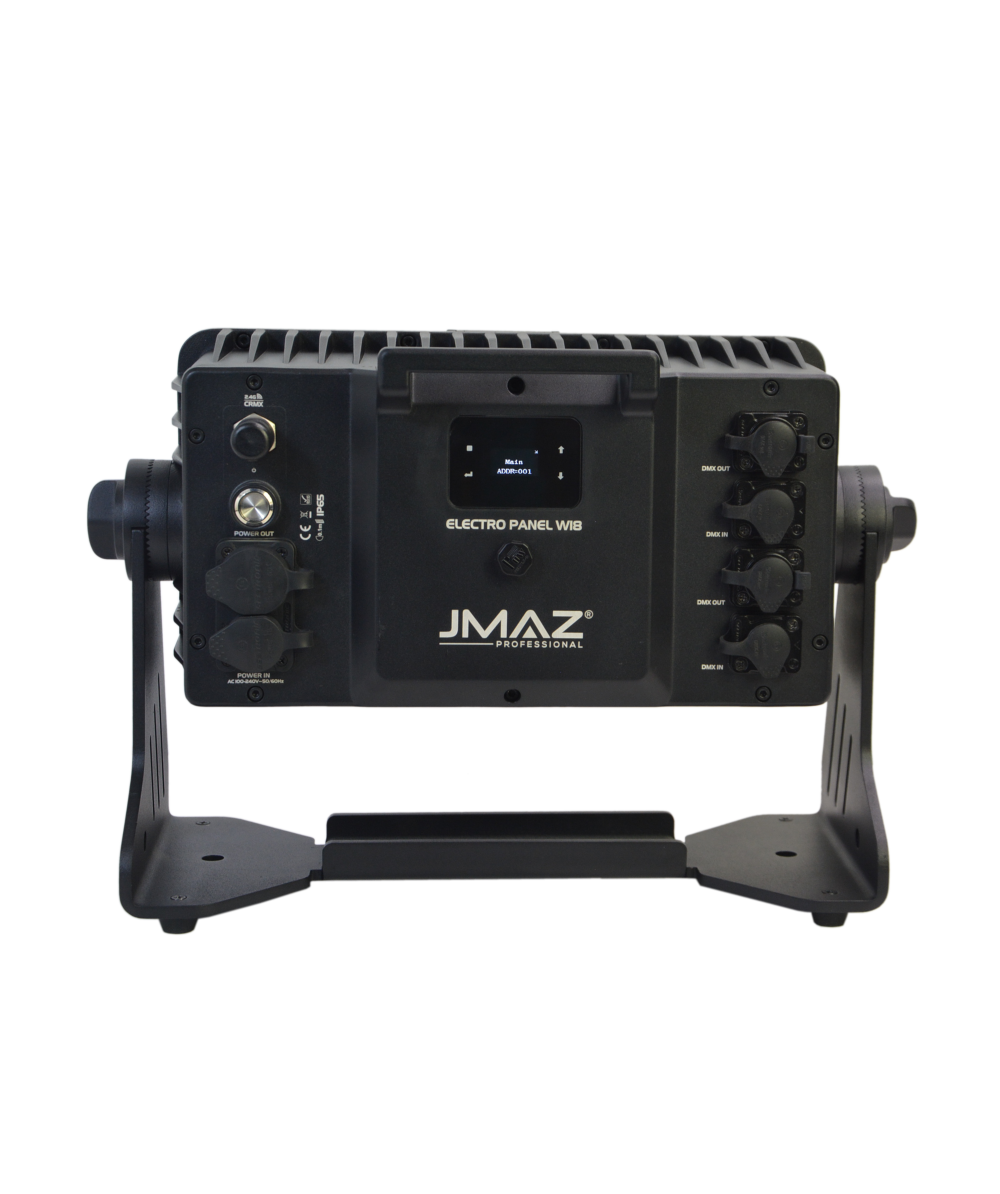

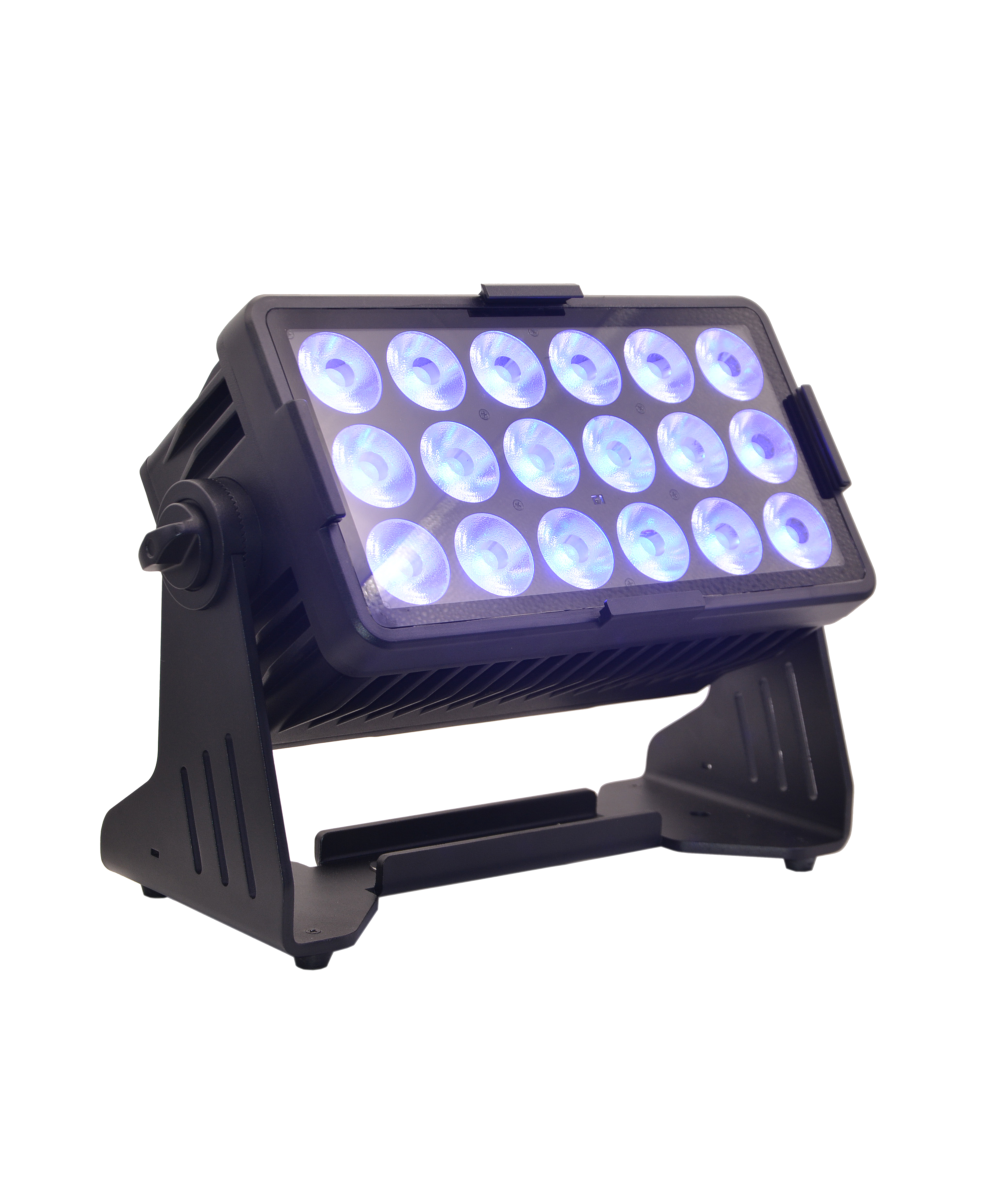

JMAZ PROFESSIONAL ELECTRO W18 PANEL - Electro W18 RGB+LIME LED Battery Powered Outdoor Panel

Availability: This product will be shipped directly by the manufacturer to you

Regular Price: $2,000.00

Special Price: $1,300.00

Qty:
+ -

Regular Price: $2,000.00

Special Price: $1,300.00

free shipping
Free Shipping
On Continental US Orders Over $100!




Overview

- Light Source: (18) 12W RGB+LIME LEDs
- IP65 Outdoor Rated
- Max 11 Hour Battery Life / 40 Hour In Battery Saving Mode
- Charging Time: 4.5 Hours
- CCT: 2300K – 8500K
- 73 Preset Color Programs
- 72 Auto / Fade Built In Programs
- 20° Beam Angle / 40° Beam Angle w/Diffuser Included
- Protocols: DMX512, Wireless DMX (CRMX by LumenRadio), RDM, IR Remote
- Personalities: 7 Modes: HSV / HSI / 3 / 4 / 6 / 11 / 16
- Power Connection: TRUE1 IN/OUT; Operates and charges simultaneously with built-in battery charger
- Data Connection: 5-Pin DMX IN/OUT; IP65 5-Pin DMX IN/OUT for Wired Data Connection
- Includes: Diffuser, Barndoors, TRUE1 Power Cable, Omega Bracket, IR Remote, QSG, Manual
- CE, FCC, RoHs Certified, UL Listed Battery

Details

The JMAZ Professional Electro W18 is a rugged and versatile battery-powered RGB+LIME LED panel designed for professional outdoor lighting. Equipped with 18 high-efficiency 12W RGB+LIME LEDs, it delivers bold, vibrant output with a CCT range of 2300K to 8500K. Rated IP65 for outdoor use, the W18 offers up to 11 hours of battery life—or up to 40 hours in battery saver mode—with a quick 4.5-hour recharge. With 73 preset color programs and 72 auto/fade built-in effects, it provides instant creative control for any environment. A native 20° beam angle ensures focused output, while the included diffuser widens coverage to 40° for softer washes. The fixture supports multiple control protocols, including DMX512, Wireless DMX (CRMX by LumenRadio), RDM, and IR remote, and features 7 personality modes (HSV, HSI, 3–16 channels). TRUE1 IN/OUT power allows for simultaneous operation and charging, and IP65-rated 5-pin DMX ports support secure wired data. Accessories include a diffuser, barndoors, TRUE1 power cable, omega bracket, IR remote, quick start guide, and manual. CE, FCC, and RoHS certified with a UL listed battery for added safety and reliability.

specifications

Light Source

(18) 12W RGB+LIME LEDs



CCT: 2300K – 8500K

Color System

RGB+LIME LED

Optics

20° Beam Angle / 40° Beam Angle w/Diffuser Included

Dynamic Effect

73 Preset Color Programs



72 Auto / Fade Built In Programs

Control

Protocols: DMX512, Wireless DMX (CRMX by LumenRadio), RDM, IR Remote



Personalities: 7 Modes: HSV / HSI / 3 / 4 / 6 / 11 / 16

Electronics

Max 11 Hour Battery Life / 40 Hour In Battery Saving Mode



Charging Time: 4.5 Hours



Data Connection: 5-Pin DMX IN/OUT; IP65 5-Pin DMX IN/OUT for Wired Data Connection

Physical

IP65 Outdoor Rated

Electrical

Power Connection: TRUE1 IN/OUT;



Operates and charges simultaneously with built-in battery charger



CE, FCC, RoHs Certified, UL Listed Battery

Box Content

Diffuser



Barndoors



TRUE1 Power Cable



Omega Bracket



IR Remote



QSG



Manual

Item Dimensions & Weight

Dimensions: 16.2″ x 7.3″ x 10.6″



Weight: 23.2 lbs

what's included
  • JMAZ PROFESSIONAL ELECTRO W18 PANEL
  • Diffuser
  • Barndoors
  • TRUE1 Power Cable
  • Omega Bracket
  • IR Remote
  • QSG
  • Manual
