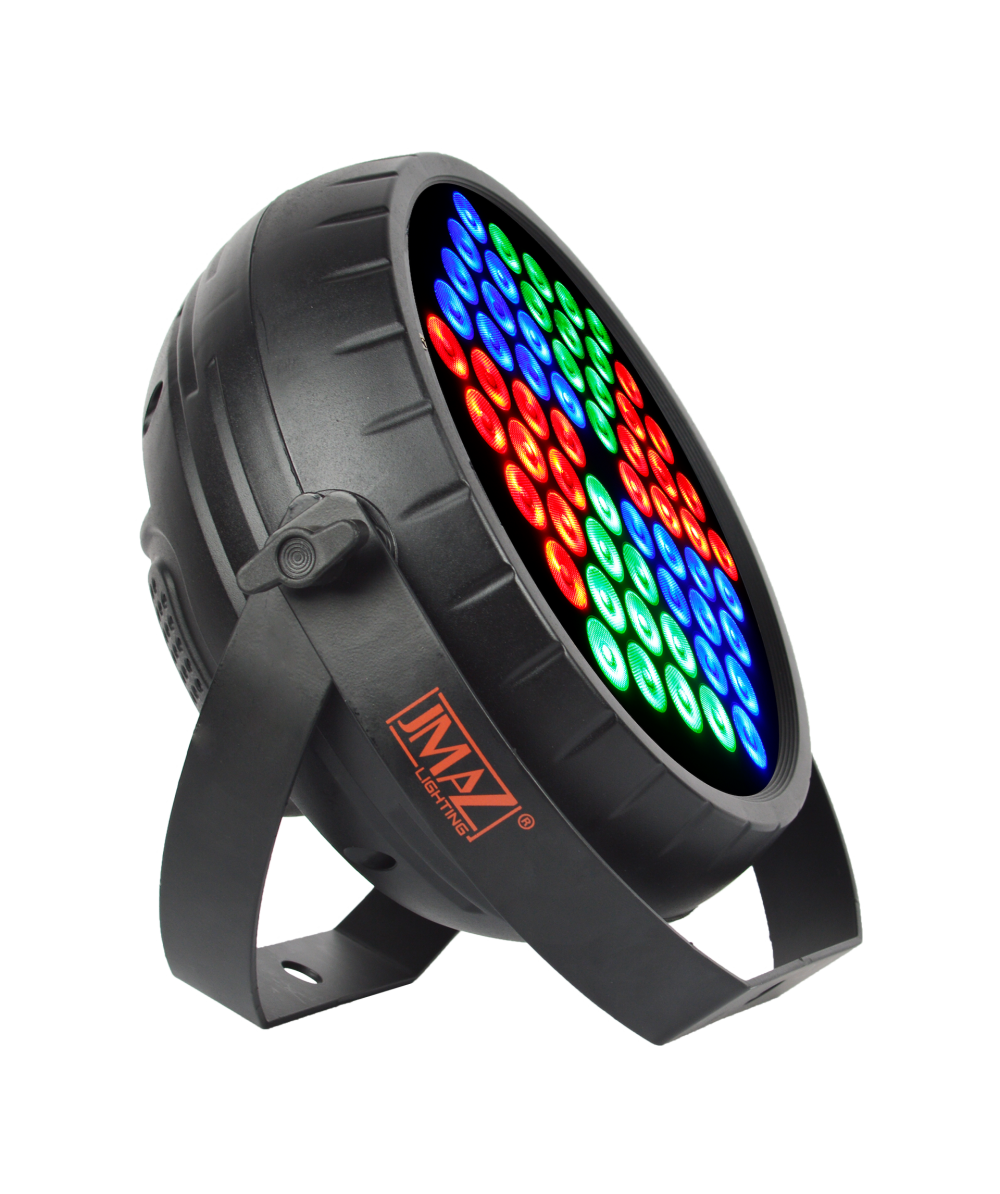

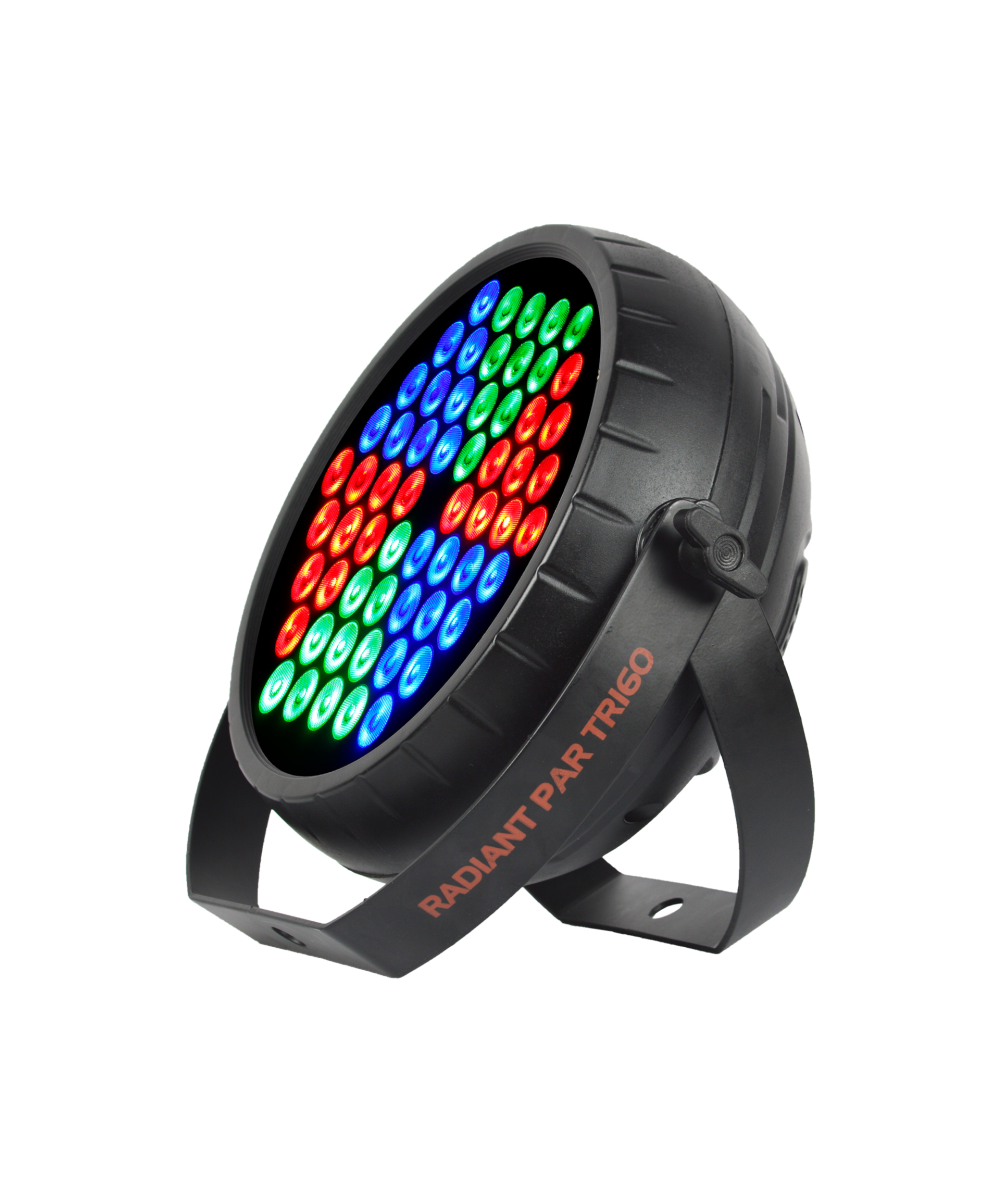

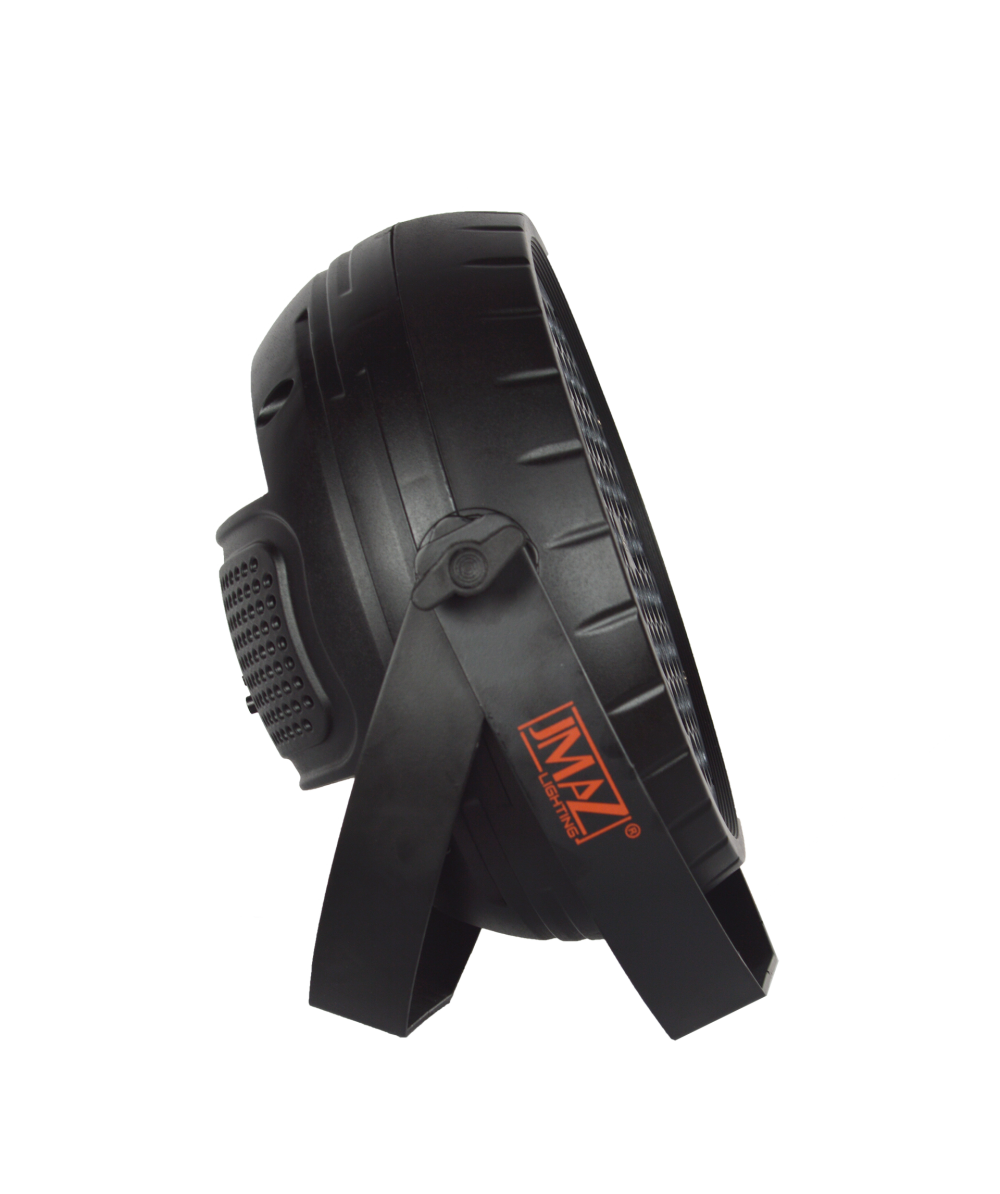

RADANT PAR TRI60 is made of a new type of high-temperature, high-strength engineered plastic and cast aluminum casing. The fixture is designed and manufactured strictly following CE standards, in compliance with international standard DMX512 protocol. You can control this fixture independently and it is also linkable with other fixtures for operation. The RADANT PAR TRI60 is ideal for applications in large scale live performance theater, studio, nightclubs and discos. This user manual covers the important information regarding installation and applications. Please securely store this manual for future reference.
|
Light Source |
60 x 3W RGB LEDs |
|
|
CCT: 2800K – 8000K |
|
Color System |
RGB LEDs |
|
Optics |
Beam Angle: 26° |
|
Dynamic Effect |
6 Zone Controllable |
|
|
16 Preset Color Programs |
|
|
37 Auto Bulit In Programs |
|
|
20 Advanced Sound Active Mode |
|
|
Propeller And Strobe 25Hz Effect |
|
|
Wash Effect |
|
Control |
Protocols: 5-Pin In/Out DMX512 |
|
|
Personalities: 3 Modes 3/11/31 |
|
|

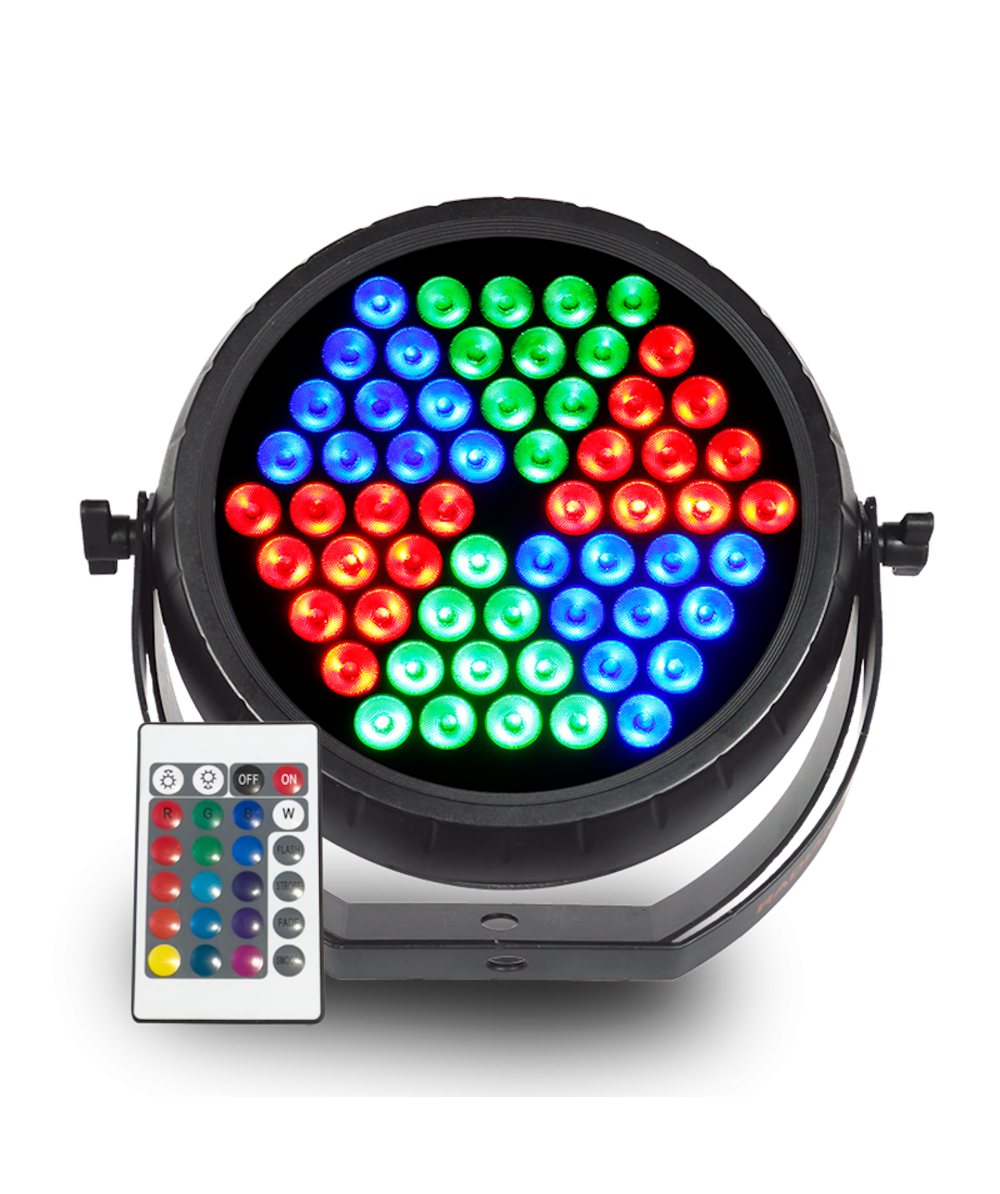

Wireless Control: IR Remote |
|
Electronics |
Dimmer: 0-100% Linear Dimmer |
|
Body |
ABS Die-Cast Plastic w/ Aluminum Structure |
|
Physical |
Cooling Fan |
|
|

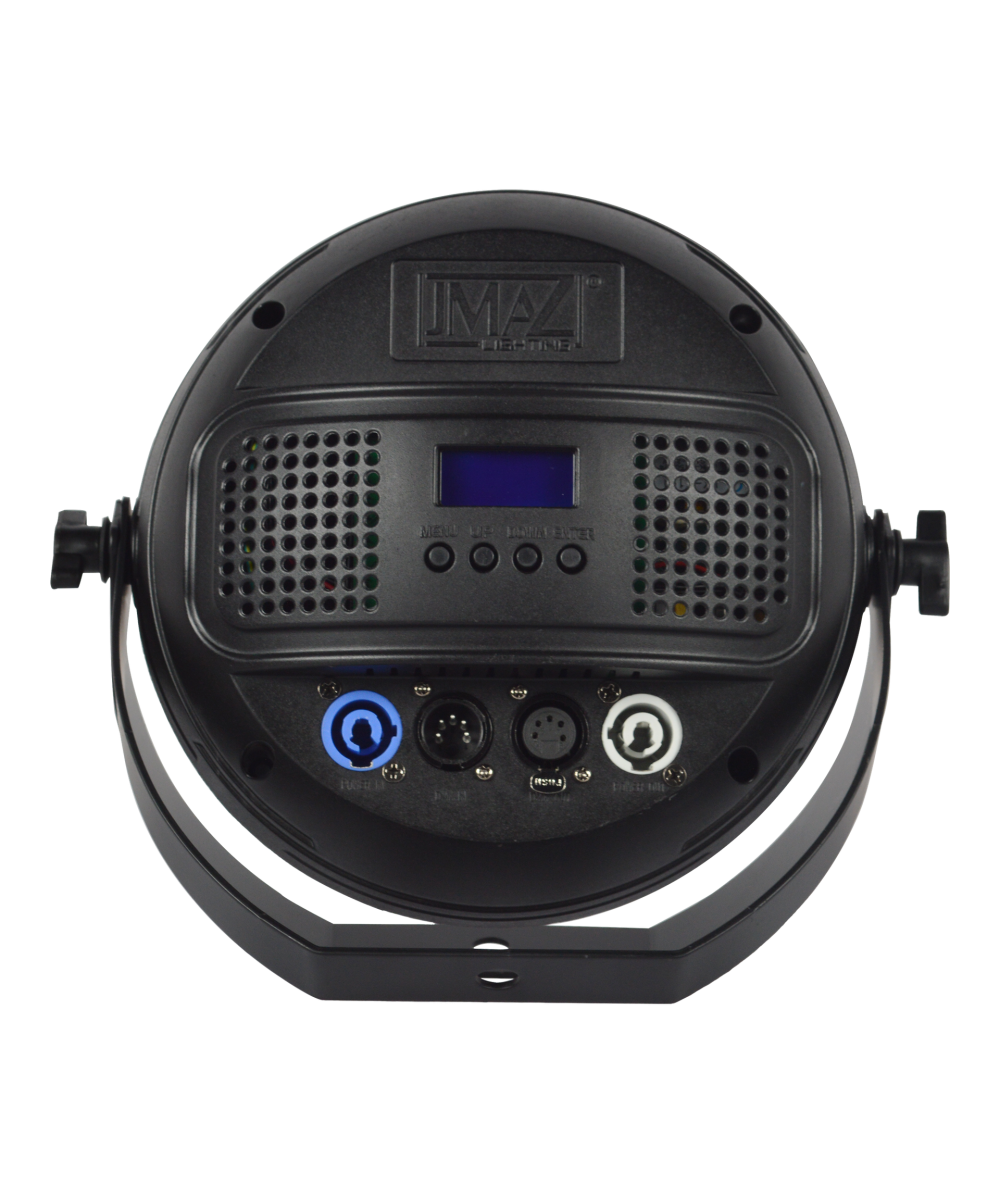

5-PinDMX In/Out |
|
|
powerCON In/Out |
|
Electrical |
Max Power Consumption: 180W |
|
|
Input Voltage: AC 90-260V, 50HZ/60HZ |
|
Box Content |
1 x User Manual |
|
|
1 x 5-pin DMX Cable |
|
|
1 x powerCON Cable |
|
|
1 x IR Remote |
|
Item Dimensions & Weight |
Dimensions: 10.4″ x 8.3″ x 4.6″ |
|
|
Weight: 5.2 lbs” |
|
Warranty |
2 Years |
- JMAZ RADIANT PAR TRI60
- 1 x User Manual
- 1 x 5-pin DMX Cable
- 1 x powerCON Cable
- 1 x IR Remote
